PLUMBER Ultimate Exam

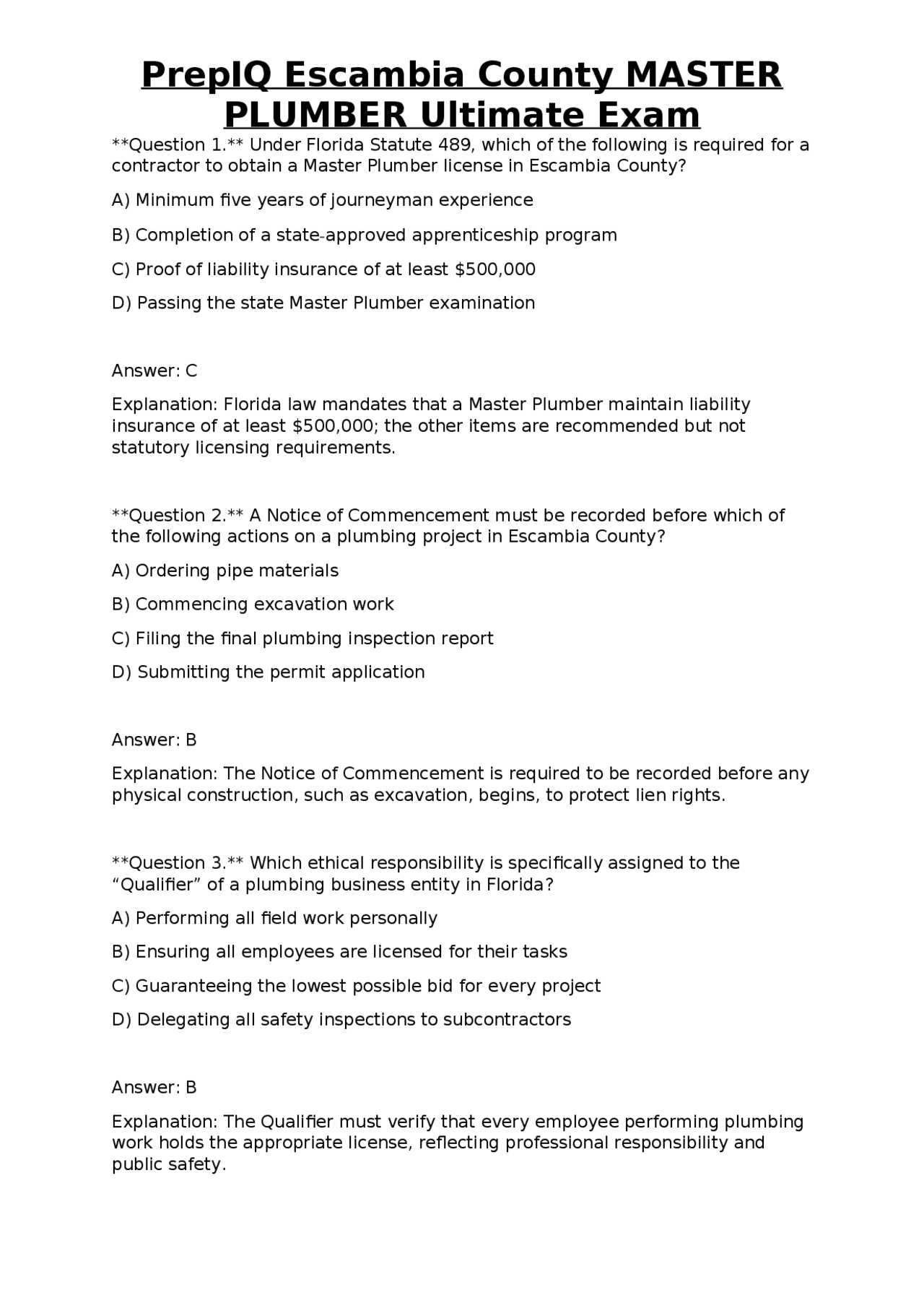

Question 1. Under Florida Statute 489, which of the following is required for a contractor to obtain a Master Plumber license in Escambia County? A) Minimum five years of journeyman experience B) Completion of a state-approved apprenticeship program C) Proof of liability insurance of at least $500, D) Passing the state Master Plumber examination Answer: C Explanation: Florida law mandates that a Master Plumber maintain liability insurance of at least $500,000; the other items are recommended but not statutory licensing requirements. Question 2. A Notice of Commencement must be recorded before which of the following actions on a plumbing project in Escambia County? A) Ordering pipe materials B) Commencing excavation work C) Filing the final plumbing inspection report D) Submitting the permit application Answer: B Explanation: The Notice of Commencement is required to be recorded before any physical construction, such as excavation, begins, to protect lien rights. Question 3. Which ethical responsibility is specifically assigned to the “Qualifier” of a plumbing business entity in Florida? A) Performing all field work personally B) Ensuring all employees are licensed for their tasks C) Guaranteeing the lowest possible bid for every project D) Delegating all safety inspections to subcontractors Answer: B Explanation: The Qualifier must verify that every employee performing plumbing work holds the appropriate license, reflecting professional responsibility and public safety.
PLUMBER Ultimate Exam
Question 4. According to the Florida Building Code (FBC) Plumbing Chapter 4, the minimum number of plumbing fixtures required for a 75-seat restaurant is: A) 3 water closets B) 5 water closets C) 7 water closets D) 9 water closets Answer: C Explanation: FBC Table 403.2 requires one water closet per 25 seats for assembly occupancies, thus a 75-seat restaurant needs at least three water closets per 75 seats, totaling three; however, additional requirements for urinals and hand-washing facilities raise the total to seven fixtures. Question 5. When trenching for a new water main, the required protective shoring depth in Escambia County is: A) 12 inches below the trench bottom B) 24 inches below the trench bottom C) 36 inches below the trench bottom D) No shoring required if the trench is less than 4 ft deep Answer: B Explanation: Local ordinance mandates shoring or shielding to a minimum depth of 24 inches below the trench bottom for excavations deeper than 4 ft, ensuring worker protection. Question 6. To protect underground piping from rodent damage, the code requires which of the following measures? A) Installing steel mesh sleeves around all pipe sections B) Using concrete encasement for pipes larger than 4 inches C) Placing a 2-inch clearance of sand around the pipe D) Applying a rodent-repellent coating to the pipe exterior Answer: B
PLUMBER Ultimate Exam
Explanation: Using the FBC demand table, 400 WSFU requires a minimum of 1¼-in. pipe for adequate pressure and flow. Question 10. A pressure-reducing valve (PRV) is installed on a water main that supplies a 60 psi municipal line to a building requiring 45 psi. Which of the following is true? A) The PRV must be set at 60 psi B) The PRV should be installed downstream of the water meter C) The PRV must be sized for a minimum flow of 30 gpm D) The PRV can be omitted if the building has a water booster pump Answer: B Explanation: PRVs are typically installed downstream of the water meter to protect the building’s internal plumbing from over-pressure. Question 11. Which degree of hazard is assigned to a cross-connection between a potable water line and a fire-sprinkler system? A) Low hazard B) Moderate hazard C) High hazard D) No hazard Answer: B Explanation: Fire-sprinkler systems are considered moderate-hazard cross-connections because they can introduce contaminants under pressure. Question 12. For a commercial restaurant, the most appropriate backflow prevention assembly is: A) Double check valve (DCV) B) Reduced pressure zone (RPZ) assembly C) Pressure vacuum breaker (PVB) D) Atmospheric vacuum breaker (AVB) Answer: B
PLUMBER Ultimate Exam
Explanation: Restaurants have a high-hazard cross-connection; the RPZ provides the highest level of protection required by the code. Question 13. The minimum separation distance between a potable water supply line and a sewer line, according to the FBC, is: A) 6 in. horizontally and 12 in. vertically B) 12 in. horizontally and 6 in. vertically C) 24 in. horizontally and 12 in. vertically D) 36 in. horizontally and 24 in. vertically Answer: A Explanation: The FBC requires a minimum horizontal separation of 6 in. and a vertical separation of 12 in. to prevent contamination. Question 14. When installing a gas-fired water heater, the required vent size for a 75,000 BTU unit using a Category III chimney is: A) 3 in. diameter B) 4 in. diameter C) 5 in. diameter D) 6 in. diameter Answer: B Explanation: Category III venting tables show a 4-in. vent is needed for a 75,000 BTU water heater. Question 15. The purpose of a thermal expansion control device on a closed-loop water system is to: A) Reduce water temperature fluctuations B) Prevent excessive pressure buildup due to expansion C) Increase water flow velocity in the main line D) Provide a secondary shut-off in case of pipe rupture Answer: B
PLUMBER Ultimate Exam
Explanation: The FBC assigns 4 DFU to a water closet for drainage sizing. Question 19. When sizing a horizontal branch for a commercial restroom with a total DFU of 80, the minimum pipe diameter required is: A) 2 in. B) 3 in. C) 4 in. D) 6 in. Answer: B Explanation: According to the DFU pipe sizing chart, 80 DFU requires a minimum 3 - in. horizontal branch. Question 20. The minimum self-scouring velocity for a sanitary pipe carrying wastewater is: A) 2 ft/s B) 3 ft/s C) 5 ft/s D) 8 ft/s Answer: C Explanation: The FBC specifies a minimum of 5 ft/s to keep solids in suspension and prevent blockages. Question 21. Which fitting is appropriate for connecting a vertical stack to a horizontal branch in a drainage system? A) Combination wye (c-wye) B) Sanitary tee (s-tee) C) Elbow (90°) D) Straight coupling Answer: A
PLUMBER Ultimate Exam
Explanation: A combination wye allows smooth transition from vertical to horizontal while maintaining proper flow direction. Question 22. The required size for a cleanout access in a 4-in. building sewer line is: A) 2-in. diameter B) 3-in. diameter C) 4-in. diameter D) 6-in. diameter Answer: B Explanation: The code mandates a cleanout at least one size smaller than the pipe, so a 3-in. cleanout for a 4-in. sewer. Question 23. An air gap for a dishwasher must be at least: A) 1 in. above the flood level B) 2 in. above the flood level C) ½ in. above the flood level D) Equal to the height of the sink rim Answer: B Explanation: The FBC requires a minimum 2-in. air gap to prevent back-siphonage. Question 24. Which of the following is considered an indirect waste fixture? A) Floor drain in a restroom B) Kitchen sink drain C) Sump pump discharge D) Grease interceptor drain Answer: D Explanation: Grease interceptors discharge indirectly to the sanitary system, classifying them as indirect waste.
PLUMBER Ultimate Exam
Question 28. For an island bathtub, the required minimum vent pipe diameter is: A) 1-in. B) 1½-in. C) 2-in. D) 3-in. Answer: C Explanation: Island fixtures require a minimum 2-in. vent to ensure adequate air flow and prevent pressure fluctuations. Question 29. When calculating vent size, a total drainage fixture unit (DFU) load of 120 requires a vent pipe of at least: A) 1-in. B) 1½-in. C) 2-in. D) 3-in. Answer: C Explanation: The vent sizing chart indicates that 120 DFU necessitates a minimum 2-in. vent pipe. Question 30. According to the FBC, a vent termination on a roof must be located at least how far from a window opening? A) 5 ft B) 7 ft C) 10 ft D) 12 ft Answer: C Explanation: The code requires vent terminations to be a minimum of 10 ft horizontally from any window opening to prevent re-entry of gases.
PLUMBER Ultimate Exam
Question 31. An Air Admittance Valve (AAV) may be installed in which of the following situations? A) As the sole vent for a residential kitchen B) In a concealed wall where a traditional vent cannot be run C) Directly above a floor drain in a basement D) Within a hazardous (explosive) atmosphere Answer: B Explanation: AAVs are permitted when a conventional vent is impractical, such as in concealed spaces, provided the code’s installation criteria are met. Question 32. The maximum number of fixture units that a single AAV can serve according to the manufacturer’s standard rating is: A) 5 DFU B) 10 DFU C) 15 DFU D) 20 DFU Answer: C Explanation: Most AAV manufacturers rate their devices for up to 15 DFU; exceeding this requires additional venting. Question 33. A grease interceptor designed for a fast-food restaurant serving 300 meals per day should be sized at: A) 250 gal B) 500 gal C) 750 gal D) 1 000 gal Answer: D Explanation: The FBC recommends a minimum 1 000-gal interceptor for high-volume food service establishments.
PLUMBER Ultimate Exam
Question 37. For a roof drainage system designed for a 2-inch rainfall intensity of 2.5 in/hr, the required size of the leader pipe (assuming a 20-ft run) is: A) 2 in. B) 3 in. C) 4 in. D) 6 in. Answer: B Explanation: Using the local rainfall formula, a 3-in. leader provides the necessary capacity for the given intensity and length. Question 38. When sizing a gas piping system using the Longest Length method, the longest pipe length considered is: A) The distance from the gas meter to the farthest appliance B) The total length of all branch runs combined C) The length of the largest individual branch only D) The sum of the main and the longest branch Answer: D Explanation: The Longest Length method adds the main gas line length to the longest branch to determine pressure drop. Question 39. Which material is prohibited for underground fuel-gas (LP) piping in Escambia County? A) CSST B) Black steel pipe C) Corrugated stainless steel tubing (CSST) with proper fittings D) Polyethylene (PE) pipe Answer: D Explanation: Polyethylene is not approved for LP-gas service due to permeability and lack of certification for fuel gas.
PLUMBER Ultimate Exam
Question 40. The required clearance between an LP-gas storage tank and a property line in Florida is: A) 5 ft B) 10 ft C) 15 ft D) 20 ft Answer: C Explanation: NFPA 58 and Florida regulations require a minimum 15-ft clearance from property lines for LP-gas tanks. Question 41. For a natural-gas-fired furnace requiring 100 % outdoor combustion air, the minimum required opening area is: A) 1 sq ft per 1 000 BTU/hr B) 1 sq ft per 3 000 BTU/hr C) 1 sq ft per 6 000 BTU/hr D) 1 sq ft per 10 000 BTU/hr Answer: C Explanation: The code specifies 1 sq ft of outdoor air opening per 6 000 BTU/hr of appliance input. Question 42. Which venting category (I-IV) is used for a Category III gas-fired water heater with a stainless-steel vent pipe? A) Category I B) Category II C) Category III D) Category IV Answer: C Explanation: The venting category matches the appliance rating; a Category III appliance requires Category III venting regardless of pipe material.
PLUMBER Ultimate Exam
Question 46. OSHA 1926 Subpart C covers which of the following safety topics relevant to plumbing construction? A) Fall protection B) Hazard communication C) Confined spaces D) Personal protective equipment Answer: D Explanation: Subpart C addresses personal protective equipment (PPE) requirements for construction workers. Question 47. Which of the following is the correct method for labeling a hazardous material container on a construction site? A) Using a handwritten label with the word “Hazard” B) Applying an NFPA 704 diamond with appropriate hazard ratings C) Placing a yellow tape around the container D) Using a universal recycling symbol Answer: B Explanation: NFPA 704 diamond labeling provides standardized hazard communication for dangerous substances. Question 48. The minimum slope for a 3-in. horizontal waste pipe to ensure self-scouring flow is: A) 0.5 % B) 1 % C) 1.5 % D) 2 % Answer: B Explanation: The FBC requires a minimum slope of 1 % (1⁄8 in. per foot) for 3-in. waste pipes.
PLUMBER Ultimate Exam
Question 49. A building sewer line that serves multiple structures must have a minimum diameter of: A) 4 in. B) 6 in. C) 8 in. D) 10 in. Answer: B Explanation: The code mandates a minimum 6-in. building sewer for multi-structure service. Question 50. When installing a sanitary tee on a horizontal branch, the correct orientation is: A) The branch connection points upward B) The branch connection points downward C) The inlet must be on the side of the flow direction D) The tee must be rotated 90° from the flow direction Answer: C Explanation: The inlet of a sanitary tee must face the direction of flow to prevent turbulence and potential blockage. Question 51. The required fire-stop rating for a penetrated fire-rated wall with a 2-in. water pipe is: A) 1-hour B) 2-hour C) 3-hour D) 4-hour Answer: C Explanation: The FBC requires a minimum 3-hour fire-stop for penetrations of water service pipes in fire-rated assemblies.
PLUMBER Ultimate Exam
Question 55. The maximum allowable pressure for a residential water distribution system in Escambia County is: A) 50 psi B) 75 psi C) 100 psi D) 125 psi Answer: C Explanation: The local code caps residential water pressure at 100 psi to protect fixtures and reduce leakage. Question 56. When designing a storm-drain roof leader, the recommended minimum slope is: A) 1 % B) 2 % C) 4 % D) 6 % Answer: C Explanation: A 4 % slope (1⁄4 in. per foot) ensures rapid water conveyance and prevents standing water. Question 57. For a commercial kitchen, the required size of a grease interceptor’s inlet pipe is: A) 1½ in. B) 2 in. C) 2½ in. D) 3 in. Answer: C Explanation: The code specifies a minimum 2½-in. inlet for commercial grease interceptors to handle high flow rates.
PLUMBER Ultimate Exam
Question 58. Which of the following statements about a “double-check valve” (DCV) is correct? A) It provides complete protection against back-pressure events B) It is suitable for high-hazard cross-connections C) It consists of two independent check valves in series D) It must be installed downstream of an RPZ Answer: C Explanation: A DCV contains two check valves that work together to prevent backflow under normal conditions. Question 59. The minimum clearance between a vent termination and a mechanical equipment exhaust is: A) 5 ft B) 10 ft C) 15 ft D) 20 ft Answer: B Explanation: To avoid interference and recirculation, vent terminations must be at least 10 ft from other exhaust outlets. Question 60. In a fuel-gas system, the “branch-length” method for sizing pipe is based on: A) The longest continuous run of pipe from the meter to the farthest appliance B) The sum of all branch lengths from the main to each appliance C) The length of the main pipe only D) The average length of all branches Answer: B Explanation: The branch-length method adds the lengths of each branch to determine total pressure drop.
