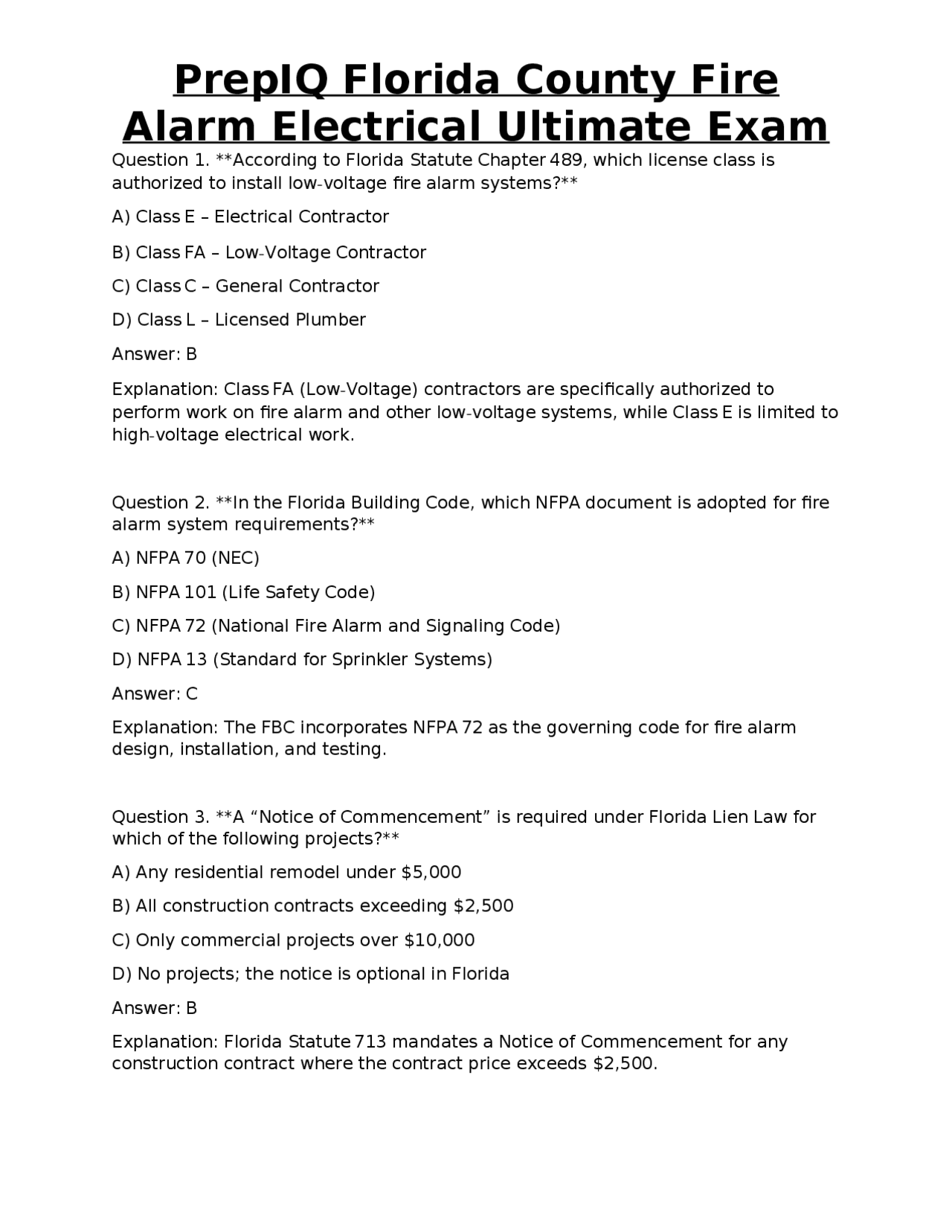

Alarm Electrical Ultimate Exam
Question 1. According to Florida Statute Chapter 489, which license class is authorized to install low-voltage fire alarm systems? A) Class E – Electrical Contractor B) Class FA – Low-Voltage Contractor C) Class C – General Contractor D) Class L – Licensed Plumber Answer: B Explanation: Class FA (Low-Voltage) contractors are specifically authorized to perform work on fire alarm and other low-voltage systems, while Class E is limited to high-voltage electrical work. Question 2. In the Florida Building Code, which NFPA document is adopted for fire alarm system requirements? A) NFPA 70 (NEC) B) NFPA 101 (Life Safety Code) C) NFPA 72 (National Fire Alarm and Signaling Code) D) NFPA 13 (Standard for Sprinkler Systems) Answer: C Explanation: The FBC incorporates NFPA 72 as the governing code for fire alarm design, installation, and testing. Question 3. A “Notice of Commencement” is required under Florida Lien Law for which of the following projects? A) Any residential remodel under $5, B) All construction contracts exceeding $2, C) Only commercial projects over $10, D) No projects; the notice is optional in Florida Answer: B Explanation: Florida Statute 713 mandates a Notice of Commencement for any construction contract where the contract price exceeds $2,500.
Alarm Electrical Ultimate Exam
Question 4. Which occupancy classification in the FBC requires a minimum of one audible fire alarm device per 1,500 ft² of floor area? A) Assembly (Group A) B) Residential (Group R) C) Business (Group B) D) Industrial (Group I) Answer: A Explanation: Assembly occupancies have the most stringent audible coverage requirements, typically one device per 1,500 ft², per NFPA 72 Table 18.5.5.1. Question 5. When coordinating fire alarm and sprinkler systems, a water-flow switch must be connected to which type of alarm signal? A) Supervisory signal only B) Alarm signal only C) Both supervisory and alarm signals D) Neither; it operates independently Answer: C Explanation: NFPA 72 requires water-flow switches to generate both a supervisory signal (to indicate the sprinkler system is active) and an alarm signal (to trigger the fire alarm). Question 6. Which of the following is the correct spacing for smoke detectors on a smooth, flat ceiling in a high-rise building? A) 30 ft maximum, 12 ft minimum B) 45 ft maximum, 15 ft minimum C) 50 ft maximum, 10 ft minimum D) 60 ft maximum, 20 ft minimum Answer: B Explanation: NFPA 72 Chapter 14.2.8.3.2 specifies a maximum spacing of 45 ft and a minimum of 15 ft for smoke detectors on smooth ceilings.
Alarm Electrical Ultimate Exam
A) 30 ft B) 40 ft C) 50 ft D) 60 ft Answer: B Explanation: Using NFPA 72 Table 18.5.5.4.1(a), a 150-cd strobe in a 10-ft ceiling room may be spaced up to 40 ft apart. Question 11. Synchronization of visual alarms is required when the line-of-sight distance between strobes exceeds: A) 10 ft B) 30 ft C) 50 ft D) 75 ft Answer: C Explanation: NFPA 72 mandates synchronization of strobes when the line-of-sight distance exceeds 50 ft to avoid disorienting flashing patterns. Question 12. In an Emergency Voice/Alarm Communication System (EVACS), the intelligibility requirement for speech is expressed as: A) Minimum 85 % correct words at 15 ft B) Minimum 90 % correct words at 10 ft C) Minimum 95 % correct words at 5 ft D) Minimum 80 % correct words at 20 ft Answer: A Explanation: NFPA 72 requires that speech be intelligible at a level of at least 85 % correct words at a distance of 15 ft. Question 13. Which NEC article governs the installation of fire alarm raceways and cables? A) Article 300 – General Wiring Methods
Alarm Electrical Ultimate Exam
B) Article 760 – Fire Alarm Systems C) Article 820 – Audio/Video Systems D) Article 830 – Network Cabling Answer: B Explanation: NEC Article 760 specifically addresses fire alarm system wiring, including raceway types and separation from other systems. Question 14. Fire alarm conductors must be identified with which color in accordance with NEC 760.72? A) Red for alarm circuits, black for supervisory circuits B) Blue for all fire alarm circuits C) White for all fire alarm circuits D) Orange for notification appliances, green for initiating devices Answer: A Explanation: NEC 760.72 requires alarm circuits to be identified with red insulation and supervisory circuits with black. Question 15. What is the minimum conduit fill percentage allowed for fire alarm conductors in a rigid metal conduit? A) 20 % B) 30 % C) 40 % D) 53 % Answer: D Explanation: NEC Table 1 in Chapter 9 permits up to 53 % conduit fill for conductors in a rigid metal conduit, provided the conductors are not over-sized. Question 16. The primary power source for a fire alarm control panel must be supplied from a dedicated circuit rated at: A) 15 A B) 20 A
Alarm Electrical Ultimate Exam
D) Grounding only through the power supply conduit Answer: A Explanation: NFPA 72 and NEC require the fire alarm control panel to be grounded to the building’s main grounding electrode system. Question 20. A transient voltage surge suppressor (TVSS) is required on fire alarm circuits when the length of the circuit exceeds: A) 50 ft B) 100 ft C) 150 ft D) 200 ft Answer: B Explanation: NFPA 72 recommends installing a TVSS on circuits longer than 100 ft to protect against surges. Question 21. During acceptance testing, which of the following must be verified before functional testing begins? A) Battery voltage only B) Panel programming, address assignments, and circuit continuity C) Only the visual alarm devices D) Only the audible alarm devices Answer: B Explanation: Pre-test procedures require verification of panel programming, device addressing, and circuit continuity to ensure the system is correctly configured. Question 22. The minimum test frequency for audible devices in a fire alarm system is: A) Every 6 months B) Annually C) Every 2 years D) Every 5 years
Alarm Electrical Ultimate Exam
Answer: B Explanation: NFPA 72 requires audible devices to be tested at least annually. Question 23. Which of the following is considered a “trouble signal” on a fire alarm control panel? A) Low-voltage alarm activation B) Power failure on the primary source C) Supervisory signal from a sprinkler valve tamper switch D) Battery low-voltage condition Answer: D Explanation: A low-voltage condition on the backup battery generates a trouble signal, indicating a fault that must be addressed. Question 24. A “Style 4” fire alarm circuit provides which level of survivability? A) No survivability; single circuit only B) 30 % survivability after fire damage C) 60 % survivability, with separate conduit for each circuit group D) 100 % survivability, with independent pathways for all circuits Answer: C Explanation: Style 4 circuits use separate conduit for each circuit group, yielding approximately 60 % survivability after a fire event. Question 25. In a conventional fire alarm system, the number of zones is limited to: A) 8 zones per panel B) 16 zones per panel C) 32 zones per panel D) No limit, as long as the panel can address them Answer: D
Alarm Electrical Ultimate Exam
Question 29. For a fire alarm system serving a healthcare occupancy (Group I), the minimum audible coverage per patient room is: A) One device per 500 ft² B) One device per 750 ft² C) One device per 1,000 ft² D) One device per 1,250 ft² Answer: B Explanation: NFPA 72 requires a higher density of audible devices in healthcare settings, typically one per 750 ft². Question 30. When installing a fire alarm cable in a metal conduit, the conduit must be bonded to the panel at which point? A) Only at the panel end B) Both ends of the conduit run C) No bonding is required for metal conduit D) Only at the remote end Answer: B Explanation: NEC 250.92 requires bonding of metal raceways at both ends to ensure proper grounding continuity. Question 31. Which of the following is the correct method for testing a carbon monoxide (CO) detector’s sensitivity? A) Using a calibrated CO test gas at 50 ppm for 30 seconds B) Visual inspection of the LED indicator only C) Simulating a fire with a smoke generator D) No testing is required; CO detectors are self-diagnosing Answer: A Explanation: CO detectors are tested with a calibrated CO test gas, typically at 50 ppm for a specified duration, to verify sensitivity.
Alarm Electrical Ultimate Exam
Question 32. In a fire alarm system, a “supervisory signal” is generated when: A) An alarm condition is detected B) A water-flow switch is activated C) A monitored device is removed or tampered with D) The battery reaches 100 % charge Answer: C Explanation: Supervisory signals indicate a condition that requires attention but is not an immediate fire alarm, such as tampering or loss of supervision. Question 33. The required minimum fire alarm panel disconnecting means must be located: A) Within 5 ft of the panel and clearly labeled B) Anywhere in the building, as long as it is locked C) Only in the main electrical room D) Inside the panel enclosure Answer: A Explanation: NFPA 72 mandates that the disconnect be within 5 ft of the panel and permanently identified. Question 34. Which of the following best describes a “multiplex” fire alarm system? A) A system that uses analog addressable devices over a single pair of wires B) A conventional system with multiple zones C) A wireless system that transmits data via radio frequency D) A system that integrates fire alarm and building automation on a shared network Answer: A Explanation: Multiplex systems employ analog addressable devices that communicate over a single pair of wires, allowing extensive device data with minimal cabling.
Alarm Electrical Ultimate Exam
Question 38. According to NFPA 72, the minimum battery capacity for a fire alarm system with a 1 kW alarm load is: A) 500 Ah B) 800 Ah C) 1,200 Ah D) 1,600 Ah Answer: C Explanation: Battery capacity is calculated using the formula: (Alarm Load × 5 min + Standby Load × 24 h) ÷ Battery Voltage. For a 1 kW load, the result is approximately 1,200 Ah. Question 39. Which of the following is considered a “primary fire alarm initiating device”? A) Supervisory water-flow switch B) Smoke detector C) Battery low-voltage indicator D) Panel trouble light Answer: B Explanation: Primary initiating devices directly detect fire conditions, such as smoke detectors, whereas supervisory devices monitor system components. Question 40. The required minimum spacing between audible devices in a high-ceiling (≥ 30 ft) auditorium is: A) 30 ft B) 45 ft C) 60 ft D) 75 ft Answer: C Explanation: NFPA 72 Table 18.5.5.5.1 allows a maximum spacing of 60 ft for audible devices in spaces with ceilings 30 ft or higher.
Alarm Electrical Ultimate Exam
Question 41. In a fire alarm system, a “trouble” condition must be cleared within how many minutes after the cause is corrected? A) 5 minutes B) 10 minutes C) 30 minutes D) 60 minutes Answer: C Explanation: NFPA 72 requires that trouble conditions be cleared within 30 minutes after the corrective action is taken. Question 42. Which of the following statements about “two-stage manual pull stations” is true? A) They provide a single alarm signal only. B) The first pull sends a supervisory signal; the second sends an alarm. C) They are prohibited in Florida. D) They must be installed at every exit. Answer: B Explanation: Two-stage stations first send a supervisory signal, allowing occupants to verify before initiating a full alarm with the second pull. Question 43. The maximum allowable length for a fire alarm circuit without a repeater is: A) 2,000 ft B) 3,500 ft C) 5,000 ft D) 7,500 ft Answer: B Explanation: NFPA 72 limits fire alarm circuit runs to 3,500 ft unless a repeater or amplifier is used.
Alarm Electrical Ultimate Exam
Question 47. The minimum number of manual pull stations required in a hallway that is 80 ft long, according to NFPA 72, is: A) 1 B) 2 C) 3 D) 4 Answer: B Explanation: Manual stations must be placed not more than 75 ft apart. An 80-ft hallway requires at least two stations (one at each end). Question 48. A fire alarm system that uses a “network-based” architecture typically communicates via: A) Analog voltage signals only B) Ethernet/IP or proprietary digital protocols C) Direct hard-wired point-to-point loops D) Wireless Bluetooth signals Answer: B Explanation: Network-based fire alarm systems employ digital communication protocols over Ethernet or similar networks. Question 49. Which of the following is a required feature of a fire alarm panel in a high-rise building (≥ 75 ft)? A) Built-in fire sprinkler control B) Emergency voice communication capability C) Dual power supplies (primary and secondary) with automatic transfer D) Integrated HVAC control Answer: C Explanation: High-rise buildings must have dual power supplies with automatic transfer to ensure continuous operation.
Alarm Electrical Ultimate Exam
Question 50. Under Florida Statute 713, a subcontractor may file a lien after how many days from the date of actual furnishing of labor or materials? A) 30 days B) 45 days C) 60 days D) 90 days Answer: B Explanation: The lien filing deadline for subcontractors in Florida is 45 days after furnishing labor or materials. Question 51. Which type of fire alarm notification appliance is required in a room where occupants may be hearing-impaired? A) Audible horn only B) Visual strobe only C) Both audible horn and visual strobe, synchronized D) Voice evacuation system only Answer: C Explanation: NFPA 72 mandates both audible and visual devices, synchronized, to accommodate hearing-impaired occupants. Question 52. For a fire alarm system installed in a laboratory handling hazardous chemicals, which detection method is most appropriate? A) Standard photoelectric smoke detector B) Ionization smoke detector C) Multi-criteria detector (smoke, heat, CO) D) Linear heat detector only Answer: C Explanation: Multi-criteria detectors can sense smoke, heat, and CO, providing comprehensive detection in hazardous chemical environments.
Alarm Electrical Ultimate Exam
Question 56. The NEC permits fire alarm wiring to be installed in which of the following raceway types without additional fire-stop? A) Non-metallic sheathed cable (NM) B) Flexible metal conduit (FMC) C) Rigid metal conduit (RMC) D) PVC conduit in a fire-rated wall Answer: C Explanation: Rigid metal conduit provides inherent fire protection and does not require additional fire-stop when penetrating fire-rated assemblies. Question 57. A fire alarm system’s “standby power” must be capable of maintaining system operation for at least: A) 12 hours B) 18 hours C) 24 hours D) 48 hours Answer: C Explanation: NFPA 72 requires standby power to sustain the system for a minimum of 24 hours. Question 58. Which of the following devices must be installed in a fire alarm system that serves a nursing home (Group I) to meet occupancy requirements? A) Only audible alarms in common areas B) Audible alarms, visual strobes, and an emergency voice system C) Visual strobes only in patient rooms D) No notification appliances required in patient rooms Answer: B Explanation: Group I occupancies require a combination of audible, visual, and voice communication to ensure safe evacuation of all residents.
Alarm Electrical Ultimate Exam
Question 59. When a fire alarm control panel is powered by a generator, the generator must be: A) Rated at 10 % of the panel load B) Connected through a transfer switch that isolates the panel from utility power C) Permanently connected without a transfer switch D) Only used for testing purposes, not for emergency power Answer: B Explanation: A transfer switch isolates the panel from utility power to prevent back-feeding and ensures proper emergency power operation. Question 60. Which of the following statements about “cable segregation” in fire alarm installations is correct? A) Fire alarm cables may be run in the same conduit as power cables without separation. B) Fire alarm cables must be separated from power cables by at least 12 in. or be in separate raceways. C) No segregation is required if the fire alarm cables are PVC. D) Segregation is only required for analog addressable systems. Answer: B Explanation: NEC 300.3(C) requires fire alarm circuits to be separated from power circuits by at least 12 in. or placed in separate raceways to reduce interference. Question 61. The minimum temperature rating for a heat detector installed in a mechanical room is: A) 135 °F (57 °C) B) 165 °F (74 °C) C) 190 °F (88 °C) D) 212 °F (100 °C) Answer: B Explanation: NFPA 72 specifies a minimum rating of 165 °F for heat detectors placed in mechanical rooms.
