Ultimate Exam

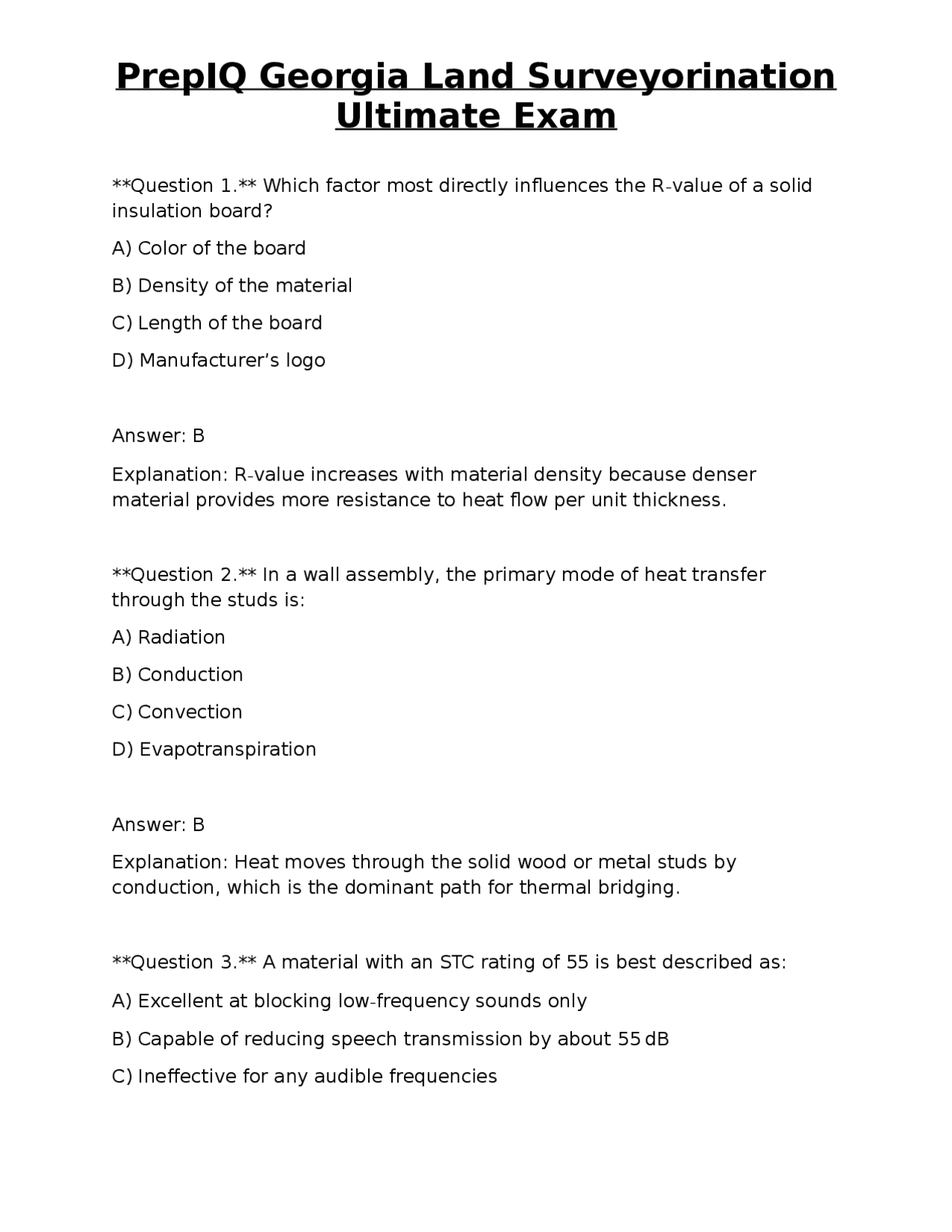

Question 1. Which factor most directly influences the R-value of a solid insulation board? A) Color of the board B) Density of the material C) Length of the board D) Manufacturer’s logo Answer: B Explanation: R-value increases with material density because denser material provides more resistance to heat flow per unit thickness. Question 2. In a wall assembly, the primary mode of heat transfer through the studs is: A) Radiation B) Conduction C) Convection D) Evapotranspiration Answer: B Explanation: Heat moves through the solid wood or metal studs by conduction, which is the dominant path for thermal bridging. Question 3. A material with an STC rating of 55 is best described as: A) Excellent at blocking low-frequency sounds only B) Capable of reducing speech transmission by about 55 dB C) Ineffective for any audible frequencies
Ultimate Exam
D) Only suitable for interior partitions Answer: B Explanation: STC (Sound Transmission Class) measures overall sound reduction; a rating of 55 indicates a high level of sound attenuation across a broad frequency range. Question 4. The 2021 International Energy Conservation Code (IECC) requires a minimum R-value of 13 for exterior walls in Climate Zone 4. Which of the following meets this requirement? A) 2-in. fiberglass batt (R-value 7) B) 3-in. mineral wool batt (R-value 11) C) 4-in. EPS board (R-value 14) D) 1-in. reflective foil (R-value 1) Answer: C Explanation: Only the 4-in. EPS board provides an R-value of 14, exceeding the required R-13. Question 5. When installing insulation in a wall cavity, the dew point is most likely to occur: A) Inside the insulation material B) On the interior side of the drywall C) At the exterior sheathing D) Within the cavity air space Answer: D
Ultimate Exam
A) Staple the top edge to the top plate only B) Use wire stay rods or staple the flanges to studs at 24-in. intervals C) Glue the batt directly to the drywall D) Apply heavy weights on top of the batt Answer: B Explanation: Wire stay rods or stapling flanges provide mechanical support, preventing the batt from sliding down. Question 9. During a blown-in cellulose installation, the “settled thickness” is typically: A) 10 % greater than the installed thickness B) Equal to the installed thickness C) 10- 15 % less than the installed thickness after a few months D) Unrelated to the installed thickness Answer: C Explanation: Cellulose settles over time, reducing the thickness by about 10 - 15 % and slightly decreasing the effective R-value. Question 10. The purpose of installing baffles in an attic space is to: A) Increase the attic’s structural load capacity B) Create a continuous air channel for soffit ventilation C) Provide a surface for attaching insulation boards D) Seal off the attic from the exterior Answer: B
Ultimate Exam
Explanation: Baffles maintain an open path from soffits to the attic, allowing proper ventilation and preventing insulation from blocking airflow. Question 11. Which temperature range is recommended for applying closed-cell spray foam on a concrete substrate? A) 0 °C to 10 °C (32 °F- 50 °F) B) 10 °C to 30 °C (50 °F- 86 °F) C) 30 °C to 45 °C (86 °F- 113 °F) D) Below freezing Answer: B Explanation: Closed-cell foam cures properly within 10- 30 °C; too cold slows reaction, too hot can cause over-expansion and surface defects. Question 12. Open-cell spray foam is primarily used as: A) A structural load-bearing element B) An air barrier and acoustic sealant C) A waterproof membrane D) A fire-resistant coating Answer: B Explanation: Open-cell foam is low-density, allowing it to fill gaps and act as an air barrier while also providing sound dampening. Question 13. After spraying polyurethane foam, the recommended minimum ventilation time before re-occupying the space is: A) 5 minutes
Ultimate Exam
Explanation: An air space of about ½ in. is needed for the reflective surface to effectively reduce radiant heat flow. Question 16. When applying rigid board insulation to an exterior concrete foundation, the installer should first: A) Paint the concrete with latex paint B) Apply a vapor-impermeable membrane on the interior side only C) Install a moisture-resistant barrier (e.g., house wrap) over the concrete D) Install metal flashing directly on the concrete Answer: C Explanation: A moisture-resistant barrier prevents water intrusion and protects the insulation from concrete moisture. Question 17. In Arizona’s “warm-in-winter” climate, the vapor retarder should be placed: A) On the exterior side of the insulation B) Directly against the interior drywall C) Between the insulation and the exterior sheathing D) No vapor retarder is required Answer: B Explanation: For warm-in-winter climates, the vapor retarder is placed on the interior side to prevent indoor moisture from migrating outward. Question 18. Class III vapor retarders have a perm rating of: A) 0-0.1 perm B) 0.1- 1 perm
Ultimate Exam
C) 1- 10 perm D) Greater than 10 perm Answer: C Explanation: Class III vapor retarders are semi-permeable, allowing limited vapor diffusion with perm values between 1 and 10. Question 19. The correct method for sealing seams of a polyethylene vapor barrier is: A) Overlapping 2 in. and taping with a compatible vapor-seal tape B) Overlapping 6 in. and stapling together C) Using silicone caulk only D) No sealing required if the barrier is continuous Answer: A Explanation: Overlapping by 2 in. and sealing with vapor-retarder tape ensures a continuous air-tight barrier. Question 20. OSHA requires which type of respirator when cutting fiberglass batt insulation? A) No respirator needed B) N95 particulate respirator C) Half-face air-purifying respirator with P100 filter D) Full-face supplied-air respirator Answer: C Explanation: Fiberglass dust requires a P100 filter to protect against fine particles; an N95 is insufficient for the small fibers.
Ultimate Exam
D) A rooftop deck Answer: B Explanation: Crawlspaces often have restricted entry and poor ventilation, meeting OSHA’s definition of a confined space. Question 24. The R-value of a 3-in. thick fiberglass batt is approximately: A) 3 B) 6 C) 9 D) 12 Answer: B Explanation: Standard fiberglass batts provide about R-3 per inch, so 3 in. equals roughly R-9, but typical commercially available 3-in. batts are rated at R-6 due to lower density; thus the closest standard rating is R-6. Question 25. Which insulation material is most effective at reducing air infiltration when installed correctly? A) Loose-fill cellulose B) Rigid polyiso board C) Closed-cell spray foam D) Reflective foil Answer: C Explanation: Closed-cell spray foam expands to fill gaps and acts as an airtight barrier, reducing air infiltration better than the other options.
Ultimate Exam
Question 26. The primary advantage of mineral wool over fiberglass in fire-rated assemblies is: A) Lower cost B) Higher R-value per inch C) Non-combustibility and higher melt point D) Greater flexibility Answer: C Explanation: Mineral wool does not burn and has a higher melt point, making it superior for fire-rated constructions. Question 27. When installing insulation over a vapor barrier, the installer must ensure that the insulation: A) Is compressed to increase density B) Is installed with the vapor barrier facing upward C) Does not puncture the vapor barrier during placement D) Is glued directly to the vapor barrier Answer: C Explanation: Puncturing the vapor barrier compromises its function; insulation must be placed carefully to avoid tears. Question 28. Which of the following best describes the “thermal bridge” concept? A) A path of high thermal resistance B) A location where heat bypasses insulation via a more conductive material C) A reflective surface that radiates heat back into a space D) A type of insulation with built-in heating
Ultimate Exam
Question 31. Which of the following statements about the “settling” of blown-in fiberglass is true? A) It settles more than cellulose B) It does not settle at all C) It settles about 5 % after installation D) It expands over time Answer: C Explanation: Loose-fill fiberglass typically settles around 5 % after installation, slightly reducing the installed R-value. Question 32. A proper installation of a reflective radiant barrier in an attic requires: A) Direct contact with the roof deck B) Installation on the underside of the roof deck with an air gap C) Attachment to the interior drywall D) No air gap, sealed tightly against insulation Answer: B Explanation: Reflective barriers must face an air space; installing them on the underside of the roof deck with an air gap maximizes radiant heat reflection. Question 33. Which PPE item is essential when handling open-cell spray foam chemicals? A) Hearing protection only B) Full-face respirator with organic vapor cartridges C) Steel-toed boots only
Ultimate Exam
D) Safety glasses only Answer: B Explanation: Open-cell foam chemicals emit volatile organic compounds (VOCs); a full-face respirator with appropriate cartridges protects the respiratory system and eyes. Question 34. The term “NRC” (Noise Reduction Coefficient) refers to: A) The ability of a material to block sound transmission B) The amount of sound a material absorbs across frequencies C) The reflective capability of a material for light D) The fire-rating of acoustic panels Answer: B Explanation: NRC measures the average sound absorption of a material; higher NRC values indicate better sound absorption. Question 35. When installing batt insulation in a floor joist cavity, the installer should: A) Leave a 1-in. gap at the top of the cavity for ventilation B) Compress the batt tightly against the subfloor C) Fit the batt snugly without compression, ensuring full coverage D) Staple the batt to the joists Answer: C Explanation: Batt insulation should fill the cavity snugly without compression to maintain its designed R-value.
Ultimate Exam
C) Interior drywall → sheathing → insulation → vapor retarder → exterior cladding D) Interior drywall → insulation → sheathing → exterior cladding → vapor retarder Answer: A Explanation: In warm-in-winter climates, the vapor retarder is placed on the interior side of the insulation to control interior moisture. Question 39. Which insulation product is most suitable for sealing irregularly shaped gaps around pipe penetrations? A) Rigid polyiso board B) Fiberglass batts C) Spray foam (open-cell) D) Reflective foil Answer: C Explanation: Open-cell spray foam expands to fill irregular gaps and provides an air seal around penetrations. Question 40. OSHA requires that a confined space entry permit be obtained when: A) The space is larger than 10 ft³ B) The space contains hazardous chemicals or limited ventilation C) The space is outdoors D) The work is performed by a single worker Answer: B
Ultimate Exam
Explanation: Confined spaces with hazardous atmospheres or limited ventilation require a permit to ensure safety procedures are followed. Question 41. The most common cause of insulation compression loss in attic installations is: A) Excessive heat from recessed lights B) High humidity levels C) Over-loading of insulation with stored items D) Use of reflective barriers Answer: C Explanation: Storing heavy items on top of attic insulation compresses it, reducing its thickness and R-value. Question 42. Which of the following statements about the “air space” requirement for radiant barriers is correct? A) An air space is optional if the barrier is installed on the roof deck B) The air space must be sealed to prevent moisture migration C) The air space must be at least ¼ in. to allow effective reflection of radiant heat D) The air space should be filled with insulation for best performance Answer: C Explanation: A minimum air gap of about ¼ in. is needed for the reflective surface to function properly; sealing the gap defeats its purpose. Question 43. When installing batt insulation in a wall with 2-by-6 studs spaced 24 in. on center, the installer must use batts of what nominal thickness?
Ultimate Exam
Answer: A Explanation: Adding rigid polyiso board creates a continuous high-R layer without disturbing the existing insulation. Question 46. The correct fire-rating classification for mineral wool insulation installed in a wall assembly is typically: A) Class A (non-combustible) B) Class B (limited flame spread) C) Class C (combustible) D) No fire rating Answer: A Explanation: Mineral wool is considered non-combustible and often receives a Class A fire rating. Question 47. Which of the following is the most accurate method for calculating the number of 25-lb bags of cellulose needed for a 1,200 ft² attic to achieve R-30? A) Multiply area by 0.5 and divide by 25 B) Use the manufacturer’s coverage chart: 1 bag covers 40 ft² at R-3.5 per inch, then calculate required thickness C) Assume 1 bag per 10 ft² regardless of R-value D) Use a standard factor of 1 bag per 100 ft² Answer: B Explanation: Manufacturers provide coverage per bag per inch of thickness; using that data yields an accurate bag count for the desired R-30.
Ultimate Exam
Question 48. During spray foam installation, “overspray” refers to: A) Excess foam that builds up on the nozzle B) Foam that lands on surfaces other than the intended cavity C) Foam that does not cure properly D) Foam that expands beyond the specified lift Answer: B Explanation: Overspray is foam that deposits on unintended surfaces, potentially causing messes or coating issues. Question 49. The term “continuous insulation” (CI) means: A) Insulation that is installed only in wall cavities B) Insulation that is installed without any thermal bridges across the building envelope C) Insulation that is applied in a discontinuous pattern D) Insulation that is only reflective Answer: B Explanation: Continuous insulation is applied across the entire envelope, reducing thermal bridging from framing members. Question 50. Which of the following best describes the effect of compressing fiberglass batt insulation to half its original thickness? A) R-value doubles B) R-value remains unchanged C) R-value is roughly halved D) R-value increases by 25 %
