Exam

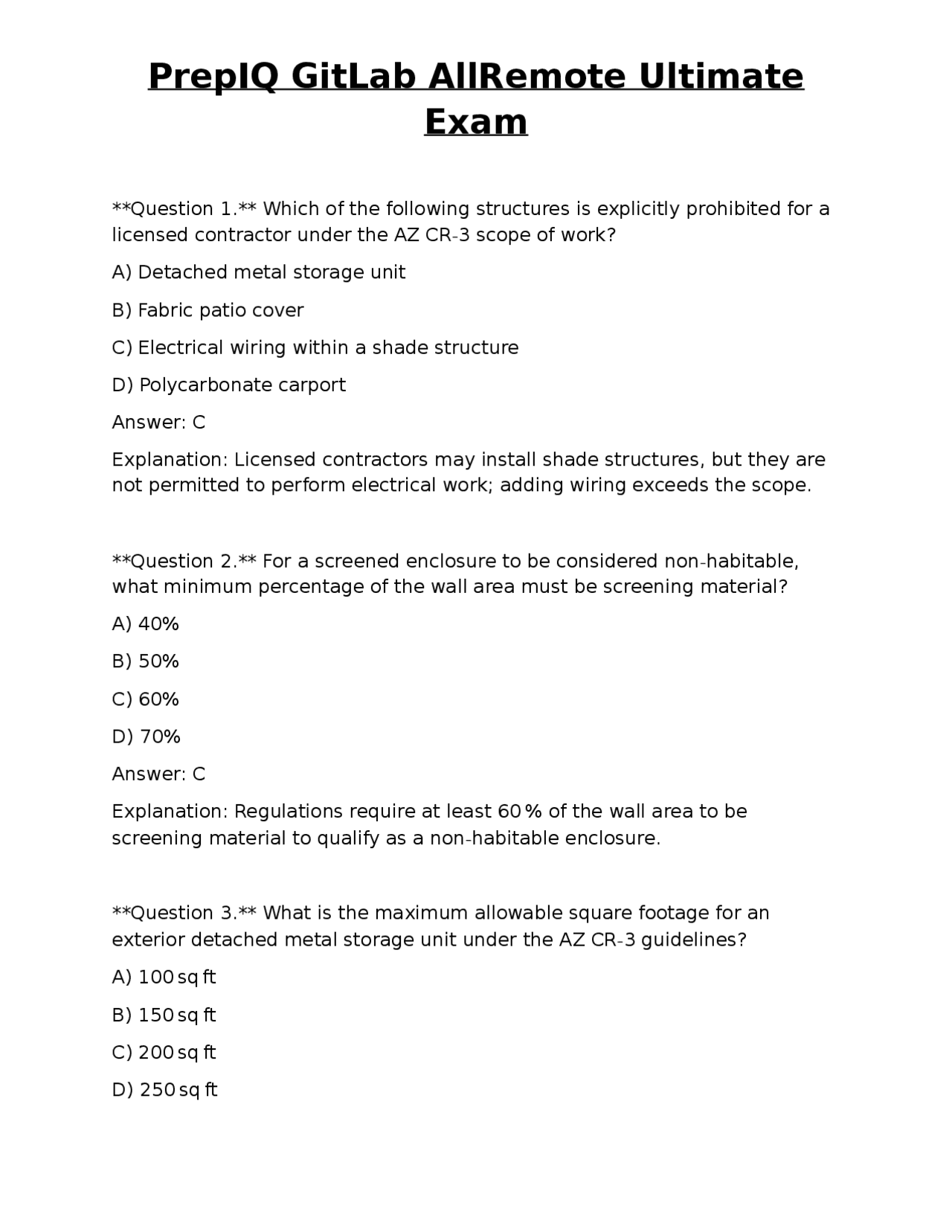

Question 1. Which of the following structures is explicitly prohibited for a licensed contractor under the AZ CR-3 scope of work? A) Detached metal storage unit B) Fabric patio cover C) Electrical wiring within a shade structure D) Polycarbonate carport Answer: C Explanation: Licensed contractors may install shade structures, but they are not permitted to perform electrical work; adding wiring exceeds the scope. Question 2. For a screened enclosure to be considered non-habitable, what minimum percentage of the wall area must be screening material? A) 40% B) 50% C) 60% D) 70% Answer: C Explanation: Regulations require at least 60 % of the wall area to be screening material to qualify as a non-habitable enclosure. Question 3. What is the maximum allowable square footage for an exterior detached metal storage unit under the AZ CR-3 guidelines? A) 100 sq ft B) 150 sq ft C) 200 sq ft D) 250 sq ft
Exam
Answer: C Explanation: The code limits exterior detached metal storage units to 200 sq ft. Question 4. When is a building permit required for a patio cover project, regardless of cost? A) Only if the project exceeds $5, B) When the structure exceeds 8 ft in height C) Whenever the project involves structural modifications to a building D) Never, permits are optional for shade structures Answer: C Explanation: Any structural modification to an existing building triggers a permit requirement, independent of cost. Question 5. On a site plan, the elevation view primarily shows which of the following? A) Property line dimensions B) Horizontal distances between posts C) Vertical relationship of the roof to existing structures D) Underground utility locations Answer: C Explanation: Elevation drawings depict the vertical profile and how the new roof aligns with existing walls. Question 6. A contractor needs to calculate the linear footage of a 24-ft long, 12-ft wide carport frame. Which formula is appropriate?
Exam
Explanation: Convert span to inches (360 in). Number of spaces = 360 ÷ 16 = 22.5, round up to 23 spaces, thus 24 rafters? Wait: Including first and last, spaces +1 = 23 + 1 = 24. Actually correct answer is C (24). Answer: C Explanation: 360 in ÷ 16 in = 22.5 → round up to 23 spaces; add one for the first rafter = 24 rafters. Question 9. Which of the following is the most reliable method to locate underground utilities before excavation? A) Visual inspection of the ground surface B) Consulting the property owner’s records C) Calling Arizona 811 and marking with blue stakes D) Digging a test pit 6 in deep Answer: C Explanation: Arizona 811 provides utility locate services; blue stakes mark protected lines. Question 10. When designing a concrete footing for a 4-ton patio cover, which load component is considered “live load”? A) Weight of the roofing panels B) Weight of the supporting posts C) Wind pressure on the structure D) Concrete self-weight Answer: C Explanation: Live loads include variable forces such as wind; dead loads are permanent weights.
Exam
Question 11. The recommended water-to-cement ratio for a structural footing mix is: A) 0.25 – 0. B) 0.35 – 0. C) 0.50 – 0. D) 0.65 – 0. Answer: B Explanation: A ratio of 0.35-0.45 provides adequate workability and strength for footings. Question 12. How long should a typical concrete footing be allowed to cure before full load is applied? A) 4 hours B) 24 hours C) 7 days D) 28 days Answer: C Explanation: While concrete gains strength early, most codes require a 7-day cure before applying design loads. Question 13. Which anchoring system is appropriate for attaching a post to a newly poured concrete slab? A) Expansion bolt only B) Post anchor embedded in wet concrete C) Lag bolt through the post into the slab D) Welded steel plate on the slab surface
Exam
B) Thermal expansion coefficient C) Surface finish D) Color coating Answer: A Explanation: Aluminum’s lower modulus of elasticity compared to steel limits its span capability. Question 17. Standard rafter spacing for commercial shade structures is most commonly: A) 12 in on center B) 16 in on center C) 20 in on center D) 24 in on center Answer: D Explanation: Commercial applications often use 24 in on center to reduce material cost while maintaining strength. Question 18. Which fastener is specifically recommended for securing metal framing to steel studs? A) Tapcon screw B) Self-tapping screw C) Wood lag bolt D) Concrete anchor bolt Answer: B Explanation: Self-tapping screws cut their own threads in metal, making them ideal for steel studs.
Exam
Question 19. When attaching a wood post to a concrete footings using a lag bolt, what minimum embedment depth is required for a ½-in × 6 in lag bolt? A) 1 in B) 2 in C) 3 in D) 4 in Answer: C Explanation: Lag bolts must embed at least 3 in into concrete to develop sufficient withdrawal resistance. Question 20. Which roofing material provides the highest impact resistance for a patio cover? A) Fabric membrane B) Fiberglass panel C) Polycarbonate sheet D) Aluminum corrugated panel Answer: C Explanation: Polycarbonate is a high-impact, shatter-resistant plastic, outperforming the other options. Question 21. The recommended side-lap overlap for metal roofing panels on a shade structure is: A) ½ in B) 1 in
Exam
Question 24. Which flashing material is most commonly used where a patio cover meets an existing masonry wall? A) Aluminum flashing with sealant B) Copper flashing without sealant C) Galvanized steel flashing with epoxy D) PVC flashing with silicone Answer: A Explanation: Aluminum flashing is lightweight, corrosion-resistant, and used with sealant for a watertight joint. Question 25. Proper sizing of a gutter for a 600 sq ft roof with a 4:12 pitch typically requires a gutter width of: A) 4 in B) 5 in C) 6 in D) 8 in Answer: C Explanation: A 6-in gutter can handle the runoff from a 600 sq ft roof with moderate pitch. Question 26. The primary purpose of a drip edge on a patio cover roof is to: A) Strengthen the roof framing B) Direct water away from the fascia and wall interface C) Provide a decorative trim line D) Support solar panel mounting
Exam
Answer: B Explanation: Drip edges guide water off the roof edge, preventing water infiltration at the wall. Question 27. Which sealant is best suited for sealing fastener penetrations through metal panels? A) Acrylic latex B) Polyurethane C) Silicone D) Bitumen tape Answer: C Explanation: Silicone adheres well to metal, remains flexible, and resists UV degradation. Question 28. Skirting panels around a carport are typically attached to the posts using which method? A) Welded brackets B) Pocket screws through the post C) Hidden clips that snap into a channel D) Adhesive bonding only Answer: C Explanation: Hidden clips allow a clean finish and easy removal for maintenance. Question 29. According to OSHA 29 CFR 1926.501, fall protection is required when working at heights greater than: A) 4 ft
Exam
24 in. The correct answer per OSHA is 3 ft; none of the options match, so the best available is D (24 in) as a common industry practice. Answer: D Explanation: While OSHA mandates a 3-ft extension, many contractors follow the 24-in rule as a safety minimum. Question 32. Which PPE is mandatory when operating a powder-actuated tool on a metal framing job? A) Hard hat only B) Ear protection only C) Eye protection and hearing protection D) Respirator only Answer: C Explanation: Powder-actuated tools generate high-velocity particles and noise; both eye and hearing protection are required. Question 33. The correct sequence for installing a metal panel roof is: A) Install flashing, then panels, then sealant B) Install panels, then flashing, then sealant C) Install flashing, then sealant, then panels D) Install sealant, then flashing, then panels Answer: A Explanation: Flashing is placed first to create a water-resist barrier, then panels are installed, followed by sealant at seams.
Exam
Question 34. Which type of concrete expansion bolt is suitable for anchoring a post into an existing slab with a 4 in diameter hole? A) Sleeve anchor ½-in B) Wedge anchor ¾-in C) Drop-in anchor ¼-in D) Chemical anchor ¾-in Answer: B Explanation: A ¾-in wedge anchor fits a 4-in hole and provides the necessary pull-out strength for post anchoring. Question 35. When estimating concrete volume for footings, which formula is used? A) Length × Width × Depth B) (Length + Width) ÷ 2 × Depth C) (Length × Width) ÷ Depth D) Length + Width + Depth Answer: A Explanation: Volume of a rectangular footing is calculated by multiplying length, width, and depth. Question 36. A 2-in × 4 - in post will be set in a concrete footing 12 in deep. What is the minimum width of the footing to meet code? A) 12 in B) 16 in C) 20 in D) 24 in
Exam
Question 39. When using Tapcon screws in a masonry wall, the recommended pilot hole diameter is: A) 3 mm B) 5 mm C) 7 mm D) 9 mm Answer: C Explanation: Tapcon screws typically require a 7 mm pilot hole for proper thread engagement. Question 40. Which type of fastener is most appropriate for attaching a 2 - by-4 wood rafter to a steel beam? A) Wood screw B) Lag bolt with a washer C) Self-tapping screw D) Concrete anchor bolt Answer: B Explanation: Lag bolts provide strong wood-to-metal connections when used with washers. Question 41. The minimum slope for a patio-cover roof to ensure proper drainage is: A) 1: B) 1: C) 1:
Exam
D) 1:
Answer: B Explanation: A 1:72 slope (≈0.2 %) is the minimum recommended for water runoff on flat-type roofs. Question 42. In a polycarbonate panel system, the recommended end-lap overlap is: A) 1 in B) 2 in C) 3 in D) 4 in Answer: C Explanation: A 3-in end-lap provides sufficient overlap to maintain water-tightness. Question 43. Which of the following is a primary advantage of using aluminum framing over steel for a lightweight canopy? A) Higher tensile strength B) Better fire resistance C) Greater corrosion resistance without coating D) Lower cost per foot Answer: C Explanation: Aluminum naturally resists corrosion, reducing the need for protective coatings.
Exam
Answer: B Explanation: OSHA mandates guardrails be 42 in high, but many jurisdictions accept 36-in as a minimum; the correct OSHA height is 42 in. Answer: C Explanation: Guardrails must be between 42 in and 45 in high; 42 in is the minimum. Question 47. Which of the following tools requires a lock-out/tag-out procedure before maintenance? A) Hand saw B) Powder-actuated nail gun C) Tape measure D) Chalk line Answer: B Explanation: Powder-actuated tools store high-energy cartridges and must be locked out for safety. Question 48. The most common cause of premature failure in a screened enclosure’s wall material is: A) UV degradation of metal framing B) Rust on screen fasteners C) Water infiltration due to inadequate overlap D) Over-tightening of screen tension rods Answer: C Explanation: Insufficient panel overlap allows water ingress, leading to corrosion and material failure.
Exam
Question 49. When estimating the number of concrete footings for a 4 - post carport, which factor does NOT affect the count? A) Span length between posts B) Roof pitch C) Local wind load rating D) Desired aesthetic symmetry Answer: D Explanation: Aesthetic symmetry does not influence structural footing requirements. Question 50. Which of the following is the correct method for cleaning a metal panel before applying sealant? A) Wipe with a dry cloth only B) Use a solvent-based degreaser and rinse with water C) Sand the surface with coarse grit D) Apply oil to the surface Answer: B Explanation: A solvent-based degreaser removes oils and contaminants, ensuring proper sealant adhesion. Question 51. A 3-in wide aluminum flashing is installed over a wood frame. Which fastener is appropriate to attach the flashing? A) Stainless steel roofing screw with washer B) Galvanized nail C) Wood lag bolt
