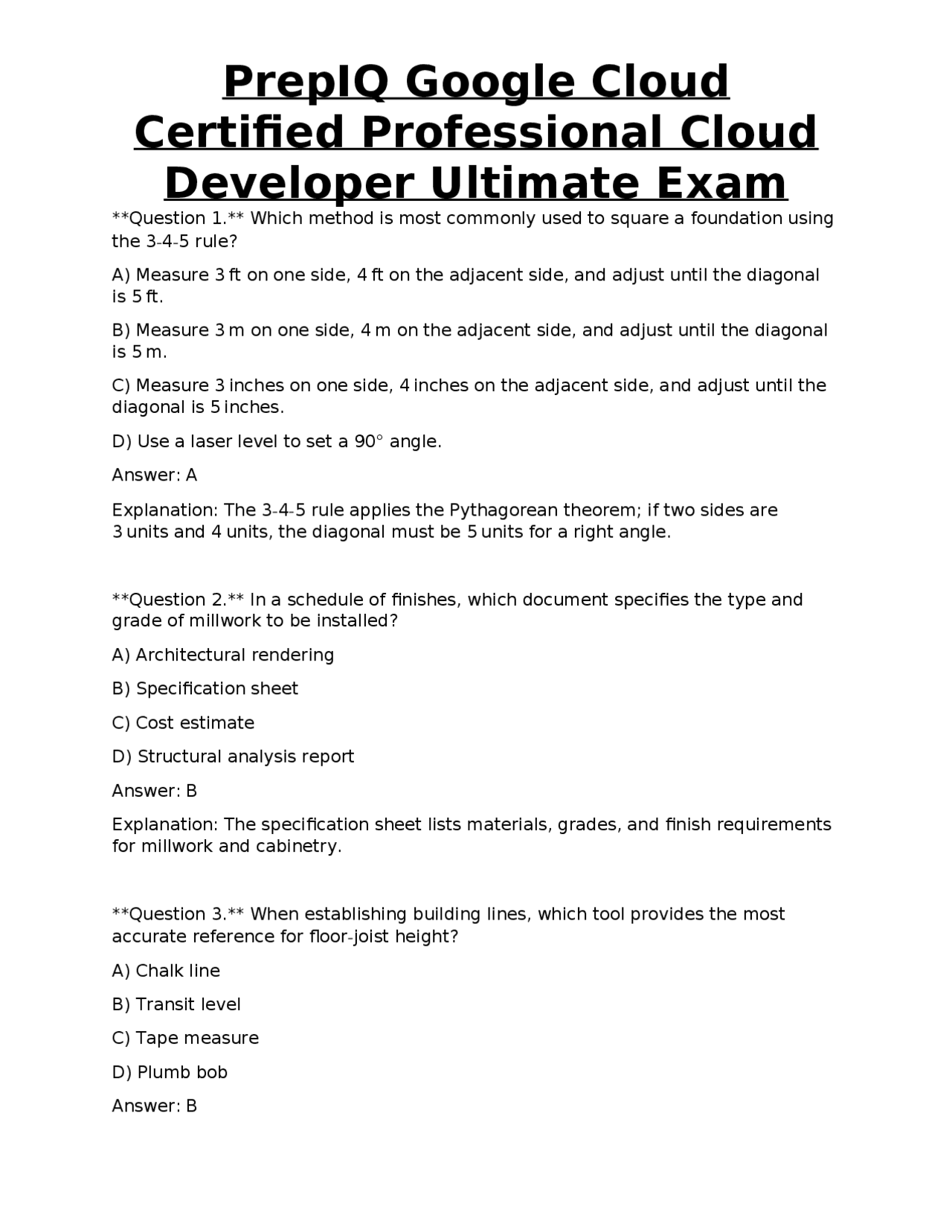

Question 1. Which method is most commonly used to square a foundation using the 3- 4 - 5 rule? A) Measure 3 ft on one side, 4 ft on the adjacent side, and adjust until the diagonal is 5 ft. B) Measure 3 m on one side, 4 m on the adjacent side, and adjust until the diagonal is 5 m. C) Measure 3 inches on one side, 4 inches on the adjacent side, and adjust until the diagonal is 5 inches. D) Use a laser level to set a 90° angle. Answer: A Explanation: The 3- 4 - 5 rule applies the Pythagorean theorem; if two sides are 3 units and 4 units, the diagonal must be 5 units for a right angle. Question 2. In a schedule of finishes, which document specifies the type and grade of millwork to be installed? A) Architectural rendering B) Specification sheet C) Cost estimate D) Structural analysis report Answer: B Explanation: The specification sheet lists materials, grades, and finish requirements for millwork and cabinetry. Question 3. When establishing building lines, which tool provides the most accurate reference for floor-joist height? A) Chalk line B) Transit level C) Tape measure D) Plumb bob Answer: B
Certified Professional Cloud
Developer Ultimate Exam
Explanation: A transit level can be set to a precise elevation and used to transfer that height consistently across the site. Question 4. To calculate board footage for framing, you need to know the length of each piece. Which formula correctly converts linear feet to board footage for a 2 × 4 that is 8 ft long? A) Length × Width × Thickness (in ft) B) Length ÷ Width C) Length × Width (in inches) ÷ 12 D) Length × 2 × 4 ÷ 12 Answer: A Explanation: Board footage = length × width × thickness, all expressed in feet. For a 2 × 4 × 8 ft, board footage = 8 ft × 0.1667 ft × 0.3333 ft ≈ 0.44 bf. Question 5. Which storage condition best prevents warping of finished lumber? A) Stacking directly on the ground B) Storing flat with spacers between each sheet C) Rolling the boards into a cylinder D) Exposing them to direct sunlight Answer: B Explanation: Using spacers maintains airflow and prevents moisture accumulation, reducing warping. Question 6. Pressure-treated sill plates must be anchored to the foundation with bolts spaced no more than what distance apart? A) 12 in B) 24 in C) 36 in D) 48 in
Certified Professional Cloud
Developer Ultimate Exam
Explanation: The IRC limits notches to 1/4 the depth of the joist to preserve structural integrity. Question 10. For OSB subfloor panels, what is the recommended expansion gap at each edge? A) 1/16 in B) 1/8 in C) 1/4 in D) 1/2 in Answer: B Explanation: A 1/8 in gap allows for thermal expansion while preventing squeaks. Question 11. In wall framing, which component carries the load around an opening? A) King stud B) Jack (trimmer) stud C) Header D) Cripple stud Answer: C Explanation: The header spans the opening and transfers loads to the king studs on either side. Question 12. When framing a pocket door, the rough opening must be larger than the door slab by approximately: A) 1/2 in B) 3/4 in C) 1 in D) 2 in Answer: C
Certified Professional Cloud
Developer Ultimate Exam
Explanation: Pocket doors require about a 1-inch clearance for the sliding hardware and framing tolerances. Question 13. Which type of bracing is required in high-wind zones for wood-frame walls? A) Let-in diagonal bracing only B) Shear panels only C) Let-in bracing plus exterior shear panels (portal frame) D) No bracing is required if the wall is sheathed Answer: C Explanation: High-wind areas mandate both let-in bracing and exterior shear panels to meet lateral load requirements. Question 14. To calculate the length of a ridge board for a gable roof, you need to know the run and the pitch. Which formula yields the correct ridge length? A) 2 × run ÷ cos(pitch angle) B) 2 × run × tan(pitch angle) C) 2 × run ÷ sin(pitch angle) D) 2 × run × cos(pitch angle) Answer: A Explanation: The ridge board spans the full width of the building; its length equals twice the run divided by the cosine of the roof pitch angle. Question 15. A “bird’s-mouth” cut on a rafter is used to: A) Create a notch for a ridge board B) Provide a seat for the rafter on the top plate C) Reduce rafter length for overhangs D) Install insulation
Certified Professional Cloud
Developer Ultimate Exam
Answer: C Explanation: The IRC specifies a minimum headroom of 6 ft 8 in measured from the nosing to the ceiling. Question 19. For a stair stringer, the most common method to determine the number of stringers required is: A) One stringer per 12 in of stair width B) One stringer per 16 in of stair width C) One stringer per 24 in of stair width D) One stringer per 30 in of stair width Answer: B Explanation: Building codes typically require a stringer for every 16 in of stair width, with additional support for longer runs. Question 20. When installing a window, the flashing sequence must start at the _____ and progress outward. A) Interior trim B) Sill C) Head D) Jamb Answer: B Explanation: Proper flashing begins at the sill, then the jamb, and finally the head to shed water away from the opening. Question 21. The purpose of a drip cap above an exterior door is to: A) Provide a decorative element B) Direct water away from the door frame C) Increase the door’s thermal rating D) Secure the door hardware
Certified Professional Cloud
Developer Ultimate Exam
Answer: B Explanation: A drip cap channels rainwater away, preventing infiltration at the door threshold. Question 22. Which clearance is required between finished siding and the ground to avoid moisture wicking? A) 1 in B) 4 in C) 6 in D) 8 in Answer: C Explanation: A minimum 6-inch gap between siding and grade helps prevent capillary action and rot. Question 23. When coping an inside corner of base molding, the cutter is set to cut: A) A 45° angle on both pieces B) A 90° angle on both pieces C) A profile that matches the opposite piece’s contour D) A straight cut, then trim with a file Answer: C Explanation: Coping removes the profile of one piece so it fits tightly against the adjoining molding’s contour. Question 24. A scarf joint is most appropriate for: A) Joining two short pieces of crown molding end-to-end B) Connecting two sections of baseboard within a corner C) Attaching a door jamb to a wall stud D) Securing a window frame to a sill
Certified Professional Cloud
Developer Ultimate Exam
Explanation: Scribing involves placing the cabinet, tracing the wall’s contour, and trimming the cabinet to match. Question 28. Which screw type is recommended for attaching wall cabinets to studs? A) Wood screw #6 × 1-1/4 in B) Sheet-metal screw #8 × 1 - 1/2 in C) Lag screw #1/4- 20 × 2 in D) Concrete screw #3 × 2 in Answer: A Explanation: Wood screws of adequate length (1-1/4 in) provide strong pull-out resistance in studs. Question 29. When installing a laminate countertop, the edge treatment most commonly used is: A) Bullnose B) E-edge (exposed) C) Ogee D) Beveled Answer: B Explanation: An exposed edge (E-edge) is the standard finish for laminate countertops, providing a clean line. Question 30. A hidden European hinge requires which adjustment to achieve proper door clearance? A) Tightening the hinge pin B) Shimming the hinge cup C) Setting the hinge’s vertical offset (X-offset) D) Rotating the hinge leaf 90°
Certified Professional Cloud
Developer Ultimate Exam
Answer: C Explanation: The X-offset determines how far the door sits from the frame, allowing precise clearance. Question 31. OSHA 29 CFR 1926 requires fall protection when working at heights of _____ or more. A) 4 ft B) 6 ft C) 8 ft D) 10 ft Answer: B Explanation: The OSHA construction standard mandates fall protection for work at 6 ft or higher. Question 32. Which of the following is an OSHA-required safeguard for a table saw? A) A laser guide B) A riving knife or split-blade guard C) A dust collection bag D) Adjustable fence Answer: B Explanation: A riving knife or split-blade guard prevents kickback, a critical safety requirement. Question 33. When using a pneumatic nail gun, the most important maintenance step is: A) Changing the air filter weekly B) Lubricating the air cylinder after every 100 nails C) Checking the hose for kinks before each use
Certified Professional Cloud
Developer Ultimate Exam
D) The joist that supports the stair landing Answer: B Explanation: Rim joists (or band joists) enclose the floor system, providing a solid edge and bearing. Question 37. Which type of header is required for a 36-in wide door opening supporting a load of 30 psf? A) 2-by-6 solid lumber B) Double 2-by-8 stud-size lumber C) Engineered LVL 1 × 10 D) No header needed if the wall is non-load bearing Answer: B Explanation: A double 2-by-8 (stud-size) header typically meets the load requirements for a 36-in opening under 30 psf. Question 38. Let-in bracing is installed by: A) Nailing diagonal wood members from the top plate to the bottom plate inside the wall cavity B) Attaching metal straps to the exterior sheathing only C) Installing steel rods through drilled holes in studs D) Using only the sheathing as the sole lateral system Answer: A Explanation: Let-in bracing consists of diagonal wood members placed within the wall cavity, nailed to top and bottom plates. Question 39. In a hip roof, the length of a hip rafter is calculated using which geometric relationship? A) Same as the common rafter length B) Length = run ÷ cos(pitch)
Certified Professional Cloud
Developer Ultimate Exam
C) Length = run × sin(pitch) D) Length = run ÷ sin(pitch) Answer: B Explanation: Hip rafters are longer than common rafters; their length equals the run divided by the cosine of the pitch angle. Question 40. The purpose of a look-out (rafter tail) on a roof overhang is to: A) Provide a nailing surface for the fascia B) Support the ridge board C) Increase roof pitch D) Serve as a decorative element only Answer: A Explanation: Look-outs extend beyond the wall to give a solid surface for attaching the fascia board. Question 41. When framing a stair landing, the minimum width of the landing must be at least: A) Equal to the width of the stair tread B) 24 in C) 36 in D) 48 in Answer: C Explanation: The IRC requires a landing width of at least 36 in for safety and accessibility. Question 42. Which of the following is a correct method for installing exterior corner boards? A) Attach them after siding is installed B) Nail them to the sheathing before the WRB
Certified Professional Cloud
Developer Ultimate Exam
B) A 45° angled cut on each piece that overlaps C) A tapered cut that interlocks with a matching groove D) A half-lap joint with overlapping halves Answer: B Explanation: A scarf joint uses matching 45° angles on each piece to create a seamless, strong connection. Question 46. For a 2-by-6 wall stud, the nominal thickness is 1 ½ in. What is the actual thickness? A) 1 in B) 1 ½ in C) 1 ¾ in D) 2 in Answer: B Explanation: Nominal dimensions are rounded; a 2-by-6 actually measures 1 ½ in × 5 ½ in. Question 47. Which type of sheathing provides the highest in-plane shear strength for wall applications? A) OSB 1/2 in B) 5/8-in plywood C) Gypsum board D) Fiber-cement board Answer: B Explanation: 5/8-in plywood offers superior shear strength compared to OSB and other sheathing types. Question 48. When installing a roof truss, the “bird’s-mouth” notch must be cut to a depth of:
Certified Professional Cloud
Developer Ultimate Exam
A) 1/8 in of the truss depth B) 1/4 in of the truss depth C) 1/2 in of the truss depth D) 3/4 in of the truss depth Answer: B Explanation: The bird’s-mouth notch is typically 1/4 in deep to provide a secure bearing on the top plate. Question 49. In stair design, the “rise-to-run” ratio should not exceed: A) 2: B) 3: C) 4: D) 5: Answer: B Explanation: Building codes limit the rise-to-run ratio to 3:1 to ensure comfortable and safe stairs. Question 50. Which of the following is the correct order for flashing a window installation? A) Sill flashing → Jamb flashing → Head flashing → Exterior sealant B) Head flashing → Sill flashing → Jamb flashing → Interior sealant C) Jamb flashing → Sill flashing → Head flashing → Interior sealant D) Exterior sealant → Head flashing → Jamb flashing → Sill flashing Answer: A Explanation: Water must be directed away from the opening, so flashing starts at the sill, then the jambs, then the head. Question 51. When installing a baseboard, the “cove” profile is used to:
Certified Professional Cloud
Developer Ultimate Exam
Question 54. When using a router to cut a decorative edge on a crown molding, the direction of rotation must be: A) Clockwise when cutting on the right side of the workpiece B) Counter-clockwise when cutting on the left side of the workpiece C) Always clockwise regardless of side D) Always counter-clockwise regardless of side Answer: B Explanation: Router direction depends on the side being cut; for left-side routing, the router spins counter-clockwise to keep the bit clear of the workpiece. Question 55. Which of the following fasteners is recommended for attaching OSB subfloor to joists? A) 6-inch concrete screws B) 1-1/2-in ring-shank drywall screws C) 3-inch wood screws with washers D) 1-in brad nails Answer: B Explanation: Ring-shank drywall screws provide excellent pull-out resistance and are commonly used for subfloor attachment. Question 56. When framing a bay window, the supporting header must be sized based on: A) The width of the window only B) The total tributary load and span of the opening C) The height of the window D) The thickness of the exterior siding Answer: B Explanation: Header sizing depends on both the span of the opening and the load it must carry (tributary area).
Certified Professional Cloud
Developer Ultimate Exam
Question 57. The purpose of a “sill seal” in window installation is to: A) Provide structural support to the window frame B) Prevent air infiltration and water entry at the bottom of the window C) Attach the interior trim to the window D) Secure the window to the exterior wall sheathing Answer: B Explanation: Sill seals (often foam or rubber) block drafts and moisture at the window base. Question 58. In a stair stringer layout, the “cut-and-fit” method involves: A) Cutting the exact rise and tread dimensions on a full-size template and then transferring the shape to the stringer B) Using a pre-cut stringer kit without adjustments C) Cutting the stringer to a generic shape and trimming the treads later D) Installing the stringer first, then adjusting the riser height with shims Answer: A Explanation: The cut-and-fit method ensures precise rise and tread dimensions by templating on a full-size board. Question 59. Which of the following is a required feature of a scaffold used on a construction site? A) A wooden platform B) Guardrails on all open sides above 10 ft C) A built-in ladder D) A decorative paint finish Answer: B
