Electrician Ultimate Exam

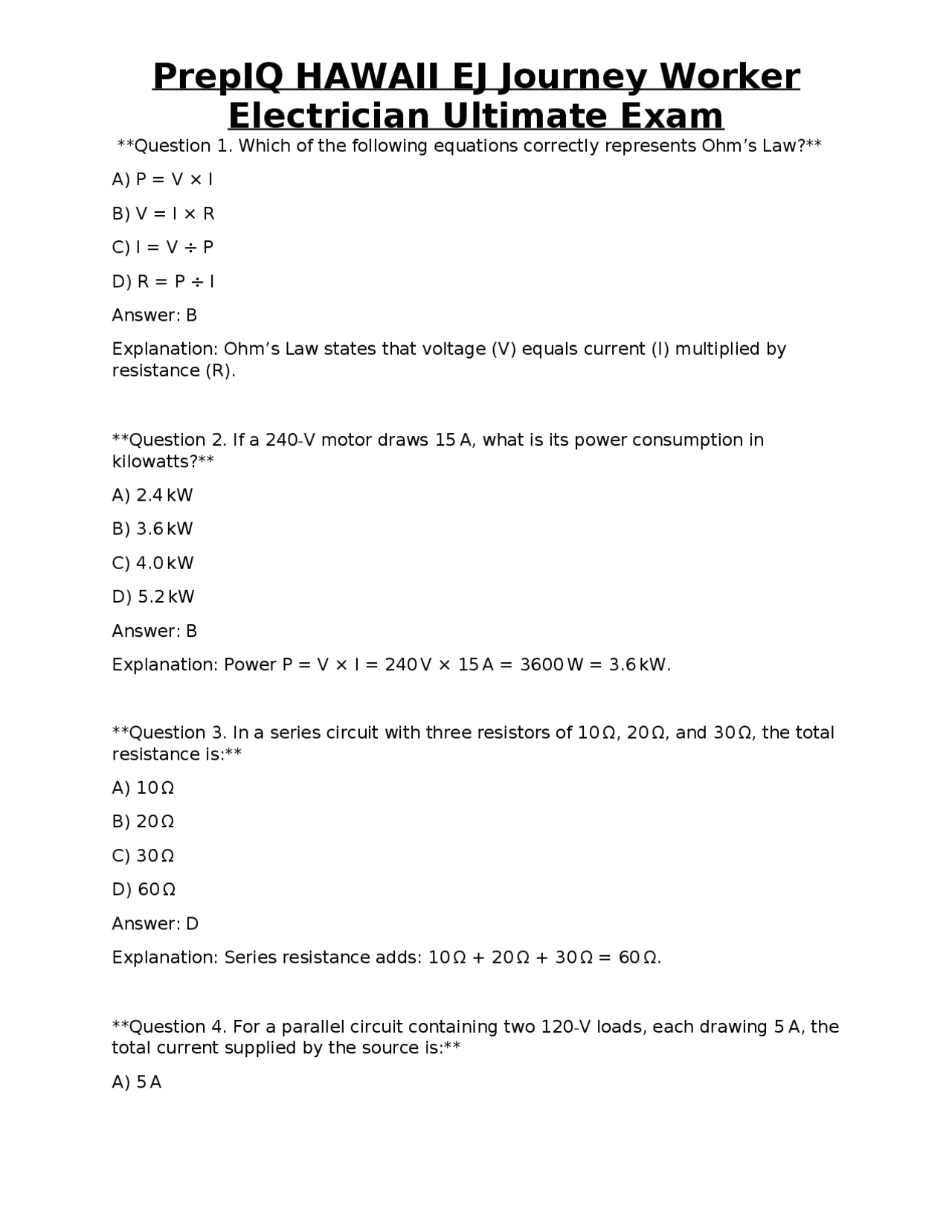

Question 1. Which of the following equations correctly represents Ohm’s Law? A) P = V × I B) V = I × R C) I = V ÷ P D) R = P ÷ I Answer: B Explanation: Ohm’s Law states that voltage (V) equals current (I) multiplied by resistance (R). Question 2. If a 240-V motor draws 15 A, what is its power consumption in kilowatts? A) 2.4 kW B) 3.6 kW C) 4.0 kW D) 5.2 kW Answer: B Explanation: Power P = V × I = 240 V × 15 A = 3600 W = 3.6 kW. Question 3. In a series circuit with three resistors of 10 Ω, 20 Ω, and 30 Ω, the total resistance is: A) 10 Ω B) 20 Ω C) 30 Ω D) 60 Ω Answer: D Explanation: Series resistance adds: 10 Ω + 20 Ω + 30 Ω = 60 Ω. Question 4. For a parallel circuit containing two 120-V loads, each drawing 5 A, the total current supplied by the source is: A) 5 A
Electrician Ultimate Exam
B) 7.5 A
C) 10 A
D) 12 A
Answer: C Explanation: Each branch draws 5 A, so total I = 5 A + 5 A = 10 A. Question 5. According to NEC Article 100, the term “grounded conductor” refers to: A) The neutral conductor that is intentionally bonded to ground at the service. B) The equipment grounding conductor. C) The ungrounded (hot) conductor. D) The grounding electrode conductor. Answer: A Explanation: The grounded conductor is the neutral that is bonded to the grounding system at the service entrance. Question 6. Which instrument is best suited for measuring insulation resistance of a motor winding? A) Voltmeter B) Ammeter C) Megohmmeter D) Wattmeter Answer: C Explanation: A megohmmeter (insulation tester) measures high resistance values typical of insulation. Question 7. A 150-A feeder supplies a motor group with a demand factor of 0.6. What is the calculated load current for sizing the feeder? A) 60 A B) 90 A C) 120 A
Electrician Ultimate Exam
Explanation: NEC requires the grounding electrode conductor to be bonded to the neutral at the source of the separately derived system (e.g., transformer or generator). Question 11. Which NEC article defines the requirements for equipment grounding conductors (EGCs) for industrial machinery? A) Article 250 B) Article 300 C) Article 430 D) Article 370 Answer: A Explanation: Article 250 covers grounding and bonding, including sizing of EGCs. **Question 12. For a 480-V, 3-phase motor with a full-load current of 55 A, what is the minimum size copper equipment grounding conductor per NEC Table 250.122? ** A) 6 AWG B) 8 AWG C) 10 AWG D) 12 AWG Answer: B Explanation: For 55 A, Table 250.122 requires a minimum of 8 AWG copper EGC. Question 13. Which bonding method is required for metal conduit that serves as the equipment grounding conductor? A) Use of a separate grounding wire inside the conduit B) Bonding every conduit end with a bonding jumper C) Installing a bonding strap at each conduit box D) No bonding required if conduit is continuous Answer: C
Electrician Ultimate Exam
Explanation: NEC requires a bonding strap or jumper at each conduit box to ensure continuity of the grounding path. Question 14. When grounding a transformer, the neutral point of the secondary is typically: A) Left floating B) Bonded to ground at the transformer tank C) Bonded to the primary neutral only D) Connected to a separate grounding electrode Answer: B Explanation: For most industrial transformers, the secondary neutral is bonded to the transformer tank, which is grounded. Question 15. Which conductor insulation type is rated for 90 °C in wet locations? A) THHN B) XHHW- 2 C) NM-B D) UF-B Answer: B Explanation: XHHW-2 is rated for 90 °C in wet locations, unlike THHN (dry) or NM-B (dry). Question 16. To limit voltage drop to 3 % on a 200-ft run of 480-V, three-phase load drawing 200 A, which approximate conductor size is required? A) 2/0 AWG copper B) 4/0 AWG copper C) 250 kcmil aluminum D) 500 kcmil aluminum Answer: B Explanation: A 3 % drop on 200 ft at 200 A typically requires 4/0 AWG copper (or equivalent aluminum) per voltage-drop tables.
Electrician Ultimate Exam
Question 20. In a conduit fill calculation for EMT, the maximum fill for three conductors of the same size is: A) 40 % B) 31 % C) 53 % D) 25 % Answer: B Explanation: NEC Table 1 allows a maximum of 31 % fill for three conductors of the same size in a conduit. Question 21. Which NEMA rating is appropriate for an enclosure housing a motor control center in a wash-down environment? A) NEMA 1 B) NEMA 3R C) NEMA 4X D) NEMA 12 Answer: C Explanation: NEMA 4X provides protection against water, corrosion, and wash-down conditions. Question 22. For a cable tray supporting a 500-ft run of 120-V lighting circuits, the maximum spacing between supports is: A) 3 ft B) 6 ft C) 10 ft D) 20 ft Answer: C Explanation: NEC requires cable trays to be supported at intervals not exceeding 10 ft.
Electrician Ultimate Exam
Question 23. When installing a busway in an industrial plant, the minimum support spacing for a 4-inch busway is: A) 4 ft B) 8 ft C) 12 ft D) 16 ft Answer: B Explanation: NEC 384.30 specifies a maximum support spacing of 8 ft for a 4-inch busway. Question 24. The Full Load Current (FLC) of a 3-phase, 460-V motor rated at 20 hp is approximately: A) 20 A B) 30 A C) 40 A D) 50 A Answer: B Explanation: Using NEC Table 430-3, a 20-hp, 460-V 3-phase motor has an FLC of about 30 A. Question 25. Which protective device is required to protect a motor against overload conditions? A) Circuit breaker set at 125 % of FLC B) Thermal overload relay sized per NEC Table 430- 102 C) Fuse rated at 80 % of FLC D) Ground-fault circuit interrupter (GFCI) Answer: B Explanation: NEC requires a thermal overload relay sized according to Table 430-102 for motor overload protection.
Electrician Ultimate Exam
Question 29. The required labeling for a motor disconnecting means must include: A) Only the motor nameplate data B) The circuit voltage, phase, and rating of the disconnect C) The manufacturer’s serial number D) The date of installation only Answer: B Explanation: NEC 430-102 mandates that disconnects be labeled with voltage, phase, and ampere rating. Question 30. When protecting a transformer’s primary winding, which overcurrent device is appropriate according to NEC Article 450? A) A breaker sized at 150 % of primary full-load current B) A fuse sized at 125 % of primary full-load current C) A breaker or fuse sized per Table 450-3 based on the transformer’s kVA rating D) No protection needed if secondary is protected Answer: C Explanation: NEC Table 450-3 provides the required overcurrent protection values for transformer primary windings. Question 31. Oil-filled industrial transformers must be housed in vaults that provide at least what minimum clearance from the nearest combustible material? A) 6 in. B) 12 in. C) 18 in. D) 24 in. Answer: B Explanation: NEC 450-11 requires a minimum of 12 in. clearance between oil-filled transformers and combustible material.
Electrician Ultimate Exam
Question 32. For a dry-type transformer, the required minimum clearance to the ceiling is: A) 3 in. B) 6 in. C) 12 in. D) No specific clearance required Answer: B Explanation: NEC 450-11 specifies a minimum of 6 in. clearance for dry-type transformers. Question 33. Article 670 governs wiring for which type of industrial equipment? A) Motors only B) Lighting circuits C) Multi-motor industrial machines (e.g., presses, shears) D) Fire alarm systems Answer: C Explanation: NEC Article 670 addresses wiring methods for industrial machinery with multiple motors. Question 34. A standby generator supplying a building must be connected to a transfer switch that is: A) Located inside the generator room only B) Rated for the same voltage and phase as the building service C) Installed within 10 ft of the generator D) Operated manually without any interlocks Answer: B Explanation: The transfer switch must match the building’s service voltage and phase to safely transfer power. Question 35. In hazardous Class I, Division 2 locations, which conduit type is permitted for wiring?
Electrician Ultimate Exam
C) Must be installed in conduit only D) Are always protected by a GFCI Answer: A Explanation: Class 2 circuits are low-voltage, limited-power circuits (≤ 30 V, ≤ 100 VA) that are considered safe from fire hazards. Question 39. Shielded 4- 20 mA process control loops require grounding of the shield at which point? A) Both ends of the shield B) Only at the transmitter end C) Only at the controller end D) Not at all; shields are floating Answer: B Explanation: NEC and instrumentation practice dictate grounding the shield at the source (transmitter) only to avoid ground loops. Question 40. When wiring a PLC input module that operates at 24 V DC, which of the following protection devices is most appropriate? A) 30 A circuit breaker B) 250 V surge protection device (SPD) C) 5 A fuse rated for DC D) No protection needed Answer: C Explanation: A low-current DC fuse protects the PLC input circuit from overcurrent without affecting the control voltage. Question 41. OSHA 1910.333 requires which of the following for employees working on exposed energized parts? A) Use of insulated gloves only B) Implementation of a written lockout/tagout program C) Minimum approach distance based on voltage
Electrician Ultimate Exam
D) No specific requirements for energized work Answer: C Explanation: OSHA 1910.333 sets minimum approach distances for working near exposed energized parts. Question 42. NFPA 70E defines the Arc-Flash Boundary (AFB) as the distance at which the incident energy equals: A) 1.2 cal/cm² B) 4 cal/cm² C) 8 cal/cm² D) 12 cal/cm² Answer: B Explanation: The AFB is the distance where the incident energy is 4 cal/cm², the threshold for a second-degree burn. Question 43. Under Hawaii Administrative Rule HRS 448E-2, an industrial electrician must renew their license every: A) 1 year B) 2 years C) 3 years D) 5 years Answer: B Explanation: Hawaii requires a biennial (every 2 years) renewal for industrial electrician licenses. Question 44. The NEC permits the use of a multi-wire branch circuit (MWBC) for 120/240 V lighting provided the neutral is: A) Shared without any disconnecting means B) Connected to a grounding conductor C) Disconnected at each outlet
Electrician Ultimate Exam
Answer: C Explanation: NEMA 4X provides protection against corrosion and chemical exposure. Question 48. For a 600-V, 3-phase feeder supplying a motor load, the neutral conductor is: A) Required by NEC for all 3-phase feeders B) Optional unless a 120-V branch circuit is derived from it C) Never permitted in a 3-phase feeder D) Required only for delta-wye transformers Answer: B Explanation: NEC permits omitting the neutral in a 3-phase feeder unless a 120-V circuit is needed. Question 49. The minimum size of a copper grounding electrode conductor for a 200 - A service is: A) 10 AWG B) 8 AWG C) 6 AWG D) 4 AWG Answer: C Explanation: NEC Table 250-122 specifies 6 AWG copper for a 200-A service. Question 50. Which of the following is a permissible method for grounding a metal raceway that serves as an equipment grounding conductor? A) Installing a separate grounding wire inside the raceway B) Using a bonding jumper at each box and at the service entrance C) Relying on the raceway’s continuity without any bonding devices D) Grounding only at the far end of the raceway Answer: B
Electrician Ultimate Exam
Explanation: NEC requires bonding jumpers at each termination to ensure continuity of the grounding path. Question 51. When sizing conductors for a continuous industrial load, the ampacity must be multiplied by: A) 0. B) 1. C) 1. D) 1. Answer: C Explanation: Continuous loads require conductors sized at 125 % of the load current. Question 52. A 150-kVA, 480-V transformer has a primary full-load current of approximately: A) 180 A B) 210 A C) 300 A D) 350 A Answer: B Explanation: Primary FLC = (kVA × 1000) / (√3 × V) = (150,000) / (1.732 × 480) ≈ 180 A; however, NEC tables round up to the next standard size, which is 210 A. Question 53. For a motor that requires a 30 % overload setting, the overload relay should be set at: A) 70 % of FLC B) 100 % of FLC C) 130 % of FLC D) 150 % of FLC Answer: C Explanation: A 30 % overload setting means the relay trips at 130 % of the motor’s full-load current.
Electrician Ultimate Exam
Question 57. Which of the following is a required feature of a lockout/tagout (LOTO) device for industrial equipment? A) Must be a padlock only B) Must be color-coded to the equipment type C) Must be capable of being secured in the “off” position and not removable without the authorized employee’s key or combination D) Must be electronic only Answer: C Explanation: LOTO devices must be secured in the off position and removable only by an authorized person. Question 58. Under NFPA 70E, the required PPE for an arc-flash exposure of 8 cal/cm² includes: A) Only safety glasses B) Flame-resistant (FR) shirt and pants, leather gloves, face shield, and hard hat C) Insulated rubber gloves only D) No PPE required below 10 cal/cm² Answer: B Explanation: An exposure of 8 cal/cm² requires a full set of FR clothing, gloves, face shield, and hard hat per NFPA 70E tables. **Question 59. A 480-V, 3-phase motor with an FLC of 60 A is to be fed from a feeder rated at 125 % of the motor current. What is the minimum feeder ampacity? ** A) 60 A B) 75 A C) 90 A D) 100 A Answer: B Explanation: 60 A × 1.25 = 75 A; the feeder must be sized at least 75 A.
Electrician Ultimate Exam
Question 60. Which type of conduit is allowed for direct burial without a protective raceway? A) EMT B) Rigid PVC (PVC-R) C) Rigid Metal Conduit (RMC) D) Flexible Metal Conduit (FMC) Answer: C Explanation: RMC is permitted for direct burial per NEC 352-10. Question 61. When installing a motor control center, the clearances in front of the MCC must be at least: A) 30 in. B) 36 in. C) 42 in. D) 48 in. Answer: B Explanation: NEC 430-9 requires a minimum of 36 in. of working space in front of motor control centers. Question 62. A 120/240-V single-phase feeder supplies a residential building. The feeder includes a neutral conductor. According to NEC, the neutral may be used for: A) Only 240-V loads B) Both 120-V and 240-V loads C) Only 120-V loads D) Only for grounding purposes Answer: C Explanation: The neutral carries only the unbalanced current of 120-V circuits; 240 - V loads do not use the neutral.
