Download PrepIQ IPSI Signs and Pavement Markings Technician Level I Ultimate Exam and more Exams Technology in PDF only on Docsity!
Markings Technician Level I Ultimate
Exam

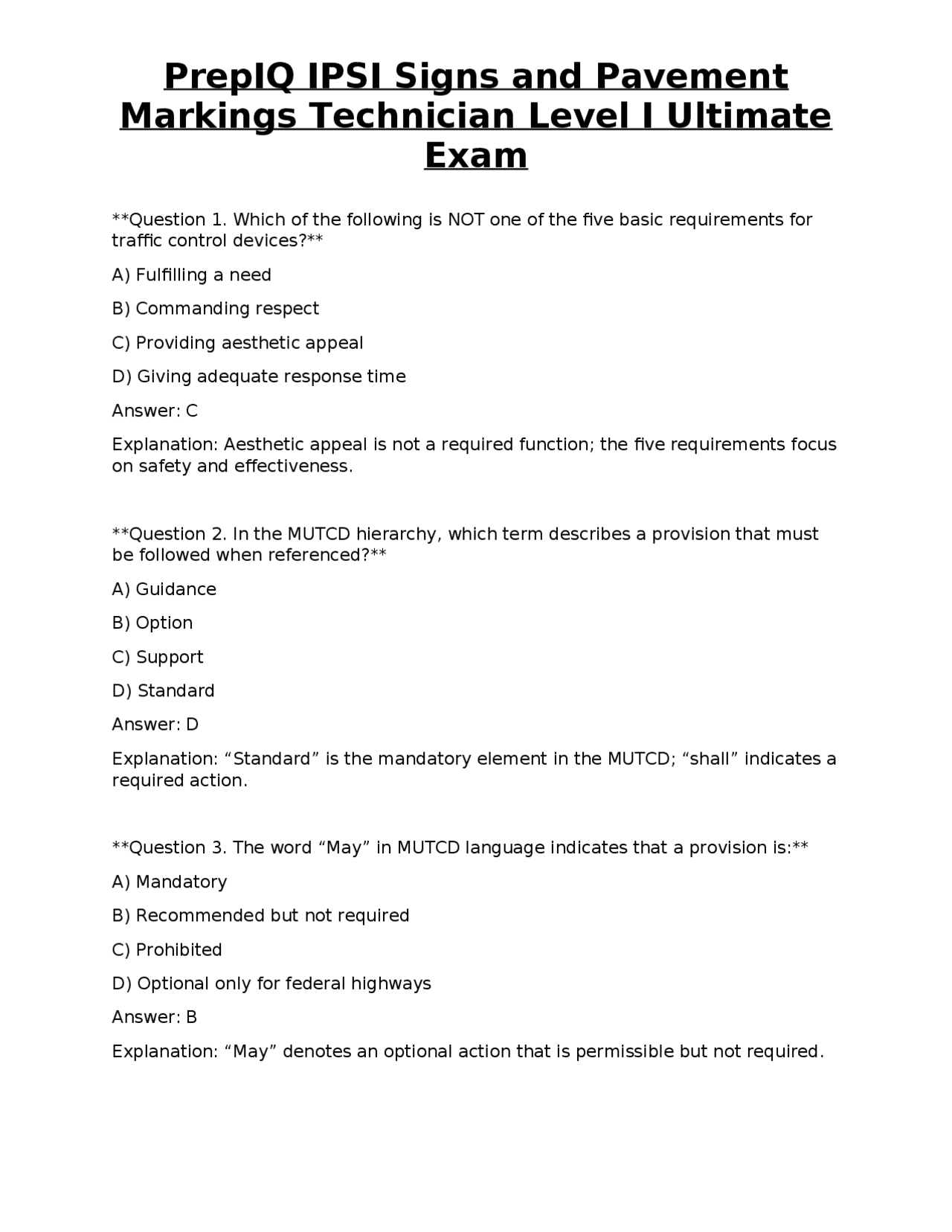

Question 1. Which of the following is NOT one of the five basic requirements for traffic control devices? A) Fulfilling a need B) Commanding respect C) Providing aesthetic appeal D) Giving adequate response time Answer: C Explanation: Aesthetic appeal is not a required function; the five requirements focus on safety and effectiveness. Question 2. In the MUTCD hierarchy, which term describes a provision that must be followed when referenced? A) Guidance B) Option C) Support D) Standard Answer: D Explanation: “Standard” is the mandatory element in the MUTCD; “shall” indicates a required action. Question 3. The word “May” in MUTCD language indicates that a provision is: A) Mandatory B) Recommended but not required C) Prohibited D) Optional only for federal highways Answer: B Explanation: “May” denotes an optional action that is permissible but not required.
Markings Technician Level I Ultimate
Exam
Question 4. Which document provides the legal authority for installing traffic control devices on state highways? A) City zoning ordinance B) State Department of Transportation (DOT) statutes C) Federal Highway Administration (FHWA) policy memo D) Local traffic engineering manual Answer: B Explanation: State DOT statutes grant the legal basis for installing devices on state-maintained roads. Question 5. A technician’s primary role in public safety is to: A) Design new traffic signs B) Reduce liability through proper installation and maintenance C) Enforce traffic laws on the roadway D) Conduct traffic studies for new routes Answer: B Explanation: Technicians ensure devices are installed and maintained correctly, thereby reducing liability. Question 6. Which sign category includes “Yield” and “Stop” signs? A) Guide signs B) Regulatory signs C) Warning signs D) Temporary traffic control signs Answer: B Explanation: Yield and Stop are regulatory signs that control driver behavior. Question 7. A diamond-shaped sign most commonly indicates: A) Prohibition
Markings Technician Level I Ultimate
Exam
D) 10 ft (3.0 m) Answer: C Explanation: Rural freeways require a minimum mounting height of 8 ft for primary signs. Question 11. Which sign shape is reserved for “Do Not Enter” signs? A) Octagon B) Circle C) Triangle D) Pentagon Answer: B Explanation: The circular shape conveys prohibitory actions such as “Do Not Enter.” Question 12. The appropriate lateral offset for a sign placed on a paved shoulder is: A) 0.5 ft (150 mm) from the edge of the pavement B) 1.0 ft (300 mm) from the edge of the pavement C) 2.0 ft (600 mm) from the edge of the pavement D) 4.0 ft (1.2 m) from the edge of the pavement Answer: B Explanation: MUTCD specifies a 1-ft offset for signs on paved shoulders to maintain visibility. Question 13. Specular glare on a sign is minimized by: A) Using a matte finish on the sign face B) Mounting the sign at a 90° angle to traffic C) Angling the sign 5°–15° toward the driver’s eye level D) Placing the sign on a reflective post Answer: C
Markings Technician Level I Ultimate
Exam
Explanation: Proper angling reduces mirror-like reflections that cause glare. Question 14. Which post type is required to be breakaway in work zones? A) Steel U-channel with a 0.75-in. wall thickness B) Square tube with a 1-in. wall thickness and 12-in. length C) Pipe post with a 2-in. wall thickness and 12-in. length D) All of the above, provided they meet breakaway standards Answer: D Explanation: All listed post types can be used if they meet the MUTCD breakaway specifications. Question 15. The torque specification for a standard steel sign bolt on a primary sign is: A) 20–30 ft-lb B) 30–45 ft-lb C) 45–60 ft-lb D) 60–80 ft-lb Answer: B Explanation: MUTCD recommends 30–45 ft-lb for typical steel bolts on primary signs. Question 16. Nighttime visual inspection of a sign is primarily used to assess: A) Structural integrity of the post B) Retroreflectivity performance C) Color fading due to UV exposure D) Presence of graffiti Answer: B Explanation: Night inspections allow the technician to evaluate retroreflectivity.
Markings Technician Level I Ultimate
Exam
A) Permanent steel post only B) Portable aluminum post with a minimum height of 8 ft C) Wooden post with a minimum height of 5 ft D) Any post, as long as it is secured with a breakaway assembly Answer: B Explanation: Detour signs in work zones must meet the minimum height requirement for visibility. Question 21. Which sign color is used to convey a regulatory prohibition such as “No Parking”? A) Yellow B) Red C) Green D) Blue Answer: B Explanation: Red denotes prohibitory actions, including “No Parking.” Question 22. The standard size for a regulatory sign on a road with a posted speed limit of 55 mph is: A) 24 in. × 24 in. B) 30 in. × 30 in. C) 36 in. × 36 in. D) 48 in. × 48 in. Answer: C Explanation: For speeds 45–55 mph, 36-in. square signs are the standard size. **Question 23. Which of the following is a primary function of pavement markings? ** A) Provide aesthetic enhancement to the roadway
Markings Technician Level I Ultimate
Exam
B) Reinforce sign and signal messages C) Increase pavement friction D) Reduce noise generated by traffic Answer: B Explanation: Markings supplement signs and signals, guiding driver behavior. Question 24. A solid yellow line on a two-lane road indicates: A) No passing for traffic traveling in either direction B) No passing for traffic traveling in the opposite direction only C) Recommended passing zone D) Edge of the roadway Answer: A Explanation: Solid yellow lines separate opposing traffic and prohibit passing. Question 25. Which of the following pavement marking colors is used to separate traffic moving in the same direction? A) Yellow B) White C) Red D) Blue Answer: B Explanation: White markings delineate lanes moving in the same direction. Question 26. A broken white line on a highway indicates: A) No passing allowed B) Passing is permitted when safe C) Edge of the travel lane D) Restricted lane for buses only
Markings Technician Level I Ultimate
Exam
Answer: D Explanation: Drop-on beads are manually dropped onto fresh paint, while intermix beads are blended into the paint before spraying. Question 30. Before applying thermoplastic markings, the pavement surface must be: A) Wet to improve adhesion B) Cleaned of all loose debris and dried C) Treated with a primer only on concrete D) Covered with a thin layer of sand Answer: B Explanation: A clean, dry surface ensures proper bonding of thermoplastic material. Question 31. The minimum temperature required to apply a waterborne paint on asphalt is: A) 20 °F (- 7 °C) B) 40 °F (4 °C) C) 50 °F (10 °C) D) 70 °F (21 °C) Answer: B Explanation: Waterborne paints need at least 40 °F to cure properly on asphalt. Question 32. Which equipment is used to calibrate striping machines for correct line width? A) Laser line scanner B) Pressure gauge C) Flow meter D) All of the above Answer: D
Markings Technician Level I Ultimate
Exam
Explanation: Calibration involves checking speed, pressure, and flow rate, often using all three devices. Question 33. A “dribble line” in pavement marking layout is used to: A) Indicate the exact location of a stop bar B) Provide a visual reference for the start of a lane line C) Mark the edge of a work zone D) Show the path of a temporary traffic control device Answer: B Explanation: Dribble lines are low-intensity lines used as a guide for the main marking. Question 34. Raised pavement markers (RPMs) made of retroreflective plastic are typically installed using which adhesive? A) Bituminous adhesive B) Epoxy-based adhesive C) Hot-melt adhesive D) Acrylic spray adhesive Answer: B Explanation: Epoxy adhesives provide strong bonding for retroreflective RPMs. Question 35. The primary purpose of a “Transition Area” in a temporary traffic control zone is to: A) Provide advance warning of the upcoming work zone B) Allow drivers to adjust to new lane configurations safely C) Indicate the termination of the work zone D) Protect workers from oncoming traffic Answer: B
Markings Technician Level I Ultimate
Exam
Explanation: MUTCD requires a minimum of 100 ft advance warning for a road-closed sign. Question 39. Which of the following is considered a “Support” document in the MUTCD? A) A standard that uses “shall” language B) A guidance document that uses “should” language C) An option that uses “may” language D) A legal statute governing traffic control Answer: B Explanation: “Guidance” is classified as a support document, providing recommendations. Question 40. The term “retroreflectivity” refers to a material’s ability to: A) Absorb ultraviolet light B) Reflect light back toward its source C) Emit light in low-light conditions D) Change color under different lighting Answer: B Explanation: Retroreflectivity returns light toward the source, enhancing nighttime visibility. Question 41. Which of the following pavement marking materials is most suitable for high-traffic airport runways? A) Waterborne paint B) Solvent-based paint C) Thermoplastic epoxy with glass beads D) Cold-applied plastic tape Answer: C
Markings Technician Level I Ultimate
Exam
Explanation: Thermoplastic epoxy with glass beads provides durability and high retroreflectivity required for runways. Question 42. A “Stop” line at an intersection must be placed at a distance of: A) 5 ft (1.5 m) from the intersection point B) 10 ft (3 m) from the intersection point C) 15 ft (4.5 m) from the intersection point D) 20 ft (6 m) from the intersection point Answer: B Explanation: MUTCD specifies a 10-ft distance for stop lines to give drivers adequate stopping space. Question 43. Which of the following is the correct definition of “Option” in the MUTCD? A) A mandatory requirement that must be followed B) A recommended practice that may be adopted C) An alternative solution that is permissible but not required D) A supporting document that provides background information Answer: C Explanation: “Option” provides permissible alternatives without mandating them. Question 44. The minimum lateral offset for a sign placed on a grass shoulder is: A) 1 ft (300 mm) from the edge of the grass B) 2 ft (600 mm) from the edge of the grass C) 4 ft (1.2 m) from the edge of the grass D) 6 ft (1.8 m) from the edge of the grass Answer: C Explanation: A 4-ft offset is required for signs on unpaved shoulders to maintain visibility.
Markings Technician Level I Ultimate
Exam
Question 48. When performing a nighttime inspection, the acceptable minimum retroreflectivity for a regulatory sign is: A) 50 cd·m²/lx B) 75 cd·m²/lx C) 100 cd·m²/lx D) 150 cd·m²/lx Answer: C Explanation: The MUTCD sets a minimum of 100 cd·m²/lx for regulatory signs at night. Question 49. Which of the following is the correct order of components in a temporary traffic control zone? A) Activity Area → Advance Warning → Transition → Termination B) Advance Warning → Transition → Activity → Termination C) Transition → Advance Warning → Activity → Termination D) Advance Warning → Activity → Transition → Termination Answer: B Explanation: The proper sequence is Advance Warning, Transition, Activity, then Termination. Question 50. The “No U-Turn” sign belongs to which sign category? A) Guide sign B) Warning sign C) Regulatory sign D) Temporary traffic control sign Answer: C Explanation: “No U-Turn” regulates driver behavior, making it a regulatory sign. Question 51. Which of the following pavement marking patterns is used to indicate a “Bike Lane”?
Markings Technician Level I Ultimate
Exam
A) Solid white line only B) Solid yellow line only C) A combination of solid white and adjacent bike-lane symbols D) Dashed white line with a bike symbol on the pavement Answer: D Explanation: Dashed white lines with a bike symbol designate a bike lane. Question 52. The term “engineer grade” retroreflective sheeting is best described as: A) The highest-performance grade available B) A mid-range grade suitable for most applications C) A low-cost grade with minimal retroreflectivity D) A grade used only for temporary signs Answer: B Explanation: Engineer Grade provides moderate retroreflectivity and is commonly used for many signs. Question 53. Which of the following is a required element on a “Construction Ahead” temporary sign? A) The words “Construction Ahead” in black text on an orange background B) A red border around the sign C) A reflective strip on the top edge only D) A pictogram of a hard hat Answer: A Explanation: MUTCD specifies black text on an orange background for construction warning signs. Question 54. A solid white line on a roadway indicates: A) No passing for traffic in both directions
Markings Technician Level I Ultimate
Exam
D) Background information that supports standards Answer: B Explanation: “Guidance” provides recommended practices, not mandatory rules. Question 58. When installing a sign on a concrete median, the technician must use which type of anchor? A) Wood screw anchor B) Concrete wedge anchor C) Plastic expansion anchor D) No anchor is required if the sign is lightweight Answer: B Explanation: Concrete wedge anchors provide secure attachment in concrete medians. Question 59. Which of the following color combinations is used for a “Road Closed” sign? A) White text on a red background B) Black text on a yellow background C) White text on a blue background D) Black text on a green background Answer: A Explanation: “Road Closed” signs use white lettering on a red field. Question 60. Which of the following statements about “Option” signs is true? A) They are mandatory on all federal-aid highways B) They may be used when a standard sign is not feasible C) They are prohibited in work zones D) They must be fabricated with Diamond Grade sheeting Answer: B
Markings Technician Level I Ultimate
Exam
Explanation: Options provide alternative solutions when a standard sign cannot be installed. Question 61. The purpose of a “Termination” sign in a temporary traffic control zone is to: A) Indicate the start of the work area B) Warn drivers of an upcoming hazard C) Notify drivers that the temporary traffic pattern has ended D) Provide directions to the nearest exit Answer: C Explanation: Termination signs signal the end of the temporary traffic control arrangement. Question 62. Which of the following PPE classes provides the highest level of visibility for a worker in a construction zone? A) Class 1 B) Class 2 C) Class 3 D) Class 4 (non-existent) Answer: C Explanation: Class 3 garments have the greatest amount of reflective material. Question 63. Which of the following is the correct minimum mounting height for a sign on an expressway? A) 5 ft (1.5 m) B) 6 ft (1.8 m) C) 7 ft (2.1 m) D) 8 ft (2.4 m) Answer: D
