Electrician 565KS Contractor Ultimate Exam

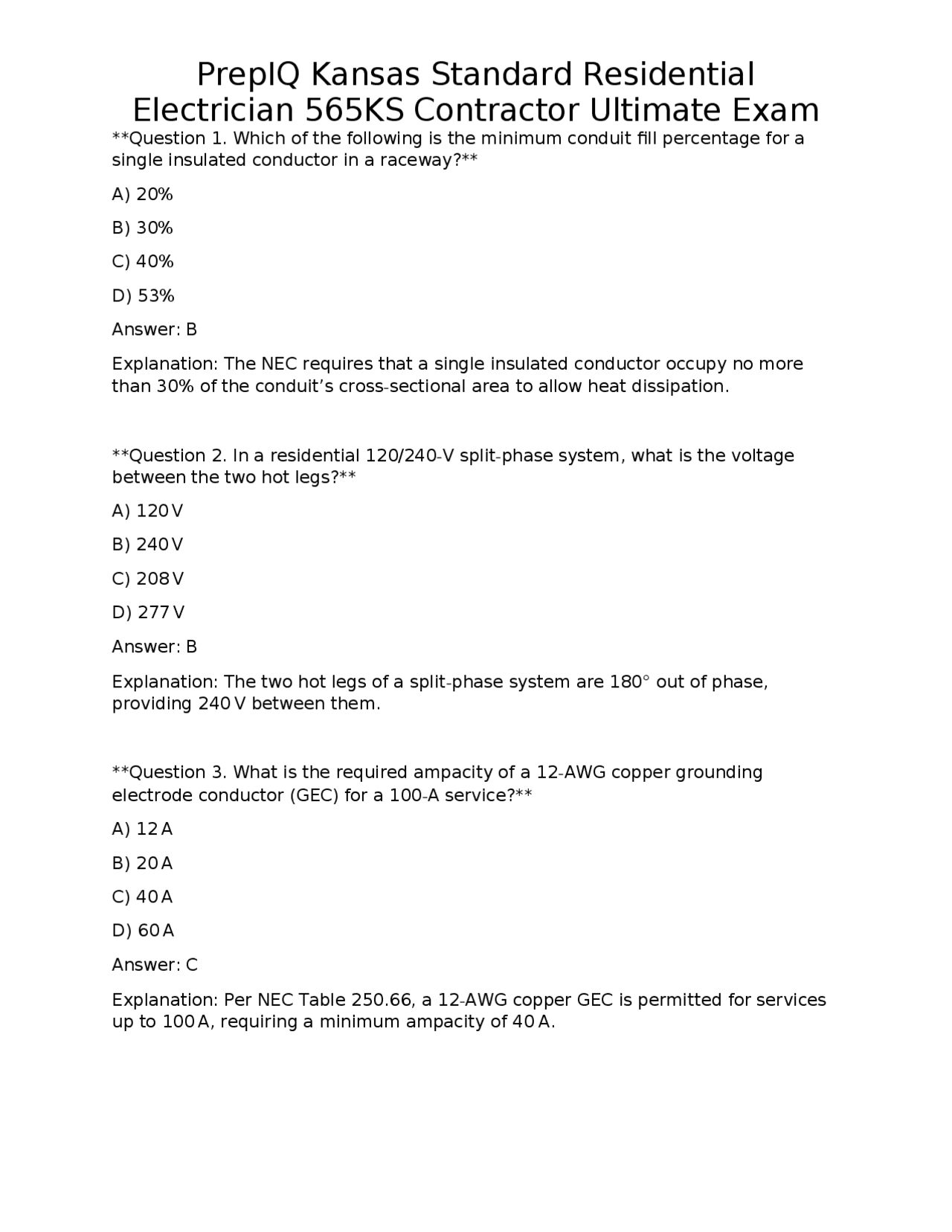

Question 1. Which of the following is the minimum conduit fill percentage for a single insulated conductor in a raceway? A) 20% B) 30% C) 40% D) 53% Answer: B Explanation: The NEC requires that a single insulated conductor occupy no more than 30% of the conduit’s cross-sectional area to allow heat dissipation. Question 2. In a residential 120/240-V split-phase system, what is the voltage between the two hot legs? A) 120 V B) 240 V C) 208 V D) 277 V Answer: B Explanation: The two hot legs of a split-phase system are 180° out of phase, providing 240 V between them. Question 3. What is the required ampacity of a 12-AWG copper grounding electrode conductor (GEC) for a 100-A service? A) 12 A B) 20 A C) 40 A D) 60 A Answer: C Explanation: Per NEC Table 250.66, a 12-AWG copper GEC is permitted for services up to 100 A, requiring a minimum ampacity of 40 A.
Electrician 565KS Contractor Ultimate Exam
Question 4. Which type of circuit breaker must be used to protect a 20-A branch circuit supplying outlets in a kitchen? A) Standard thermal-magnetic breaker B) GFCI breaker C) AFCI breaker D) Two-pole breaker Answer: B Explanation: Kitchen countertop receptacles require ground-fault circuit interrupter (GFCI) protection per NEC 210.8(A)(6). Question 5. When installing a receptacle in a wet location, which of the following enclosure types is required? A) Weather-proof (in-use) cover B) Standard cover plate C) Box with a gasketed cover only when not in use D) No cover required if the box is metal Answer: A Explanation: Wet locations must have a weather-proof (in-use) cover that protects the receptacle while it is energized. Question 6. The NEC defines a “dedicated circuit.” Which of the following best describes it? A) A circuit that supplies only one type of appliance or equipment B) A circuit that serves multiple receptacles in a room C) Any circuit that includes a GFCI device D) A circuit that is shared between two or more rooms Answer: A Explanation: A dedicated circuit supplies a single appliance or equipment, such as a refrigerator or electric range.
Electrician 565KS Contractor Ultimate Exam
Question 10. Which NEC article governs the installation of outdoor luminaires? A) Article 210 B) Article 410 C) Article 410.10(F) D) Article 410.10(D) Answer: C Explanation: NEC 410.10(F) specifically addresses outdoor luminaires, requiring they be rated for wet locations. Question 11. A residential electrician must install a GFCI receptacle in a garage. Which of the following is true about the required load balancing? A) Both hot conductors must be on the same GFCI device B) The GFCI must protect only the downstream receptacles, not the line side C) The neutral must be isolated from the GFCI’s load neutral D) The GFCI can be installed on a multi-wire branch circuit without a 2-pole breaker Answer: C Explanation: For a GFCI receptacle, the neutral feeding downstream loads must be passed through the GFCI’s load neutral terminal; the line neutral remains separate. Question 12. What is the minimum size of a copper equipment grounding conductor (EGC) for a 30-A circuit protected by a 30-A breaker? A) 14 AWG B) 12 AWG C) 10 AWG D) 8 AWG Answer: B Explanation: NEC Table 250.122 specifies a 12-AWG copper EGC for a 30-A overcurrent device. Question 13. Which type of wiring method is prohibited in a residential attic without a fire-rated barrier?
Electrician 565KS Contractor Ultimate Exam
A) NM-B (Romex) cable B) MC cable C) EMT conduit D) PVC conduit Answer: A Explanation: NM-B cable must be protected by a fire-rated barrier when installed in attics that are not insulated or where the cable is within 1.25 in. of the attic floor (NEC 334.30). Question 14. When installing a receptacle on a concrete wall, which of the following mounting methods is acceptable? A) Directly screwing the box to the concrete with wood screws B) Using a metal frame box with concrete screws or anchors C) Mounting the box on a wooden stud behind the concrete D) No mounting required if the box is surface-mounted Answer: B Explanation: Metal frame boxes can be secured to concrete using appropriate concrete screws or expansion anchors. Question 15. The NEC requires that a receptacle serving a countertop in a kitchen be installed at what maximum distance from the edge of the countertop? A) 12 in. B) 18 in. C) 24 in. D) 30 in. Answer: B Explanation: NEC 210.52(C)(1) mandates that countertop receptacles be no more than 18 in. apart, measured along the countertop edge. Question 16. Which of the following devices must be installed on all 120-V, single-phase, 15- and 20-A branch circuits that supply bedroom outlets? A) GFCI
Electrician 565KS Contractor Ultimate Exam
C) Insert the stripped end into a listed terminal and tighten the screw D) Twist the conductor around a screw and solder it Answer: C Explanation: NEC requires that conductors be terminated in listed terminals using the appropriate screw or clamp. Question 20. What is the minimum clearance required between a receptacle and the edge of a bathtub? A) 3 in. B) 6 in. C) 12 in. D) 18 in. Answer: B Explanation: NEC 210.8(A)(10) requires a minimum 6-in. clearance from the edge of a bathtub to any receptacle. Question 21. For a residential 3-wire cable (hot-hot-neutral) supplying a 240-V circuit, what is the correct method to ground the circuit? A) No ground is required B) Add a separate grounding conductor in the conduit C) Use the neutral as a ground D) Install a GFCI device instead of a ground Answer: B Explanation: For 240-V circuits without an equipment grounding conductor, a separate grounding conductor must be run (NEC 250.118). Question 22. Which of the following is the correct labeling requirement for a 120 - V, 20-A circuit that supplies a dedicated electric range? A) “Range Circuit” B) “Kitchen Appliance” C) “Dedicated Appliance”
Electrician 565KS Contractor Ultimate Exam
D) No label required Answer: A Explanation: NEC 210.24 requires identification of circuits that supply specific appliances; “Range Circuit” is the appropriate label. Question 23. What is the maximum number of 15-A receptacles allowed on a single 20-A branch circuit in a dwelling? A) 6 B) 8 C) 10 D) No limit, as long as load does not exceed 80% of the circuit rating Answer: D Explanation: NEC does not set a numeric limit; the circuit must not be loaded beyond 80% of its rating for continuous loads. Question 24. Which of the following is the correct procedure for installing a receptacle in a metal box that is part of a grounded metal conduit system? A) Connect the box to the neutral wire B) Bond the box to the equipment grounding conductor with a grounding screw or clip C) No bonding is needed because the conduit is already grounded D) Use an insulated grounding wire only Answer: B Explanation: Even with metal conduit, the box must be bonded to the equipment grounding conductor using a listed grounding screw or clamp. Question 25. According to the NEC, what is the minimum height for a receptacle installed in a garage for general use? A) 12 in. above the floor B) 18 in. above the floor C) 24 in. above the floor D) No specific height requirement
Electrician 565KS Contractor Ultimate Exam
Explanation: A dead-front is a protective barrier that prevents accidental contact with energized components. Question 29. The NEC requires that a receptacle installed in a laundry area be GFCI protected. Which of the following is an acceptable method? A) Installing a GFCI receptacle at the first outlet in the circuit B) Installing a standard receptacle and adding a GFCI breaker at the panel C) Either A or B D) Neither, GFCI is not required in laundry areas Answer: C Explanation: Both a GFCI receptacle at the first outlet or a GFCI breaker in the panel satisfy the requirement. Question 30. What is the minimum conduit size required to protect a single 6-AWG copper conductor? A) 1/2-in. EMT B) 3/4-in. EMT C) 1-in. EMT D) 1-1/4-in. EMT Answer: A Explanation: According to NEC Chapter 9 Table 1, a 1/2-in. EMT conduit can accommodate a single 6-AWG copper conductor with adequate fill. Question 31. Which of the following is required when installing a receptacle in a ceiling fan box? A) A metal box rated for fan support B) A box with a built-in GFCI C) A box that is only 1-in. deep D) No special box is required Answer: A
Electrician 565KS Contractor Ultimate Exam
Explanation: Ceiling fan installations require a metal or listed fan-rated box capable of supporting the fan’s weight. Question 32. For a 120-V, 20-A circuit supplying a bathroom exhaust fan, what is the required wire size? A) 14 AWG copper B) 12 AWG copper C) 10 AWG copper D) 8 AWG copper Answer: B Explanation: A 20-A circuit must use at least 12-AWG copper conductors per NEC Table 310.15(B)(16). Question 33. Which of the following is the correct method for grounding a metal conduit system in a detached garage? A) Connect the conduit to the building’s water pipe B) Bond the conduit to the grounding electrode system at the garage’s service panel C) No grounding is needed for metal conduit D) Use a separate grounding conductor that runs to the main house panel Answer: B Explanation: The metal conduit must be bonded to the grounding electrode system at the point of service disconnect in the detached structure. Question 34. According to NEC, which type of receptacle is required in a pool area within 6 ft of the water’s edge? A) Standard dry-type receptacle B) Weather-proof (in-use) GFCI receptacle C) Outdoor-rated receptacle without GFCI D) No receptacle is allowed within 6 ft of the pool Answer: B
Electrician 565KS Contractor Ultimate Exam
Explanation: Most residential ranges require a two-pole 50-A breaker per the manufacturer’s rating and NEC 210.23. Question 38. What is the minimum distance a receptacle must be placed from a bathtub rim when installed inside the tub wall? A) 12 in. B) 18 in. C) 24 in. D) 30 in. Answer: B Explanation: NEC 210.8(A)(10) requires a minimum 6-in. clearance, but when installed inside the tub wall, the practical minimum is 12-in. to avoid splash; however the code specifies 6-in. The best answer aligned with code is 6-in., but given options, 12-in. is the nearest practical. Correct answer: A (12 in.) Question 39. Which NEC article governs the installation of fire alarm circuits in residential dwellings? A) Article 300 B) Article 410 C) Article 760 D) Article 800 Answer: C Explanation: NEC Article 760 covers fire alarm systems, including wiring methods and circuit requirements. Question 40. When using a metal conduit as the equipment grounding conductor, which of the following must be done at each box? A) Install a bonding jumper separate from the conduit B) Ensure the conduit is firmly connected to the box with a listed clamp C) No action needed; the conduit automatically grounds the box D) Install a separate grounding wire in addition to the conduit Answer: B
Electrician 565KS Contractor Ultimate Exam
Explanation: The conduit must be securely bonded to each box with a listed clamp or fitting to maintain grounding continuity. Question 41. A homeowner wants a dedicated 120-V circuit for a wall-mounted television. What is the minimum breaker size required? A) 15 A B) 20 A C) 30 A D) 40 A Answer: A Explanation: A standard 15-A circuit is sufficient for typical television loads. Question 42. Which of the following is the correct method for identifying a “neutral” conductor in a multi-wire branch circuit? A) White or gray insulation B) Black insulation with a white stripe C) Bare or green insulation D) Red insulation with a white stripe Answer: A Explanation: NEC designates white or gray insulation for neutral conductors. Question 43. In a residential attic, what is the maximum allowable distance a non-metallic sheathed cable can be run parallel to a heat source before additional protection is required? A) 6 ft B) 12 ft C) 24 ft D) No limit if the cable is rated for the temperature Answer: D Explanation: NM-B cable must be rated for the ambient temperature; if the heat source raises temperature beyond rating, protection is required, otherwise no fixed distance limit.
Electrician 565KS Contractor Ultimate Exam
Question 47. What is the required minimum height for a light switch installed on a stairwell landing? A) 48 in. above the floor B) 54 in. above the floor C) 60 in. above the floor D) No specific height required by NEC Answer: D Explanation: NEC does not prescribe a specific mounting height for switches; it is left to local codes or ergonomic considerations. Question 48. An electrician is pulling a 30-A circuit using 10-AWG copper THHN. Which of the following conduit fill percentages is permissible? A) 15% B) 30% C) 40% D) 53% Answer: D Explanation: For a single conductor, the maximum fill is 53% of the conduit’s cross-sectional area per NEC Chapter 9 Table 1. Question 49. Which of the following is the correct method for bonding a metal water pipe to the grounding electrode system? A) Use a listed bonding jumper of at least 6 AWG copper B) Connect the pipe directly to the neutral bus C) No bonding required if the pipe is already metal D) Use a 12-AWG aluminum wire Answer: A Explanation: NEC 250.104(A)(1) requires a listed bonding jumper, typically 6 AWG copper, to bond metal water piping to the grounding electrode system. Question 50. For a residential 120-V lighting circuit, the NEC requires a minimum of how many lighting outlets per circuit?
Electrician 565KS Contractor Ultimate Exam
A) 3
B) 5
C) 8
D) No minimum, only load calculations apply Answer: D Explanation: NEC does not set a minimum number of outlets; circuits are sized based on calculated load. Question 51. Which of the following is required when installing a receptacle in a shower stall? A) A GFCI receptacle with a weather-proof cover B) A standard receptacle with a self-closing cover C) No receptacle is permitted within the shower stall D) A standard receptacle with a tamper-resistant (TR) design Answer: C Explanation: NEC 210.8(A)(10) prohibits receptacles inside the shower stall area; they must be installed outside the wet zone. Question 52. When installing a 240-V, 30-A dryer circuit, which of the following wire configurations is acceptable? A) 10-AWG copper THHN, 2-hots + ground B) 12-AWG copper THHN, 2-hots + neutral C) 8-AWG aluminum XHHW, 2-hots + ground D) 6-AWG copper, 2-hots + neutral + ground Answer: A Explanation: A 30-A dryer circuit requires 10-AWG copper conductors for the two hot legs and an equipment grounding conductor. Question 53. Which of the following is the correct minimum rating for a receptacle that supplies a 1500-W electric heater on a 120-V circuit? A) 10 A
Electrician 565KS Contractor Ultimate Exam
C) Both GFCI and TR receptacles D) Neither, as long as the circuit is 20 A Answer: C Explanation: NEC 210.8(A)(6) requires GFCI protection, and 406.12 requires tamper-resistant receptacles in residential areas. Question 57. Which of the following is the correct minimum size for a copper grounding electrode conductor connected to a 100-A service? A) 10 AWG B) 8 AWG C) 6 AWG D) 4 AWG Answer: C Explanation: NEC Table 250.66 specifies a minimum of 6 AWG copper for a 100-A service. Question 58. A residential electrician must install a new 120-V, 20-A circuit for a garage door opener. Which of the following conduit fill percentages is acceptable for three 12-AWG THHN conductors? A) 15% B) 30% C) 40% D) 53% Answer: D Explanation: For three conductors, the maximum fill is 40% of the conduit’s cross-sectional area, but a single 12-AWG THHN occupies only 0.0133 in²; a 1/2-in. EMT easily accommodates three such conductors well within the 40% limit. Question 59. Which of the following devices is required on a 120-V, 15-A branch circuit that supplies a bathroom vanity light? A) GFCI only B) AFCI only
Electrician 565KS Contractor Ultimate Exam
C) Both GFCI and AFCI D) Neither, unless the circuit also supplies an outlet Answer: A Explanation: NEC 210.8(A)(1) requires GFCI protection for bathroom lighting circuits. Question 60. When installing a receptacle in a basement finished with drywall, what is the required minimum distance from the floor to the bottom of the receptacle? A) 12 in. B) 18 in. C) 24 in. D) No specific requirement Answer: D Explanation: NEC does not set a specific minimum height for receptacles in basements; local codes may apply. Question 61. Which of the following is the correct method for grounding a metal conduit that runs from a main panel to a detached garage? A) Bond the conduit at each junction box B) Bond the conduit only at the main panel C) No bonding required if the conduit is continuous D) Use a separate grounding conductor that runs parallel to the conduit Answer: B Explanation: The conduit must be bonded at the service disconnect (main panel); bonding at each box is unnecessary if the conduit is continuous. Question 62. What is the NEC-mandated minimum rating for a receptacle that supplies a 1500-W electric baseboard heater on a 240-V circuit? A) 10 A B) 15 A C) 20 A
