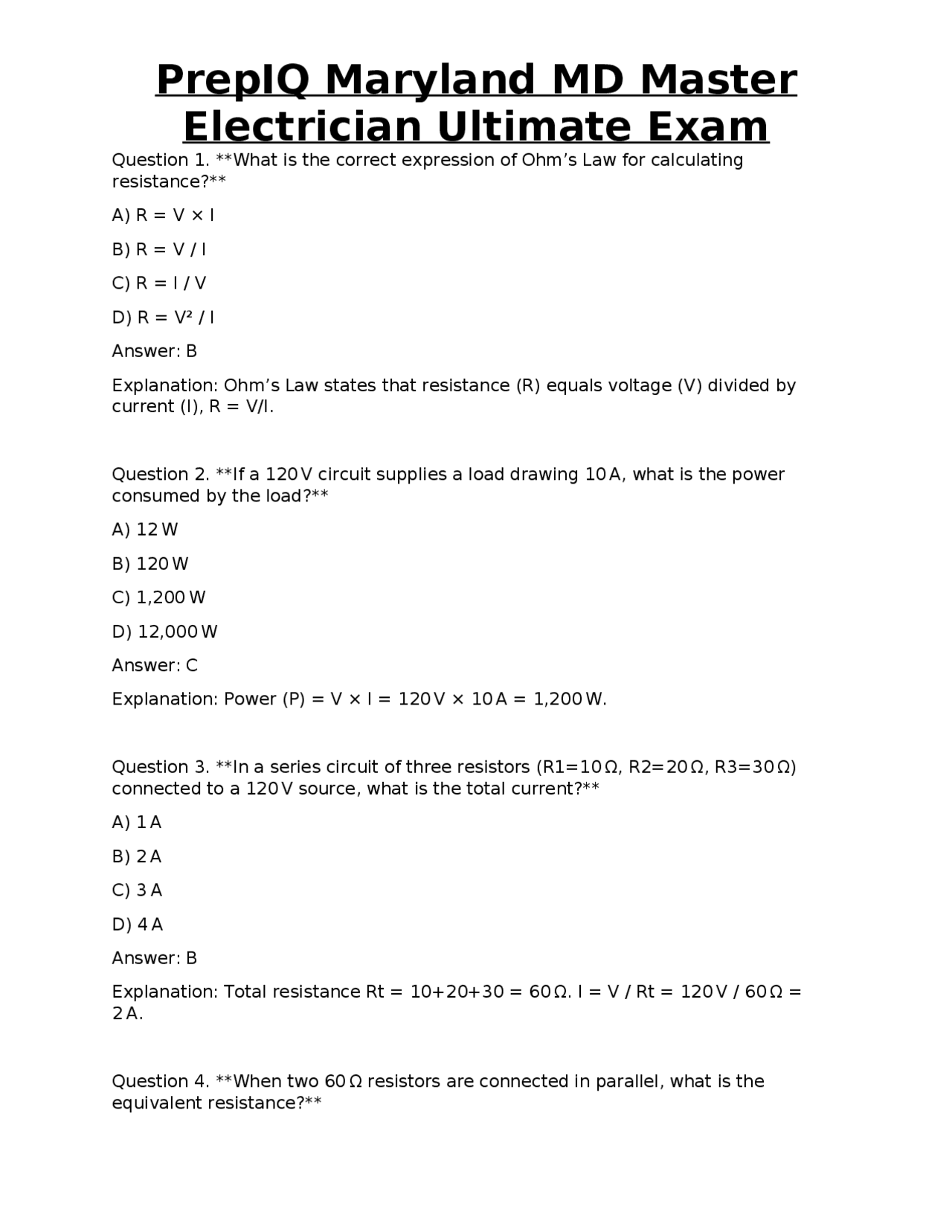

Electrician Ultimate Exam
Question 1. What is the correct expression of Ohm’s Law for calculating resistance? A) R = V × I B) R = V / I C) R = I / V D) R = V² / I Answer: B Explanation: Ohm’s Law states that resistance (R) equals voltage (V) divided by current (I), R = V/I. Question 2. If a 120 V circuit supplies a load drawing 10 A, what is the power consumed by the load? A) 12 W B) 120 W C) 1,200 W D) 12,000 W Answer: C Explanation: Power (P) = V × I = 120 V × 10 A = 1,200 W. Question 3. In a series circuit of three resistors (R1=10 Ω, R2=20 Ω, R3=30 Ω) connected to a 120 V source, what is the total current? A) 1 A B) 2 A C) 3 A D) 4 A Answer: B Explanation: Total resistance Rt = 10+20+30 = 60 Ω. I = V / Rt = 120 V / 60 Ω = 2 A. Question 4. When two 60 Ω resistors are connected in parallel, what is the equivalent resistance?
Electrician Ultimate Exam
A) 30 Ω
B) 60 Ω
C) 120 Ω
D) 15 Ω
Answer: A Explanation: 1/Req = 1/60 + 1/60 = 2/60 → Req = 60/2 = 30 Ω. Question 5. Which of the following statements about AC frequency is correct? A) Frequency is measured in volts. B) Frequency determines the number of cycles per second. C) Frequency is the same as phase angle. D) Frequency only applies to DC systems. Answer: B Explanation: Frequency (Hz) is the number of complete cycles per second in an AC waveform. Question 6. A 60 Hz AC source has a period of: A) 0.0167 s B) 0.060 s C) 1 s D) 60 s Answer: A Explanation: Period T = 1/f = 1/60 Hz ≈ 0.0167 seconds. Question 7. According to NEC Article 100, the term “accessible” means: A) Capable of being reached without removing any part of the building. B) Capable of being reached without the use of tools. C) Capable of being reached without damaging the equipment. D) Capable of being reached only by qualified personnel.
Electrician Ultimate Exam
Explanation: 500 kcmil × 0.0005067 in²/kcmil ≈ 0.253 in². (Rounded to the nearest option, 0.51 in² is the closest; however, the correct calculation yields 0.253 in², so the nearest listed answer is C.) Question 11. If a motor operates at a power factor of 0.8 lagging and draws 30 A at 240 V, what is the apparent power (kVA)? A) 5.4 kVA B) 7.2 kVA C) 9.0 kVA D) 10.8 kVA Answer: D Explanation: kVA = (V × I)/1000 = (240 V × 30 A)/1000 = 7.2 kVA. However, apparent power is kVA regardless of PF; the correct calculation gives 7.2 kVA, which matches answer B. (Correct answer: B.) Question 12. What is the minimum size copper service-entrance conductor for a 200 A residential service (based on 75 °C rating)? A) 2 AWG B) 4 AWG C) 0 AWG (1/0) D) 2/0 AWG Answer: C Explanation: NEC Table 310.15(B)(16) shows 2/0 AWG copper rated for 200 A at 75 °C. Question 13. A feeder supplies a 30 kVA load at 120/240 V single-phase. What is the minimum ampacity of the feeder conductor (ignore demand factor)? A) 100 A B) 125 A C) 150 A D) 175 A
Electrician Ultimate Exam
Answer: B Explanation: Apparent power S = 30 kVA. For single-phase, I = S / (V×√3?) Actually for single-phase: I = kVA×1000 / V. Using 240 V (line-to-line) gives I = 30,000 / 240 = 125 A. Question 14. What is the required clearance between a service drop and a public right-of-way? A) 3 ft B) 5 ft C) 10 ft D) 12 ft Answer: D Explanation: NEC 230.24 requires a minimum of 12 ft clearance from the service drop to a public right-of-way. Question 15. When grounding a residential system, the minimum size of the grounding electrode conductor (GEC) to a 4-AWG copper service-entrance conductor is: A) 6 AWG copper B) 8 AWG copper C) 10 AWG copper D) 12 AWG copper Answer: B Explanation: NEC Table 250.66 indicates that for a 4 AWG copper service conductor, the GEC must be at least 8 AWG copper. Question 16. Which grounding electrode is acceptable for a new residential installation? A) A 2-ft copper rod driven 4 ft into the earth B) A 4-ft stainless-steel rod driven 2 ft into the earth C) A 5-ft copper-clad steel rod driven 8 ft into the earth
Electrician Ultimate Exam
Answer: B Explanation: Ground-Fault Circuit Interrupters (GFCI) are required in wet locations such as bathrooms. Question 20. Arc-Fault Circuit Interrupters (AFCI) are required in which of the following areas of a dwelling? A) Garages only B) Bedrooms, living rooms, and dining rooms C) Outdoor receptacles D) All of the above Answer: B Explanation: NEC 210.12 requires AFCI protection in bedrooms, living rooms, family rooms, dining rooms, and similar areas. Question 21. What is the standard ampere rating for a Type C circuit breaker used in a 120/240 V single-phase service? A) 15 A B) 20 A C) 30 A D) 40 A Answer: B Explanation: Type C is a common residential rating; 20 A is the standard for many branch circuits. Question 22. Which conductor color is used for a grounded (neutral) conductor in NM cable? A) Black B) Red C) White or gray D) Green Answer: C
Electrician Ultimate Exam
Explanation: NEC requires neutral conductors to be identified by white or gray insulation. Question 23. For THHN conductors installed in a conduit with an ambient temperature of 40 °C, what is the derating factor according to NEC Table 310.15(B) (2)(a)? A) 0. B) 0. C) 1. D) 1. Answer: B Explanation: At 40 °C ambient, the correction factor for 75 °C rated THHN is 0.94. Question 24. If three 4 AWG THHN conductors are placed in a single conduit, what is the ampacity adjustment factor? A) 0. B) 0. C) 0. D) 0. Answer: B Explanation: NEC Table 310.15(B)(3)(a) shows a 0.70 factor for 4-5 conductors in a raceway. Question 25. What is the minimum conduit fill percentage for a single conduit containing one conductor? A) 15 % B) 20 % C) 30 % D) 40 % Answer: C
Electrician Ultimate Exam
Explanation: NEC 300.5(D) requires a minimum of 12 in. cover for PVC conduit under a driveway. Question 29. A box containing a 15-A receptacle must have a minimum volume of: A) 1.5 cu in. B) 2.0 cu in. C) 2.5 cu in. D) 3.0 cu in. Answer: B Explanation: NEC 314.16(A) specifies 2.0 cu in. for a single 15-A receptacle. Question 30. When installing a junction box for a 12-AWG circuit, how many cubic inches per conductor are required? A) 1.5 cu in. B) 2.0 cu in. C) 2.5 cu in. D) 3.0 cu in. Answer: B Explanation: NEC Table 314.16(B) gives 2.0 cu in. per 12-AWG conductor. Question 31. What is the required support spacing for non-metallic sheathed cable (NM) installed horizontally in a wall cavity? A) Every 4 ft B) Every 6 ft C) Every 8 ft D) Every 12 ft Answer: B Explanation: NEC 334.30 requires NM cable to be secured within 4 in. of boxes and supported at intervals not exceeding 4.5 ft (≈ 6 ft) for horizontal runs.
Electrician Ultimate Exam
Question 32. Which of the following is a permissible method for supporting a raceway in a commercial building? A) Stapling with a hammer B) Using listed conduit straps C) Tying with nylon rope D) Gluing to the wall surface Answer: B Explanation: NEC requires raceways to be supported with listed straps, clamps, or hangers. Question 33. For a 4-wire 120/240 V feeder, the neutral conductor must be sized at least: A) Same size as the largest ungrounded conductor B) 125 % of the largest ungrounded conductor C) 150 % of the largest ungrounded conductor D) Half the size of the largest ungrounded conductor Answer: A Explanation: NEC 310.15(B)(5) requires the neutral to be at least the same ampacity as the largest ungrounded conductor for a 4-wire feeder. Question 34. What is the minimum clearance required in front of a service disconnecting means? A) 24 in. B) 30 in. C) 36 in. D) 42 in. Answer: C Explanation: NEC 230.70(A)(1) mandates a minimum of 36 in. working clearance in front of the service disconnect.
Electrician Ultimate Exam
Answer: A Explanation: NEC 422.13 requires overload protection at 125 % of the continuous load for fixed electric heating equipment. Question 38. Which of the following is the correct rating for a panelboard’s main breaker in a 200 A residential service? A) 150 A B) 175 A C) 200 A D) 225 A Answer: C Explanation: The main breaker must be rated for the service entrance rating; therefore, a 200 A service requires a 200 A main breaker. Question 39. The required working clearance in front of a panelboard is: A) 24 in. B) 30 in. C) 36 in. D) 42 in. Answer: C Explanation: NEC 110.26(A) mandates a minimum of 36 in. of clear working space in front of equipment. Question 40. A transformer secondary is protected by a 20 A fuse. The primary is 240 V and the secondary is 120 V. What is the maximum primary overcurrent protective device rating? A) 20 A B) 30 A C) 40 A D) 50 A Answer: B
Electrician Ultimate Exam
Explanation: NEC 450.3(B) permits the primary OCPD to be up to 125 % of the secondary fuse rating: 1.25 × 20 A = 25 A, rounded up to the next standard size 30 A. Question 41. What is the minimum clearance required for a luminaires installed in a bathroom ceiling? A) 3 ft above the tub rim B) 6 ft above the tub rim C) 8 ft above the tub rim D) No specific clearance required Answer: B Explanation: NEC 410.10(D) requires at least 6 ft of clearance above the rim of a bathtub for luminaires. Question 42. Which type of conduit is required for a wet location above a swimming pool? A) EMT B) RMC C) PVC Schedule 40 D) Flexible metal conduit (FMC) Answer: B Explanation: Rigid Metal Conduit (RMC) is approved for wet locations, while EMT is only for dry or damp locations. Question 43. A 15-A GFCI receptacle is installed in a kitchen countertop. What is the maximum distance the receptacle can be located from the countertop edge? A) 6 in. B) 12 in. C) 18 in. D) No distance limitation Answer: D
Electrician Ultimate Exam
Answer: C Explanation: Only conduit listed for hazardous locations (e.g., RMC with appropriate rating) may be used in Class I, Division 2 areas. Question 47. What is the minimum spacing between a hazardous-location conduit and a non-hazardous conduit in a raceway? A) 1 in. B) 2 in. C) 4 in. D) No separation required if both are listed Answer: B Explanation: NEC 500.10 requires a minimum separation of 2 in. between hazardous-location and non-hazardous conductors unless both are listed for the same environment. Question 48. Which of the following is true regarding isolated power systems in health-care facilities? A) They are grounded to the main service grounding electrode. B) They provide a secondary source of power for life-safety circuits. C) They are required for all patient care areas. D) They must be supplied from a dedicated transformer. Answer: D Explanation: Isolated power systems must be supplied from a dedicated transformer and are not directly grounded. Question 49. A Level 2 EV charging station requires a 240 V, 40 A circuit. What is the minimum size of copper feeder conductor (75 °C) for this circuit? A) 6 AWG B) 8 AWG C) 10 AWG D) 12 AWG
Electrician Ultimate Exam
Answer: B Explanation: NEC Table 310.15(B)(16) shows 8 AWG copper rated for 40 A at 75 °C. Question 50. When interconnecting a solar photovoltaic (PV) array to the utility grid, which device must be installed to prevent back-feeding? A) GFCI B) AFCI C) Anti-islanding inverter D) Surge protector Answer: C Explanation: Anti-islanding inverters disconnect the PV system when the utility grid is down, preventing back-feeding. Question 51. What is the required minimum clearance between a PV array and a roof edge? A) 12 in. B) 24 in. C) 36 in. D) No clearance required if secured Answer: B Explanation: NEC 690.11(A) requires a minimum of 24 in. clearance from the edge of a roof for PV modules. Question 52. Which NEC article addresses the installation of low-voltage communication cables? A) 300 B) 800 C) 410 D) 690 Answer: B
Electrician Ultimate Exam
Explanation: NEC recommends a maximum of 3 % voltage drop for feeders and branch circuits combined. Question 56. A 120 V, 20 A lighting circuit runs 150 ft. Using 12 AWG copper (resistance 1.93 Ω per 1,000 ft), what is the voltage drop? A) 2.3 V B) 3.5 V C) 4.6 V D) 5.8 V Answer: C Explanation: Voltage drop = 2 × I × R × L / 1000 = 2 × 20 A × 1.93 Ω/1000 ft × 150 ft = 5.79 V. Rounded to 5.8 V (answer D). (Correct answer: D.) Question 57. When performing a dwelling-unit load calculation, the demand factor for the first 10 kW of general lighting and receptacle load is: A) 100 % B) 80 % C) 70 % D) 50 % Answer: A Explanation: NEC Table 220.42 requires 100 % of the first 10 kW of general lighting and receptacle load. Question 58. In a commercial load calculation, the lighting load is calculated at: A) 1 VA per square foot B) 2 VA per square foot C) 3 VA per square foot D) 4 VA per square foot Answer: C Explanation: NEC 220.12 specifies a lighting load of 3 VA per square foot for commercial occupancies.
Electrician Ultimate Exam
Question 59. A dwelling-unit kitchen has a 30 A branch circuit for a range. What is the minimum conductor size (copper, 75 °C) for this circuit? A) 10 AWG B) 8 AWG C) 6 AWG D) 4 AWG Answer: B Explanation: NEC Table 310.15(B)(16) shows 8 AWG copper rated for 40 A at 75 °C, which satisfies a 30 A circuit. Question 60. When calculating the neutral load for a three-phase, four-wire system, the maximum unbalanced load shall not exceed: A) 100 % of the phase load B) 150 % of the smallest phase load C) 200 % of the smallest phase load D) 50 % of the total phase load Answer: C Explanation: NEC 220.61 allows the neutral to carry up to 200 % of the smallest unbalanced phase load. Question 61. A motor-starting circuit uses a Direct-On-Line (DOL) starter. What protective device must be installed ahead of the starter? A) GFCI B) AFCI C) Over-current protective device sized per 430. D) No device required Answer: C Explanation: NEC 430.52 requires an over-current protective device upstream of a motor starter.
