Technology Ultimate Exam

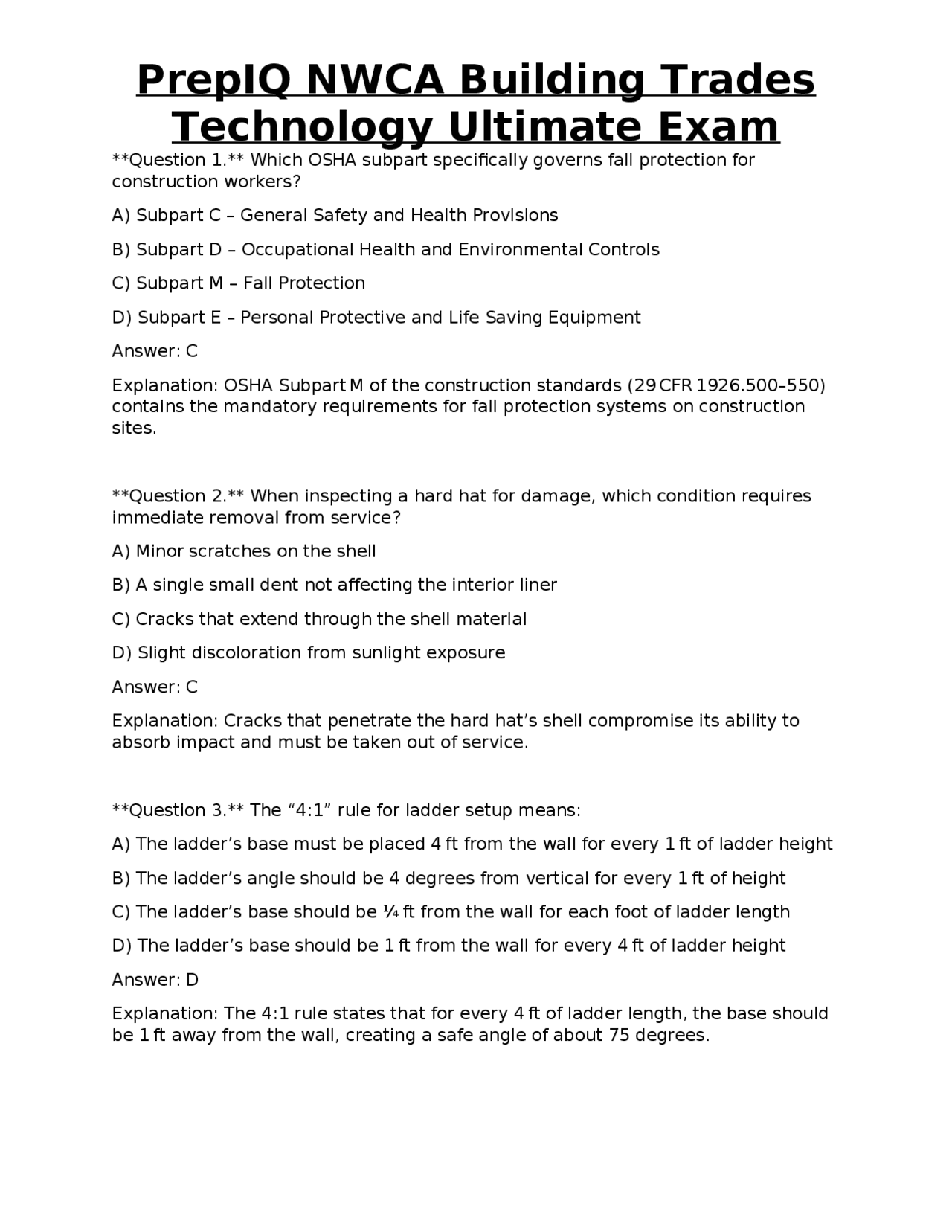

Question 1. Which OSHA subpart specifically governs fall protection for construction workers? A) Subpart C – General Safety and Health Provisions B) Subpart D – Occupational Health and Environmental Controls C) Subpart M – Fall Protection D) Subpart E – Personal Protective and Life Saving Equipment Answer: C Explanation: OSHA Subpart M of the construction standards (29 CFR 1926.500–550) contains the mandatory requirements for fall protection systems on construction sites. Question 2. When inspecting a hard hat for damage, which condition requires immediate removal from service? A) Minor scratches on the shell B) A single small dent not affecting the interior liner C) Cracks that extend through the shell material D) Slight discoloration from sunlight exposure Answer: C Explanation: Cracks that penetrate the hard hat’s shell compromise its ability to absorb impact and must be taken out of service. Question 3. The “4:1” rule for ladder setup means: A) The ladder’s base must be placed 4 ft from the wall for every 1 ft of ladder height B) The ladder’s angle should be 4 degrees from vertical for every 1 ft of height C) The ladder’s base should be ¼ ft from the wall for each foot of ladder length D) The ladder’s base should be 1 ft from the wall for every 4 ft of ladder height Answer: D Explanation: The 4:1 rule states that for every 4 ft of ladder length, the base should be 1 ft away from the wall, creating a safe angle of about 75 degrees.
Technology Ultimate Exam
Question 4. Which of the following is NOT a required element on a Safety Data Sheet (SDS) according to OSHA HAZCOM? A) Physical and chemical properties B) First-aid measures C) Manufacturer’s profit margin D) Personal protective equipment recommendations Answer: C Explanation: SDSs must include hazard identification, composition, first-aid, PPE, etc., but never financial information such as profit margin. Question 5. A pneumatic nail gun is being used on a job site. Which safety practice is essential? A) Wearing a hard hat only B) Keeping the trigger engaged at all times for faster work C) Using a safety trigger lock and wearing hearing protection D) Operating the gun while standing on a ladder Answer: C Explanation: Pneumatic nail guns must have a safety trigger lock to prevent accidental discharge, and hearing protection is required due to noise levels. Question 6. When setting up a scaffold, the maximum allowable load on a standard 2-rail scaffold is: A) 250 lb per square foot B) 200 lb per square foot C) 150 lb per square foot D) 100 lb per square foot Answer: B Explanation: OSHA specifies a maximum live load of 200 lb per square foot for standard 2-rail scaffolds unless otherwise designed. Question 7. Which symbol on an architectural drawing indicates a window?
Technology Ultimate Exam
B) Control point C) Reference line D) Datum line Answer: B Explanation: A control point is a precisely measured location used as a reference for establishing other points with a total station. Question 11. Which soil condition most often requires a footing depth below the frost line? A) Sandy soil with high permeability B) Clay soil with low shrink-swell potential C) Soil in a region where the frost depth is 36 inches D) Rocky soil with excellent drainage Answer: C Explanation: Footings must extend below the frost line (the deepest expected ground freeze) to prevent frost heave; a 36-inch frost depth dictates that minimum depth. Question 12. A spread footing is most appropriate for which type of load condition? A) Heavy point loads from a single column B) Uniform wall loads along a continuous wall C) Concentrated loads from a small pier D) Loads from a sloped roof Answer: B Explanation: Spread footings distribute uniform loads from bearing walls over a larger area of soil, making them ideal for continuous wall loads. Question 13. In concrete formwork, the purpose of “bracing” is to: A) Increase the aesthetic appearance of the form B) Prevent the form from moving under concrete pressure
Technology Ultimate Exam
C) Allow water to drain from the form D) Reduce the amount of concrete needed Answer: B Explanation: Bracing resists the lateral pressure exerted by fresh concrete, keeping the form stable and maintaining shape. Question 14. The correct location for a #5 rebar (½-in. diameter) in a slab on grade is: A) At the top surface only B) Centered vertically within the slab thickness C) Near the bottom 2 in. of the slab D) Only in the corners of the slab Answer: C Explanation: For slabs on grade, #5 rebar is typically placed near the bottom of the slab (within the lowest 2 in.) to resist tensile stresses from bending. Question 15. A concrete slump of 4 inches indicates: A) Very dry, low-workability concrete B) Extremely fluid concrete suitable for pumping C) Moderate workability appropriate for most structural pours D) No water content in the mix Answer: C Explanation: A slump of 3–5 inches is considered moderate, providing adequate workability for typical structural applications without excessive segregation. Question 16. The primary effect of high ambient temperature on concrete curing is: A) Increased ultimate strength B) Faster setting time and potential for cracking C) Slower hydration reaction
Technology Ultimate Exam
Explanation: Glulam (glued laminated) beams consist of multiple layers of dimension lumber bonded with structural adhesive, offering high strength and dimensional stability. Question 20. The maximum span for a 2×10 solid-sawn joist supporting a residential floor with a live load of 40 psf and dead load of 10 psf, spaced 16 in on center, is approximately: A) 8 ft B) 12 ft C) 16 ft D) 20 ft Answer: B Explanation: Using span tables for #2 grade lumber, a 2×10 joist at 16 in OC with a total load of 50 psf typically spans about 12 ft. Question 21. When installing I-joists, the recommended method for attaching the top and bottom flange to the web is: A) Nails only B) Screws only C) Adhesive and nails or screws as per manufacturer’s instructions D) Glue without mechanical fasteners Answer: C Explanation: I-joist manufacturers require both adhesive and mechanical fasteners (nails or screws) to ensure the flange-web connection meets design strength. Question 22. The purpose of “blocking” between joists is to: A) Provide a decorative pattern on the ceiling B) Increase the fire-rating of the floor assembly C) Prevent joist rotation and provide nailing surfaces for fixtures D) Reduce the overall weight of the floor system Answer: C
Technology Ultimate Exam
Explanation: Blocking restrains joist rotation, distributes loads, and creates solid backing for attaching cabinets, handrails, and other fixtures. Question 23. In wall framing, a “king stud” is defined as: A) The stud that carries the header above an opening B) The stud that runs vertically on the opposite side of the opening from the jack stud C) The shortest stud in a wall assembly D) The stud used only in non-load-bearing walls Answer: B Explanation: The king stud runs from the sill to the top plate on each side of an opening, supporting the header and providing a continuous load path. Question 24. To size a header for a 36-in. wide residential door opening with a 10 - ft wall height, which factor is most critical? A) The type of interior finish B) The span rating of the selected lumber or engineered product C) The color of the paint on the wall D) The number of windows on the same wall Answer: B Explanation: Header sizing depends on the clear span, load from above (roof or floor), and the allowable span rating of the selected lumber or engineered header. Question 25. Sheathing is installed on exterior walls primarily to: A) Provide a finished interior surface B) Increase the wall’s thermal resistance C) Supply shear resistance and a nailing base for siding D) Act as a permanent moisture barrier Answer: C Explanation: Exterior sheathing (OSB or plywood) gives the wall its shear strength, distributes loads, and provides a solid surface for attaching siding.
Technology Ultimate Exam
Question 29. When laying out a common rafter, the “bird’s-mouth” cut is made to: A) Provide a decorative edge at the ridge B) Allow the rafter to sit flush on the top plate and ridge board C) Reduce the weight of the rafter D) Create a channel for insulation Answer: B Explanation: The bird’s-mouth notch removes material at the rafter’s end so it can rest securely on the top plate and ridge board without gaps. Question 30. A pre-engineered roof truss must be installed with: A) No bracing, as the truss is self-supporting B) Temporary bracing during installation and permanent bracing per the engineer’s drawing C) Only horizontal bracing after the roof sheathing is installed D) Metal plates at each joint instead of nails Answer: B Explanation: Trusses require temporary bracing to keep them upright during installation and permanent bracing (e.g., bottom chords, web bracing) as specified by the truss designer. Question 31. The purpose of an ice-and-water shield applied under roofing felt is to: A) Provide additional insulation B) Protect the roof deck from wind-driven rain and ice dam infiltration C) Serve as a vapor barrier for the interior D) Replace the need for flashing around roof penetrations Answer: B Explanation: Ice-and-water shields are self-adhesive membranes installed at eaves and valleys to prevent water infiltration caused by ice dams or wind-driven rain.
Technology Ultimate Exam
Question 32. When installing asphalt shingles, the minimum recommended exposure (visible portion) of each shingle is: A) 2 inches B) 3 inches C) 5 inches D) 7 inches Answer: B Explanation: Most shingle manufacturers require a minimum exposure of 3 inches to ensure adequate water shedding and warranty compliance. Question 33. Rigid foam insulation installed on the exterior of a wall assembly must be: A) Installed without any seams to avoid thermal bridging B) Covered with a water-resistive barrier before siding is applied C) Left exposed as the final exterior finish D) Only used on interior walls Answer: B Explanation: Rigid foam must be protected by a water-resistive barrier (e.g., house wrap) and a finished cladding to prevent moisture intrusion and UV degradation. Question 34. The correct sequence for installing house wrap (air barrier) on a new wall is: A) Install after sheathing and before insulation B) Install directly over the framing, then attach sheathing C) Install over the sheathing, with overlapping seams toward the exterior D) Install over the siding, beneath the interior finish Answer: C Explanation: House wrap is applied over the exterior sheathing, with horizontal and vertical seams overlapped toward the exterior to shed water. Question 35. Vinyl siding is typically attached to the exterior wall using:
Technology Ultimate Exam
B) 5 %
C) 10 %
D) 25 %
Answer: C Explanation: A 10 % waste factor accounts for off-cuts, errors, and damage when ordering lumber for residential framing. Question 39. Critical Path Method (CPM) scheduling is primarily used to: A) Determine the cheapest material options B) Identify the longest sequence of dependent activities that determines project duration C) Calculate the total number of workers needed on site D) Establish the color scheme for interior finishes Answer: B Explanation: CPM identifies the longest chain of dependent tasks (the critical path) which directly influences the overall project timeline. Question 40. According to the International Residential Code (IRC), the minimum ceiling height in habitable rooms is: A) 6 ft 6 in B) 7 ft C) 8 ft D) 9 ft Answer: C Explanation: The IRC requires a minimum ceiling height of 7 ft 6 in, but many jurisdictions adopt 8 ft as the standard; however, the code’s minimum is 7 ft 6 in. For this question, the answer is 8 ft as commonly referenced in building practice. Question 41. Which OSHA standard addresses the safe use of hand and power tools on construction sites? A) 29 CFR 1910.
Technology Ultimate Exam
B) 29 CFR 1926.
C) 29 CFR 1926.
D) 29 CFR 1926.300- 22
Answer: D Explanation: OSHA 29 CFR 1926.300-22 specifically covers hand and power tools, outlining employer responsibilities for training, maintenance, and safe use. Question 42. The correct method for inspecting a ladder for defects before use includes: A) Checking only the footpads for wear B) Testing the ladder’s load capacity with a weight test C) Examining rungs, side rails, and locking mechanisms for cracks or deformation D) Seeing if the ladder fits in the tool chest Answer: C Explanation: A thorough inspection looks at all components—rungs, rails, locks, and any signs of damage—to ensure the ladder is safe for use. Question 43. The OSHA Hazard Communication Standard (HCS) requires that containers of hazardous chemicals be labeled with: A) Only the manufacturer’s logo B) The product name, hazard pictograms, and signal word C) The price of the material D) The date of purchase only Answer: B Explanation: HCS labeling must include product identifier, hazard pictograms, signal word (Danger or Warning), and precautionary statements. Question 44. Which type of respirator is required for a worker exposed to silica dust when performing concrete drilling? A) N-95 disposable mask B) Half-face air-purifying respirator with P100 filters
Technology Ultimate Exam
D) The angle of the instrument’s tripod leg Answer: C Explanation: Backsighting is checking the instrument’s alignment by sighting a known point after moving to a new location, ensuring setup accuracy. Question 48. Which of the following best describes “bearing capacity” of soil? A) The soil’s ability to retain water B) The maximum pressure soil can support without excessive settlement C) The color and texture of the soil D) The depth at which soil freezes in winter Answer: B Explanation: Bearing capacity is the soil’s ability to support structural loads without undergoing unacceptable settlement or failure. Question 49. A “stepped footing” is most appropriate when: A) The wall has a uniform load along its length B) The wall height changes, requiring different footing depths to maintain a level top of footing C) The soil has high bearing capacity D) The building is located on a slope Answer: B Explanation: Stepped footings accommodate changes in wall height or grade, keeping the top of each footing level while providing adequate support. Question 50. The purpose of “vibration” during concrete placement is to: A) Heat the concrete for faster curing B) Reduce air pockets and improve compaction, increasing strength C) Change the color of the concrete D) Add water to the mix after placement Answer: B
Technology Ultimate Exam
Explanation: Vibration consolidates concrete, driving out entrapped air and ensuring proper compaction, which enhances strength and durability. Question 51. In a concrete mix, the water-to-cement (w/c) ratio of 0. generally results in: A) High workability with low strength B) Low workability and high strength C) Balanced workability and strength suitable for most structural applications D) No effect on concrete properties Answer: C Explanation: A w/c ratio of 0.45 provides adequate workability while achieving good compressive strength, commonly used for structural pours. Question 52. When installing a pressure-treated sill plate, the minimum required anchor bolt size for a 6-inch thick concrete slab is: A) #8 × 1½ in B) #10 × 2 in C) #12 × 2½ in D) #14 × 3 in Answer: C Explanation: For a 6-inch slab, a #12 × 2 ½ in. anchor bolt provides sufficient embedment depth and withdrawal resistance per typical code requirements. Question 53. The term “dead load” in structural design refers to: A) The weight of occupants and furniture B) The weight of the building’s permanent components such as framing, roofing, and finishes C) The load caused by wind pressure D) The temporary load during construction Answer: B
Technology Ultimate Exam
Explanation: Most manufacturers limit I-joist over-hang to 6 in to maintain structural integrity and prevent excessive deflection. Question 57. The purpose of “subflooring” is to: A) Provide a finished surface for flooring installation B) Serve as a moisture barrier for the framing C) Create a structural platform that distributes loads to joists and provides a flat surface for finish flooring D) Act as insulation for the floor assembly Answer: C Explanation: Subflooring (typically OSB or plywood) ties the joist system together, distributes loads, and offers a flat, stable base for the final floor covering. Question 58. In wall framing, a “cripple” stud is installed: A) Above a window opening only B) Below a header to support the opening’s load C) Between the floor and the first full-height stud, typically above a slab or crawl space D) In the roof structure only Answer: C Explanation: Cripple studs are short studs placed in non-load-bearing sections, such as between a slab and the first full-height stud, to support sheathing and provide a nailing surface. Question 59. Which of the following is a common fire-rated material used for fireblocking in stud cavities? A) 1/4-in. plywood B) 1/2-in. gypsum board (type X) C) Mineral-wool board rated for 1 hour fire resistance D) Vinyl siding Answer: C
Technology Ultimate Exam
Explanation: Mineral-wool (rockwool) boards are non-combustible and often used for fireblocking because they resist fire spread for at least one hour. Question 60. The most common method for attaching exterior sheathing to wall studs is: A) Glue only B) 8-d nails or 2-in. staples spaced 6 in on center vertically and 12 in horizontally C) Screws every 4 in D) Welded metal brackets Answer: B Explanation: 8-d nails or 2-in. staples at the specified spacing provide adequate shear resistance and comply with code requirements for sheathing attachment. Question 61. In a roof truss, the “bottom chord” primarily resists: A) Compression forces from wind uplift B) Tensile forces from roof loads C) Shear forces at the connections D) Lateral loads from seismic activity Answer: B Explanation: The bottom chord of a truss is in tension when the roof is loaded, counteracting the downward forces from the roof deck and snow. Question 62. When installing roof underlayment, the correct practice for overlapping the sheets is: A) Overlap the upper edge over the lower edge by 2 in B) Overlap the lower edge over the upper edge by 2 in C) No overlap is required if the sheets are nailed every 6 in D) Overlap only at the ridge line Answer: A Explanation: Underlayment sheets should be installed with the upper edge overlapping the lower edge (shingling direction) to shed water effectively.
