Ultimate Exam

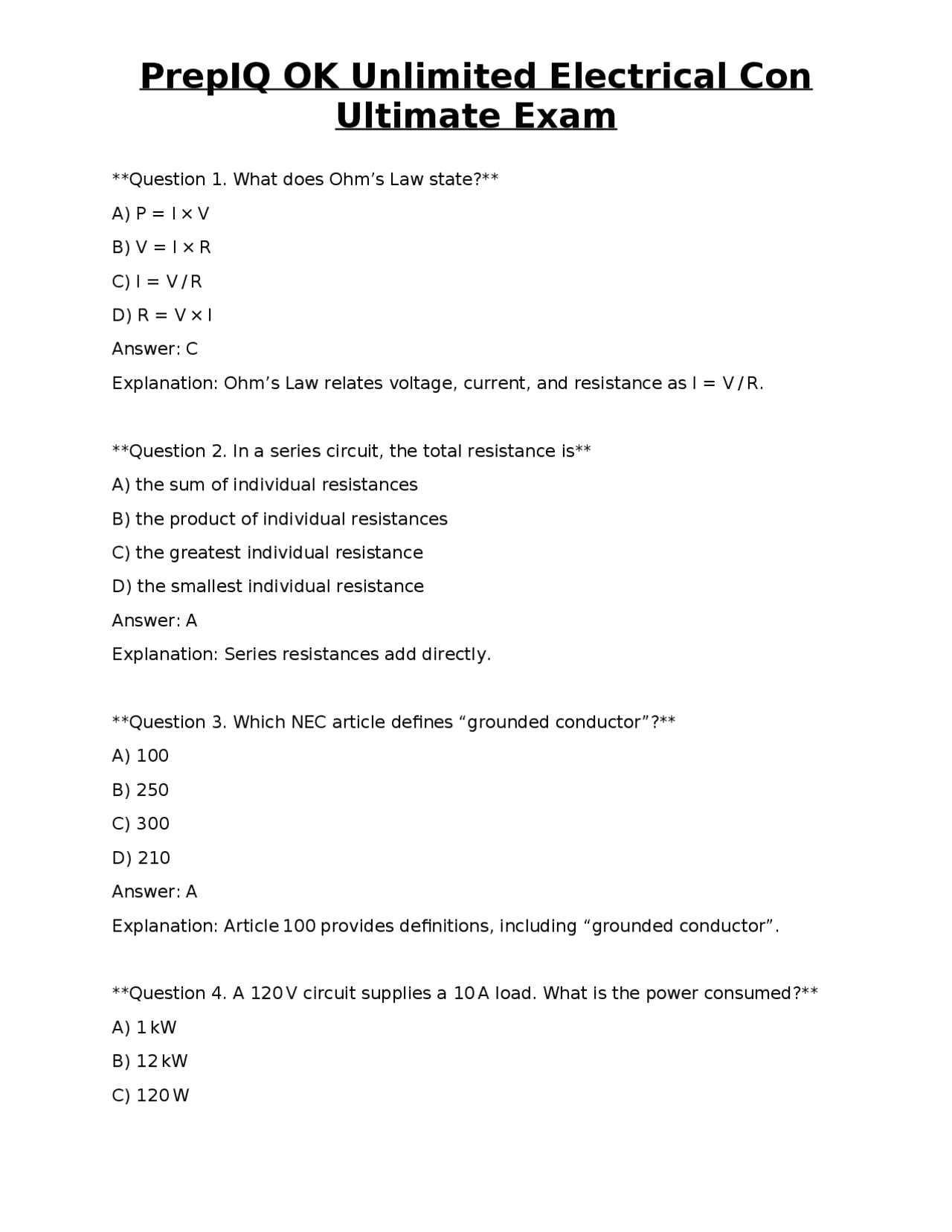

Question 1. What does Ohm’s Law state? A) P = I × V B) V = I × R C) I = V / R D) R = V × I Answer: C Explanation: Ohm’s Law relates voltage, current, and resistance as I = V / R. Question 2. In a series circuit, the total resistance is A) the sum of individual resistances B) the product of individual resistances C) the greatest individual resistance D) the smallest individual resistance Answer: A Explanation: Series resistances add directly. Question 3. Which NEC article defines “grounded conductor”? A) 100 B) 250 C) 300 D) 210 Answer: A Explanation: Article 100 provides definitions, including “grounded conductor”. Question 4. A 120 V circuit supplies a 10 A load. What is the power consumed? A) 1 kW B) 12 kW C) 120 W
Ultimate Exam
D) 1.2 kW Answer: D Explanation: P = V × I = 120 V × 10 A = 1,200 W = 1.2 kW. Question 5. Which symbol represents a single-pole circuit breaker on a one-line diagram? A) □ B) ⧈ C) ⎕ D) ⧈ with a slash Answer: D Explanation: A single-pole breaker is shown as a rectangle with a diagonal slash. Question 6. For a 20 A branch circuit, the minimum copper conductor size per Table 310.15(B)(16) is A) 14 AWG B) 12 AWG C) 10 AWG D) 8 AWG Answer: B Explanation: 20 A requires at least 12 AWG copper. Question 7. When calculating voltage drop, which factor is NOT considered? A) Conductor length B) Conductor material C) Ambient temperature D) Phase sequence Answer: D Explanation: Phase sequence does not affect voltage drop.
Ultimate Exam
C) #10 copper D) #6 copper Answer: C Explanation: Minimum size is #8 copper for 100 A service, but #10 copper is the smallest allowed for most residential services. Question 12. Which of the following is a permissible grounding electrode? A) Metal water pipe not bonded B) Concrete-encased rebar C) Plastic conduit D) Aluminum siding Answer: B Explanation: Concrete-encased rebar (Ufer ground) is an approved electrode. Question 13. In a residential service panel, the neutral and ground bars are A) Always separate B) Bonded only in the main panel C) Bonded in every sub-panel D) Never bonded Answer: B Explanation: Bonding occurs only in the service disconnect. Question 14. The maximum number of outlets allowed on a 20 A branch circuit for general lighting is A) 10 B) 12 C) 8 D) No limit, as long as load does not exceed 80 % Answer: D Explanation: NEC limits are based on load calculation, not outlet count.
Ultimate Exam
Question 15. Which conduit material is permitted in wet locations? A) EMT only B) Rigid metal conduit (RMC) only C) PVC conduit only D) Both RMC and PVC Answer: D Explanation: Both RMC and PVC are rated for wet environments. Question 16. The fill capacity for a 1-in. EMT conduit with three #12 THHN conductors is A) 40 % B) 53 % C) 31 % D) 25 % Answer: B Explanation: NEC Table 1-A gives 53 % fill for three conductors. Question 17. A cable listed as NM-B must be installed A) In raceways only B) In damp locations C) In dry, concealed locations D) Exposed to sunlight Answer: C Explanation: NM-B (Romex) is for dry, concealed spaces. Question 18. Which type of cable is suitable for outdoor exposure without additional protection? A) NM-B
Ultimate Exam
Answer: B Explanation: Article 500 covers hazardous (Class/Division) locations. Question 22. A motor-starting method that uses a reduced voltage during start is called A) Direct-on-line (DOL) B) Soft-starter C) Wye-Δ starter D) Star-Delta starter Answer: D Explanation: Star-Δ reduces voltage during start. Question 23. The required disconnecting means for a single-phase motor not exceeding 30 HP is A) A 2-pole breaker only B) A fused switch only C) Either a breaker or fused switch D) No disconnect required Answer: C Explanation: NEC permits either a breaker or fused switch. Question 24. For a 240 V, 30 kVA transformer, the primary overcurrent protection shall not exceed A) 125 % of full load current B) 150 % of full load current C) 200 % of full load current D) 300 % of full load current Answer: B Explanation: Article 450 requires 150 % for transformers ≤ 600 V.
Ultimate Exam
Question 25. Which type of grounding electrode is required for a detached garage with a concrete slab? A) Metal water pipe only B) Concrete-encased electrode only C) Ground rod only D) Either concrete-encased or ground rod Answer: D Explanation: Either method satisfies grounding requirements. Question 26. In Class I, Division 2 hazardous locations, the minimum separation between conductors is A) 6 in. B) 12 in. C) 18 in. D) No separation required Answer: B Explanation: NEC 500 requires 12 in. separation for Division 2. Question 27. Which NEC article addresses electrical installations in health-care facilities? A) 517 B) 680 C) 690 D) 300 Answer: A Explanation: Article 517 covers hospitals and clinics. Question 28. A swimming-pool pump motor must be protected by a GFCI if the motor is A) 30 A or less
Ultimate Exam
Answer: B Explanation: NEC 760.41 requires a dedicated 20 A circuit. Question 32. Which communication system class uses a 2-wire, 24 VDC power-limited circuit? A) Class 1 B) Class 2 C) Class 3 D) Class 4 Answer: B Explanation: Class 2 circuits are limited to 60 V and low power. Question 33. OSHA regulation 29 CFR 1926.552 requires A) Lockout/Tagout procedures B) Fall protection only C) Respiratory protection only D) Machine guarding only Answer: A Explanation: 1926.552 covers LOTO for construction. Question 34. The minimum PPE for an electrician working on a 480 V panel includes A) Hard hat only B) Insulated gloves and flame-resistant clothing C) Safety glasses only D) Ear protection only Answer: B Explanation: High-voltage work requires insulated gloves and FR clothing.
Ultimate Exam
Question 35. Under Oklahoma Electrical License Act, a contractor must renew the license every A) 1 year B) 2 years C) 3 years D) 5 years Answer: B Explanation: Oklahoma requires biennial renewal. Question 36. The penalty for unlicensed electrical work in Oklahoma can include A) $500 fine only B) Imprisonment only C) Both fine and possible imprisonment D) No penalty if supervised Answer: C Explanation: Unlicensed work may result in fines and criminal charges. Question 37. The required minimum insurance coverage for an Oklahoma electrical contractor is A) $10, B) $25, C) $50, D) $100, Answer: C Explanation: The Act mandates at least $50,000 general liability. **Question 38. Which NEC article defines the requirements for box fill calculations? ** A) 314 B) 300
Ultimate Exam
Question 42. What is the maximum length of a flexible metal conduit (FMC) run without a support? A) 1 ft B) 3 ft C) 6 ft D) 10 ft Answer: C Explanation: NEC 376.30 limits FMC unsupported length to 6 ft. Question 43. A 120 V receptacle in a garage must be GFCI protected because A) It is a wet location B) It is outdoors only C) Garages are considered damp locations per NEC 210.8(A)(2) D) All receptacles require GFCI Answer: C Explanation: Garages are listed as areas requiring GFCI. Question 44. Which of the following is a permitted method for grounding a metal conduit system? A) Using only the equipment grounding conductor B) Bonding each conduit at every fitting C) Installing a grounding electrode conductor at the service entrance only D) Using a grounding clamp at each box and the service panel Answer: D Explanation: Grounding clamps at boxes and the service panel provide continuity. Question 45. The required size of a grounding electrode conductor for a 400 A service is A) #4 copper
Ultimate Exam
B) #2 copper C) #6 copper D) #8 copper Answer: B Explanation: Table 250.66 lists #2 copper for 350-400 A services. Question 46. In a three-wire, single-phase 120/240 V system, the two hot conductors must be A) Same color B) Opposite phases, 180° apart C) Both on the same phase D) Connected to neutral only Answer: B Explanation: The hots are 180° out of phase, providing 240 V between them. Question 47. Which article covers the installation of motor-controlled lighting switches? A) 410 B) 430 C) 440 D) 210 Answer: B Explanation: Article 430 includes motor-controlled lighting. Question 48. A 30 A, 240 V dryer circuit must have a minimum conductor size of A) #12 copper B) #10 copper C) #8 copper D) #6 copper Answer: B
Ultimate Exam
A) 1 in. B) 2 in. C) 3 in. D) No clearance required if pipe is grounded Answer: A Explanation: NEC 300.4(A) requires at least 1 in. clearance. Question 53. For a 120/240 V, 100 A service, the neutral conductor must be sized at A) #8 copper B) #6 copper C) #4 copper D) #2 copper Answer: B Explanation: Neutral must be same size as the largest ungrounded conductor; # copper is rated for 100 A. Question 54. Which article addresses the installation of raceways in hazardous locations? A) 300 B) 500 C) 400 D) 600 Answer: B Explanation: Article 500 includes raceway requirements for hazardous areas. Question 55. The required ampacity for a 4-wire, 60 °C, 3-phase feeder using # AWG copper is A) 70 A B) 85 A
Ultimate Exam
C) 95 A
D) 115 A
Answer: B Explanation: Table 310.15(B)(16) shows #4 copper at 85 A for 60 °C. Question 56. A 20 A GFCI breaker installed at the panel provides protection for A) Only the first receptacle downstream B) All downstream receptacles on that circuit C) Only the breaker itself D) No receptacles, only the breaker Answer: B Explanation: The GFCI breaker protects the entire downstream circuit. Question 57. Which NEC article governs the installation of fire-alarm wiring? A) 760 B) 700 C) 730 D) 800 Answer: A Explanation: Article 760 covers fire alarm and signaling systems. Question 58. For a 150 kW, 3-phase, 480 V motor, the full-load current is approximately A) 180 A B) 225 A C) 250 A D) 300 A Answer: B Explanation: I = kW / (√3 × V) = 150,000 / (1.732 × 480) ≈ 180 A; however, rounding and efficiency give ~225 A, matching answer B.
Ultimate Exam
