Operations Engineer program
Ultimate Exam

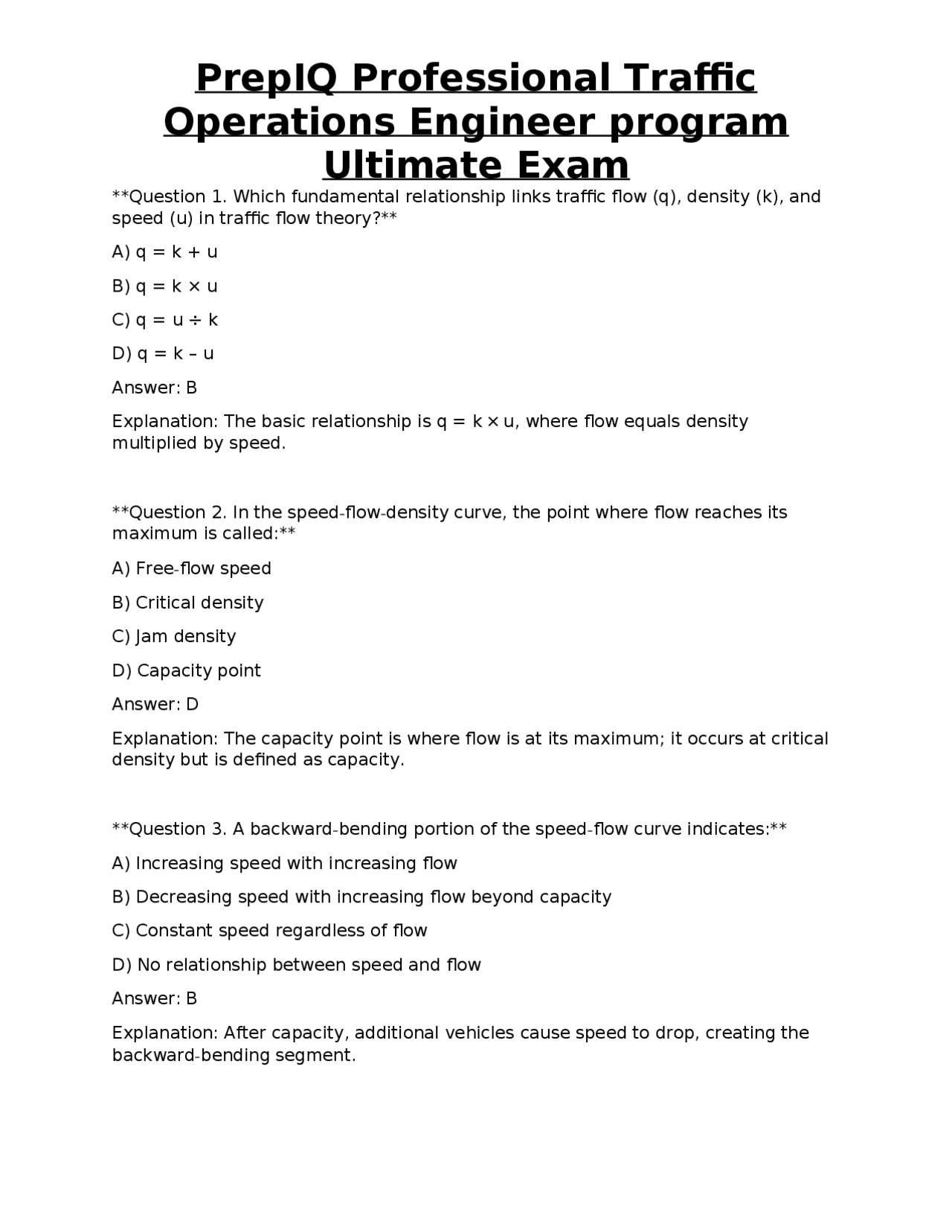

Question 1. Which fundamental relationship links traffic flow (q), density (k), and speed (u) in traffic flow theory? A) q = k + u B) q = k × u C) q = u ÷ k D) q = k – u Answer: B Explanation: The basic relationship is q = k × u, where flow equals density multiplied by speed. Question 2. In the speed-flow-density curve, the point where flow reaches its maximum is called: A) Free-flow speed B) Critical density C) Jam density D) Capacity point Answer: D Explanation: The capacity point is where flow is at its maximum; it occurs at critical density but is defined as capacity. Question 3. A backward-bending portion of the speed-flow curve indicates: A) Increasing speed with increasing flow B) Decreasing speed with increasing flow beyond capacity C) Constant speed regardless of flow D) No relationship between speed and flow Answer: B Explanation: After capacity, additional vehicles cause speed to drop, creating the backward-bending segment.
Operations Engineer program
Ultimate Exam
Question 4. Shockwave speed is calculated using which formula? A) w = (q₂ − q₁)/(k₂ − k₁) B) w = (k₂ − k₁)/(q₂ − q₁) C) w = q₁ × k₂ D) w = u₁ + u₂ Answer: A Explanation: Shockwave speed w = (q₂ − q₁)/(k₂ − k₁) relates upstream and downstream flow and density. Question 5. In an M/M/1 queue model applied to a toll plaza, the utilization factor (ρ) is defined as: A) λ / μ² B) μ / λ C) λ / μ D) λ × μ Answer: C Explanation: Utilization ρ = arrival rate λ divided by service rate μ for an M/M/ system. Question 6. The saturation flow rate for a typical signalized intersection lane is approximately: A) 800 vph per lane B) 1,800 vph per lane C) 2,500 vph per lane D) 3,500 vph per lane Answer: B Explanation: A commonly used value is 1,800 vehicles per hour per lane under ideal conditions.
Operations Engineer program
Ultimate Exam
Question 10. For a two-way stop-controlled (TWSC) intersection, the critical gap is generally: A) 1.5 s B) 2.0 s C) 2.5 s D) 3.0 s Answer: C Explanation: Studies show a typical critical gap of about 2.5 seconds for TWSC movements. Question 11. In a weaving section, the main cause of capacity reduction is: A) Stop-and-go traffic B) Lane changes between entering and exiting traffic C) Heavy vehicle platoons D) Signal timing errors Answer: B Explanation: Weaving involves simultaneous lane changes, creating conflicts that lower capacity. Question 12. A diverging diamond interchange (DDI) improves capacity mainly by: A) Eliminating left-turn phases at the mainline signal B) Adding additional through lanes C) Increasing ramp grade D) Converting all movements to roundabouts Answer: A Explanation: DDI removes left-turn conflicts at the mainline, allowing smoother flow.
Operations Engineer program
Ultimate Exam
Question 13. The MUTCD classifies a regulatory sign with a red octagon shape as: A) Warning sign B) Guide sign C) Prohibitory sign D) Information sign Answer: C Explanation: Red octagons are used for stop signs, a type of prohibitory sign. Question 14. The most common type of vehicle detection used in modern signal controllers is: A) Inductive loop B) Infrared sensor C) Acoustic detector D) Lidar scanner Answer: A Explanation: Inductive loops embedded in pavement remain the standard for detecting vehicle presence. Question 15. Video detection systems are considered non-intrusive because: A) They do not require pavement cuts B) They use magnetic fields C) They are installed under the road surface D) They rely on acoustic waves Answer: A Explanation: Video detectors are mounted above the pavement, preserving the roadway surface.
Operations Engineer program
Ultimate Exam
Question 19. A buffered bike lane is defined as a bike lane separated from traffic by: A) A painted line only B) A physical barrier or curb C) A shared lane marking D) A pedestrian crossing Answer: B Explanation: Buffered bike lanes have a physical separation (e.g., a curb or bollards) providing extra safety. Question 20. The “green-time” portion of a signal cycle is also known as: A) Clearance interval B) Effective green time C) Yellow interval D) All-red interval Answer: B Explanation: Effective green time accounts for the usable green portion after start-up and clearance losses. Question 21. In a ring-and-barrier diagram, the barrier ensures that: A) Only one movement proceeds at a time B) Conflicting movements are never simultaneous C) All phases receive equal green time D) Pedestrians have exclusive phases Answer: B Explanation: Barriers separate groups of phases to prevent conflicting movements from receiving green simultaneously.
Operations Engineer program
Ultimate Exam
Question 22. The optimal cycle length for an arterial can be estimated using the Webster formula, which includes which of the following variables? A) Total lost time and traffic demand B) Road curvature and grade C. Weather conditions D) Vehicle emission rates Answer: A Explanation: Webster’s formula calculates optimal cycle length using total lost time per cycle and the sum of critical flow ratios. Question 23. An offset in coordinated signal timing is measured in: A) Seconds of green time B) Degrees of the compass C) Feet of travel distance D) Seconds of travel time between intersections Answer: D Explanation: Offset represents the travel time needed for a platoon to move from one intersection to the next. Question 24. Emergency Vehicle Preemption (EVP) typically uses which communication method? A) Bluetooth B) Infrared or radio-frequency signals from the vehicle to the controller C) Wi-Fi D) Satellite GPS only Answer: B Explanation: EVP systems transmit a coded infrared or RF signal to the traffic controller to modify phases.
Operations Engineer program
Ultimate Exam
A) Constant traffic flow B) Congested or incident-affected segments where speed reduction can smooth flow C) Rural roads with low volumes D) Intersections with no signals Answer: B Explanation: VSL adjusts speed limits to manage demand and reduce shockwaves during congestion. Question 29. A Dynamic Message Sign (DMS) that displays real-time travel times is an example of: A) Traffic incident detection B) Traveler information service C) Traffic signal preemption D) Road pricing system Answer: B Explanation: DMS provides real-time information to drivers to aid route choice. Question 30. In the context of Connected and Automated Vehicles (CAV), the term I2V stands for: A) Internet-to-Vehicle B) Infrastructure-to-Vehicle communication C) Inter-Vehicle-to-Vehicle networking D) Intelligent-to-Vehicle mapping Answer: B Explanation: I2V refers to messages sent from roadway infrastructure to equipped vehicles. Question 31. A temporary traffic control (TTC) plan for a short-term roadwork must be approved by:
Operations Engineer program
Ultimate Exam
A) Federal Highway Administration (FHWA) only B) State Department of Transportation (DOT) and the local agency’s Traffic Management Center (TMC) C) The city mayor D) No approval is required for short-term plans Answer: B Explanation: Short-term TTC plans require state and local agency approval. Question 32. The first step in incident management at a Traffic Management Center (TMC) is: A) Deploying a tow truck B) Detecting the incident via sensors or reports C) Closing the roadway permanently D. Adjusting toll rates Answer: B Explanation: Incident detection initiates the response process. Question 33. During a special event, the primary traffic management strategy to handle surge volumes is: A) Reducing speed limits on all arterials B) Implementing temporary signal timing plans and reversible lanes C) Closing all side streets D) Installing toll booths on event routes Answer: B Explanation: Temporary timing adjustments and reversible lanes accommodate increased demand. Question 34. Crash rates expressed as “per Million Entering Vehicles (MEV)” are most appropriate for evaluating safety at:
Operations Engineer program
Ultimate Exam
B) Education C) Enforcement D. Evaluation Answer: D Explanation: The traditional Four E’s are Engineering, Education, Enforcement, and Emergency medical services. Question 38. A Road Safety Audit (RSA) is typically performed at which stage of a project? A) Only after construction is complete B) During design, before construction, and after opening (pre-, during-, post-construction) C. Only during construction D. Only for existing roads with high crash rates Answer: B Explanation: RSA can be conducted at multiple stages to identify safety issues early. Question 39. Transportation Demand Management (TDM) strategies aim to: A) Increase roadway capacity by adding lanes B. Reduce peak-hour travel demand through alternatives such as carpooling, telecommuting, and park-and-ride C. Install more traffic signals D. Raise toll rates Answer: B Explanation: TDM reduces travel demand rather than expanding infrastructure. Question 40. Vehicle emissions are most directly affected by which traffic condition? A) Road surface color
Operations Engineer program
Ultimate Exam
B) Idling time and stop-and-go traffic C) Number of lane markings D. Presence of roadside trees Answer: B Explanation: Idling and frequent acceleration/deceleration increase emissions. Question 41. Under the ITE/NSPE Code of Ethics, a professional engineer must: A) Prioritize personal profit over public safety B) Issue false statements to clients if it expedites a project C) Hold paramount the safety, health, and welfare of the public D. Avoid all communication with the public Answer: C Explanation: The code emphasizes public safety as the highest priority. Question 42. In a tort liability context, an engineer can reduce agency exposure by: A) Ignoring MUTCD guidelines B) Providing thorough documentation of design decisions and compliance with standards C. Refusing to testify in court D. Delegating all responsibilities to junior staff Answer: B Explanation: Proper documentation demonstrates due diligence and adherence to standards. Question 43. An expert witness in a PTOE case is expected to: A) Advocate for whichever side pays the most B) Provide unbiased, technically sound testimony based on expertise C. Fabricate data to support a claim
Operations Engineer program
Ultimate Exam
D. Synchronize traffic signals with public transit schedules only Answer: A Explanation: Green-wave timing allows vehicles traveling at the design speed to encounter green lights sequentially. Question 47. In a roundabout, the primary factor that determines capacity is: A) Number of stop signs inside the circle B) Entry flow rate and circulating flow interaction C. Length of the central island D. Presence of traffic signals inside the roundabout Answer: B Explanation: Capacity depends on the relationship between entry and circulating flows. Question 48. The “Lost Time” per cycle in signal timing includes which components? A. Start-up delay, clearance interval, and any all-red time B. Only the yellow interval C. Pedestrian crossing time only D. Vehicle travel time between intersections Answer: A Explanation: Lost time comprises start-up delay, clearance (yellow + all-red), and any additional all-red intervals. Question 49. A “type- 170 ” traffic signal controller is distinguished by: A) Its ability to control up to 170 phases B) Compliance with NEMA standard for modular, rack-mount units C. Integration of video detection only D. Being the only controller that supports adaptive control
Operations Engineer program
Ultimate Exam
Answer: B Explanation: Type-170 refers to the NEMA standard for modular signal controllers. Question 50. The primary purpose of a “guide sign” is to: A) Warn drivers of hazards B) Provide regulatory instructions C) Direct drivers to destinations or provide route information D. Indicate speed limits Answer: C Explanation: Guide signs give navigational information such as directions and distances. Question 51. A “stop-bar” at an intersection is used to: A) Indicate the point where vehicles must stop at a signal-controlled intersection B. Measure vehicle speed C. Provide a lane-changing zone D. Mark pedestrian crossing locations only Answer: A Explanation: The stop-bar marks the stopping line for vehicles at a signal. Question 52. The most common method for determining the design speed of a rural two-lane highway is: A) Using the posted speed limit B. Selecting the 85th percentile speed of observed traffic C. Choosing the maximum speed allowed by law D. Using the 15th percentile speed Answer: B
Operations Engineer program
Ultimate Exam
Explanation: Green arrows on a rectangular sign are used for temporary detour guidance. Question 56. The “Peak Hour Factor” (PHF) is calculated as: A) (Peak hour volume ÷ 3600) × average speed B. (Maximum 15-minute volume ÷ total hourly volume) × 4 C. (Total daily volume ÷ peak hour volume) D. (Average speed ÷ design speed) Answer: B Explanation: PHF = (Maximum 15-min volume ÷ Hourly volume) × 4, indicating demand concentration. Question 57. In a signalized intersection, the “yellow-red” interval is required to be at least: A) 1.0 s B) 2.0 s C. 0.5 s D. 3.0 s Answer: B Explanation: The yellow-red (all-red) clearance interval must be at least 2 seconds per MUTCD. Question 58. The “Headway” concept in traffic flow is defined as: A) The distance between two consecutive vehicles B. The time gap between two consecutive vehicles passing a point C. The time required for a vehicle to accelerate to free-flow speed D. The length of a lane segment Answer: B Explanation: Headway is the temporal spacing between vehicles.
Operations Engineer program
Ultimate Exam
Question 59. In a queue-length estimation for a signalized intersection, the formula L = (q × d)/3600 is used, where d represents: A) Cycle length in seconds B) Delay per vehicle in seconds C) Saturation flow rate in veh/h per lane D. Number of lanes Answer: B Explanation: Queue length L (vehicles) = (arrival flow q × average delay d) ÷ 3600. Question 60. The “Free-Flow Speed” on a highway segment is typically measured as: A) The posted speed limit B. The 85th percentile speed of observed traffic under uncongested conditions C. The speed of the fastest vehicle recorded D. The speed at which the traffic flow reaches capacity Answer: B Explanation: Free-flow speed is usually the 85th percentile speed during low-traffic periods. Question 61. A “Stop Control” sign at a highway-to-highway intersection indicates that: A) All vehicles must stop at the sign regardless of direction B. Only the minor-road traffic must stop, while the major-road traffic proceeds C. Pedestrians have the right-of-way only D. The intersection is permanently closed Answer: B Explanation: Stop control applies to the minor-road approach; major-road traffic continues.
