Technician Certification Ultimate
Exam

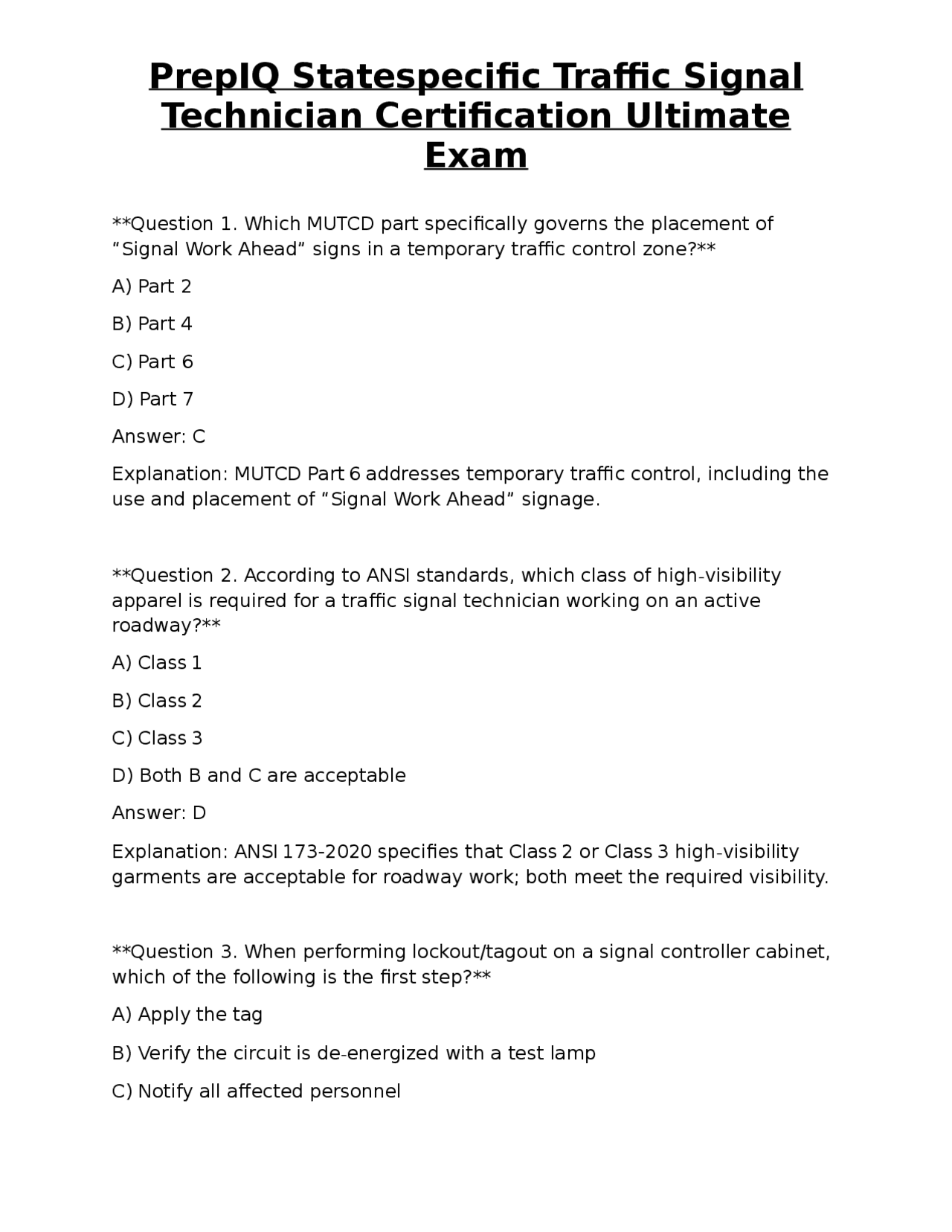

Question 1. Which MUTCD part specifically governs the placement of “Signal Work Ahead” signs in a temporary traffic control zone? A) Part 2 B) Part 4 C) Part 6 D) Part 7 Answer: C Explanation: MUTCD Part 6 addresses temporary traffic control, including the use and placement of “Signal Work Ahead” signage. Question 2. According to ANSI standards, which class of high-visibility apparel is required for a traffic signal technician working on an active roadway? A) Class 1 B) Class 2 C) Class 3 D) Both B and C are acceptable Answer: D Explanation: ANSI 173-2020 specifies that Class 2 or Class 3 high-visibility garments are acceptable for roadway work; both meet the required visibility. Question 3. When performing lockout/tagout on a signal controller cabinet, which of the following is the first step? A) Apply the tag B) Verify the circuit is de-energized with a test lamp C) Notify all affected personnel
Technician Certification Ultimate
Exam
D) Remove all power source fuses Answer: C Explanation: The first step in LOTO is to notify all affected employees that a lockout is about to be performed, ensuring safety awareness. Question 4. Which type of fall protection is mandatory when a technician is positioned on a bucket truck extending more than 6 ft above the ground? A) Safety harness attached to a lifeline B) Guardrails on the bucket C) Personal fall arrest system (PFAS) with a lanyard D) No fall protection required if the bucket is on a level surface Answer: C Explanation: A PFAS with a lanyard is required for any work platform extending more than 6 ft above the ground to protect against falls. Question 5. Arc-flash protection for a signal technician is primarily determined by which of the following values? A) Voltage rating of the cabinet B) Available fault current and clearing time C) Length of the power cable D) Number of signal heads connected Answer: B Explanation: Arc-flash hazard calculations use the available fault current and the protective device clearing time to determine required PPE. Question 6. Ohm’s Law is applied to a 120 V AC signal head circuit drawing 0.5 A. What is the total resistance of the circuit?
Technician Certification Ultimate
Exam
Explanation: A UPS supplies backup power and also conditions the voltage, protecting the controller from surges and sags. Question 9. The primary purpose of bonding a traffic signal pole to the grounding system is to: A) Reduce electromagnetic interference B) Prevent stray voltage that could affect detection loops C) Increase signal brightness D) Allow the pole to act as a secondary antenna Answer: B Explanation: Proper bonding eliminates stray voltages that can cause false detections in inductive loops. Question 10. According to IMS standards, what is the typical color of a wire used for a 120 V AC power supply to a signal head? A) Black B) Red C) White D) Green Answer: B Explanation: IMS 19-1/20-1 specifies red for 120 V AC conductors in signal wiring. Question 11. Which NEMA type cabinet is specifically designed for use in a traffic signal controller with integrated advanced traffic controller (ATC) functions? A) NEMA TS- 1
Technician Certification Ultimate
Exam
B) NEMA TS- 2
C) NEMA TS- 3
D) NEMA TS- 4
Answer: B Explanation: NEMA TS-2 cabinets are rated for advanced traffic controllers and include features like higher environmental protection. Question 12. In a traffic controller, the “ring-and-barrier” concept is used to: A) Provide a physical barrier for pedestrians B) Separate conflicting movements within the same phase ring C) Synchronize adjacent intersections automatically D) Protect the controller from water ingress Answer: B Explanation: Ring-and-barrier sequencing isolates conflicting movements, allowing safe operation of multiple phases within a ring. Question 13. A Malfunction Management Unit (MMU) will typically generate a “Lack of Red” fault when: A) Both opposing directions receive green simultaneously B) A detector fails to send a vehicle presence signal C) The red lamp in any phase is not illuminated while green is active elsewhere D) The controller loses power Answer: C Explanation: “Lack of Red” indicates that the red indication is missing for a phase that should be protected, a critical safety fault.
Technician Certification Ultimate
Exam
Answer: D Explanation: ADA-compliant APS must provide audible, tactile, and visual cues for accessibility. Question 17. The minimum vertical clearance required between a signal head and the roadway surface, according to MUTCD, is: A) 12 inches B) 18 inches C) 24 inches D) 30 inches Answer: C Explanation: MUTCD specifies a minimum of 24 inches vertical clearance to ensure visibility and protect the head from road spray. Question 18. When installing a span wire for a signal mast arm, the maximum allowable sag is: A) 1 % of the span length B) 2 % of the span length C) 3 % of the span length D) 4 % of the span length Answer: B Explanation: Span wire sag must not exceed 2 % of its length to maintain proper arm geometry and clearance. Question 19. An inductive loop is typically wound in which shape to maximize detection of stopped vehicles? A) Circular
Technician Certification Ultimate
Exam
B) Square C) Figure-eight D) Rectangular (elongated) Answer: D Explanation: A rectangular, elongated loop provides a larger detection zone aligned with the stop bar, improving vehicle detection. Question 20. A megohmmeter (megger) is used on a detection loop to measure: A) Loop resistance in ohms B) Insulation resistance in megohms C) Inductance in henries D) Capacitance in farads Answer: B Explanation: A megger measures insulation resistance, confirming loop integrity and detecting insulation breakdown. Question 21. Video detection cameras are most vulnerable to which environmental condition that can cause missed detections? A) Heavy rain B) Low ambient light C) Snow accumulation on the lens D) High wind speeds Answer: C Explanation: Snow or debris on the camera lens obstructs the view, leading to missed vehicle detections.
Technician Certification Ultimate
Exam
Explanation: Phases 2 and 6 are conventionally used for the major street through movements in an 8-phase diagram. Question 25. Minimum green time is primarily set to ensure that: A) Pedestrians have enough time to cross B) Vehicles can clear the intersection at the design speed C) The controller can process detector inputs D) The yellow interval is not too short Answer: B Explanation: Minimum green guarantees that vehicles traveling at the design speed can traverse the intersection without being cut off. Question 26. The “passage time” (or gap) parameter in a detection-based controller determines: A) The maximum green time for a phase B) The time interval after the last vehicle detection before the phase ends C) The duration of the yellow clearance interval D) The minimum red time for opposing phases Answer: B Explanation: Passage time defines how long the controller will stay green after the last vehicle is detected before it gaps out. Question 27. Yellow clearance time is calculated based on which two primary factors? A) Driver reaction time and vehicle deceleration rate B) Pedestrian crossing time and detector sensitivity C) Intersection width and design speed
Technician Certification Ultimate
Exam
D) Both A and C are used Answer: D Explanation: Yellow time accounts for driver reaction and deceleration (A) and is also influenced by the width of the intersection and design speed (C). Question 28. An “offset” between two coordinated intersections is used to: A) Adjust the start of the green phase at the downstream intersection relative to the upstream one B) Change the cycle length of each controller independently C) Increase the yellow interval for safety D) Synchronize pedestrian countdown timers Answer: A Explanation: Offset is the time difference that aligns green phases between adjacent intersections to create a green wave. Question 29. The typical cycle length for a suburban arterial with moderate traffic is: A) 60 seconds B) 90 seconds C) 120 seconds D) 150 seconds Answer: B Explanation: A 90-second cycle is common for suburban arterials, balancing delay and progression.
Technician Certification Ultimate
Exam
Explanation: MUTCD specifies a minimum of 200 ft upstream of the work zone for “Signal Work Ahead” signs. Question 33. When performing a voltage test on a signal head, which instrument is most appropriate? A) Clamp-on ammeter B) Digital multimeter set to AC voltage C) Insulation resistance tester D) Phase rotation meter Answer: B Explanation: A digital multimeter set to AC voltage accurately measures the 120 V AC supplied to the signal head. Question 34. A signal controller’s “conflict monitor” will generate a fault if: A) Two opposing phases receive green at the same time B) A detector fails to detect a vehicle C) The controller loses communication with the central office D) The UPS battery voltage drops below 10 V Answer: A Explanation: Conflict monitors protect against unsafe simultaneous greens, flagging a conflict fault. Question 35. Which grounding method is preferred for a pole-mounted controller to ensure low-impedance fault clearing? A) Ground rod driven 6 ft deep B) Ground plate buried 12 inches
Technician Certification Ultimate
Exam
C) Ground ring encircling the pole base D) No grounding required for NEMA-rated cabinets Answer: C Explanation: A ground ring provides a low-impedance path around the pole, improving fault clearance. Question 36. In a dual-ring controller, the term “barrier” refers to: A) Physical barrier preventing vehicle entry during red B) Logical separation that prevents conflicting phases from being active simultaneously C) A hardware component that isolates the two rings D) The time interval between rings switching Answer: B Explanation: The barrier is a logical constraint that ensures phases in different rings do not conflict. Question 37. Which of the following cable types is most commonly used for signal head power distribution? A) 12/2 NM-B (Romex) B) 14/2 UF C) 12/2 THHN in conduit D) 10/3 SEU Answer: C Explanation: 12/2 THHN conductors in conduit are standard for outdoor, high-current signal head power distribution.
Technician Certification Ultimate
Exam
Explanation: MUTCD recommends a minimum mounting height of 7 ft for pedestrian countdown timers to ensure visibility. Question 41. Which of the following is a primary advantage of LED signal heads over incandescent heads? A) Lower initial cost B) Higher luminous intensity per watt C) Requirement for a 240 V supply D) Ability to display multiple colors simultaneously without separate modules Answer: B Explanation: LEDs provide significantly higher luminous efficacy, reducing power consumption. Question 42. The term “cycle length” in signal timing refers to: A) The time from the start of one green to the start of the next green for the same phase B) The total time required for all phases to receive a green once C) The duration of the yellow interval only D) The length of the detection zone on the roadway Answer: B Explanation: Cycle length is the total time for a complete sequence of all phases, after which the pattern repeats. Question 43. In a traffic controller, the “max green” parameter is used to: A) Prevent a phase from staying green longer than a set time B) Extend green when heavy traffic is detected C) Define the minimum green time for all phases
Technician Certification Ultimate
Exam
D) Adjust the yellow interval based on speed Answer: A Explanation: Max green caps the maximum duration a phase can remain green, preventing excessive green time. Question 44. Which of the following is the correct order of steps when troubleshooting a non-functional LED module? A) Verify power at the controller → Check load switch status → Inspect module for physical damage → Replace module B) Replace module → Verify power → Check load switch → Inspect wiring C) Check load switch → Verify power → Replace module → Test detector D) Inspect module → Verify ground → Check controller firmware → Replace module Answer: A Explanation: Systematic troubleshooting starts with verifying power, then load switch, then physical inspection before replacement. Question 45. A “pre-empt” request from an emergency vehicle is typically processed by the controller within: A) 1 second B) 2–3 seconds C) 5 seconds D) 10 seconds Answer: B Explanation: Most pre-empt systems are designed to respond within 2– 3 seconds to give the vehicle priority.
Technician Certification Ultimate
Exam
Explanation: A minimum of 10 MΩ insulation resistance is required to ensure loop integrity and prevent leakage. Question 49. In a traffic signal system, “phase overlap” refers to: A) Two phases receiving green simultaneously on the same approach B) A pedestrian phase running while the vehicle green is active on the same movement C) The period when a yellow interval of one phase overlaps with the red interval of another D) The coordination of two adjacent intersections’ cycles Answer: B Explanation: Phase overlap allows a pedestrian walk interval to occur concurrently with a vehicle green for the same movement, improving efficiency. Question 50. The primary function of a “detector type” setting (e.g., “loop”, “radar”) in the controller software is to: A) Adjust the voltage supplied to the detector B) Enable the appropriate signal processing algorithm for that detector technology C) Change the physical wiring configuration automatically D) Set the maximum detection range Answer: B Explanation: The controller must apply the correct processing logic (e.g., filtering, validation) based on detector type. Question 51. Which of the following is a common symptom of a loose ground connection at a signal head?
Technician Certification Ultimate
Exam
A) Flickering LED modules B) Continuous amber indication C) No change in signal despite controller commands D) All of the above Answer: D Explanation: A poor ground can cause erratic behavior, including flickering, amber stay, or lack of response. Question 52. The “yellow clearance interval” is sometimes referred to as: A) All-red interval B) Inter-green period C) Yellow-red interval D) Clearance time Answer: C Explanation: Yellow-red (or all-red) interval is the period after yellow when all signals are red, allowing clearance. **Question 53. In a traffic signal controller, the “detector polarity” setting must match the field wiring. What is the typical polarity for inductive loops? ** A) Positive-positive (both ends at +) B) Positive-negative (one end at +, the other at – ) C) Negative-negative (both ends at – ) D) Polarity does not matter for loops Answer: B
