Electrician LLE Ultimate Exam

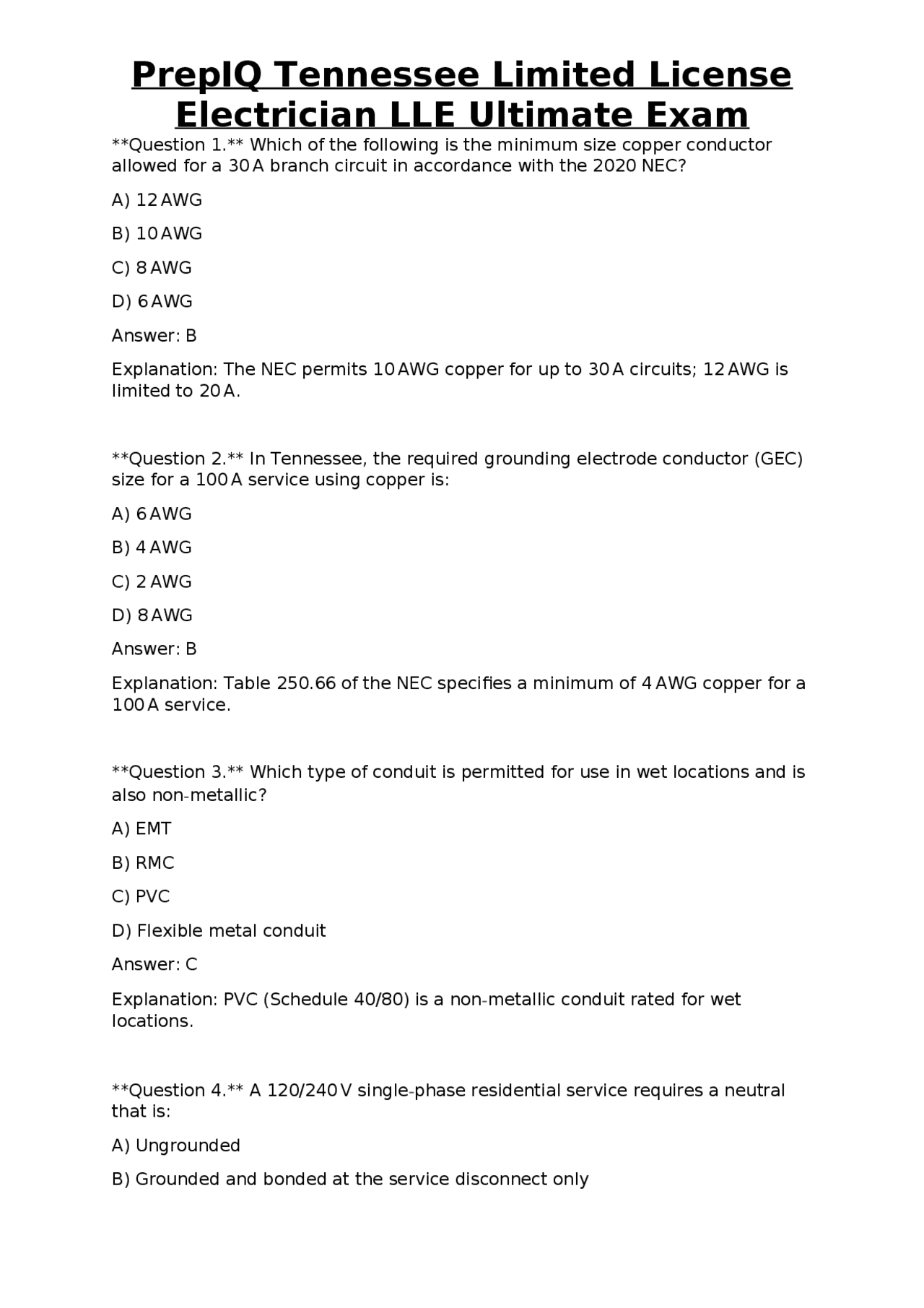

Question 1. Which of the following is the minimum size copper conductor allowed for a 30 A branch circuit in accordance with the 2020 NEC? A) 12 AWG B) 10 AWG C) 8 AWG D) 6 AWG Answer: B Explanation: The NEC permits 10 AWG copper for up to 30 A circuits; 12 AWG is limited to 20 A. Question 2. In Tennessee, the required grounding electrode conductor (GEC) size for a 100 A service using copper is: A) 6 AWG B) 4 AWG C) 2 AWG D) 8 AWG Answer: B Explanation: Table 250.66 of the NEC specifies a minimum of 4 AWG copper for a 100 A service. Question 3. Which type of conduit is permitted for use in wet locations and is also non-metallic? A) EMT B) RMC C) PVC D) Flexible metal conduit Answer: C Explanation: PVC (Schedule 40/80) is a non-metallic conduit rated for wet locations. Question 4. A 120/240 V single-phase residential service requires a neutral that is: A) Ungrounded B) Grounded and bonded at the service disconnect only
Electrician LLE Ultimate Exam
C) Continuously bonded to ground at every panel D) Not required if the load is balanced Answer: B Explanation: The neutral is grounded (bonded) only at the service equipment; downstream panels must keep neutral isolated from ground. Question 5. The maximum distance between pull-through assistance points (e.g., pulling grips) for a conduit run of 250 ft is: A) 25 ft B) 50 ft C) 75 ft D) 100 ft Answer: D Explanation: NEC 300.20 allows pull points at intervals not exceeding 100 ft for conduit runs longer than 100 ft. Question 6. When installing a receptacle in a kitchen countertop area, the required AFCI protection is: A) Not required B) Required only for 15 A circuits C) Required for all 20 A circuits serving countertop outlets D) Required only for 30 A circuits Answer: C Explanation: NEC 210.12(A) requires AFCI protection on all 20 A branch circuits supplying countertop receptacles. Question 7. The purpose of a GFCI device is to: A) Detect ground faults and open the circuit within 30 ms B) Detect overloads and open the circuit within 5 seconds C) Provide surge protection for sensitive equipment D) Isolate neutral from ground in sub-panels Answer: A
Electrician LLE Ultimate Exam
A) A-B-C-N (black, red, blue, white) B) L1-L2-L3-N (black, red, blue, white) C) L1-L2-L3-G (black, red, blue, green) D) A-B-C-G (black, red, blue, green) Answer: B Explanation: Standard three-phase 4-wire uses three phase conductors (often black, red, blue) and a neutral (white). Question 12. For a 150 A service, the minimum size copper service entrance conductors (unspliced) are: A) 2/0 AWG B) 4/0 AWG C) 1/0 AWG D) 3/0 AWG Answer: A Explanation: Table 310.15(B)(16) shows 2/0 AWG copper rated for 175 A at 75 °C, meeting the 150 A requirement. Question 13. Which of the following devices must be installed at the service disconnect to protect against lightning surges? A) AFCI breaker B) GFCI receptacle C) Surge protective device (SPD) D) Ground fault interrupter Answer: C Explanation: SPDs are installed at the service entrance to limit voltage transients caused by lightning. Question 14. The NEC defines a “dangerous voltage” as any voltage exceeding: A) 30 V B) 50 V C) 120 V
Electrician LLE Ultimate Exam
D) 240 V
Answer: B Explanation: NEC 100 defines dangerous voltage as exceeding 50 V to ground or circuit. Question 15. In a commercial building, the maximum number of outlets allowed on a single 20 A branch circuit serving lighting only is: A) 10 B) 12 C) 15 D) No specific limit, depends on load calculation Answer: D Explanation: Lighting circuits are designed using the lighting load calculation (3 VA per square foot), not a fixed outlet count. Question 16. Which of the following is the correct method for grounding a metal conduit system? A) Connect the conduit to the neutral at each box B) Bond the conduit to the grounding electrode system at the service equipment only C) Use a bonding jumper at each conduit fitting D) No grounding required if the conduit is continuous Answer: B Explanation: Metal conduit is part of the equipment grounding conductor; it must be bonded to the grounding electrode system at the service entrance. Question 17. When installing a receptacle in a bathroom, the NEC requires a dedicated 20 A circuit that supplies: A) Only the receptacle B) The receptacle and lighting only C) The receptacle, lighting, and fan D) Any combination of bathroom loads, but the receptacle must be on a 20 A circuit Answer: D
Electrician LLE Ultimate Exam
Question 21. The maximum allowable voltage drop for a branch circuit serving a single receptacle is: A) 2 % B) 3 % C) 5 % D) 10 % Answer: B Explanation: NEC 210.19(A)(1) recommends a maximum of 3 % voltage drop for branch circuits. Question 22. Which of the following is the proper marking for a 20 A, 120 V, single-pole circuit breaker? A) 20 A / 240 V B) 20 A / 120 V C) 15 A / 120 V D) 30 A / 120 V Answer: B Explanation: The breaker must be labeled with its rating: 20 A at 120 V. Question 23. The NEC requires that all receptacles installed in a garage be protected by: A) AFCI only B) GFCI only C) Both AFCI and GFCI D) Neither AFCI nor GFCI Answer: B Explanation: NEC 210.8(A)(2) mandates GFCI protection for garage receptacles. Question 24. When using a flexible metal conduit (FMC) for a branch circuit, the maximum length of the FMC run is: A) 3 ft B) 6 ft C) 8 ft
Electrician LLE Ultimate Exam
D) No specified limit, but must be supported every 4.5 ft Answer: D Explanation: FMC must be supported and secured within 4.5 ft of each termination; there is no overall length limit. Question 25. The purpose of a “knock-out” in a metal box is to: A) Provide a grounding path B) Allow the box to be mounted to a stud C) Enable the installer to create an opening for conduit entry D) Reduce box weight Answer: C Explanation: Knock-outs are pre-punched sections that can be removed to install conduit connectors. Question 26. The minimum size grounding electrode conductor (GEC) for a 200 A service using copper is: A) 2 AWG B) 4 AWG C) 6 AWG D) 8 AWG Answer: A Explanation: Table 250.66 lists 2 AWG copper for a 200 A service. Question 27. Which of the following is NOT a permitted method for grounding a receptacle’s equipment grounding conductor? A) Directly to the grounding electrode system B) Via the metal conduit that encloses the conductors C) Using a separate grounding wire attached to the box D) Connecting to the neutral bar in a sub-panel Answer: D Explanation: The neutral bar in a sub-panel must remain isolated from the equipment grounding conductor; grounding to neutral is prohibited.
Electrician LLE Ultimate Exam
C) Both GFCI and AFCI D) No special protection required Answer: A Explanation: NEC 210.8(A)(1) requires GFCI protection for bathroom receptacle and lighting circuits. Question 32. The maximum number of conductors allowed in a single 1-inch EMT conduit without derating is: A) 2 B) 3 C) 4 D) 5 Answer: D Explanation: Table 310.15(B)(3) permits up to 4 current-carrying conductors in 1 - inch EMT before applying a derating factor; the fifth conductor triggers the first derating step. Question 33. Which of the following is the correct grounding method for an isolated ground (IG) receptacle? A) Connect the IG terminal to the equipment grounding conductor only B) Connect the IG terminal to the neutral bar C) Connect the IG terminal to a dedicated IG conductor that runs back to the service panel’s IG bus bar D) No grounding required for IG receptacles Answer: C Explanation: IG receptacles require a dedicated insulated grounding conductor that terminates at the IG bus bar in the panel. Question 34. The minimum clearance between a low-voltage (≤ 30 V) lighting circuit and a 120 V power circuit in a raceway is: A) 1 in. B) 2 in. C) 4 in. D) No clearance required if both are in the same conduit
Electrician LLE Ultimate Exam
Answer: B Explanation: NEC 300.3(C)(1) requires a minimum of 2 in. separation between low-voltage and power conductors in the same raceway. Question 35. When installing a receptacle in a wet location outdoors, the enclosure must be rated at least: A) NEMA 1 B) NEMA 3R C) NEMA 4X D) NEMA 6 Answer: B Explanation: NEMA 3R enclosures are weather-resistant and suitable for outdoor wet locations. Question 36. The correct size (in AWG) for a grounding electrode conductor that connects a 4/0 AWG aluminum service conductor to a ground rod is: A) 6 AWG copper B) 4 AWG copper C) 2 AWG copper D) 8 AWG copper Answer: C Explanation: Table 250.66 indicates 2 AWG copper for a 4/0 AWG aluminum service conductor. Question 37. Which device is required to protect a 240 V, 30 A dryer circuit in a dwelling unit? A) GFCI breaker only B) AFCI breaker only C) Standard 2-pole circuit breaker D) Dual-function AFCI/GFCI breaker Answer: C Explanation: NEC does not require AFCI or GFCI for a dryer circuit; a standard 2 - pole breaker is sufficient.
Electrician LLE Ultimate Exam
B) 30 %
C) 40 %
D) 50 %
Answer: B Explanation: Table 1 of Chapter 9 limits conduit fill to 40 % for more than two conductors; however, for 1-inch PVC the 30 % fill is used for three conductors to stay within the allowable area. Question 42. Which of the following is the correct minimum height for a receptacle installed in a garage for a workbench? A) 12 in. above the floor B) 18 in. above the floor C) 30 in. above the floor D) No minimum height specified Answer: D Explanation: NEC does not prescribe a specific height for garage receptacles; placement is based on convenience. Question 43. The NEC defines a “dedicated circuit” as one that: A) Supplies only one device or appliance B) Supplies only lighting loads C) Supplies multiple outlets of the same rating D) Supplies both receptacles and lighting Answer: A Explanation: A dedicated circuit serves a single device or appliance, such as a refrigerator or water heater. Question 44. When sizing a feeder to a sub-panel that will serve a 3,000 VA lighting load and a 2,000 VA receptacle load, the minimum feeder ampacity (assuming 120/240 V) is: A) 20 A B) 30 A C) 40 A D) 50 A
Electrician LLE Ultimate Exam
Answer: B Explanation: Total load = 5,000 VA; divide by 240 V = 20.8 A. Apply 125 % for continuous loads (lighting is continuous) → 26 A. Next standard size = 30 A. Question 45. Which NEC article specifically governs the installation of emergency power systems? A) Article 210 B) Article 250 C) Article 700 D) Article 430 Answer: C Explanation: Article 700 deals with Emergency Systems, including generators and transfer equipment. Question 46. A 120/240 V dryer circuit using a 30 A breaker must have a neutral conductor of at least: A) 12 AWG copper B) 10 AWG copper C) 8 AWG copper D) No neutral required Answer: D Explanation: A 240 V dryer circuit does not require a neutral; only the two hot conductors and equipment grounding conductor are needed. Question 47. The minimum size (in AWG) for a grounding conductor that is used as an equipment grounding conductor for a 60 A circuit using copper THHN is: A) 12 AWG B) 10 AWG C) 8 AWG D) 6 AWG Answer: B Explanation: Table 250.122 lists a 10 AWG copper grounding conductor for a 60 A circuit.
Electrician LLE Ultimate Exam
B) Tie the conductor around the rebar with wire ties C) Use a soldered connection to the rebar D) No connection required; the rebar is already grounded Answer: A Explanation: A listed grounding clamp must be used to attach the GEC to the rebar for a Ufer ground. Question 52. The NEC permits the use of aluminum conductors for branch circuits if they are: A) 90 °C rated and terminated in devices rated for aluminum B) 75 °C rated and terminated in any device C) Only used for service entrance conductors D) Never permitted for branch circuits Answer: A Explanation: Aluminum conductors may be used if the terminations are rated for aluminum (e.g., CO/ALR devices) and the conductor is 90 °C rated. Question 53. For a 3-phase, 4-wire feeder supplying a commercial building, the neutral must be: A) Bonded to ground at each distribution panel B) Isolated from ground in all downstream panels C) Not required if the load is balanced D) Connected to the equipment grounding conductor at the service only Answer: B Explanation: The neutral must be isolated from ground in all sub-panels; only the service disconnect bonds neutral to ground. Question 54. The minimum conduit size required to protect a single 6 AWG THHN copper conductor in a residential application is: A) 1/2 in. EMT B) 3/4 in. EMT C) 1 in. EMT D) 1-1/4 in. EMT
Electrician LLE Ultimate Exam
Answer: A Explanation: Table 1 of Chapter 9 shows that a 1/2 in. EMT can accommodate one 6 AWG THHN conductor. Question 55. Which of the following statements about AFCI protection is correct? A) AFCI devices only protect against arc faults on 120 V circuits B) AFCI devices can be installed as breakers or receptacle-type devices C) AFCI protection is optional for all dwelling circuits D) AFCI devices must be installed in every commercial panel Answer: B Explanation: AFCI protection can be provided by either a circuit breaker or a receptacle-type device. Question 56. The NEC requires that a disconnecting means for a motor must be located: A) Within 6 ft of the motor B) Within sight of the motor C) In the same room as the motor D) No specific location required Answer: B Explanation: NEC 430.102 requires the disconnect to be "within sight" of the motor it controls. Question 57. When a feeder supplies a panelboard that also contains a separate grounding electrode system, the equipment grounding conductor must be: A) Connected to the panelboard’s grounding bus only B) Connected to both the grounding electrode system and the grounding bus C) Not connected to the grounding electrode system D) Connected to the neutral bar Answer: B
Electrician LLE Ultimate Exam
Question 61. For a 15 A, 120 V circuit feeding a bathroom vanity light, the required wire size (copper, THHN) is: A) 14 AWG B) 12 AWG C) 10 AWG D) 8 AWG Answer: A Explanation: 14 AWG copper is rated for 15 A; no derating factors apply for a single circuit. Question 62. The NEC permits the use of a single-pole breaker to feed a multi-wire branch circuit (MWBC) provided that: A) The breaker has a handle-tie or common trip mechanism B) The breaker is rated at 30 A C) The circuit supplies only lighting loads D) No neutral is present Answer: A Explanation: MWBCs must have a common disconnect; a handle-tie or two-pole breaker satisfies this requirement. Question 63. Which of the following is the correct method for bonding a metal water pipe to the grounding electrode system? A) Use a 6 AWG copper jumper attached with a listed pipe bonding clamp B) Wrap the pipe with bare copper wire and tape it in place C) No bonding required if the pipe is metallic D) Use a ground rod placed next to the pipe Answer: A Explanation: NEC 250.104(A)(1) requires a listed pipe bonding clamp and a suitable copper jumper. Question 64. The required spacing between supports for a horizontal run of 1 - inch EMT conduit is: A) Every 6 ft B) Every 8 ft
Electrician LLE Ultimate Exam
