Training Certificate Ultimate Exam

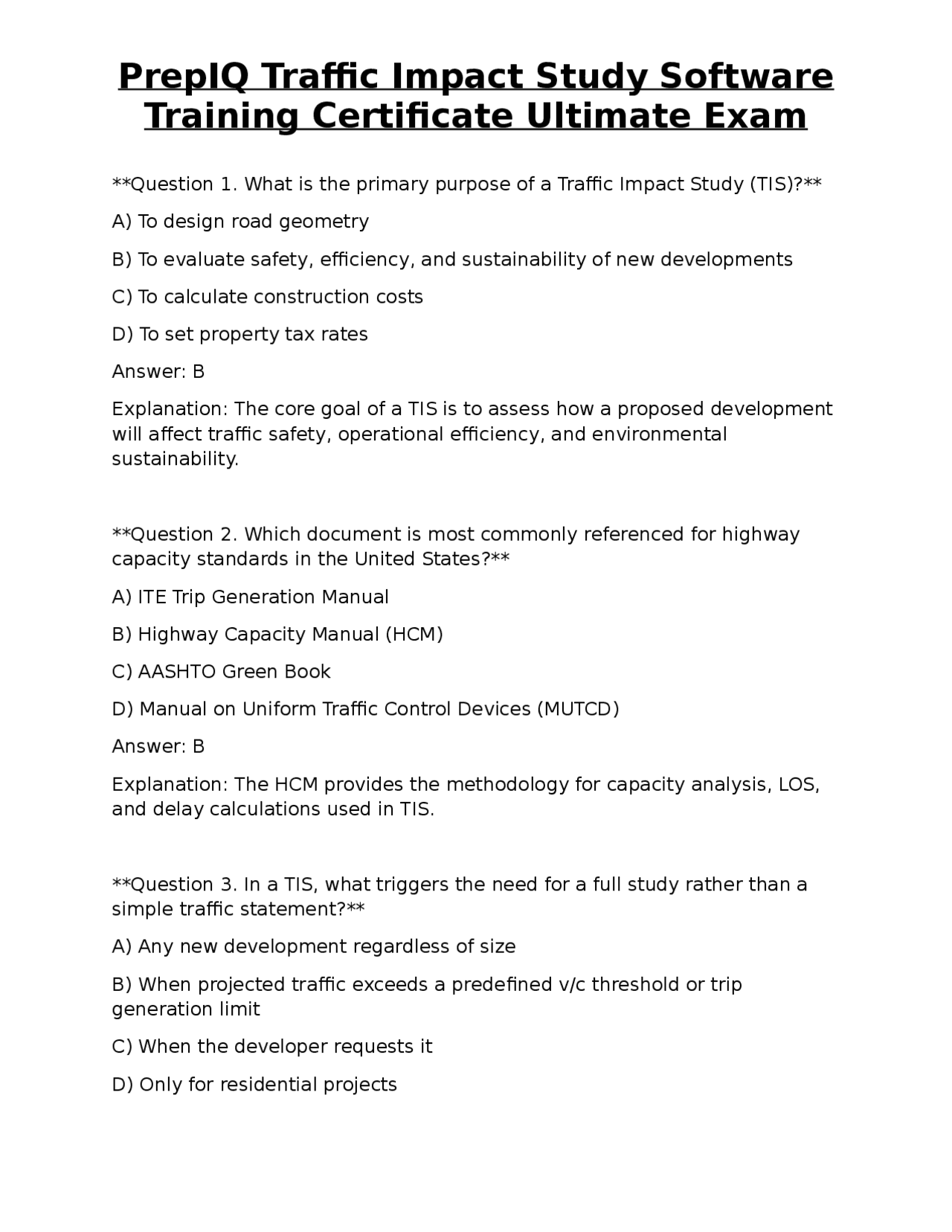

Question 1. What is the primary purpose of a Traffic Impact Study (TIS)? A) To design road geometry B) To evaluate safety, efficiency, and sustainability of new developments C) To calculate construction costs D) To set property tax rates Answer: B Explanation: The core goal of a TIS is to assess how a proposed development will affect traffic safety, operational efficiency, and environmental sustainability. Question 2. Which document is most commonly referenced for highway capacity standards in the United States? A) ITE Trip Generation Manual B) Highway Capacity Manual (HCM) C) AASHTO Green Book D) Manual on Uniform Traffic Control Devices (MUTCD) Answer: B Explanation: The HCM provides the methodology for capacity analysis, LOS, and delay calculations used in TIS. Question 3. In a TIS, what triggers the need for a full study rather than a simple traffic statement? A) Any new development regardless of size B) When projected traffic exceeds a predefined v/c threshold or trip generation limit C) When the developer requests it D) Only for residential projects
Training Certificate Ultimate Exam
Answer: B Explanation: Full TIS are required when anticipated traffic impacts cross regulatory thresholds (e.g., v/c > 0.9, trip increase > 200 per day). Question 4. When defining the study area, which factor is most important for setting logical boundaries? A) Municipal tax zones B) 500-ft radius around the site C) Intersection influence area based on trip distribution and turn movement capture D) Property ownership lines Answer: C Explanation: Boundaries should encompass all intersections that could be affected by the development’s generated trips. Question 5. Which scenario represents a “No-Build” condition in a TIS? A) Existing traffic conditions today B) Projected traffic if the development is never built, using background growth only C) Projected traffic with the development built and all other projects added D) Traffic after construction is complete Answer: B Explanation: The No-Build (background) scenario shows traffic trends without the proposed development, incorporating only regional growth. Question 6. In data collection, what does the Peak Hour Factor (PHF) represent? A) Ratio of peak hour volume to daily volume
Training Certificate Ultimate Exam
A) Add their projected trips directly to the study area’s total volume B) Model each pipeline project separately and combine the resulting network loads C) Exclude them because they are not yet built D) Use only the largest pipeline project’s trips Answer: B Explanation: Modeling each project separately preserves interaction effects; the combined network loads reflect cumulative impacts. Question 10. Which ITE Trip Generation rate would you use for a single-family residential (SF) land use? A) 5 trips per dwelling per day B) 10 trips per dwelling per day C) 15 trips per dwelling per day D) 20 trips per dwelling per day Answer: B Explanation: The ITE Manual typically cites 10 trips per dwelling unit per day for single-family residential. Question 11. How is “internal capture” defined in trip generation? A) Trips that originate and terminate within the same site, reducing external demand B) Trips captured from neighboring developments C) Trips that are captured by public transit D) Trips that exceed the site’s parking capacity Answer: A Explanation: Internal capture accounts for trips that stay within the development (e.g., moving between two buildings on the same site).
Training Certificate Ultimate Exam
Question 12. In trip distribution, what does a “gravity model” use to estimate origin-destination pairs? A) Distance decay function and trip production/attraction totals B) Random assignment of trips C) Only the shortest path algorithm D) Historical traffic counts at the site Answer: A Explanation: Gravity models apply a distance decay factor and the known productions/attractions to predict OD flows. **Question 13. Within the software, what is the purpose of defining “Gates”? ** A) To limit the number of vehicles that can enter a zone per hour B) To control the flow of trips between different zones for distribution calculations C) To create physical barriers on the map D) To set speed limits at intersections Answer: B Explanation: Gates are logical controls that restrict or direct trip flows between zones during the distribution step. Question 14. Which mode-split factor would most likely increase for a site located near a high-capacity transit corridor? A) Private vehicle trips B) Heavy-truck trips C) Transit trips (bus/rail) D) Pedestrian trips only
Training Certificate Ultimate Exam
D. The signal timing is optimal Answer: C Explanation: v/c > 1.0 means volume surpasses capacity, leading to queuing and possible spillback. Question 18. How is saturation flow (vehicles per hour per lane) typically adjusted for a heavy-vehicle percentage of 15 %? A) Increase by 10 % B) Decrease by 10 % C) No adjustment is needed D) Decrease by 20 % Answer: B Explanation: Heavy vehicles reduce saturation flow; a common adjustment is a 0.1 reduction per 10 % heavy-vehicle share, so a 15 % share reduces saturation flow by about 10 %. Question 19. Which control delay value (seconds per vehicle) generally corresponds to LOS C for a signalized intersection? A) 0- 10 s B) 10- 20 s C) 20- 35 s D) 35- 50 s Answer: C Explanation: LOS C is typically defined by a control delay between 20 and 35 seconds per vehicle. Question 20. In queue analysis, what is the significance of the 95th-percentile queue length?
Training Certificate Ultimate Exam
A) It represents the average queue length throughout the day B) It is the maximum possible queue length C) It indicates the queue length that is exceeded only 5 % of the time, used to prevent spillback D) It is used only for pedestrian queues Answer: C Explanation: The 95th-percentile queue length is a reliability metric; designing for it helps ensure upstream intersections are not blocked. Question 21. Which parameter is NOT part of basic signal timing input? A) Cycle length B) Phase splits C) Yellow change interval D) Pavement roughness index Answer: D Explanation: Pavement roughness is not a signal timing parameter; the other three are essential for timing calculations. Question 22. What is an “offset” in signal coordination? A) The time difference between the start of green phases at adjacent intersections B) The length of the yellow interval C) The number of lanes at an intersection D) The pedestrian crossing time Answer: A Explanation: Offsets synchronize green phases along a corridor to create a “green wave” for platoons of vehicles.
Training Certificate Ultimate Exam
Explanation: Many guidelines recommend signalization when the major movement v/c exceeds 0.5, indicating high demand. Question 26. In the four-step model, which step directly uses the output from the previous step? A) Trip Generation uses land-use data only B) Trip Distribution uses the productions/attractions from Trip Generation C) Trip Assignment uses the gravity model directly D) Capacity Analysis uses only background growth Answer: B Explanation: Trip Distribution consumes the trip productions and attractions calculated in Trip Generation. Question 27. What does “pass-by” traffic refer to in trip generation? A) Trips that originate and terminate within the same site B) Trips that travel through the site without stopping, adding to local traffic volumes C) Trips captured by public transit D) Trips that are diverted to alternative routes Answer: B Explanation: Pass-by traffic is generated by development but does not stop at the site; it adds to through-movement volumes. Question 28. Which software feature allows you to model “time-of-day” variations in demand? A) Static volume input only B) Hourly demand profiles or time slices C) Single-period analysis only
Training Certificate Ultimate Exam
D) Geographic Information System (GIS) overlay Answer: B Explanation: Time-of-day profiles let the model apply different volumes for peak, off-peak, and shoulder periods. Question 29. How does the “Level of Service” metric differ between signalized and unsignalized intersections? A) LOS is only defined for signalized intersections B) LOS for unsignalized intersections is based on v/c ratios, while signalized LOS uses control delay C) Both use the same delay formula D) Unsignalized LOS depends on pedestrian count only Answer: B Explanation: Unsignalized LOS is primarily a function of v/c, whereas signalized LOS uses control delay as the key performance indicator. Question 30. Which factor would most likely increase the saturation flow rate on a lane? A) High percentage of heavy trucks B) Steep uphill grade C) Presence of a dedicated turn lane with a protected signal phase D) Low driver compliance with lane discipline Answer: C Explanation: A protected turn lane reduces conflicts, allowing a higher saturation flow for the through movement. Question 31. What is the typical purpose of a “traffic statement” in a TIS? A) To provide a full capacity analysis
Training Certificate Ultimate Exam
Question 34. In the context of signal timing, what does the “yellow change interval” represent? A) The time vehicles have to clear the intersection after the signal turns red B) The duration of the yellow indication before the red phase starts C) The total cycle length divided by the number of phases D) The pedestrian clearance time Answer: B Explanation: The yellow change interval is the period between the end of the green and the start of the red, allowing vehicles to stop safely. Question 35. Which metric would you examine to evaluate the impact of a new development on arterial travel time reliability? A) Average daily traffic (ADT) only B) 95th-percentile travel time increase compared to the No-Build scenario C) Number of signalized intersections D) Parking turnover rate Answer: B Explanation: Travel time reliability is often assessed using percentile measures; the 95th-percentile captures worst-case conditions. Question 36. What is the effect of applying a “turn pocket” in the geometric coding of an intersection? A) It reduces the through-lane capacity B) It isolates turning traffic, potentially increasing saturation flow for the through movement C) It eliminates the need for signal timing D) It increases pedestrian delay automatically Answer: B
Training Certificate Ultimate Exam
Explanation: Turn pockets provide storage for turning vehicles, reducing interference with through traffic and improving saturation flow. Question 37. Which of the following is a common method for validating a traffic model’s output? A) Comparing modeled volumes to observed counts at key locations B. Using only the software’s default settings C. Assuming the model is correct if LOS A is achieved D. Ignoring any discrepancies in the results Answer: A Explanation: Validation involves checking modeled results against field data to ensure accuracy. Question 38. In the four-step process, which step would you use to incorporate “mode split” adjustments? A) Trip Generation B) Trip Distribution C) Trip Assignment D) Capacity Analysis Answer: B Explanation: Mode split is applied during distribution to allocate trips among auto, transit, walking, and cycling. **Question 39. What does a “queue spillback” indicate in a network analysis? ** A) Vehicles are moving faster than expected B) Queues have extended upstream enough to block adjacent intersections, causing network-wide congestion
Training Certificate Ultimate Exam
Question 42. In trip generation, how are “land-use subtypes” such as “retail-large-box” versus “retail-strip-mall” typically handled? A) They use the same generic rate B) Different ITE rates are applied to reflect varying trip generation intensities C) Subtypes are ignored in the software D) Only residential subtypes affect trip generation Answer: B Explanation: Subtypes have distinct trip generation rates because they attract different trip volumes per square foot. Question 43. Which factor most directly influences the “critical lane” determination in a multi-lane intersection? A) The lane with the highest v/c ratio during peak hour B) The lane farthest from the stop line C) The lane with the most pedestrian crossings D) The lane with the lowest speed limit Answer: A Explanation: The critical lane is the movement with the highest v/c, governing the overall intersection performance. Question 44. What is the primary benefit of using “green wave” coordination on an arterial corridor? A) Reducing the number of signals required B) Minimizing stops for platoons of vehicles, thereby decreasing delay and emissions C. Eliminating the need for pedestrian crossings D. Increasing the speed limit automatically Answer: B
Training Certificate Ultimate Exam
Explanation: Green wave timing allows vehicles to travel through multiple signals without stopping, improving flow and environmental outcomes. Question 45. When modeling a roundabout, which parameter replaces the traditional signal phase split? A) Entry gap acceptance time B) Fixed cycle length C) Yellow interval D) Pedestrian clearance interval Answer: A Explanation: Roundabouts operate on gap acceptance; the entry gap parameter controls how vehicles merge, rather than signal splits. Question 46. In the software, a “link” represents which of the following? A) A geographic point location B) A roadway segment between two nodes, including its geometric and operational attributes C) A traffic signal controller only D) A pedestrian crossing only Answer: B Explanation: Links are the fundamental network elements that connect nodes and carry traffic flow data. Question 47. Which of the following adjustments would you make if the heavy-vehicle percentage on a link rises from 5 % to 20 %? A) Increase the lane count automatically B) Decrease the saturation flow rate to reflect reduced capacity C. Increase the signal cycle length by 10 %
Training Certificate Ultimate Exam
A) LOS A for all movements B) Any LOS D or worse on the major approach C) LOS F on the minor approach only D) LOS C on pedestrian crossings Answer: B Explanation: Widening is often considered when the major approach falls to LOS D or lower, indicating capacity issues. Question 51. When assigning trips, what does “all-or-nothing” assignment imply? A) Trips are split evenly among all possible routes B) Each trip is assigned to a single, most-reasonable path rather than being fractionally distributed C. Trips are only assigned if the route has zero congestion D. The software ignores any route with a v/c > 1. Answer: B Explanation: All-or-nothing assigns the entire trip volume to the best path, simplifying routing decisions. Question 52. Which software output would you examine to verify that a newly added link is correctly connected to the network? A) Link list with start and end node IDs B. Pedestrian count table C. Signal timing sheet D. Parking inventory report Answer: A Explanation: The link list shows node connections; mismatched IDs indicate a disconnected link.
Training Certificate Ultimate Exam
Question 53. What is the effect of a “protected left-turn phase” on intersection capacity? A) It reduces overall capacity because of added phases B) It can increase capacity for left-turn movements by eliminating conflicting through traffic C. It eliminates the need for a through movement lane D. It only affects pedestrian delay Answer: B Explanation: Protected left phases separate left turns from through traffic, improving left-turn saturation flow. Question 54. In a TIS, which factor is most commonly used to estimate pedestrian volumes at a new commercial development? A) 20 % of vehicle trips B) 1 pedestrian per 100 sq ft of floor area per hour C. 0.5 pedestrians per vehicle trip during peak hour D. Fixed count of 100 peds/hr regardless of size Answer: C Explanation: Many guidelines estimate pedestrian trips as a proportion (often 0.5) of vehicle trips for mixed-use sites. Question 55. Which of the following best describes “modal split” in the context of trip distribution? A) The division of trips among different vehicle classes (cars, trucks) B) The percentage of trips assigned to each transportation mode (auto, transit, walking, cycling) C) The allocation of signal phases to each movement
