Exam

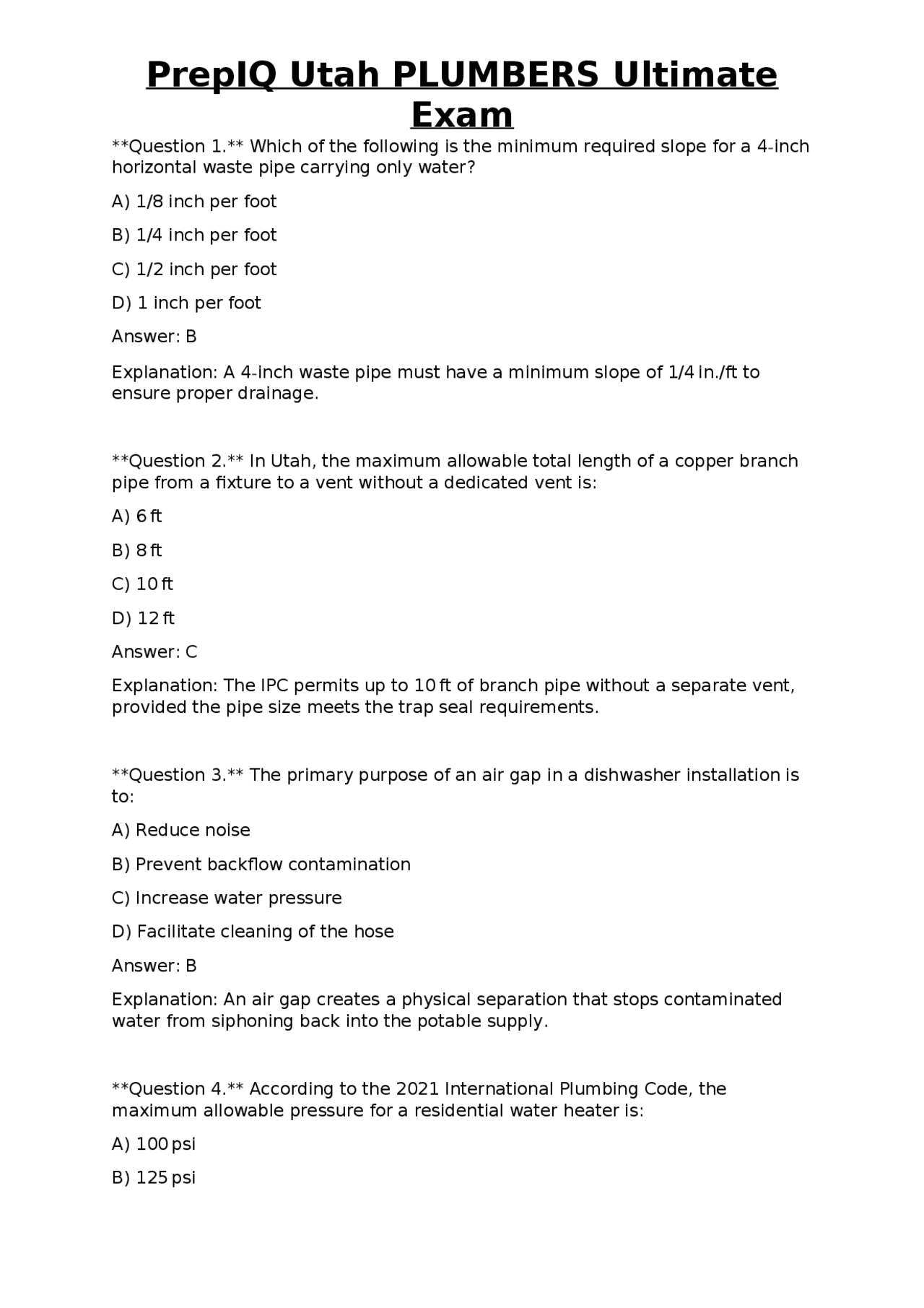

Question 1. Which of the following is the minimum required slope for a 4-inch horizontal waste pipe carrying only water? A) 1/8 inch per foot B) 1/4 inch per foot C) 1/2 inch per foot D) 1 inch per foot Answer: B Explanation: A 4-inch waste pipe must have a minimum slope of 1/4 in./ft to ensure proper drainage. Question 2. In Utah, the maximum allowable total length of a copper branch pipe from a fixture to a vent without a dedicated vent is: A) 6 ft B) 8 ft C) 10 ft D) 12 ft Answer: C Explanation: The IPC permits up to 10 ft of branch pipe without a separate vent, provided the pipe size meets the trap seal requirements. Question 3. The primary purpose of an air gap in a dishwasher installation is to: A) Reduce noise B) Prevent backflow contamination C) Increase water pressure D) Facilitate cleaning of the hose Answer: B Explanation: An air gap creates a physical separation that stops contaminated water from siphoning back into the potable supply. Question 4. According to the 2021 International Plumbing Code, the maximum allowable pressure for a residential water heater is: A) 100 psi B) 125 psi
Exam
C) 150 psi D) 200 psi Answer: B Explanation: The IPC limits the working pressure of residential water heaters to 125 psi to protect the tank and fittings. Question 5. Which valve type is most suitable for a shut-off application on a gas supply line? A) Ball valve B) Gate valve C) Globe valve D) Check valve Answer: A Explanation: Ball valves provide a quick, reliable shut-off for gas lines with minimal pressure drop. Question 6. When sizing a water supply pipe for a fixture unit load of 12, the minimum pipe diameter required is: A) ½ in. B) ¾ in. C) 1 in. D) 1¼ in. Answer: B Explanation: Using the IPC fixture unit table, a load of 12 requires at least a ¾-inch pipe to maintain adequate flow. Question 7. The correct method for cleaning a copper pipe before soldering is: A) Wipe with a dry cloth B) Use a wire brush followed by solvent C) Apply oil and heat D) Sand with coarse paper only Answer: B
Exam
Question 11. Which fire sprinkler system classification applies to a single-family residence according to NFPA 13D? A) Light hazard B) Ordinary hazard C) Residential (Type 1) D) Residential (Type 2) Answer: C Explanation: NFPA 13D defines a residential sprinkler system for single-family homes as Type 1, designed for quick response. Question 12. When installing a water main that passes through a concrete slab, the required fire-stop rating for the penetration is: A) 2 hr B) 3 hr C) 4 hr D) 5 hr Answer: C Explanation: The IPC mandates a minimum 4-hour fire-stop rating for penetrations through fire-resistive construction. Question 13. The most common cause of a “wet pipe” fire sprinkler activation is: A) High water pressure B) Pipe corrosion C) Heat from a fire causing water expansion D) Mechanical impact Answer: C Explanation: In a wet pipe system, water is constantly present; heat from a fire causes the sprinkler’s fusible link to melt, releasing water. Question 14. Under Utah law, a licensed plumber must report a work-site injury within how many days of occurrence? A) 3 days B) 5 days
Exam
C) 7 days D) 10 days Answer: B Explanation: Utah occupational safety statutes require a written injury report to be filed within five days. Question 15. The correct statement regarding a PEX pipe’s allowable temperature rating for hot water service is: A) 140 °F B) 160 °F C) 180 °F D) 200 °F Answer: C Explanation: PEX tubing is rated for continuous hot-water service up to 180 °F per the manufacturer’s specifications. Question 16. Which of the following is the primary purpose of a pressure-reducing valve (PRV) on a municipal water supply line? A) Increase flow rate B) Regulate downstream pressure to a safe level C) Filter debris D) Prevent backflow Answer: B Explanation: PRVs lower high municipal pressures to a level suitable for residential fixtures and appliances. Question 17. In a DWV system, the trap seal must be protected from siphonage by: A) A vent pipe B) A larger drain pipe C) A check valve D) A pressure regulator Answer: A
Exam
A) 1 hr B) 2 hr C) 3 hr D) 4 hr Answer: D Explanation: Fire-rated walls require a minimum 4-hour fire-stop for any gas pipe penetrations to maintain the wall’s rating. Question 22. The correct method for joining two PVC pipe sections is: A) Solvent cement only B) Threaded connections C) Mechanical compression fittings D) Solvent cement plus primer Answer: D Explanation: PVC requires primer to clean and soften the surface, followed by solvent cement for a watertight joint. Question 23. In a commercial building, the maximum allowable head loss for a water distribution system is typically limited to: A) 10 psi B) 20 psi C) 30 psi D) 40 psi Answer: B Explanation: To ensure adequate pressure at fixtures, the IPC limits total head loss to 20 psi in commercial systems. Question 24. Which of the following is a required feature of a backflow prevention assembly for a fire sprinkler system? A) Double check valve B) Reduced pressure zone (RPZ) device C) Air gap D) Pressure vacuum breaker
Exam
Answer: B Explanation: Fire sprinkler systems must be protected with an RPZ assembly to prevent contamination of the potable water supply. Question 25. The minimum pipe size for a residential main water line serving a single-family home is: A) ½ in. B) ¾ in. C) 1 in. D) 1½ in. Answer: C Explanation: The IPC requires at least a 1-inch pipe for the main water supply to a single-family residence. Question 26. Which type of valve is designed to allow water to flow in one direction while preventing reverse flow? A) Gate valve B) Ball valve C) Check valve D) Angle valve Answer: C Explanation: Check valves automatically close when flow reverses, protecting downstream equipment. Question 27. When interpreting an isometric plumbing drawing, the symbol “⎈” typically represents: A) A vent pipe B) A water main C) A gas line D) A sanitary drain Answer: D Explanation: The “⎈” symbol is commonly used on isometric drawings to denote a sanitary drain.
Exam
C) $1,000 fine D) $5,000 fine Answer: C Explanation: Utah law sets a $1,000 maximum penalty for unlicensed plumbing activity. Question 32. Which of the following pipe materials is approved for use in a fire-sprinkler system according to NFPA 13? A) Polyethylene (PE) B) Galvanized steel C) Copper-nickel alloy D) PVC-Schedule 40 Answer: B Explanation: NFPA 13 permits galvanized steel piping for sprinkler installations. Question 33. The recommended practice for protecting a copper pipe that passes through a concrete slab is: A) Use a plastic sleeve only B) Install a rubber gasket and fire-stop material C) No protection needed D) Wrap with foil tape Answer: B Explanation: A rubber gasket and fire-stop seal prevent water ingress and maintain fire-rating integrity. Question 34. Which of the following is the correct calculation for pressure loss in a pipe using the Hazen-Williams formula? A) ΔP = 4.52 Q² C ⁻¹ D⁻⁵⁰ B) ΔP = 4.52 Q¹·⁸⁵ C⁻¹·⁸⁵ D⁻⁴·⁸⁵ C) ΔP = 4.52 Q¹·⁸⁵ C⁻¹·⁸⁵ D⁻⁴·⁸⁵ L⁰·⁵⁴ D) ΔP = 4.52 Q¹·⁸⁵ C⁻¹·⁸⁵ D⁻⁴·⁸⁵ L Answer: C
Exam
Explanation: The Hazen-Williams equation includes length (L) raised to the 0. power for pressure loss. Question 35. In a residential fuel-gas system, the maximum allowable length of a flexible connector for a gas-fired appliance is: A) 12 in. B) 18 in. C) 24 in. D) 36 in. Answer: B Explanation: The IPC limits flexible gas connectors to 18 inches to maintain safety and integrity. Question 36. Which of the following statements about a “wet vent” is true? A) It can serve as both a drain and a vent for multiple fixtures. B) It must be larger than the main drain pipe. C) It cannot be used with a bathtub. D) It requires a separate vent pipe. Answer: A Explanation: A wet vent allows a single pipe to function as both a drain and a vent for certain fixture combinations. Question 37. The minimum required height for a clean-out access point on a horizontal drain line is: A) 12 in. above the floor B) 24 in. above the floor C) 36 in. above the floor D) No minimum height, only accessibility Answer: D Explanation: The code requires clean-outs to be accessible, not a specific height, allowing placement at floor level if reachable. Question 38. When selecting a water-heater expansion tank, the correct factor to consider is:
Exam
Answer: A Explanation: The code specifies a minimum interceptor size based on the cooking equipment’s grease output. Question 42. The correct method for testing a water-supply pressure at a fixture is to use: A) A thermometer B) A pressure gauge attached to a hose bib C) A flow meter D) A manometer on the main line only Answer: B Explanation: Attaching a pressure gauge to a hose bib provides an accurate measurement of supply pressure at the fixture. Question 43. When installing a gas line in a residential attic, the required clearance from combustible insulation is: A) 1 in. B) 2 in. C) 4 in. D) 6 in. Answer: C Explanation: The IPC requires a minimum 4-inch clearance between gas piping and combustible insulation in attics. Question 44. The primary function of a “vacuum breaker” on a potable water line is to: A) Increase water pressure B) Prevent backflow due to negative pressure C) Filter debris D) Reduce water temperature Answer: B Explanation: Vacuum breakers open when a vacuum forms, preventing contaminated water from being drawn back into the supply.
Exam
Question 45. Which of the following is the correct definition of “cross-connection” in plumbing? A) A pipe that connects two different water mains B) A point where potable water can be contaminated by a non-potable source C) A vent pipe intersecting a drain line D) A pipe that changes direction by 45 degrees Answer: B Explanation: A cross-connection is any junction where the potable water supply could be polluted by a non-potable fluid. Question 46. In a fire-sprinkler system, the term “K-factor” refers to: A) The flow coefficient of a sprinkler head B) The pressure rating of the pipe C) The temperature rating of the sprinkler fluid D) The size of the pipe support bracket Answer: A Explanation: The K-factor quantifies the flow rate a sprinkler delivers at a given pressure. Question 47. The minimum required size for a vent pipe serving a 2-inch drain is: A) ½ in. B) ¾ in. C) 1 in. D) 1½ in. Answer: B Explanation: The IPC mandates that vent pipe size be at least half the drain size, rounded up; thus, ¾-inch for a 2-inch drain. Question 48. When performing a solder joint on copper pipe, the minimum temperature the solder must reach to flow properly is: A) 300 °F B) 350 °F
Exam
Explanation: Utah licensing rules mandate 12 hours of approved continuing education each year. Question 52. The correct method to prevent water hammer in a piping system is to: A) Increase pipe diameter B) Install air chambers or water-hammer arrestors C) Use only flexible piping D) Reduce water temperature Answer: B Explanation: Air chambers or arrestors absorb the kinetic energy of sudden flow changes, mitigating water hammer. Question 53. Which of the following is the minimum pipe size for a dedicated vent for a bathtub? A) ½ in. B) ¾ in. C) 1 in. D) 1½ in. Answer: B Explanation: The IPC requires at least a ¾-inch vent for bathtubs to assure adequate airflow. Question 54. When installing a PEX manifold, the recommended spacing between support brackets is: A) Every 2 ft B) Every 3 ft C) Every 4 ft D) Every 6 ft Answer: C Explanation: PEX should be supported every 4 ft to prevent sagging and stress on fittings.
Exam
Question 55. The purpose of a “pressure-vacuum relief valve” on a water heater is to: A) Increase heating efficiency B) Prevent excessive pressure or vacuum conditions inside the tank C) Reduce water temperature fluctuations D) Filter sediment from the water Answer: B Explanation: This valve opens to relieve high pressure or vacuum, protecting the tank from damage. Question 56. In a gas-fired furnace, the required minimum clearance from the combustion chamber to a combustible wall is: A) 2 in. B) 4 in. C) 6 in. D) 12 in. Answer: C Explanation: The IPC specifies a 6-inch minimum clearance to prevent heat damage to combustible surfaces. Question 57. The correct procedure for abandoning a water service line is to: A) Cap the line with a threaded plug only B) Seal both ends with a mechanical valve and a test plug, then mark as abandoned C) Remove the pipe entirely D) Leave it open to the atmosphere Answer: B Explanation: Capping both ends and clearly marking the line prevents inadvertent use and ensures safety. Question 58. Which of the following is considered a “high-hazard” material requiring a special waste disposal permit? A) PVC pipe scrap B. Copper tubing
Exam
Explanation: The T&P relief outlet must be free of valves to allow the valve to discharge when needed. Question 62. The required minimum distance between a gas meter and a property line is: A) 3 ft B) 5 ft C) 10 ft D) 15 ft Answer: C Explanation: The IPC mandates at least 10 ft clearance from a gas meter to any property line. Question 63. In a plumbing layout, a “wet vent” can serve a sink and a bathtub sharing the same vent pipe because: A) Both fixtures have the same flow rate B) The combined fixture units do not exceed the vent capacity C) The vent pipe is larger than the drain pipe D) The sink is located above the bathtub Answer: B Explanation: The code permits a wet vent when the total fixture units are within the vent’s capacity. Question 64. The maximum allowable length of a copper pipe run without a support is: A) 5 ft B) 8 ft C) 10 ft D) 12 ft Answer: B Explanation: Copper pipe must be supported at intervals not exceeding 8 ft to prevent sagging.
Exam
Question 65. When installing a backflow preventer on a fire-sprinkler supply line, the device must be located: A) Inside the building only B) At the point of connection to the public water main C) Within 10 ft of the sprinkler heads D) On the roof Answer: B Explanation: Backflow preventers are required at the service connection to protect the public water supply. Question 66. The correct minimum thickness for a concrete slab supporting a 2 - inch DWV pipe is: A) 2 in. B) 3 in. C) 4 in. D) 6 in. Answer: C Explanation: The IPC specifies a minimum 4-inch concrete thickness for supporting DWV piping. Question 67. Which of the following is the proper method to test a gas line for leaks? A) Visual inspection only B) Applying soap solution and looking for bubbles C) Using a flame to detect gas D) Listening for hissing sounds Answer: B Explanation: Soap-solution testing reveals bubbles at leak points without creating ignition hazards. Question 68. The most common cause of a “dry-pipe” sprinkler system activation is: A) Freezing of water in the pipe B) A fire causing heat to melt the fusible link
