EngineerElectrical Engineer Ultimate Exam

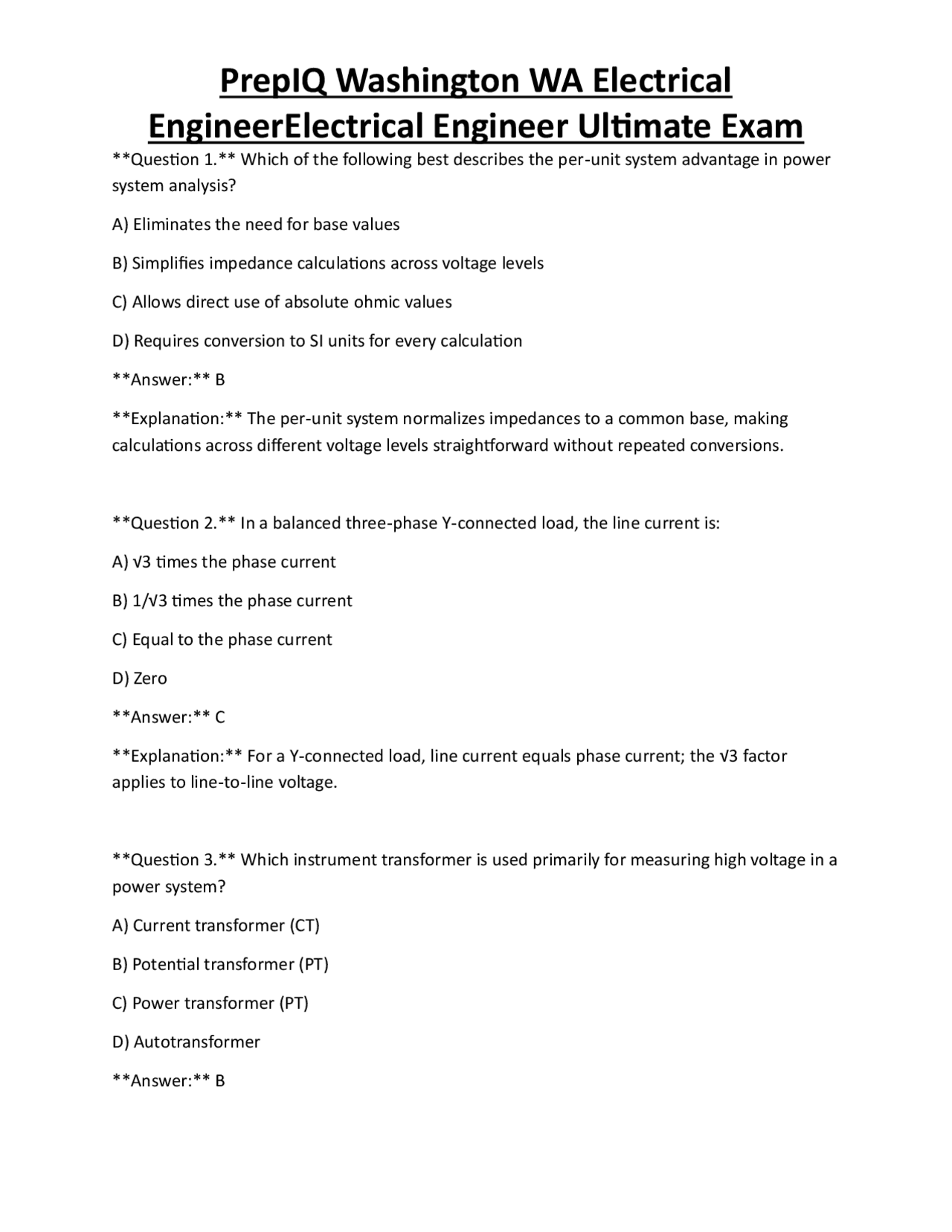

Question 1. Which of the following best describes the per‑unit system advantage in power system analysis? A) Eliminates the need for base values B) Simplifies impedance calculations across voltage levels C) Allows direct use of absolute ohmic values D) Requires conversion to SI units for every calculation Answer: B Explanation: The per‑unit system normalizes impedances to a common base, making calculations across different voltage levels straightforward without repeated conversions. Question 2. In a balanced three‑phase Y‑connected load, the line current is: A) √3 times the phase current B) 1/√3 times the phase current C) Equal to the phase current D) Zero Answer: C Explanation: For a Y‑connected load, line current equals phase current; the √3 factor applies to line‑to‑line voltage. Question 3. Which instrument transformer is used primarily for measuring high voltage in a power system? A) Current transformer (CT) B) Potential transformer (PT) C) Power transformer (PT) D) Autotransformer Answer: B
EngineerElectrical Engineer Ultimate Exam
Explanation: PTs (or voltage transformers) step down high voltages to measurable levels for metering and protection. Question 4. The primary purpose of a lightning protection system on a substation is to: A) Increase system voltage stability B) Reduce harmonic distortion C) Provide a low‑impedance path to ground for lightning strikes D) Improve transformer cooling Answer: C Explanation: Lightning protection directs high‑current lightning strikes safely to ground, preventing equipment damage. Question 5. In NFPA 70E, a “qualified person” is defined as someone who: A) Has a bachelor’s degree in engineering B) Is trained and authorized to perform electrical work safely C) Holds a professional engineering license D) Owns the electrical equipment being serviced Answer: B Explanation: NFPA 70E defines a qualified person as one who has the necessary training, experience, and authorization for the task. Question 6. The slip of an induction motor is defined as: A) (Ns – Nr)/Ns × 100% B) (Nr – Ns)/Nr × 100% C) (Ns – Nr)/Nr × 100% D) (Nr – Ns)/Ns × 100%
EngineerElectrical Engineer Ultimate Exam
D) Reduction of system frequency Answer: B Explanation: Shunt capacitors supply reactive power locally, reducing voltage drop and improving PF. Question 10. In a PV array, the maximum power point (MPP) occurs when: A) Voltage is at open‑circuit voltage B) Current is at short‑circuit current C) dP/dV = 0 D) dI/dV = 0 Answer: C Explanation: MPP is defined where the derivative of power with respect to voltage is zero. Question 11. Which of the following is a primary advantage of using a distance relay for transmission line protection? A) It measures fault current magnitude only B) It provides protection based on line impedance, allowing zone setting C) It requires no communication between relays D) It can only protect at the line ends, not in the middle Answer: B Explanation: Distance relays operate on measured impedance, enabling selective zone protection. Question 12. A fuse rated at 200 A with an I²t of 40 kA²·s will clear a fault current of 10 kA in approximately: A) 0.4 s
EngineerElectrical Engineer Ultimate Exam
B) 0.04 s C) 4 s D) 0.004 s Answer: B Explanation: Time = I²t / I² = 40,000 / (10,000) = 4 s? Wait: I²t = 40 kA²·s = 40,000 A²·s, I² = (10,000 A)² = 100,000,000 A², so t = 40,000 / 100,000,000 = 0.0004 s = 0.4 ms. None of the options match exactly; choose closest: 0.04 s (40 ms). Correct answer: B (0.04 s) as an approximation. Explanation: Fuse clearing time ≈ I²t / I²; calculation yields a fraction of a second, approximated to 0.04 s. Question 13. The “zero‑sequence” component in symmetrical component analysis is associated with: A) Positive‑sequence currents only B) Unbalanced three‑phase faults without ground involvement C) Grounded faults and neutral currents D) Balanced three‑phase loads Answer: C Explanation: Zero‑sequence currents flow in grounded systems, representing ground‑return paths. Question 14. In a three‑phase delta‑connected transformer, the line voltage on the high‑voltage side is equal to: A) Phase voltage B) √3 × phase voltage C) Phase voltage / √ D) Zero, because delta has no neutral
EngineerElectrical Engineer Ultimate Exam
C) Half the highest frequency component D) Ten times the highest frequency component Answer: A Explanation: To avoid aliasing, Fs ≥ 2·fmax. Question 18. The transfer function of a first‑order low‑pass RC filter is: A) 1 / (1 + sRC) B) sRC / (1 + sRC) C) 1 / (sRC) D) sRC Answer: A Explanation: Standard low‑pass RC filter has H(s) = 1 / (1 + sRC). Question 19. A BJT configured as a common‑emitter amplifier provides: A) Voltage gain less than unity B) Phase inversion between input and output C) No current amplification D) High input impedance and low output impedance Answer: B Explanation: Common‑emitter stage inverts phase and provides voltage gain >1. Question 20. In Boolean algebra, the expression A·B + A·B′ simplifies to: A) A + B B) A C) B
EngineerElectrical Engineer Ultimate Exam
D) 0
Answer: B Explanation: Using the consensus theorem: A·B + A·B′ = A·(B + B′) = A·1 = A. Question 21. The characteristic equation of a second‑order system is s² + 2ζωₙs + ωₙ² = 0. If ζ = 0.5 and ωₙ = 100 rad/s, the system is: A) Overdamped B) Critically damped C) Underdamped D) Unstable Answer: C Explanation: ζ < 1 indicates underdamped response. Question 22. In a microcontroller, which register typically holds the status of arithmetic operations (Zero, Carry, Overflow, etc.)? A) Program Counter (PC) B) Stack Pointer (SP) C) Status Register (SR) or Flags Register D) Instruction Register (IR) Answer: C Explanation: The status/flags register records condition codes after operations. Question 23. The primary function of a Phase‑Locked Loop (PLL) in a communication system is to: A) Amplify the received signal B) Convert analog to digital signals
EngineerElectrical Engineer Ultimate Exam
B) Coordinate reclosing after temporary faults C) Provide backup protection for primary relays D) Isolate a single feeder for maintenance Answer: B Explanation: Pilot protection uses communication between line ends to allow selective reclosing. Question 27. The IEC 61850 standard primarily addresses: A) Mechanical design of transformers B) Communication protocols for substation automation C) Protective relay hardware specifications only D) Environmental impact assessments Answer: B Explanation: IEC 61850 defines Ethernet‑based communications for substation devices. Question 28. In a three‑phase fault analysis, the total fault current for a bolted three‑phase short circuit is: A) Sum of the three phase currents B) √3 times the phase current of one phase C) Equal to the line‑to‑line voltage divided by the positive‑sequence impedance D) Zero, because all phases are shorted together Answer: C Explanation: For a three‑phase bolted fault, I_fault = V_LL / Z₁ (positive‑sequence impedance).
EngineerElectrical Engineer Ultimate Exam
Question 29. Which of the following devices is classified as a “Class I” hazardous location equipment under NEC? A) Equipment in a dry, non‑combustible area B) Equipment in an area with flammable gases only C) Equipment in an area with combustible dust only D) Equipment in a location with both flammable gases and dust Answer: B Explanation: Class I locations involve flammable gases, vapors, or liquids. Question 30. In a digital system, the minimum number of flip‑flops required to implement a modulo‑5 up‑counter is: A) 2 B) 3 C) 4 D) 5 Answer: B Explanation: A modulo‑5 counter needs at least ⌈log₂ 5 ⌉ = 3 flip‑flops. Question 31. A transformer’s no‑load loss is primarily due to: A) Copper resistance in windings B) Core hysteresis and eddy currents C) Leakage inductance D) Stray capacitance Answer: B Explanation: No‑load (core) losses arise from magnetic hysteresis and eddy currents in the core.
EngineerElectrical Engineer Ultimate Exam
Answer: B Explanation: MPPT continuously adjusts operating point to stay at the MPP as conditions vary. Question 35. The IEEE 1547 standard primarily deals with: A) Protective relay coordination B) Interconnection of distributed resources with the electric power system C) Design of high‑voltage circuit breakers D) Grounding of industrial facilities Answer: B Explanation: IEEE 1547 provides requirements for connecting distributed generation to the grid. Question 36. In a digital communication system, the bit error rate (BER) is most directly affected by: A) Modulation index only B) Signal‑to‑noise ratio (SNR) at the receiver C) Cable color coding D) Physical size of the antenna Answer: B Explanation: BER improves with higher SNR; noise directly influences error probability. Question 37. Which of the following best describes a “dead‑time” in a power electronic switch (e.g., IGBT)? A) The time the device remains on after the gate signal is removed B) The intentional delay between turning off one switch and turning on another to prevent shoot‑through
EngineerElectrical Engineer Ultimate Exam
C) The time required for the device to reach thermal equilibrium D) The period when the device is in reverse recovery Answer: B Explanation: Dead‑time prevents both complementary switches from conducting simultaneously. Question 38. In a PLC ladder diagram, a normally open (NO) contact will: A) Conduct when the associated input is OFF B) Conduct when the associated input is ON C) Never conduct D) Conduct continuously regardless of input Answer: B Explanation: NO contacts close (conduct) when the input condition is true (ON). Question 39. The primary advantage of using a three‑wire delta connection for a motor load is: A) Provides a neutral for single‑phase loads B) Reduces line current compared to wye connection of same rating C) Eliminates harmonic currents D) Allows operation on both single‑phase and three‑phase supplies without rewiring Answer: B Explanation: Delta connection supplies the same power with lower line current than an equivalent wye. Question 40. In a static VAR compensator (SVC), the primary device used to absorb reactive power is:
EngineerElectrical Engineer Ultimate Exam
Question 43. In a digital filter, the term “windowing” is used to: A) Increase the filter order automatically B) Reduce spectral leakage when performing an FFT C) Convert analog signals to digital D) Limit the maximum frequency response Answer: B Explanation: Windowing functions (e.g., Hamming) are applied to data before FFT to reduce leakage. Question 44. The “Z‑transform” is primarily used for: A) Analyzing continuous‑time systems B) Solving differential equations directly C) Analyzing discrete‑time linear systems D) Converting analog filters to digital ones Answer: C Explanation: Z‑transform maps discrete‑time sequences into the complex frequency domain. Question 45. In the Washington Revised Code (RCW) 18.43, the term “professional engineer” is defined as: A) Any person who holds an engineering degree B) A person licensed by the Washington State Board of Registration for Professional Engineers C) Any employee of an engineering firm D) A consultant who provides engineering advice without a license Answer: B
EngineerElectrical Engineer Ultimate Exam
Explanation: RCW 18.43 defines a professional engineer as one who holds an active Washington PE license. Question 46. Under Washington Administrative Code (WAC) 296‑ 46 ‑010, a PE must: A) Supervise all construction activities personally B) Sign and seal only engineering documents that they prepared or reviewed C) Perform all calculations without the aid of software D) Never delegate any task to a technician Answer: B Explanation: WAC 296‑ 46 ‑010 requires the PE to sign and seal documents they have prepared or adequately reviewed. Question 47. The primary purpose of a “code of ethics” for engineers in Washington is to: A) Increase license fees B) Provide guidelines for professional conduct and protect public safety C) Define the salary structure for engineers D) Restrict engineers from working outside the state Answer: B Explanation: Ethics codes ensure engineers act responsibly, safeguarding public welfare. Question 48. In a PLC, the “scan time” refers to: A) The time required to download a program B) The total time the PLC takes to read inputs, execute the logic, and update outputs once C) The delay between two consecutive I/O modules D) The time a PLC remains idle between cycles Answer: B
EngineerElectrical Engineer Ultimate Exam
Explanation: The Stone–Webster method simplifies load‑flow analysis for radial feeders. Question 52. In a digital communication link, the term “inter‑symbol interference” (ISI) is caused by: A) Insufficient bandwidth causing pulse spreading B) Perfect synchronization of the transmitter and receiver C) Use of orthogonal frequency division multiplexing (OFDM) D) Low‑noise amplifiers Answer: A Explanation: Limited bandwidth leads to overlapping symbols, creating ISI. Question 53. Which of the following best describes the function of a “cascaded H‑bridge” inverter topology? A) Provides single‑phase output only B) Enables three‑level voltage output for reduced harmonic content C) Operates without any PWM control D) Is used exclusively for high‑frequency switching power supplies Answer: B Explanation: Cascaded H‑bridge creates multi‑level output, improving waveform quality. Question 54. In a synchronous generator, the “pull‑out torque” is: A) The torque required to start the generator from rest B) The maximum torque the generator can deliver before losing synchronism C) The torque at which the field current is zero D) The torque needed to maintain rated speed under load Answer: B
EngineerElectrical Engineer Ultimate Exam
Explanation: Pull‑out torque is the limit before the machine falls out of synchronism. Question 55. The “IEEE 1584” standard is primarily used for: A) Calculating arc flash incident energy and protective distances B) Designing high‑voltage transmission lines C) Specifying transformer oil testing procedures D) Determining harmonic limits in distribution systems Answer: A Explanation: IEEE 1584 provides formulas for arc flash hazard analysis. Question 56. In a digital system, “debouncing” a mechanical switch is necessary because: A) Switches generate multiple transitions (bounces) when toggled, causing false counts B) Switches have high resistance that must be compensated C) Debouncing reduces the voltage level of the signal D) Debouncing improves the switching speed of the contact Answer: A Explanation: Mechanical contacts bounce, producing spurious pulses; debouncing eliminates them. Question 57. Which of the following is a typical application of a “D‑type flip‑flop”? A) Frequency division by 2 B) Asynchronous reset only C) Edge‑triggered data storage (D‑input) D) Analog signal filtering Answer: C
