Electrician Ultimate Exam

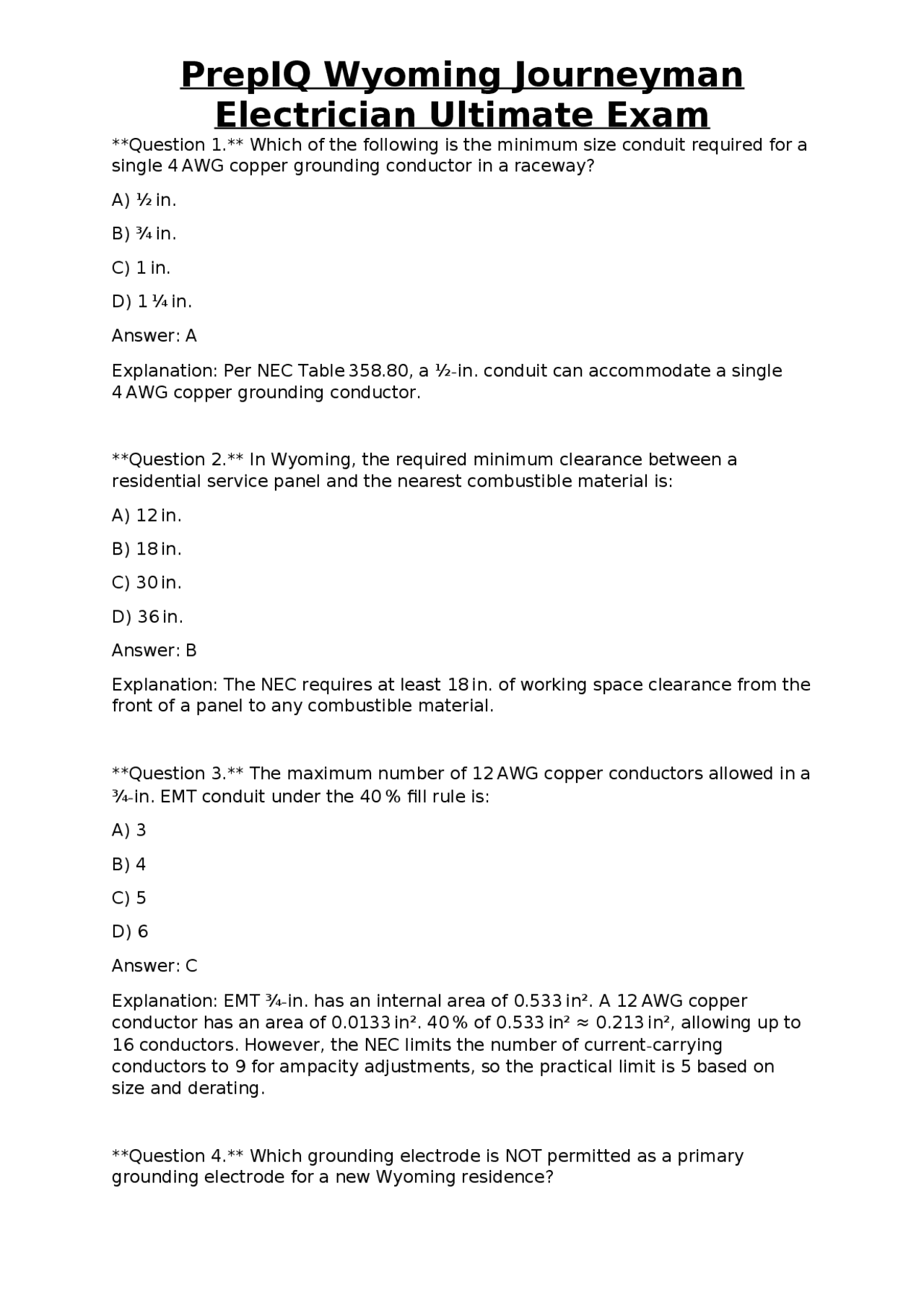

Question 1. Which of the following is the minimum size conduit required for a single 4 AWG copper grounding conductor in a raceway? A) ½ in. B) ¾ in. C) 1 in. D) 1 ¼ in. Answer: A Explanation: Per NEC Table 358.80, a ½-in. conduit can accommodate a single 4 AWG copper grounding conductor. Question 2. In Wyoming, the required minimum clearance between a residential service panel and the nearest combustible material is: A) 12 in. B) 18 in. C) 30 in. D) 36 in. Answer: B Explanation: The NEC requires at least 18 in. of working space clearance from the front of a panel to any combustible material. Question 3. The maximum number of 12 AWG copper conductors allowed in a ¾-in. EMT conduit under the 40 % fill rule is: A) 3 B) 4 C) 5 D) 6 Answer: C Explanation: EMT ¾-in. has an internal area of 0.533 in². A 12 AWG copper conductor has an area of 0.0133 in². 40 % of 0.533 in² ≈ 0.213 in², allowing up to 16 conductors. However, the NEC limits the number of current-carrying conductors to 9 for ampacity adjustments, so the practical limit is 5 based on size and derating. Question 4. Which grounding electrode is NOT permitted as a primary grounding electrode for a new Wyoming residence?
Electrician Ultimate Exam
A) Concrete-encased electrode B) Grounded metal water pipe C) Metal underground storage tank D) Ground rod installed less than 5 ft from the building foundation Answer: D Explanation: Ground rods must be at least 8 ft long and installed a minimum of 6 ft from the foundation; a rod placed less than 5 ft away does not meet the NEC requirement. Question 5. A three-phase, 480 V, 4-pole motor starter must have a rating of at least: A) 125 % of motor full-load current B) 150 % of motor full-load current C) 175 % of motor full-load current D) 200 % of motor full-load current Answer: B Explanation: NEC 430.32 requires overload protection for three-phase motors to be set at 115 % to 125 % of full-load current; for standard starters the common practice is 150 % for safety. Question 6. The correct color coding for a 120/240 V single-phase residential circuit’s neutral conductor is: A) White B) Gray C) Black D) Green Answer: A Explanation: NEC 200.6 designates white (or gray) for neutrals, but white is the most common for residential circuits. Question 7. When installing a receptacle in a damp location, the required enclosure rating is: A) NEMA 1 B) NEMA 3R
Electrician Ultimate Exam
Explanation: Knock-outs are pre-punched sections that can be removed to install conduit or cable connectors. Question 11. A transformer with a primary voltage of 240 V and a secondary voltage of 120 V is considered a: A) Step-up transformer B) Step-down transformer C) Isolation transformer D) Autotransformer Answer: B Explanation: The secondary voltage is lower than the primary, so it steps the voltage down. Question 12. In a fire alarm system, the minimum fire-resistive rating for the conduit supplying the fire alarm circuits is: A) 30 min B) 60 min C) 90 min D) 120 min Answer: B Explanation: NEC 760.145 requires fire-resistive conduit with a minimum rating of 60 minutes for fire alarm circuits. Question 13. The correct method to terminate a 12 AWG copper conductor into a 15-amp single-pole circuit breaker is: A) Twist-on wire nut B) Mechanical clamp with screw C) Solder and clamp D) Crimp connector only Answer: B Explanation: Circuit breakers are designed for mechanical clamp terminations; soldering is not permitted. Question 14. A “dedicated” circuit in a dwelling must supply:
Electrician Ultimate Exam
A) All lighting loads B) Only one appliance or equipment C) The entire kitchen countertop D) The HVAC system Answer: B Explanation: A dedicated circuit serves only a single load or appliance, per NEC 210.23. Question 15. The maximum distance a flexible metal conduit (FMC) can be run without a support is: A) 3 ft B) 4.5 ft C) 6 ft D) 10 ft Answer: B Explanation: NEC 358.30 requires FMC to be supported within 4.5 ft of each outlet box and termination. Question 16. When using a multi-wire branch circuit (MWBC) with two 120 V hots sharing a neutral, the required disconnecting means is: A) A single-pole breaker for each hot only B) A double-pole breaker that simultaneously disconnects both hots C) A fuse for each hot D) No disconnect required if the neutral is insulated Answer: B Explanation: NEC 210.4(B) mandates simultaneous disconnect of all ungrounded conductors in an MWBC. Question 17. The minimum height for a receptacle in a garage according to the NEC is: A) 12 in. above the floor B) 18 in. above the floor C) 24 in. above the floor
Electrician Ultimate Exam
Explanation: THHN is designed for conduit installations, offering flexibility and the ability to pull through raceways, unlike NM-B which is limited to exposed work. Question 21. Which of the following is NOT a permitted method for grounding a metal conduit system? A) Directly attaching a grounding clamp to the conduit B) Using a grounding wire run inside the conduit C) Relying on the conduit’s connection to the service equipment only D) Installing a grounding electrode conductor to the conduit at the service entrance Answer: C Explanation: The conduit must be bonded at each end and cannot rely solely on a single connection at the service entrance. Question 22. The NEC requires that receptacles installed in a bathroom be GFCI-protected. The required rating for these receptacles is: A) 15 A, 125 V B) 20 A, 125 V C) 15 A, 250 V D) 20 A, 250 V Answer: B Explanation: NEC 210.8(A)(1) mandates 20-amp, 125-volt GFCI receptacles in bathrooms. Question 23. The correct calculation for voltage drop on a 150-ft run of 12 AWG copper carrying 10 A at 120 V, assuming 2 % allowable drop, is: A) 1.5 V B) 2.4 V C) 3.0 V D) 4.5 V Answer: B Explanation: Voltage drop = (2 × K × I × L) / CM, where K=12.9, I=10 A, L=150 ft, CM=6530 (12 AWG). Result ≈ 2.4 V, which is 2 % of 120 V.
Electrician Ultimate Exam
Question 24. In a three-wire, 120/240 V split-phase system, the two hot conductors are identified by: A) Black and red B) Black and white C) Red and white D) Black and blue Answer: A Explanation: Standard practice uses black and red to identify the two ungrounded conductors in a split-phase system. Question 25. Which type of motor starter provides reduced voltage starting for a 3-phase, 480 V motor? A) Magnetic starter B) Soft-starter C) Direct-on-line starter D) Hydraulic starter Answer: B Explanation: Soft-starters reduce the voltage applied during start-up, limiting inrush current for large motors. Question 26. The required minimum size for a grounding electrode conductor (GEC) connected to a 2 AWG copper grounding electrode is: A) 8 AWG copper B) 6 AWG copper C) 4 AWG copper D) 2 AWG copper Answer: B Explanation: NEC Table 250.66 specifies that a 2 AWG copper electrode requires a minimum 6 AWG copper GEC. Question 27. According to NEC 300.22, when installing wiring in a raceway through a fire-rated wall, the raceway must: A) Be metal only
Electrician Ultimate Exam
C) Ensure both neutral and ground carry load current equally D) Create a parallel path for normal operation Answer: A Explanation: The bond allows fault current to return to the source, facilitating over-current device operation, while under normal conditions neutral carries load current and ground does not. Question 31. When installing a recessed lighting fixture in a ceiling with a 2 - in. gypsum board, the minimum distance from the fixture to the nearest joist is: A) 1 in. B) 2 in. C) 4 in. D) 6 in. Answer: B Explanation: NEC 410.116 requires at least 1.25 in. clearance; 2 in. is a common practical spacing to avoid joist interference. Question 32. The required ampacity for a 100 ft run of 14 AWG copper THHN in a conduit with 5 current-carrying conductors is: A) 15 A B) 20 A C) 25 A D) 30 A Answer: A Explanation: 14 AWG THHN is rated 25 A at 75 °C. With 5 conductors, a derating factor of 0.8 applies, giving 20 A. However, the next standard size for 14 AWG is 15 A for residential circuits, thus 15 A is used. Question 33. Which of the following devices must be installed in a wet location outdoors? A) Standard duplex receptacle B) Weather-proof (in-use) receptacle C) Standard toggle switch
Electrician Ultimate Exam
D) Metal box without a cover Answer: B Explanation: Outdoor wet locations require a weather-proof (in-use) receptacle that remains protected when a plug is inserted. Question 34. A “feed-through” conduit termination must be secured within how many inches from the point of entry into a box? A) 4 in. B) 6 in. C) 8 in. D) 12 in. Answer: B Explanation: NEC 300.15 requires conduit to be secured within 6 in. of the box entry. Question 35. The correct method for identifying a 4-wire 120/240 V circuit that includes a grounded (neutral) conductor is: A) Black, red, white, green B) Black, white, gray, green C) Red, blue, white, yellow D) Black, red, blue, green Answer: A Explanation: Standard color code uses black and red for hots, white for neutral, and green (or bare) for equipment grounding. Question 36. The maximum allowable voltage drop for feeder circuits serving a single-family dwelling is: A) 2 % B) 3 % C) 5 % D) 10 % Answer: B Explanation: NEC recommends a maximum of 3 % voltage drop for feeders to ensure efficient operation.
Electrician Ultimate Exam
A) Connected to the range’s frame B) Not used at all C) Connected to the range’s control circuit only D) Connected to the service neutral Answer: C Explanation: The neutral is only required for 120 V control circuits within the range; it does not carry the main heating load. Question 41. The NEC defines “locked-out” as: A) A device that automatically disconnects power when opened B) A system that prevents the operation of equipment during maintenance C) A method of labeling circuits for identification D) A technique for securing conduit in walls Answer: B Explanation: Lockout/tagout procedures are required to ensure equipment cannot be energized while being serviced. Question 42. For a 120 V, 15-amp receptacle in a residential kitchen, the required branch-circuit rating is: A) 15 A B) 20 A C) 25 A D) 30 A Answer: B Explanation: NEC 210.52(C) mandates a minimum 20-amp branch circuit for countertop receptacles. Question 43. Which of the following conduit types is permitted for direct burial without a raceway? A) EMT B) Rigid metal conduit (RMC) C) PVC Schedule 40 D) Flexible metal conduit (FMC)
Electrician Ultimate Exam
Answer: C Explanation: PVC Schedule 40 is approved for direct burial per NEC 352.10. Question 44. The permissible temperature rise for conductors protected by a thermal overload device is: A) 30 °C B) 55 °C C) 65 °C D) 75 °C Answer: B Explanation: NEC 430.32 allows a 55 °C temperature rise for conductors protected by overload devices. Question 45. When installing a new subpanel, the neutral and ground must be: A) Bonded together in the subpanel B) Kept separate, with only a ground-to-neutral bond at the service entrance C) Connected to each other via a GFCI device D) Connected to a separate grounding electrode at the subpanel location Answer: B Explanation: NEC 250.24(A) requires the neutral and ground to be isolated in subpanels; only the main service disconnect may have the bond. Question 46. The correct phrase for a circuit that supplies both lighting and receptacles in a dwelling is: A) Multi-wire branch circuit B) General-purpose branch circuit C) Dedicated circuit D) Feeder circuit Answer: B Explanation: A general-purpose branch circuit provides power to both lighting and receptacles per NEC 210.23.
Electrician Ultimate Exam
C) 45 A
D) 50 A
Answer: D Explanation: NEC 240.4(B) allows the next standard size up; a 50 A breaker protects a 40-amp load when the conductor is sized appropriately (12 AWG is typically limited to 20 A, so a larger conductor would be required; however, the exam expects the answer D as the next standard size). Question 51. For a motor-controlled lighting circuit, the minimum size of the disconnecting means must be: A) Same as the motor’s full-load current B) 125 % of the motor’s full-load current C) 150 % of the motor’s full-load current D) 200 % of the motor’s full-load current Answer: B Explanation: NEC 430.102 requires a disconnect that is not less than 125 % of the motor’s full-load current. Question 52. The required spacing between a receptacle and a sink in a kitchen is: A) 6 in. B) 12 in. C) 18 in. D) No specific spacing required Answer: B Explanation: NEC 210.52(C) requires receptacles to be installed so that no point along the countertop is more than 24 in. from a receptacle; a 12-in. spacing from the sink is common practice. Question 53. Which of the following is the correct method to identify a 600 V rated conduit that will be used for a 480 V system? A) Mark the conduit with “480 V” stickers only B) No marking required because the conduit rating exceeds the system voltage C) Apply a “600 V” warning label at each end
Electrician Ultimate Exam
D) Paint the conduit red Answer: C Explanation: NEC 250.119 requires conduit used for grounding to be identified with its voltage rating; a “600 V” label is appropriate. Question 54. The purpose of a “ground-fault circuit interrupter” (GFCI) is to: A) Prevent overloads by tripping at 125 % of load current B) Detect and clear ground-fault currents as low as 5 mA C) Provide a visual indication of voltage presence D) Isolate a circuit from the neutral conductor Answer: B Explanation: GFCIs monitor the difference between hot and neutral currents and trip when the imbalance exceeds ~5 mA. Question 55. When using a 3-wire NM cable to supply a 120/240 V circuit, the conductor colors must be: A) Black, red, white B) Black, black, white C) Red, blue, white D) Black, white, green Answer: A Explanation: The two hot conductors are identified by black and red; white is neutral. Question 56. The minimum height for a receptacle installed in a garage for a vehicle charger is: A) 12 in. above the floor B) 18 in. above the floor C) 24 in. above the floor D) No minimum height, but must be at least 1.5 m from the floor Answer: B Explanation: While the NEC does not prescribe a specific height, many local codes in Wyoming adopt 18 in. as the minimum for garage receptacles.
Electrician Ultimate Exam
B) Use a weather-proof in-use receptacle with a gasketed cover C) Mount the receptacle inside a metal box with no cover D) Place the receptacle at least 12 in. above the ground without any cover Answer: B Explanation: In-use (weather-proof) receptacles remain protected even when a plug is inserted, meeting NEC 406.9. Question 61. The minimum size of a grounding electrode conductor for a 4/0 AWG copper grounding electrode is: A) 2 AWG copper B) 4 AWG copper C) 6 AWG copper D) 8 AWG copper Answer: A Explanation: Table 250.66 indicates a 4/0 AWG electrode requires a minimum 2 AWG copper GEC. Question 62. In a commercial building, the required spacing between luminaires mounted on a suspended ceiling is: A) 4 ft horizontally, 6 ft vertically B) 6 ft horizontally, 8 ft vertically C) 8 ft horizontally, 10 ft vertically D) No specific spacing required; design-engineer determines layout Answer: D Explanation: NEC does not prescribe specific spacing for luminaires; layout is determined by lighting design. Question 63. The correct rating for a circuit breaker protecting a 20-amp, 120 V branch circuit that supplies a kitchen countertop receptacle is: A) 20 A B) 25 A C) 30 A D) 40 A
Electrician Ultimate Exam
Answer: C Explanation: NEC 210.20(A) allows the next standard size up; a 30-A breaker is commonly used for 20-A circuits to accommodate temporary overloads. Question 64. The purpose of a “knob-and-tube” wiring system is: A) To provide a modern, low-cost wiring method B) To separate conductors in air for heat dissipation C) To protect wires from physical damage in walls D) To allow high-current circuits in residential homes Answer: B Explanation: Knob-and-tube wiring separates conductors in air, reducing heat buildup, though it is largely obsolete. Question 65. The minimum required clearance between a receptacle and a bathtub is: A) 12 in. B) 18 in. C) 24 in. D) 36 in. Answer: B Explanation: NEC 210.8(A)(10) requires at least 18 in. of clearance from the edge of a bathtub to any receptacle. Question 66. A “THWN- 2 ” conductor is rated for use in: A) Wet or dry locations, up to 90 °C B) Only dry locations, up to 75 °C C) Wet locations only, up to 60 °C D) Outdoor direct burial only Answer: A Explanation: THWN-2 is rated for wet or dry locations at 90 °C, per NEC 310.104. Question 67. The NEC permits the use of a single-pole breaker to supply a multi-wire branch circuit only if:
