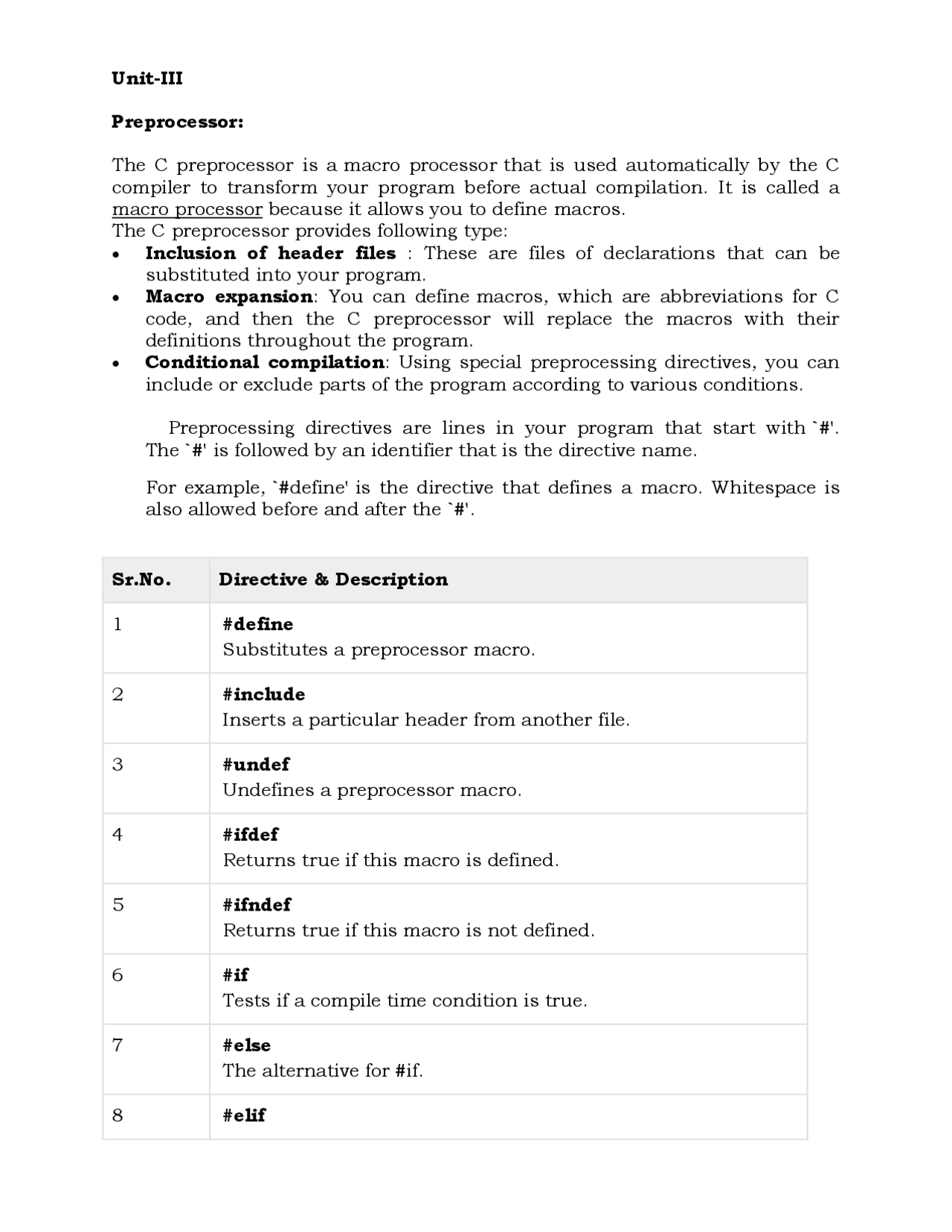

Unit-III Preprocessor: The C preprocessor is a macro processor that is used automatically by the C compiler to transform your program before actual compilation. It is called a macro processor because it allows you to define macros. The C preprocessor provides following type:
- Inclusion of header files : These are files of declarations that can be substituted into your program.
- Macro expansion : You can define macros, which are abbreviations for C code, and then the C preprocessor will replace the macros with their definitions throughout the program.
- Conditional compilation : Using special preprocessing directives, you can include or exclude parts of the program according to various conditions. Preprocessing directives are lines in your program that start with #'. The#' is followed by an identifier that is the directive name. For example, #define' is the directive that defines a macro. Whitespace is also allowed before and after the#'. Sr.No. Directive & Description 1 #define Substitutes a preprocessor macro. 2 #include Inserts a particular header from another file. 3 #undef Undefines a preprocessor macro. 4 #ifdef Returns true if this macro is defined. 5 #ifndef Returns true if this macro is not defined. 6 #if Tests if a compile time condition is true. 7 #else The alternative for #if. 8 #elif
#else and #if in one statement. 9 #endif Ends preprocessor conditional. Header Files: (#include) A header file is a file containing C declarations and macro definitions. we request the use of a header file in our program with the C preprocessing directive #include'. The header files names end with.h'. Both user and system header files are included using the preprocessing directive `#include'
- System header files declare the interfaces to parts of the operating system. we include them in our program to supply the definitions and declarations of predefined code.
- User can create their own header file and add in the program if needed. There are two ways to add header file in program- #include : It searches for a file named file in a list of directories specified by you, then in a standard list of system directories. #include "file": It searches for a file named file first in the current directory, then in the same directories used for system header files. Inclusion of header files: User can create their own header file. Following program explain how to create Example: Creating an user header file File name: fact.h #include int fact(int n) { int i=1,f=1; while(i<=n) { f=f*i; i++; } Return f; } Example: use of an user header file File name: factprogram.c #include #include “fact.h” int main() { int i,n=5; i=fact(n); printf(“factorial is %d\n”,i); } Output: factorial is 120
int a,b,area; printf(“enter a & b value\n”); scanf(“%d%d”,&a,&b); area=rectanglearea(a,b); printf(“area of rectangle is %d\n”,area); } Output: Enter a & b value 2 5 area of rectangle is 10 Miscellaneous Directives: (#undef) the #undef directive tells the preprocessor to remove the definitions for the specified macro. A macro can be redefined after it has been removed by the #undef directive. Syntax: #undef Template_name(Arguments,...) (Expression) Example:
define rectanglearea(a,b) (a*b) //macro definition
undef rectanglearea(a,b) (a*b) //macro undefined
define rectanglearea(a,b) (a*b) //macro redefined
Example 1: #include
define area(a,b) (a*b)
undef area(a,b) (a*b)
int main() { int a=2,b=11; printf("area of rectangle is %d", area(a,b)); return 0; } Output: Error // area is not defined macro Example 2: #include
define area(a,b) (a*b)
undef area(a,b) (a*b)
define area(a,b) (a*b)
int main() { int a=2,b=11; printf("area of rectangle is %d", area(a,b)); return 0; } Output: area of rectangle is 22 Conditional compilation : (#ifdef, #ifndef, #endif) Using conditional compilation, if user want, compiler to skip over part of code by using preprocessing commands #ifdef and #endif Syntax: #ifdef macroname Statement 1; Statement 1; . . #endif If macronme has been #defind, the block of code will be processed as usual; otherwise not.
Output: end of the program #if, #else, #elif, #endif Directives: The #if directive is used to test whether an expression evaluate to a nonzero value or not. If result is non zero(ie true) the subsequent line of code execute upto #else, #elif or #endif comes; otherwise they are skipped. Example: check number is +ve, - ve or zero. #include int main() { int num; printf("enter number"); scanf("%d",&num); #if num> printf("number is +ve\n"); #elif num< printf("number is - ve\n"); #else printf("number is zero\n"); #endif return 0; } Output: enter number 25 number is +ve File:
In C programming, file is a place on computer disk where information is stored permanently. Which represents a sequence of bytes ending with an end-of- file marker(EOF). Why files are needed?
- When a program is terminated, the entire data is lost. Storing in a file will preserve your data even if the program terminates.
- If you have to enter a large number of data, it will take a lot of time to enter them all. However, if you have a file containing all the data, you can easily access the contents of the file using few commands in C.
- You can easily move your data from one computer to another without any changes. Types of Files
- Text files
- Binary files 1. Text files Text files are the normal .txt files that you can easily create using Notepad or any simple text editors. When you open those files, you'll see all the contents within the file as plain text. You can easily edit or delete the contents. They take minimum effort to maintain, are easily readable, and provide least security and takes bigger storage space. 2. Binary files Binary files are mostly the .bin files in your computer. Instead of storing data in plain text, they store it in the binary form (0's and 1's). They can hold higher amount of data, are not readable easily and provides a better security than text files. File Operations In C, you can perform four major operations on the file, either text or binary:
- Creating a new file
- Opening an existing file
- Closing a file
fp= fopen(“filename”, “mode”); filename is the name of the file to be opened and mode specifies the purpose of opening the file. Mode can be of following types, Example: fp= fopen(“sample.txt”, “w”); fp= fopen(“sample.txt”, “r”); mode description r opens a text file in reading mode w opens or create a text file in writing mode. a opens a text file in append mode r+ opens a text file in both reading and writing mode w+ opens a text file in both reading and writing mode a+ opens a text file in both reading and writing mode rb opens a binary file in reading mode wb opens or create a binary file in writing mode ab opens a binary file in append mode rb+ opens a binary file in both reading and writing mode wb+ opens a binary file in both reading and writing mode ab+ opens a binary file in both reading and writing mode If fopen( ) cannot open "test.dat " it will a return a NULL pointer which should always be tested for as follows. Example: FILE *fp ;
if ( ( fp = fopen( "test.dat", "r" ) ) == NULL ) { puts( "Cannot open file") ; exit( 1) ; } This will cause the program to be exited immediately if the file cannot be opened. Closing a File: The file (both text and binary) should be closed after reading/writing. Closing a file is performed using library function fclose(). Syntax: fclose(file_pointer_name); Example: fclose(fp); //fp is the file pointer associated with file to be closed Reading and writing to a text file: For reading and writing to a text file, we use the functions fprintf() and fscanf(). They are just the file versions of printf() and scanf(). The only difference is that, fprint and fscanf expects a pointer to the structure FILE. Writing to a text file: Example 1: Write to a text file using fprintf() #include int main() { int num; FILE *fptr; fptr = fopen("program.txt","w"); if(fptr == NULL) { printf("Error!"); exit( 1 );
Note: Other functions like fgetchar(), fgetc(),fputc(),fgets(),fputs() etc. can be used in similar way. Reading and writing to a binary file: Functions fread() and fwrite() are used for reading from and writing to a file on the disk respectively in case of binary files. Writing to a binary file To write into a binary file, you need to use the function fwrite(). The functions takes four arguments: Address of data to be written in disk, Size of data to be written in disk, number of such type of data and pointer to the file where you want to write. fwrite(address_data,size_data,numbers_data,pointer_to_file); Example 3: Writing to a binary file using fwrite() #include struct threeNum { int n1, n2, n3; }; int main() { int n; struct threeNum num; FILE *fptr; if ((fptr = fopen("C:\program.bin","wb")) == NULL){ printf("Error! opening file"); // Program exits if the file pointer returns NULL. exit( 1 ); } for(n = 1 ; n < 5 ; ++n) { num.n1 = n; num.n2 = 5n;
num.n3 = 5n + 1 ; fwrite(&num, sizeof(struct threeNum), 1 , fptr); } fclose(fptr); return 0 ; } In this program, you create a new file program.bin in the C drive. We declare a structure threeNum with three numbers - n1, n2 and n3, and define it in the main function as num. Now, inside the for loop, we store the value into the file using fwrite. The first parameter takes the address of num and the second parameter takes the size of the structure threeNum. Since, we're only inserting one instance of num, the third parameter is 1. And, the last parameter *fptr points to the file we're storing the data. Finally, we close the file. Reading from a binary file Function fread() also take 4 arguments similar to fwrite() function as above. fread(address_data,size_data,numbers_data,pointer_to_file); Example 4: Reading from a binary file using fread() #include struct threeNum { int n1, n2, n3; }; int main() { int n; struct threeNum num; FILE *fptr;
if ( ( fin = fopen( source, "rb" ) ) == NULL ) { puts( "Cannot open input file ") ; puts( source ) ; exit( 1 ) ; } // open as binary as we don’t know what is in file if ( ( fout = fopen( dest, "wb" ) == NULL ) ) { puts( "Cannot open output file ") ; puts( dest ) ; exit( 1 ) ; } while ( ( ch = fgetc( fin ) ) != EOF ) fputc( ch , fout ) ; fclose( fin ) ; fclose( fout ) ; } Note : When any stream I/O function such as fgetc() is called the current position of the file pointer is automatically moved on by the appropriate amount, 1 character/ byte in the case of fgetc() ; Appending Data To Existing File Append mode is used to append or add data to the existing data of file (if any). Hence, when you open a file in Append (a) mode , the cursor is positioned at the end of the present data in the file. In general, to append is to join or add on to the end of something. For example, an appendix is a section appended (added to the end) of a document. In computer programming , append is the name of a procedure for concatenating (linked) lists or arrays in some high- level programming languages. FILE *pFile; FILE *pFile2; char buffer[ 256 ]; pFile=fopen("myfile.txt", "r"); pFile2=fopen("myfile2.txt", "a"); if(pFile==NULL) { perror("Error opening file."); } else { while(fgets(buffer, sizeof(buffer), pFile)) { fprintf(pFile2, "%s", buffer); }
} fclose(pFile); fclose(pFile2);
program
WRITING AND READING STRUCTURES USING BINARY FILES
Read , write and seek operations can be performed on binary files with the help of fread(), fwrite() and fseek() functions, respectively. After reading or writing a structure , the file pointer is moved to the next structure. The fseek() function can move the pointer to the position as requested
Reading and Writing from Binary Files
Binary files are very similar to arrays except for the fact that arrays are temporary storage in the memory but binary files are permanent storage in the disks. The most important difference between binary files and a text file is that in a binary file, you can seek , write , or read from any position inside the file and insert structures directly into the files. You must be wondering - why do we need binary files when we already know how to handle plaintexts and text files? Here are the reasons why binary files are necessary :
1. I/O operations are much faster with binary data.
Usually, large text files contain millions of numbers. It takes a lot of time to convert 32 - bit integers to readable characters. This conversion is not required in the case of binary files as data can be directly stored in the form of bits.
2. Binary files are much smaller in size than text files.
For data that is in the form of images, audio or video, this is very important. Small size means less storage space and faster transmission. For example, a storage device can store a large amount of binary data as compared to data in character format.
3. Some data cannot be converted to character formats.
For example, Java compilers generate bytecodes after compilation. Having said that, let's move on to handling I/O operations in a binary file in C. The basic parameters that the read and write functions of binary files accept are:
- the memory address of the value to be written or read
- the number of bytes to read per block
- the total number of blocks to read
- the file pointer program For writing in file, it is easy to write string or int to file using fprintf and putc , but you might have faced difficulty when writing contents of struct. fwrite and fread make task easier when you want to write and read blocks of data.
- fwrite : Following is the declaration of fwrite function
- **size_t fwrite(const void ptr, size_t size, size_t nmemb, FILE stream)
Pointer position: This sets the pointer position in the file. Value pointer position 0 Beginning of file. 1 Current position 2 End of file **Example:
- fseek( p,10L,0)** 0 means pointer position is on beginning of the file, from this statement pointer position is skipped 10 bytes from the beginning of the file. 2) fseek( p,5L,1) 1 means current position of the pointer position.From this statement pointer position is skipped 5 bytes forward from the current position. 3)fseek(p,-5L,1) From this statement pointer position is skipped 5 bytes backward from the current position. ftell(): This function returns the value of the current pointer position in the file. The value is count from the beginning of the file. Syntax: ftell(fptr); Where fptr is a file pointer. rewind(): This function is used to move the file pointer to the beginning of the given file. Syntax: rewind( fptr); Where fptr is a file pointer.
Example: Write a program to read last ‘n’ characters of the file using appropriate file functions(Here we need fseek() and fgetc()). 01 #include 02 #include 03 void main() 04 { 05 FILE *fp; 06 char ch; 07 clrscr(); 08 fp=fopen("file1.c", "r"); 09 if(fp==NULL) 10 printf("file cannot be opened"); 11 else 12 { 13 printf("Enter value of n to read last ‘n’ characters"); 14 scanf("%d",&n); 15 fseek(fp,-n,2); 16 while((ch=fgetc(fp))!=EOF) 17 { 18 printf("%c\t",ch); 19 } 20 } 21 fclose(fp);
