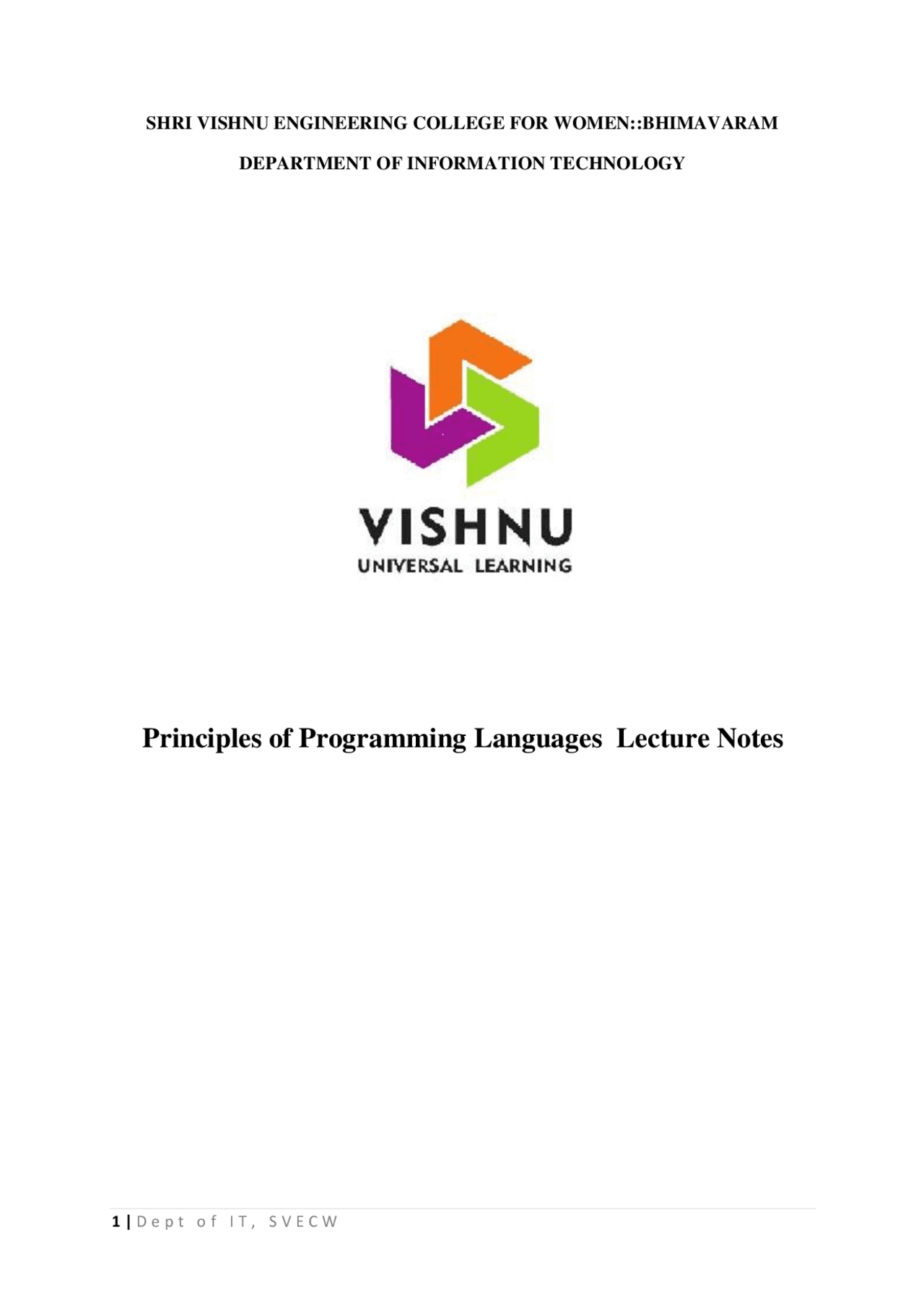

1 | D e p t o f I T , S V E C W
SHRI VISHNU ENGINEERING COLLEGE FOR WOMEN::BHIMAVARAM
DEPARTMENT OF INFORMATION TECHNOLOGY
Principles of Programming Languages Lecture Notes
Prepare for your exams
Study with the several resources on Docsity
Earn points to download
Earn points by helping other students or get them with a premium plan
Guidelines and tips
Prepare for your exams
Study with the several resources on Docsity
Earn points to download
Earn points by helping other students or get them with a premium plan
Principles of Programming Languages Lecture Notes, Study notes of Programming Languages
programming language constructs and consequences of those choices. Better use of languages that are already known. • By studying the concepts of programming ...
Typology: Study notes
2022/2023
1 / 51
This page cannot be seen from the preview
Don't miss anything!
Related documents
Partial preview of the text
Download Principles of Programming Languages Lecture Notes and more Study notes Programming Languages in PDF only on Docsity!
SHRI VISHNU ENGINEERING COLLEGE FOR WOMEN::BHIMAVARAM
DEPARTMENT OF INFORMATION TECHNOLOGY
Principles of Programming Languages Lecture Notes
UNIT-
Reasons for Studying of Programming Languages
Increased capacity to express ideas :
People can easily express their ideas clearly in any language only when they have clear understanding of the natural language. Similarly, if programmers want to simulate the features of languages in another language, they should have some ideas regarding the concepts in other languages as well.
Improved background for choosing appropriate languages
Many programmers when given a choice of languages for a new project, continue to use the language with which they are most familiar, even if it is poorly suited to the project.
If these programmers were familiar with a wider range of languages, they would be better able to choose the language that includes the features that best address the characteristics of the problem at hand.
Increased ability to learn new languages In software development, continuous learning is essential. The process of learning a new programming language can be lengthy and difficult, especially for someone who is comfortable with only two or more languages. Once a thorough understanding of the fundamental concepts of languages is acquired, it becomes far easier to see how these concepts are incorporated into the design of the language being learned.
Better understanding the significance of implementation An understanding of implementation issues leads to an understanding of why languages are designed the way they are. This knowledge in turn leads to the ability to use a language more intelligently, as it was designed to use. We can become better programmers by understanding the choices among programming language constructs and consequences of those choices. Better use of languages that are already known By studying the concepts of programming languages, programmers can learn about previously unknown and unused parts of the languages they already use and begin to use those features.
Overall advancement of computing
There is a global view of computing that can justify the study of programming language concepts. For example, many people believe it would have been better if ALGOL 60 had
entirely in C
- Web software
- Markup languages
- Such as XHTML
- Scripting languages
- A list of commands is placed in a file or in XHTML document for execution
- Perl, JavaScript, PHP
- Markup languages
- Special-purpose languages
- RPG – business reports
- APT – programmable machine tools
- GPSS – simulation
Language Evaluation Criteria
The following factors influences Language evalution criteria
- Readability 2) Simplicity 3) Orthogonality 4) Writ ability 3) Reliability 4) Cost and 5) Others
Readability
- One of the most important criteria for judging a programming language is the ease with which programs can be read and understood.
- Language constructs were designed more from the point of view of the computer than of computer users
- From 1970s, the S/W life cycle concept was developed; coding was relegated to a much smaller role, and maintenance was recognized as a major part of the cycle, particularly in terms of cost. Because ease of maintenance is determined in large part by readability of programs, readability became an important measure of the quality of programs
Overall simplicity
- Language with too many features is more difficult to learn
- Feature multiplicity is bad. For example: In Java, increment can be performed if four ways as:
- Count= count+
- Count+=
- Count++
- ++count
- Next problem is operator overloading, in which single operator symbol has more than one meaning
Orthogonality
- A relatively small set of primitive constructs that can be combined in a relatively small number of ways
- Consistent set of rules for combining constructs (simplicity)
- Every possible combination is legal
- For example, pointers should be able to point to any type of variable or data structure
- Makes the language easy to learn and read
- Meaning is context independent
- VAX assembly language and Ada are good examples
- Lack of orthogonality leads to exceptions to rules
- C is littered with special cases
- E.g. - struct s can be returned from functions but arrays cannot
Orthogonolity is closely related to simplicity. The more orthogonal the design of a language, the fewer exceptions the language rules require. Fewer exceptions mean a higher degree of regularity in the design, which makes the language easier to learn, read, and understand.
- Useful control statements
- Ability to define data types and structures
- Syntax considerations
- Provision for descriptive identifiers
- BASIC once allowed only identifiers to consist of one character with an optional digit
- Meaningful reserved words
- Meaning should flow from appearance
- Provision for descriptive identifiers
Writability
- Most readability factors also apply to writability
- Simplicity and orthogonality
- Control statements, data types and structures
- Support for abstraction
- Data abstraction
Influences on Language Design
Computer Architecture
- Languages are developed around the prevalent computer architecture, known as the von Neumann architecture
- Programming Methodologies
- New software development methodologies (e.g., object oriented software development) led to new programming paradigms and by extension, new programming languages.
Computer Architecture Influence
- Well-known computer architecture: Von Neumann
- Imperative languages, most dominant, because of von Neumann computers
- Data and programs stored in memory
- Memory is separate from CPU
- Instructions and data are piped from memory to CPU
- Basis for imperative languages
- Variables model memory cells
- Assignment statements model piping
- Iteration is efficient
The von Neumann Architecture
Instruction Execution
Fetch-execute-cycle (on a von Neumann architecture) initialize the program counter
repeat forever
fetch the instruction pointed by the counter
increment the counter decode the instruction execute the instruction end repeat
Programming Methodologies Influences
1950s and early 1960s: Simple applications; worry about machine efficiency Late 1960s: People efficiency became important; readability, better control structures
- structured programming
- top-down design and step-wise refinement Late 1970s: Process-oriented to data-oriented
- Data abstraction
Middle 1980s: Object-oriented programming
- Data abstraction + inheritance + polymorphism
Different types of programming languages and its design issues
Language Categories
- Imperative
- Central features are variables, assignment statements, and iteration
- Examples: C, Pascal
- Functional
- Main means of making computations is by applying functions to given parameters
- Examples: LISP, Scheme
- Logic (declarative)
- Rule-based (rules are specified in no particular order)
- Example: Prolog
- Object-oriented
- Data abstraction, inheritance, late binding
- Examples: Java, C++
- Markup
- New; not a programming per se, but used to specify the layout of information in Web documents
Pure Interpretation Process T translation of source code line by line so that generates errors line by line.If no errors in the code generates object code. While interpretation it selef user input will be given.
- Immediate feedback about errors
- Slower execution
- Often requires more space
- Used mainly for scripting languages
Example for interpreter is Dbase III plus
Hybrid Implementation Process
A compromise between compilers and pure interpreters
- A high-level language program is is translated to an intermediate language that allows easy interpretation
- Faster than pure interpretation
Example for hybrid implementation is Java. Java is a compiled interpreted language.
Just-in-Time Implementation Systems
- Initially translate programs to an intermediate language
- Then compile intermediate language into machine code
- Machine code version is kept for subsequent calls
- JIT systems are widely used for Java programs
- .NET languages are implemented with a JIT system ` Preprocessors
- Pre-processor macros (instructions) are commonly used to specify that code from another file is to be included
- A pre-processor processes a program immediately before the program is compiled to expand embedded pre-processor macros
- A well-known example: C pre-processor
- expands #include, #define, and similar macros
UNIT 2
Describing Syntax and Semantics
Syntax: the form or structure of the expressions, statements, and program units
Semantics: the meaning of the expressions, statements, and program units Pragmatics:
Syntax and semantics provide a language’s definition
- Users of a language definition Other language designers Implementers Programmers (the users of the language)
Terminology
A metalanguage is a language used to describe another language A sentence is a string of characters over some alphabet
A language is a set of sentences a language is specified by a set of rules
A lexeme is the lowest level syntactic unit of a language (e.g., *, sum, begin)
A token is a category of lexemes (e.g., identifier)
Two approaches to Language Definition
- Recognizers
- Read a string and decide whether it follows the rules for the language
- Example: syntax analysis part of a compiler
- Generators
- A device that generates sentences of a language (BNF)
- More useful for specifying the language than for checking a string
Syntax
- Backus-Naur Form and Context-Free Grammars
- Most widely known method for describing programming language syntax
- Developed as part of the process for specifying ALGOL
- Define a class of languages called context-free languages
- Extended BNF
- Improves readability and writability of BNF
BNF Fundamentals
Non-terminals: BNF abstractions used to represent classes of syntactic structures
Terminals: lexemes and tokens Grammar: a collection of rules
Examples of BNF rules: <ident_list> → identifier | identifier, <ident_list> <if_stmt> → if <logic_expr> then
BNF Rules
A rule has a left-hand side (LHS) and a right-hand side (RHS), and consists of terminal and nonterminal symbols
In a context-free grammar, there can only be one symbol on the LHS
A grammar is a finite nonempty set of rules
An abstraction (or nonterminal symbol) can have more than one RHS
Derivations
- BNF is a generative device
- Use a grammar to generate sentences that belong to the language the grammar describes
- A derivation is a repeated application of rules, starting with the start symbol and ending with a sentence (all terminal symbols)
Derivation
- Every string of symbols in the derivation is a sentential form
- A sentence is a sentential form that has only terminal symbols
- A leftmost derivation is one in which the leftmost nonterminal in each sentential form is the one that is expanded
- A derivation may be neither leftmost nor rightmost
An Example Grammar
-> a | b | c | d
Associativity of Operators
- Context-free grammars (CFGs) cannot describe all of the syntax of programming languages
- For example
- the requirement that a variable be declared before it can be used is impossible to express in a grammar
- information about variable and expression types could be included in a grammar but only at
the cost of great complexity
Names and its Design issues.
Imperative languages are abstractions of von Neumann architecture
A machine consists of
- Memory - stores both data and instructions
- Processor - can modify the contents of memory
Variables are used as an abstraction for memory cells
- For primitive types correspondence is direct
- For structured types (objects, arrays) things are more complicated
Variables
- A variable is an abstraction of a memory cell
- Variables can be characterized as a sextuple of attributes:
- Name
- Address
- Value
- Type
- Lifetime
- Scope
Variable Attributes
- Name - not all variables have them
- Address - the memory address with which it is associated (l-value)
- Type - allowed range of values of variables and the set of defined operations
- Value - the contents of the location with which the variable is associated (r-value)
The concept of Binding and possible Binding times.
The Concept of Binding
- A binding is an association, such as between an attribute and an entity, or between an operation and a symbol - entity could be a variable or a function or even a class
- Binding time is the time at which a binding takes place. Possible Binding Times
- Language design time -- bind operator symbols to operations
- Language implementation time-- bind floating point type to a representation
- Compile time -- bind a variable to a type in C or Java
- Load time -- bind a FORTRAN 77 variable to a memory cell (or a C static variable)
- Runtime -- bind a nonstatic local variable to a memory cell
Static and Dynamic Binding
- A binding is static if it first occurs before run time and remains unchanged throughout program execution.
- A binding is dynamic if it first occurs during execution or can change during execution of the program Type Binding
\endash How is a type specified?
- An explicit declaration is a program statement used for declaring the types of variables
- An implicit declaration is a default mechanism for specifying types of variables (the first appearance of the variable in the program)
\endash When does the binding take place?
\endash If static, the type may be specified by either an explicit or an implicit declaration
Type checking and how coercion related to type checking?
Type Checking
- Generalize the concept of operands and operators to include subprograms and assignments
- Type checking is the activity of ensuring that the operands of an operator are of compatible types
- A compatible type is one that is either legal for the operator, or is allowed under language rules to be implicitly converted, by compiler- generated code, to a legal type
- A type error is the application of an operator to an operand of an inappropriate type
When is type checking done?
- If all type bindings are static, nearly all type checking can be static (done at compile time)
- If type bindings are dynamic, type checking must be dynamic (done at run time)
- A programming language is strongly typed if type errors are always detected
- Advantage: allows the detection of misuse of variables that result in type errors
How strongly typed?
- FORTRAN 77 is not: parameters, EQUIVALENCE
- Pascal has variant records
- C and C++
- parameter type checking can be avoided
- unions are not type checked
