Experiment # 1
Printed Circuit Board Design
Objectives
1) become familiar with Printed Circuit Board (PCB) design software
2) become familiar with the geometrical shapes and physical dimensions of
electronic devices
3) master soldering

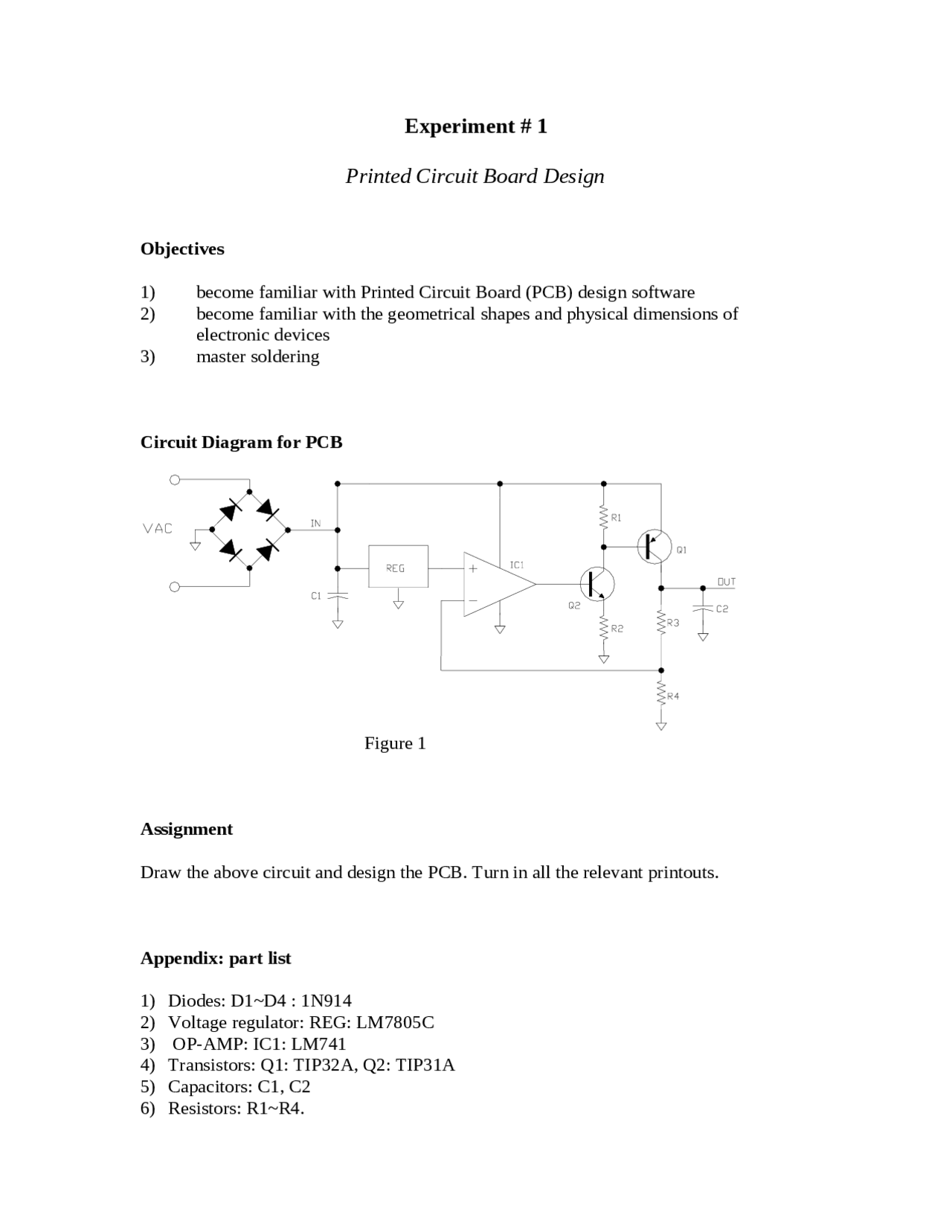

Circuit Diagram for PCB
Figure 1
Assignment
Draw the above circuit and design the PCB. Turn in all the relevant printouts.
Appendix: part list
1) Diodes: D1~D4 : 1N914
2) Voltage regulator: REG: LM7805C
3) OP-AMP: IC1: LM741
4) Transistors: Q1: TIP32A, Q2: TIP31A
5) Capacitors: C1, C2
6) Resistors: R1~R4.
