bg1
Page 1 of 2

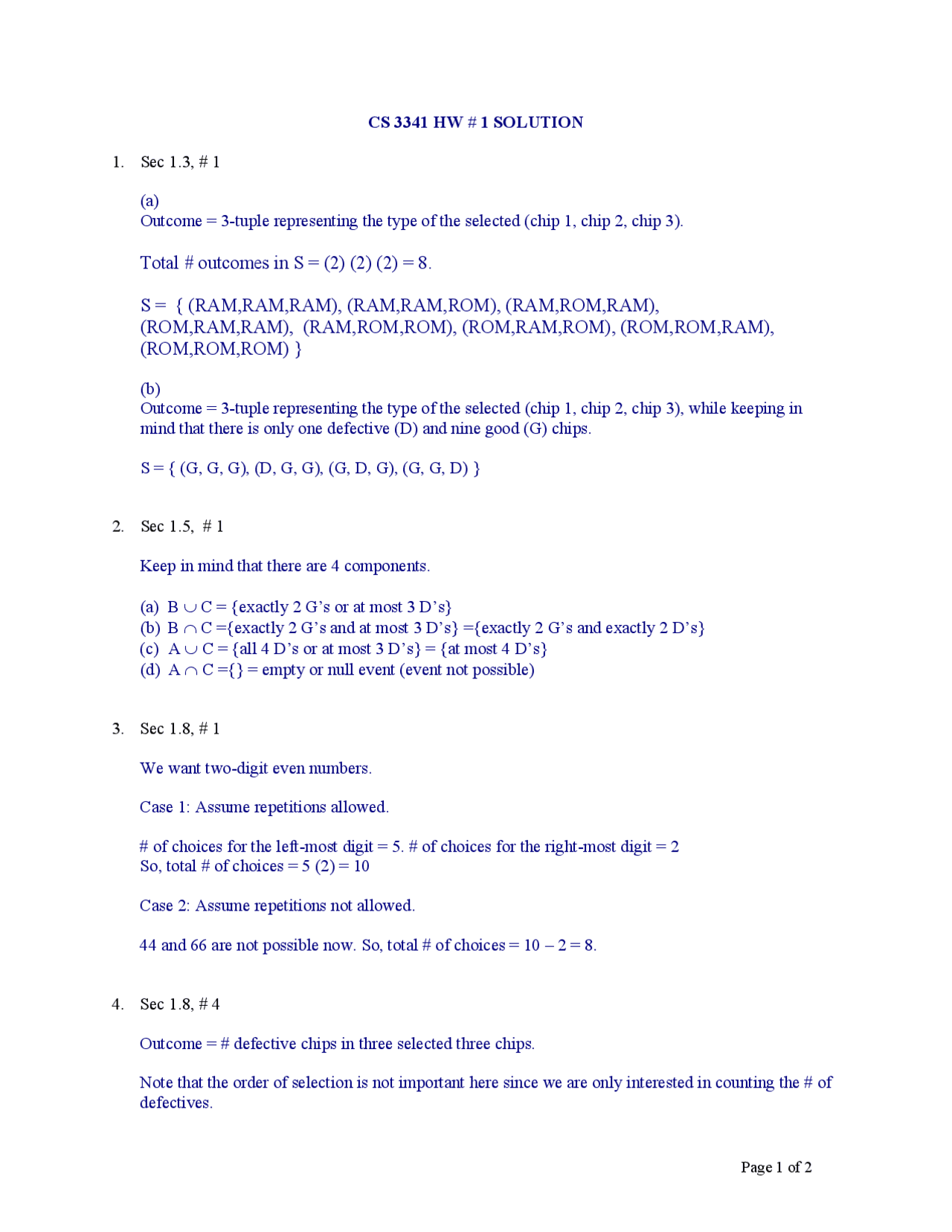

CS 3341 HW # 1 SOLUTION
1. Sec 1.3, # 1
(a)
Outcome = 3-tuple representing the type of the selected (chip 1, chip 2, chip 3).
Total # outcomes in S = (2) (2) (2) = 8.
S = { (RAM,RAM,RAM), (RAM,RAM,ROM), (RAM,ROM,RAM),
(ROM,RAM,RAM), (RAM,ROM,ROM), (ROM,RAM,ROM), (ROM,ROM,RAM),
(ROM,ROM,ROM) }
(b)
Outcome = 3-tuple representing the type of the selected (chip 1, chip 2, chip 3), while keeping in
mind that there is only one defective (D) and nine good (G) chips.
S = { (G, G, G), (D, G, G), (G, D, G), (G, G, D) }
2. Sec 1.5, # 1
Keep in mind that there are 4 components.
(a) B C = {exactly 2 G’s or at most 3 D’s}
(b) B C ={exactly 2 G’s and at most 3 D’s} ={exactly 2 G’s and exactly 2 D’s}
(c) A C = {all 4 D’s or at most 3 D’s} = {at most 4 D’s}
(d) A C ={} = empty or null event (event not possible)
3. Sec 1.8, # 1
We want two-digit even numbers.
Case 1: Assume repetitions allowed.
# of choices for the left-most digit = 5. # of choices for the right-most digit = 2
So, total # of choices = 5 (2) = 10
Case 2: Assume repetitions not allowed.
44 and 66 are not possible now. So, total # of choices = 10 – 2 = 8.
4. Sec 1.8, # 4
Outcome = # defective chips in three selected three chips.
Note that the order of selection is not important here since we are only interested in counting the # of
defectives.
pf2

Partial preview of the text

Download Probability and Statistics in Computer Science and more Schemes and Mind Maps Law of Evidence in PDF only on Docsity!

Page 1 of 2

CS 3341 HW # 1 SOLUTION

  1. Sec 1.3, # 1 (a)Outcome = 3-tuple representing the type of the selected (chip 1, chip 2, chip 3).

Total # outcomes in S = (2) (2) (2) = 8.

S = { (RAM,RAM,RAM), (RAM,RAM,ROM), (RAM,ROM,RAM),

(ROM,RAM,RAM), (RAM,ROM,ROM), (ROM,RAM,ROM), (ROM,ROM,RAM),

(ROM,ROM,ROM) }

(b)Outcome = 3-tuple representing the type of the selected (chip 1, chip 2, chip 3), while keeping in mind that there is only one defective (D) and nine good (G) chips. S = { (G, G, G), (D, G, G), (G, D, G), (G, G, D) }

  1. Sec 1.5, # 1 Keep in mind that there are 4 components. (a) B ∪ C = {exactly 2 G’s or at most 3 D’s} (b) B ∩ C ={exactly 2 G’s and at most 3 D’s} ={exactly 2 G’s and exactly 2 D’s} (c) A ∪ C = {all 4 D’s or at most 3 D’s} = {at most 4 D’s} (d) A ∩ C ={} = empty or null event (event not possible)
  2. Sec 1.8, # 1 We want two-digit even numbers. Case 1: Assume repetitions allowed.

    of choices for the left-most digit = 5. # of choices for the right-most digit = 2So, total # of choices = 5 (2) = 10

Case 2: Assume repetitions not allowed. 44 and 66 are not possible now. So, total # of choices = 10 – 2 = 8.

  1. Sec 1.8, # 4 Outcome = # defective chips in three selected three chips. Note that the order of selection is not important here since we are only interested in counting the # of defectives.

Page 2 of 2

Total # of outcomes in S = # of ways to draw 3 chips from 15 chips = “15 choose 3” = 455. Total # of favorable outcomes = # of ways to draw 3 chips from 5 D chips = “5 choose 3” = 10 So, P(All three D’s) = 10/455 = 0.

  1. Sec 1.8, # 5 Using the formula derived in the class, P(No match) = 0. P(At least one match) = 1 – 0.973 = 0.027.
  2. When a computer goes down, there is a 75% chance that it is due to an overload and a 15% chance that it is due to a software problem. There is an 85% chance that it is due to an overload or a softwareproblem. What is the probability that both of these problems are at fault? What is the probability that there is a software problem but no overload? Let O = down due to overload and S = down due to software problem. Given that, P(O) = 0.75, P(S) = 0.15 and P(O ∪ S) = 0.85. We want P(O ∩ S) and P(OC^ ∩ S). Recall, P(O ∪ S) = P(O) + P(S) – P(O ∩ S). So, P(O ∩ S) = P(O) + P(S) – P(O ∪ S) = 0.75 + 0.15 – 0.85 = 0. P(OC^ ∩= 0.15 – 0.05 = 0.10 S) = P(S) – P(OC) [Hint: draw a Venn diagram]
