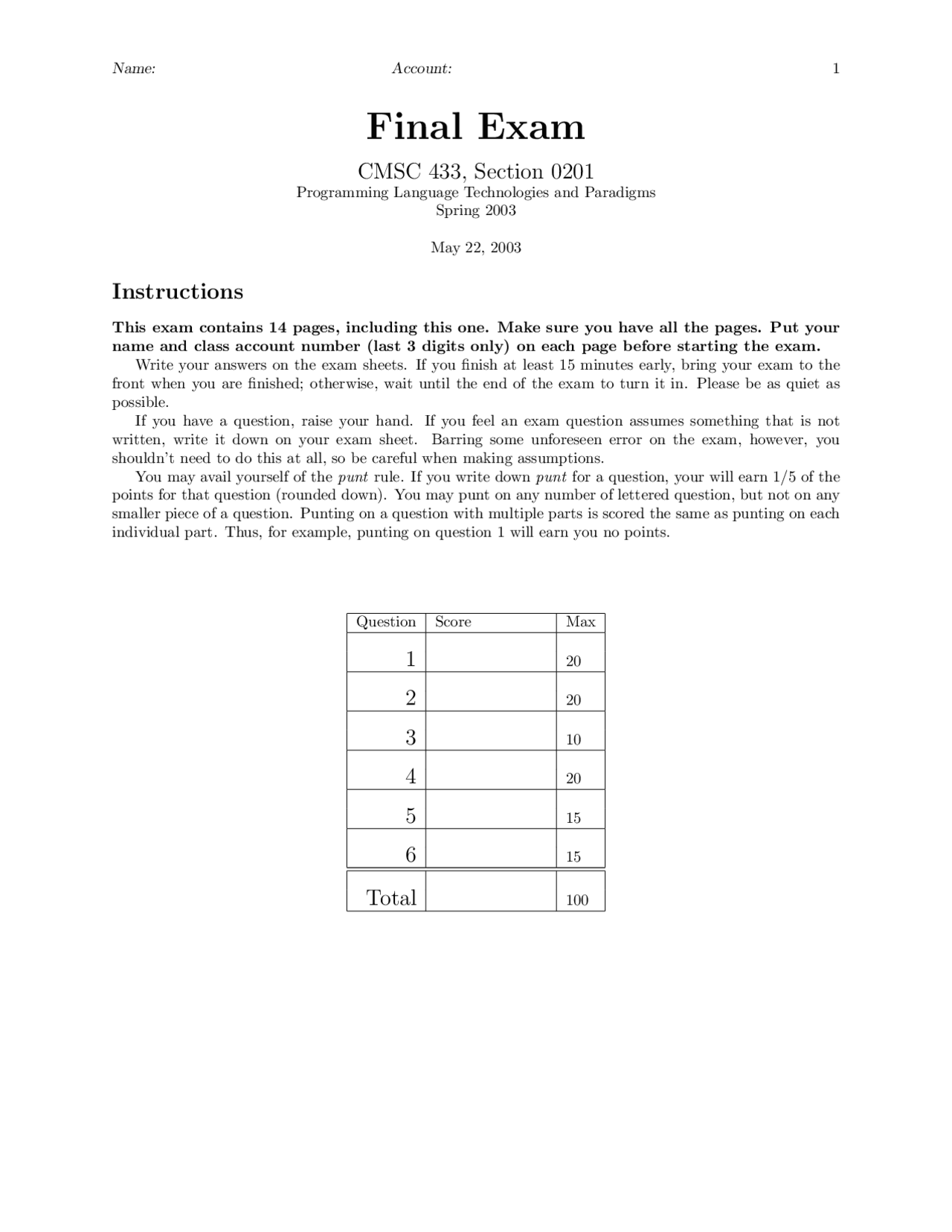

Final Exam
CMSC 433, Section 0201
Programming Language Technologies and Paradigms Spring 2003
May 22, 2003
Instructions
This exam contains 14 pages, including this one. Make sure you have all the pages. Put your name and class account number (last 3 digits only) on each page before starting the exam. Write your answers on the exam sheets. If you finish at least 15 minutes early, bring your exam to the front when you are finished; otherwise, wait until the end of the exam to turn it in. Please be as quiet as possible. If you have a question, raise your hand. If you feel an exam question assumes something that is not written, write it down on your exam sheet. Barring some unforeseen error on the exam, however, you shouldn’t need to do this at all, so be careful when making assumptions. You may avail yourself of the punt rule. If you write down punt for a question, your will earn 1/5 of the points for that question (rounded down). You may punt on any number of lettered question, but not on any smaller piece of a question. Punting on a question with multiple parts is scored the same as punting on each individual part. Thus, for example, punting on question 1 will earn you no points.
Question Score Max
Total 100
Question 1. Short Answer on old-ish stuff (20 points). a. (4 points) The use of stubs in RMI is an example of what design pattern we talked about in class? Explain.
Answer: RMI code stubs are an example of the Proxy design pattern: They implement the same interface as the remote object, and they delegate calls to the stub to calls to the remote object. Any Proxy-like design pattern (e.g., Bridge) is an acceptable answer, as long as you justify it, and other reasonable patterns got partial credit.
b. (4 points) Does a method need to declare all exceptions it may throw? Explain.
Answer: No, methods only need to declare exceptions that are not subclasses of RuntimeEx- ception or Error. (The justification that you can just say a method throws Exception instead of writing down individual exceptions was worth partial credit only, since saying a method throws Exception is equivalent to declaring that may throw all exceptions.)
c. (4 points) What is the difference between black box and white/glass box testing?
Answer: Black box testing does not examine the source code. White box testing tries to take the source code into account and typically tries to meet certain coverage requirements (e.g., statement, branch, condition).
Question 2. Futures (20 points). In this question, you will implement the future design pattern for using separate threads to run tasks that return a result. The tasks to be carried out are objects that implement the Callable interface:
interface Callable { Object call(Object arg) throws Exception; }
You must fill in the code for the class Future, shown on the next page. The constructor takes a Callable c and its argument arg. The constructor starts a new thread T, and thread T invokes c.call(arg)—thus the computation of c.call(arg), which may take a while, is running in its own thread. When the user is ready for the result of c.call(arg), the user invokes the get() method of the Future. The get() method waits for thread T to finish computing c.call(arg) and then returns the result. If c.call(arg) raised an exception, then get() also raises the same exception. Hint: If t is a thread, you can invoke t.join() to wait for t to finish.
class Future {
/** Starts a new thread to compute c.call(arg) */ Future(Callable c, Object arg) {
/** Returns result from thread that computed c.call(arg), or throws an exception if c.call(arg) did. This method blocks until the result is ready (or until an exception is thrown) */ public Object get() throws Exception {
b. Back and Forth (5 points). In this example, assume that produce() and consume() may be run by many different threads.
class ProdCons { Object buffer = null;
void produce(Object o) { try { synchronized (buffer) { while (buffer != null) buffer.wait(); buffer = o; buffer.notifyAll(); } } catch (Exception e) { } }
Object consume() { try { synchronized(buffer) { while (buffer == null) buffer.wait(); Object o = buffer; buffer = null; buffer.notifyAll(); return o; } } catch (Exception e) { return null; } } }
Answer: This code is seriously broken. The problem is that we’re trying to synchronize on the object stored in buffer—but we keep changing that with our own code. And we keep trying to synchronize on null, which raises an exception. But we’ve wrapped all the code in a big try-catch block, so we won’t even see the NullPointerExceptions, and produce() will just mysteriously die and consume() will always return null. (The try-catch placement is also bad because if produce sets buffer to o and then an exception is raised before notification happens, then buffer will be non-null but notifyAll won’t be called, which means things would just freeze.) Needless to say, this is really bad code.
Question 4. Big Messages (20 points). In projects 5 and 6, you sent subclasses of Message over the peer-to-peer network. But what if want to use the network to distribute something like large files? Then we’d like to be able to split such an object up into many different pieces and distribute the pieces over the network in order to distribute the burden on the network. In this question you will add a method to Portal and implement two new Message classes: FindMessage, which will be broadcast over the network to find the components of a big object (similar to the outgoing message in project 6), and ComponentMessage, which will use forwardBackToSource to return the pieces of a large object back to the requester.
- You need to add a findMessage(String objectName) method to Portal to start the process of finding the components of a big object.
- You can assume that findMessage(String objectName) will only be invoked if at least one of the components of objectName is not available on the LocalPortal.
- You can assume that whoever wants to distribute a big object will make all of its Components (see below) available on various LocalPortals. So you don’t need to worry about the initial distribution of big objects.
- When all of the components of a big object have reached a LocalPortal, then one of the Components’ processAll() method (see below) must be invoked. You may assume that the processAll() methods of all components of the same big object are the same.
- processAll() must be invoked only once per initial FindMessage request for a big object.
- As ComponentMessages forward themselves back to the requesting portal, they store their components on the intermediate LocalPortals (so that future requests for this object may be faster).
- In order to reduce network demands, a ComponentMessage containing Component c must only call forwardBackToSource until it reaches a portal that already had c stored locally. It’s safe to stop in this case because we know that the FindMessage that went out followed this path, and thus the component c must have already gone back to the source.
We will not address the issue of splitting objects into components. We will assume each piece of a big object implements the Component interface:
public interface Component extends Serializable { /** Returns the index of the current component */ public int componentId();
/** This component is part of a big object with component ids 0..numComponents()-1 */ public int numComponents();
/** Invoked when all the components of a big object have arrived at a portal. components contains all the components of the message in componentId() order, starting at 0, i.e., for all i, components[i].componentId() == i. */ public void processAll(LocalPortal portal, Component[] components); }
You may or may not need to use the componentId() and numComponents() fields.
class Portal ... { public void findMessage(String objectName) {
class FindMessage extends Message {
/** The name of the big object whose components we’re trying to find */ final String objectName;
public FindMessage(String from, String objectName) { super(from); this.objectName = objectName; }
public void process(LocalPortal portal) {
class ComponentMessage extends Message {
Long origId; Component c; String requester; String objectName;
public ComponentMessage(String from, String requester, String objectName, Long origId, Component c) { super(from); this.origId = origId; this.c = c; this.requester = requester; this.objectName = objectName; }
public void process(LocalPortal portal) {
- A remote method invocation may raise RemoteException to signal that there was some network prob- lem that prevented the call from being completed.
TRUE FALSE
Answer: True.
- In order for an object to be used remotely, it must be registered in an RMI registry.
TRUE FALSE
Answer: False. The RMI registry is used to “bootstrap” RMI by providing a way to get an remote object by name. After that, remote objects can be passed as parameters and returned as results.
c. (5 points) Java RMI is only one way to communicate with remote machines. In project 1, for example, you used the http protocol to communicate with a remote web browser. Describe some of the tradeoffs between using RMI for remote communication and using lower-level sockets directly.
Answer: First, to clear up one confusion several people had: RMI is implemented using sockets. RMI takes care of a lot of the details for you, e.g., establishing a connection, marshalling and unmarshalling. On the other hand, you can only use Java RMI to communicate with other JVMs; if you want to communicate with a program written in another language, you’re pretty much out of luck. But lots of languages support sockets directly. Socket communication may also be more efficient, because you have greater control over exactly what is sent over the network. Security is an issue for both straight sockets and RMI, but perhaps more so for RMI since it often involves downloading code.
Question 6. Special Topics (15 points).
a. Reflection (5 points) Discuss the disadvantages of calling a method via Method.invoke(Object, Object[]) instead of in the usual way.
Answer: The compiler will (most likely) not be able to check that you are calling the method with the correct number of types of arguments; as a result, you may get run-time exceptions where before you would have gotten compile-time errors. Another disadvantage is that calling a method via reflection is much more verbose (and harder to read) than normal method invocation.
b. Garbage collection (5 points) Is it ever the case that, when a garbage collector runs, it may fail to deallocate an object o even though o will no longer be used? Explain.
Answer: Yes. Garbage collectors (typically) will not deallocate o if it is reachable from the stack. But just because an object is reachable doesn’t mean the program will ever use it again. For an example, see the lecture on garbage collection. (Because of the way this question was worded, a valid answer would also be that reference counting gc can’t collect cycles.)
c. XML (5 points) Explain what Document Type Definitions and XML Schemas are used for.
Answer: Both DTDs and XML Schemata are used in validating XML documents. The val- idation process checks than an XML document, aside from being well-formed, has the correct structure. (Note that although DTDs and XML Schemas let you declare XML tags, that’s not their primary function—in XML you can just make up tags and use them without having a DTD/Schema.)
