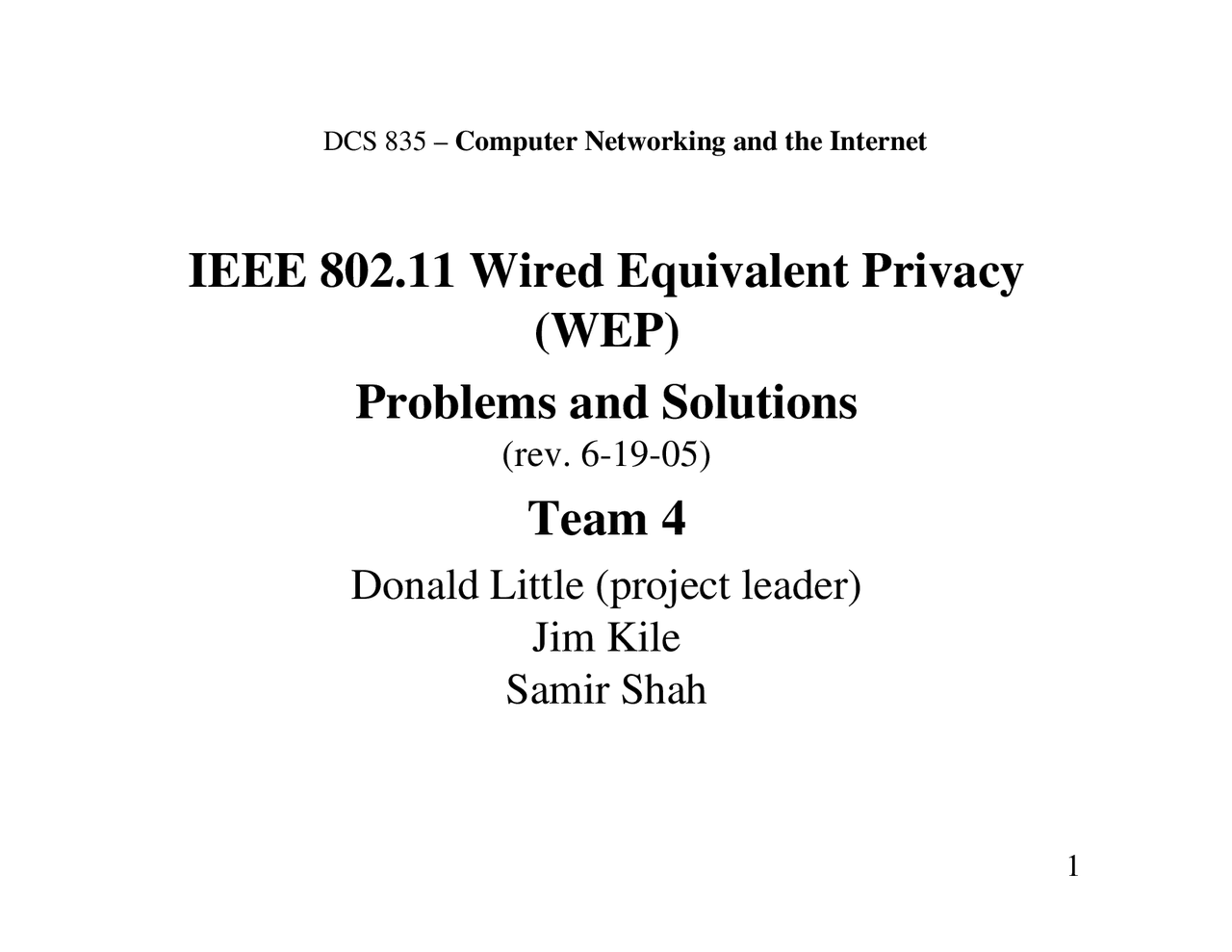

DCS 835 –
Computer Networking and the Internet
IEEE 802.11 Wired Equivalent Privacy
(WEP)
Problems and Solutions
(rev. 6-19-05)
Team 4
Donald Little (project leader)
Jim Kile Samir Shah
Topics
Background^ o
What is WEP? o
Why do we need WEP?
¾
Technical DescriptionHow does WEP work? ¾
EvaluationWhat are WEP’s weaknesses?What are the solutions to WEP’s weaknesses?
Why do we need WEP?
- Hackers can capture company’s digital assets• Hackers can use company’s wireless for attacks• Wireless signals can be picked up a mile or
more away with directional antenna
- Hackers sit in company parking lot (war
driving) and capture data
- Hackers have maps of known wireless site
s
Technical Description of WEP
• Optional security protocol for 802.11• Based on stream cipher algorithm RC4• Uses 64 or 128 bit encryption
24 bit Initialization Vector40 or 104 bit unique key
• Encryption relies on shared secret key, K
AB
Checksumming
- CRC-32 Integrity Checksum
c(M)
on message
M
- Concatenate the two to obtain plaintext
P=(M, c(M))
- c(M)
does not depend on
K
AB
P
does not depend on
K
AB
Initialization Vector, IV
- IV is 24 bit random number used to generate
the beginning of keystream
- “the IV may be changed as frequently as every
MPDU”
- Incremented with every new message
Encryption
- Exclusive-or (XOR) the plaintext with the
keystream to obtain the ciphertext
C = P
RC4 (IV, K
AB
XOR Encrypt
- PlainText
- Key
- Ciphertext
Encryption
Fig. 2 Encryption [10]
Symbolically
A
Æ
B: IV, ((M, c(M)
RC4(IV, K
AB
XOR Decrypt
- Ciphertext
- Key
- Plaintext
Decryption
Fig. 3 Decryption [10]
Brute Force Attack
- 40 bit possible for most hackers• 104 bit probably not possible with current
technology
Replay Attack
- Access Point and stations do not keep past
state
- Attackers can resend packets that they had
previously captured
