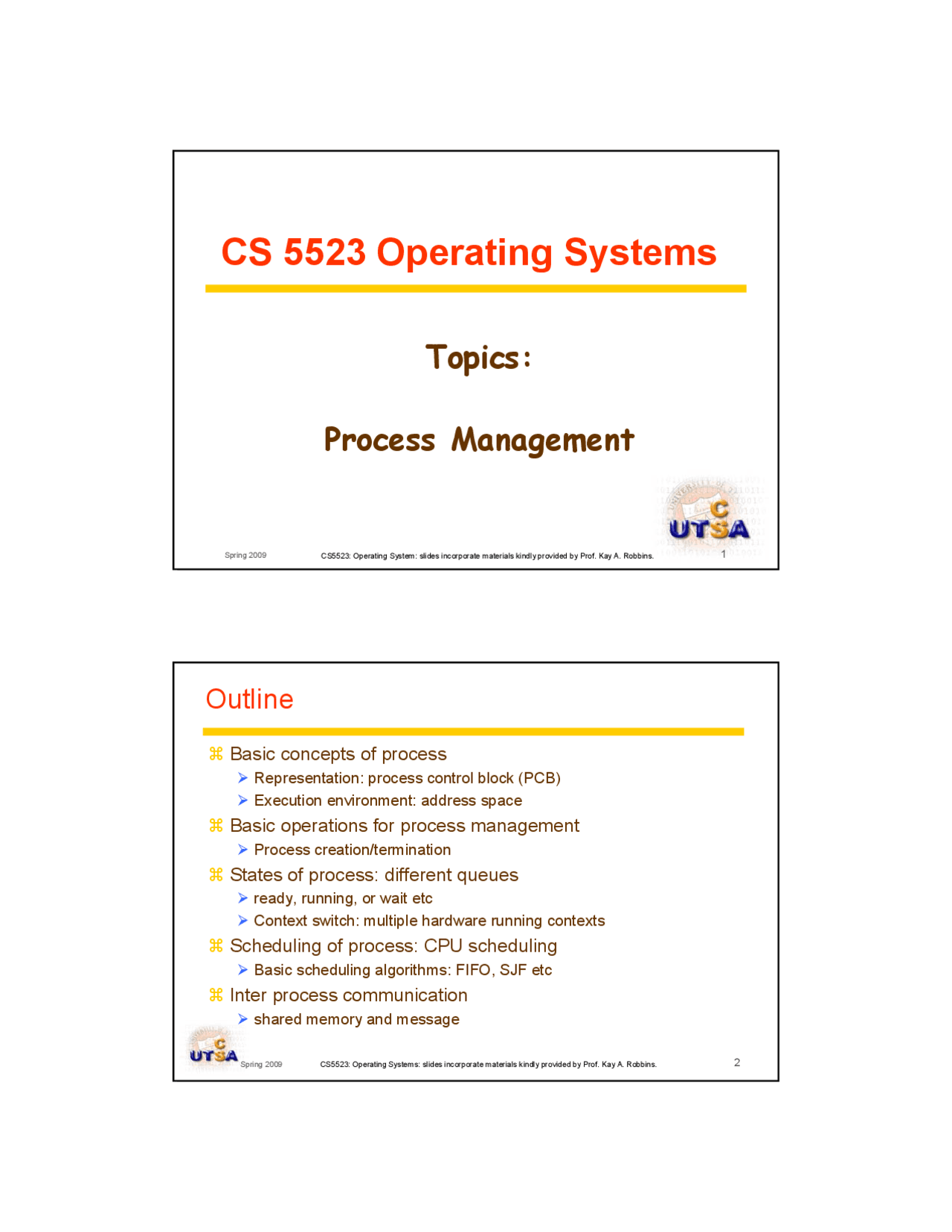

Spring 2009 CS5523: Operating System: slides incorporate materials kindly provided by Prof. Kay A. Robbins. 1
CS 5523 Operating Systems
Topics:
Process Management
Outline
a Basic concepts of process ¾ Representation: process control block (PCB) ¾ Execution environment: address space a Basic operations for process management ¾ Process creation/termination a States of process: different queues ¾ ready, running, or wait etc ¾ Context switch: multiple hardware running contexts a Scheduling of process: CPU scheduling ¾ Basic scheduling algorithms: FIFO, SJF etc a Inter process communication ¾ shared memory and message
Spring 2009 CS5523: Operating Systems: slides incorporate materials kindly provided by Prof. Kay A. Robbins. 3
Process vs. Program
a Program : one (or a set of) functions
¾ stored in files ¾ a passive entity
aProcess: a program in execution
¾ Running of a program ¾ A program counter: what the next instruction is ¾ A set of associated resources (memory, open file handles) ¾ Dynamic concept
How/when do we start a process?
Process Control Block (PCB)
aOS creates a PCB for each process
aOS manages the process table Æ a link of PCB
Spring 2009 CS5523: Operating Systems: slides incorporate materials kindly provided by Prof. Kay A. Robbins. 7
Address Space
aRange of memory locations
¾ code section (text segment), ¾ data section (global variables), ¾ stack (temporary data Æ local variables and return address etc) ¾ Auxiliary : environment variables and command line arguments ¾ Heap: memory for dynamically allocated data items
Stack
Text
Heap
Auxiliary regions
0
2 N
How big is the address space?
Base and Limit Registers
a Special CPU registers ¾ Base register: start of the process’s memory partition ¾ Limit register: length of the process’s memory partition ¾ Access limited to system mode a Address generation ¾ Logical address: location from the process’s point of view ¾ Physical address: location in actual memory ¾ Physical = base + logical address ¾ Logical address larger than limit Æ error
P
OS 0
0xFFFF
Limit
Base
0x
0x
Logical address: 0x Physical address: 0x1204+0x9000 = 0xa
Spring 2009 CS5523: Operating Systems: slides incorporate materials kindly provided by Prof. Kay A. Robbins. 9
Multiprogramming: More Processes
a Each process has its own base and limit registers
a Memory allocation: no overlap for protection
P
OS 0
0xFFFF
Limit
Base
0x
0x
P
Limit
Base
0x
0xC
How to keep track free memory?
How to allocate memory?
Virtual Æ physical address translation?
Process Creation and Problems
aPrincipal events that cause process creation
¾ System initialization ¾ User request to create a new process (run a program) ¾ A running process use system call for process creation
aParent process creates child processes
¾ Hierarchy of processes
aProblems and Issues
¾ Will the parent and child execute ”concurrently”? ¾ How their address spaces are related? ¾ Will/should the parent and child share some resources?
Spring 2009 CS5523: Operating Systems: slides incorporate materials kindly provided by Prof. Kay A. Robbins. 13
Unix fork( )
pid = 26
UNIX kernel
Text
Process Status
Stack
Data
FileFile
Stack
ResourcesResources Data
<…> int cpid = fork( ); if (cpid = = 0) { exit(0); } wait(cpid);
Text
<…> int cpid = fork( ); if (cpid = = 0) { exit(0); } wait(cpid);
Process Status
pid = 25
cpid = 26 (^) cpid = 0
Load A Different Program after fork
void main (){ int pid; pid = fork(); if (pid < 0) {error_msg} else if (pid == 0) {/ child process / execlp(“/bin/ls”, “ls”, NULL); }else { / parent process / / parent will wait for the child to complete / wait(NULL); exit(0); } }
a Child process uses execlp to load different program
Spring 2009 CS5523: Operating Systems: slides incorporate materials kindly provided by Prof. Kay A. Robbins. 15
Activities in Processes
a Bursts of CPU usage alternate with periods of I/O wait a Some processes are CPU-bound : they don’t make many I/O requests a Other processes are I/O-bound and make many kernel requests
CPU bound
I/O bound
CPU bursts I/O waits
Total I/O usage
Total CPU usage
Time
Process States and Transition
Ready (^) Running
Waiting
New Terminated
Event wait
Event occurs
Scheduler Exit Dispatch
Timeout
Admit
Spring 2009 CS5523: Operating Systems: slides incorporate materials kindly provided by Prof. Kay A. Robbins. 19
Context Switch (cont.)
CPU Scheduling
aOne CPU Æ execute only one process at a time
aMore processes Æ wait for CPU accordingly
aOS is responsible for the scheduling activities
aScheduling queues
¾ Ready queue – processes in main memory, ready and waiting to execute ¾ Wait queue – processes waiting for signals/interrupts ¾ Device queues – processes waiting for I/O operations
aProcesses move between the various queues
Spring 2009 CS5523: Operating Systems: slides incorporate materials kindly provided by Prof. Kay A. Robbins. 21
Scheduling Queues
When are processes scheduled?
aAt the time they enter the system
¾ Common in batch systems ¾ Two types of batch scheduling 9 Submission of a new job causes the scheduler to run 9 Scheduling only done when a job voluntarily gives up the CPU ( i.e. , while waiting for an I/O request)
aAt relatively fixed intervals (clock interrupts)
¾ Necessary for interactive systems ¾ May also be used for batch systems ¾ Scheduling algorithms at each interrupt, and picks the next process from the pool of “ready” processes
Spring 2009 CS5523: Operating Systems: slides incorporate materials kindly provided by Prof. Kay A. Robbins. 25
Scheduling Algorithms
aFIFO: non-preemptive, based on arrival time
¾ Long computation process proceeds SSH console?
aSJF(shortest job first): preemptive & non-preemptive
¾ Optimal in term of waiting time
aRR (Round-robin): preemptive
¾ Processes take turns, e.g., 10ms
aPriority-based scheduling
¾ Real-time systems: earliest deadline first (EDF)
aMulti-level queue (priority classes)
¾ System processes >faculty processes >student processes
aMulti-level feedback queues: short Æ long quantum
First Come, First Served (FCFS)
a Goal: do jobs in the order they arrive ¾ Fair in the same way a bank teller line is fair a Simple algorithm! a Problem: long jobs delay every job after them ¾ Many processes may wait for a single long job
A B C D
4 3 6 3
Current job queue
Execution order
FCFS scheduler
A B C D
4 3 6 3
Spring 2009 CS5523: Operating Systems: slides incorporate materials kindly provided by Prof. Kay A. Robbins. 27
Shortest Job First (SJF)
a Goal: do the shortest job first ¾ Short jobs complete first ¾ Long jobs delay every job after them a Jobs sorted in increasing order of execution time ¾ Ordering of ties doesn’t matter a Shortest Remaining Time First (SRTF): preemptive form of SJF a Problem: how does the scheduler know how long a job will take?
A B C D
4 3 6 3
B D A C
3 3 4 6
Current job queue
Execution order
SJF scheduler
Round Robin (RR) scheduling
a Round Robin scheduling ¾ Give each process a fixed time slot ( quantum ) ¾ Rotate through “ready” processes ¾ Each process makes some progress a What’s a good quantum? ¾ Too short: many process switches hurt efficiency ¾ Too long: poor response to interactive requests ¾ Typical length: 10–50 ms
A B C D E
Time
A
B
C
D
E
Spring 2009 CS5523: Operating Systems: slides incorporate materials kindly provided by Prof. Kay A. Robbins. 31
Three-level scheduling
CPU
Main memory
CPU scheduler
Memory scheduler
Job scheduler Input queue
Arriving jobs
a Jobs held in input queue until moved into memory ¾ Pick “complementary jobs”: small & large, CPU- & I/O-intensive ¾ Jobs move into memory when admitted a CPU scheduler picks next job to run a Memory scheduler picks some jobs from main memory and moves them to disk if insufficient memory space
Scheduling Policy Vs. Mechanism
aSeparate what may be done from how it is done
¾ Mechanism allows 9 Priorities to be assigned to processes 9 CPU to select processes with high priorities ¾ Policy set by what priorities are assigned to processes
aScheduling algorithm parameterized
¾ Mechanism in the kernel ¾ Priorities assigned in the kernel or by users
aParameters may be set by user processes
¾ Don’t allow a user process to take over the system! ¾ Allow a user process to voluntarily lower its own priority ¾ Allow a user process to assign priority to its threads
Spring 2009 CS5523: Operating Systems: slides incorporate materials kindly provided by Prof. Kay A. Robbins. 33
CPU Scheduling for Multiprocessors
aSymmetric: all CPUs run OS with self scheduling
aAsymmetric: one CPU run scheduler (master)
¾ Slave CPUs: execute assigned processes
aProcess affinity: migration or not
aLoad balancing: push/pull process from other CPUs
aGlobal queue vs. separate queues
aNew architectures
¾ Simultaneously multithreading (SMT): multiple function units and running context (registers), more inst./cycle ¾ Chip-Multiprocessors (CMP): multiple simple CPUs (cores) on single chip
Inter-Process Communication (IPC)
Message Passing (^) Shared Memory
Spring 2009 CS5523: Operating Systems: slides incorporate materials kindly provided by Prof. Kay A. Robbins. 37
Access Shared Memory in two Processes
*int main(int argc, char argv[]) { int shmid; char * data; … … / setup the shared segment: / if ( (cpid = fork())==0 ){//child process sprintf(data, “Child: using SM!”); sleep(1); //give parent a chance printf(“%s\n”, data); exit(0); }else if (cpid >0){ //parent process sleep(1); //let child first sprintf(data, “Parent: chaning SM”); wait(cpid); //wait child to finish } shmdt(data); shmctl(shmid, IPC_RMID, NULL); return 0; }
Message Passing (a general mechanism)
a Message system – processes communicate with each other without resorting to shared variables.
a A message-passing facility provides at least two operations: ¾ send ( message ) ¾ receive ( message ) ¾ These operations can be either blocking (synchronous) or non- blocking (asynchronous).
a What should we do for processes running on different computers (e.g., in distributed system)?
Shared memory vs. message passing?
Spring 2009 CS5523: Operating Systems: slides incorporate materials kindly provided by Prof. Kay A. Robbins. 39
IPC with Message Passing (socket)
a C/C++ (sys/socket.h, netinet/in.h)
¾ Server 9 Create a socket with the socket() 9 Bind the socket to an address using the bind() 9 Listen for connections with the listen() 9 Accept a connection with the accept() system call. ¾ Client 9 Create a socket with the socket() system call 9 Connect to server using the connect() system call 9 read() and write()
a Java
¾ Server: ServerSocket ¾ Client: Socket
Summary
aBasic concepts of process
¾ Representation: process control block (PCB) ¾ Execution environment: address space
aBasic operations for process management
¾ Process creation/termination
aStates of process: different queues
¾ ready, running, or wait etc ¾ Context switch: multiple hardware running contexts
aScheduling of process: CPU scheduling
¾ Basic scheduling algorithms: FIFO, SJF etc
aInter process communication
