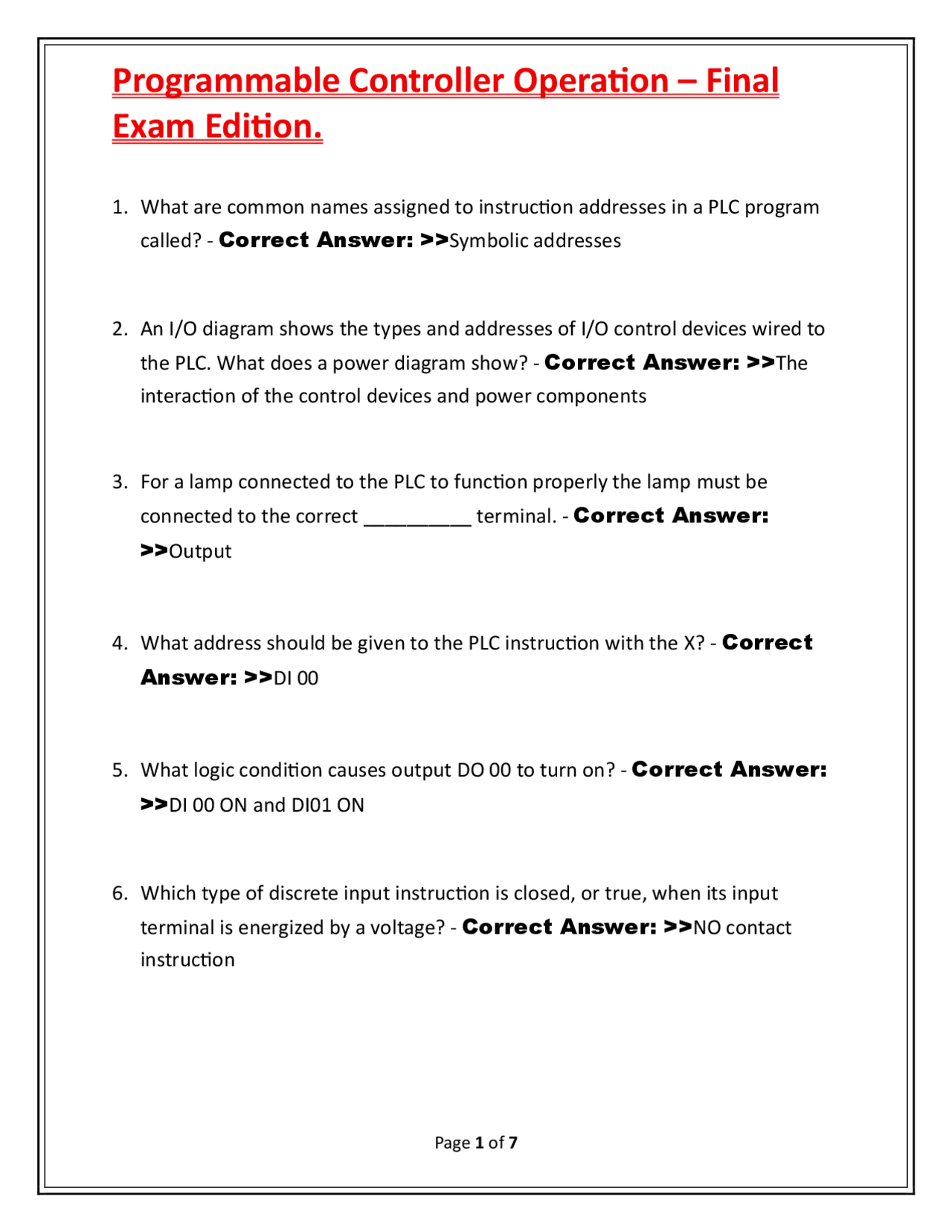

Programmable Controller Operation – Final
Exam Edition.
Page 1 of 7
1. What are common names assigned to instruction addresses in a PLC program
called? - Correct Answer: >>Symbolic addresses
2. An I/O diagram shows the types and addresses of I/O control devices wired to
the PLC. What does a power diagram show? - Correct Answer: >>The
interaction of the control devices and power components
3. For a lamp connected to the PLC to function properly the lamp must be
connected to the correct __________ terminal. - Correct Answer:
>>Output
4. What address should be given to the PLC instruction with the X? - Correct
Answer: >>DI 00
5. What logic condition causes output DO 00 to turn on? - Correct Answer:
>>DI 00 ON and DI01 ON
6. Which type of discrete input instruction is closed, or true, when its input
terminal is energized by a voltage? - Correct Answer: >>NO contact
instruction
