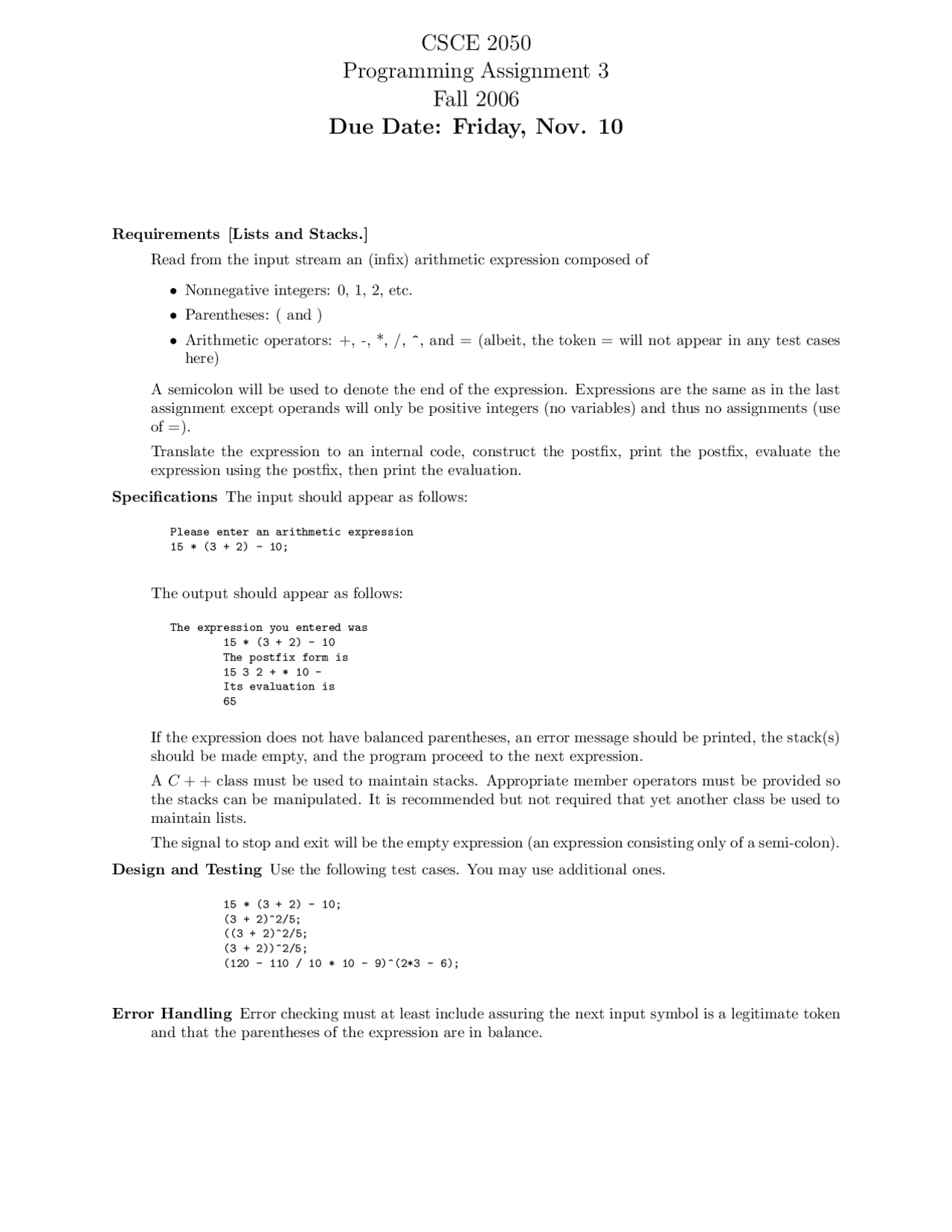

CSCE 2050
Programming Assignment 3
Fall 2006
Due Date: Friday, Nov. 10
Requirements [Lists and Stacks.]
Read from the input stream an (infix) arithmetic expression composed of
•Nonnegative integers: 0, 1, 2, etc.
•Parentheses: ( and )
•Arithmetic operators: +, -, *, /, ^, and = (albeit, the token = will not appear in any test cases
here)
A semicolon will be used to denote the end of the expression. Expressions are the same as in the last
assignment except operands will only be positive integers (no variables) and thus no assignments (use
of =).
Translate the expression to an internal code, construct the postfix, print the postfix, evaluate the
expression using the postfix, then print the evaluation.
Specifications The input should appear as follows:
Please enter an arithmetic expression
15*(3+2)-10;
The output should appear as follows:
The expression you entered was
15*(3+2)-10
The postfix form is
1532+*10-
Its evaluation is
65
If the expression does not have balanced parentheses, an error message should be printed, the stack(s)
should be made empty, and the program proceed to the next expression.
AC+ + class must be used to maintain stacks. Appropriate member operators must be provided so
the stacks can be manipulated. It is recommended but not required that yet another class be used to
maintain lists.
The signal to stop and exit will be the empty expression (an expression consisting only of a semi-colon).
Design and Testing Use the following test cases. You may use additional ones.
15 * (3 + 2) - 10;
(3 + 2)^2/5;
((3 + 2)^2/5;
(3 + 2))^2/5;
(120 - 110 / 10 * 10 - 9)^(2*3 - 6);
Error Handling Error checking must at least include assuring the next input symbol is a legitimate token
and that the parentheses of the expression are in balance.
