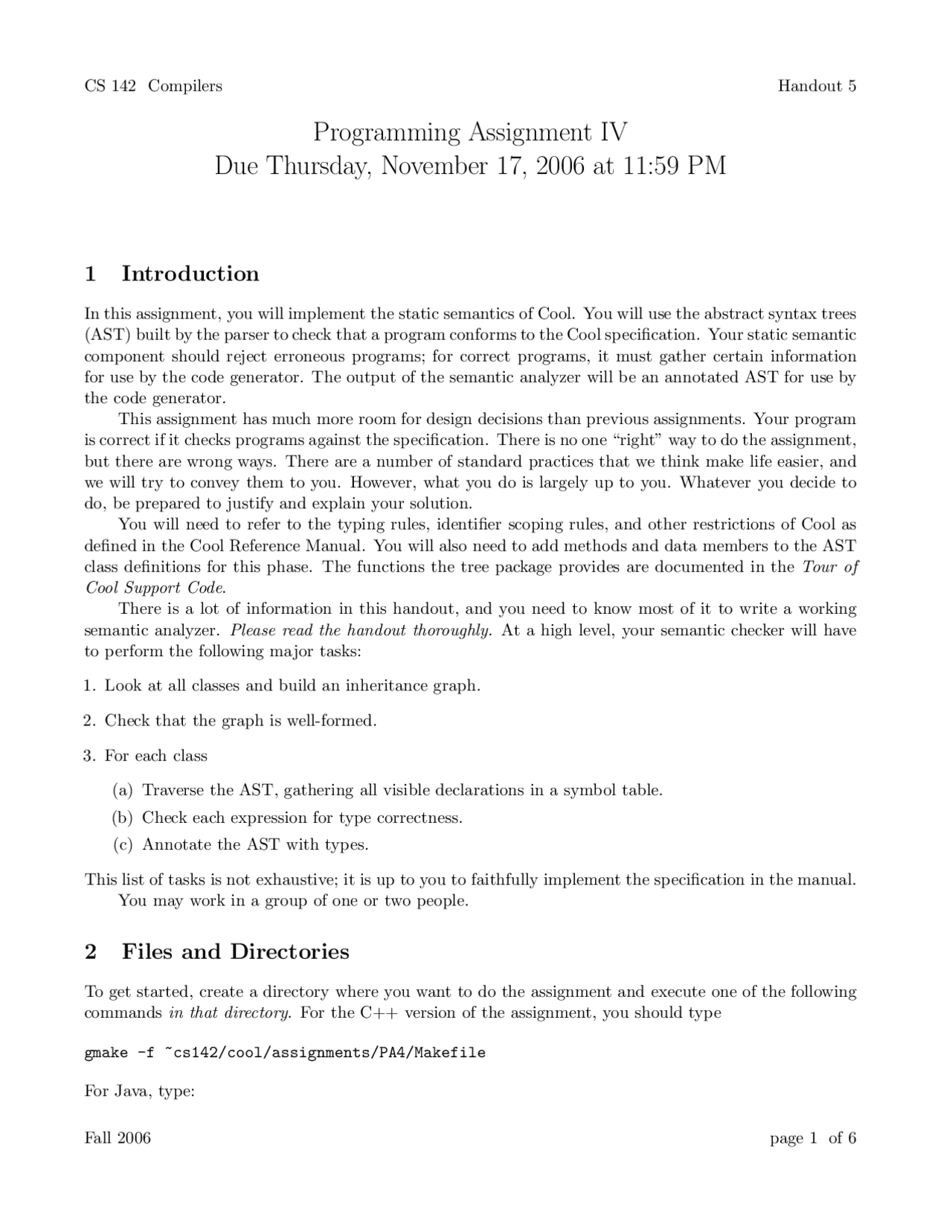

Programming Assignment IV
Due Thursday, November 17, 2006 at 11:59 PM
1 Introduction
In this assignment, you will implement the static semantics of Cool. You will use the abstract syntax trees (AST) built by the parser to check that a program conforms to the Cool specification. Your static semantic component should reject erroneous programs; for correct programs, it must gather certain information for use by the code generator. The output of the semantic analyzer will be an annotated AST for use by the code generator. This assignment has much more room for design decisions than previous assignments. Your program is correct if it checks programs against the specification. There is no one “right” way to do the assignment, but there are wrong ways. There are a number of standard practices that we think make life easier, and we will try to convey them to you. However, what you do is largely up to you. Whatever you decide to do, be prepared to justify and explain your solution. You will need to refer to the typing rules, identifier scoping rules, and other restrictions of Cool as defined in the Cool Reference Manual. You will also need to add methods and data members to the AST class definitions for this phase. The functions the tree package provides are documented in the Tour of Cool Support Code. There is a lot of information in this handout, and you need to know most of it to write a working semantic analyzer. Please read the handout thoroughly. At a high level, your semantic checker will have to perform the following major tasks:
- Look at all classes and build an inheritance graph.
- Check that the graph is well-formed.
- For each class
(a) Traverse the AST, gathering all visible declarations in a symbol table. (b) Check each expression for type correctness. (c) Annotate the AST with types.
This list of tasks is not exhaustive; it is up to you to faithfully implement the specification in the manual. You may work in a group of one or two people.
2 Files and Directories
To get started, create a directory where you want to do the assignment and execute one of the following commands in that directory. For the C++ version of the assignment, you should type
gmake -f ~cs142/cool/assignments/PA4/Makefile
For Java, type:
gmake -f ~cs142/cool/cs143/assignments/PA4J/Makefile
(notice the “J” in the path name). As usual, there are several files used in the assignment that are symbolically linked to your directory or are included from /usr/class/cs143/include/PA4. Do not modify these files. Almost all of these files have have been described in previous assignments. See the instructions in the README file. We now describe the most important files for each version of the project.
2.1 C++ Version
This is a list of the files that you may want to modify.
- cool-tree.h This file is where user-defined extensions to the abstract syntax tree nodes are placed. You will likely need to add additional declarations, but do not modify the existing declarations.
- semant.cc This is the main file for your implementation of the semantic analysis phase. It contains some symbols predefined for your convenience and a start to a ClassTable implementation for representing the inheritance graph. You may choose to use or ignore these. The semantic analyzer is invoked by calling method semant() of class program class. The class declaration for program class is in cool-tree.h. Any method declarations you add to cool-tree.h should be implemented in this file.
- semant.h This file is the header file for semant.cc. You add any additional declarations you need (not in cool- tree.h) here.
- good.cl and bad.cl These files test a few semantic features. You should add tests to ensure that good.cl exercises as many legal semantic combinations as possible and that bad.cl exercises as many kinds of semantic errors as possible. It is not possible to exercise all possible combinations in one file; you are only responsible for achieving reasonable coverage. Explain your tests in these files and put any overall comments in the README file.
- README This file will contain the write-up for your assignment. For this assignment, it is critical that you explain design decisions, how your code is structured, and why you believe that the design is a good one (i.e., why it leads to a correct and robust program). It is part of the assignment to explain things in text, as well as to comment your code. Inadequate README files will be penalized more heavily in this assignment, as the README is the major guideline we have to understanding your code.
2.2 Java Version
This is a list of the files that you may want to modify.
- cool-tree.java This file contains the definitions for the AST nodes and is the main file for your implementation of the
The project skeleton includes appropriate definitions of all the basic classes. You will need to incorporate these classes into the inheritance hierarchy. We suggest that you divide your semantic analysis phase into two smaller components. First, check that the inheritance graph is well-defined, meaning that all the restrictions on inheritance are satisfied. If the inheritance graph is not well-defined, it is acceptable to abort compilation (after printing appropriate error messages, of course!). Second, check all the other semantic conditions. It is much easier to implement this second component if one knows the inheritance graph and that it is legal.
5 Naming and Scoping
A major portion of any semantic checker is the management of names. The specific problem is determining which declaration is in effect for each use of an identifier, especially when names can be reused. For example, if i is declared in two let expressions, one nested within the other, then wherever i is referenced the semantics of the language specify which declaration is in effect. It is the job of the semantic checker to keep track of which declaration a name refers to. As discussed in class, a symbol table is a convenient data structure for managing names and scoping. You may use our implementation of symbol tables for your project. Our implementation provides methods for entering, exiting, and augmenting scopes as needed. You are also free to implement your own symbol table, of course. Besides the identifier self, which is implicitly bound in every class, there are four ways that an object name can be introduced in Cool:
- attribute definitions;
- formal parameters of methods;
- let expressions;
- branches of case statements.
In addition to object names, there are also method names and class names. It is an error to use any name that has no matching declaration. In this case, however, the semantic analyzer should not abort compilation after discovering such an error. Remember that neither classes, methods, nor attributes need be declared before use. Think about how this affects your analysis.
6 Type Checking
Type checking is another major function of the semantic analyzer. The semantic analyzer must check that valid types are declared where required. For example, the return types of methods must be declared. Using this information, the semantic analyzer must also verify that every expression has a valid type according to the type rules. The type rules are discussed in detail in the Cool Reference Manual and the course lecture notes. One difficult issue is what to do if an expression doesn’t have a valid type according to the rules. First, an error message should be printed with the line number and a description of what went wrong. It is relatively easy to give informative error messages in the semantic analysis phase, because it is generally obvious what the error is. We expect you to give informative error messages. Second, the semantic analyzer should attempt to recover and continue. We do expect your semantic analyzer to recover, but
we do not expect it to avoid cascading errors. A simple recovery mechanism is to assign the type Object to any expression that cannot otherwise be given a type (we used this method in coolc).
7 Code Generator Interface
For the semantic analyzer to work correctly with the rest of the coolc compiler, some care must be taken to adhere to the interface with the code generator. We have deliberately adopted a very simple, na¨ıve interface to avoid cramping your creative impulses in semantic analysis. However, there is one thing you must do. For every expression node, its type field must be set to the Symbol naming the type inferred by your type checker. This Symbol must be the result of the add string (C++) or addString (Java) method of the idtable. The special expression no expr must be assigned the type No type which is a predefined symbol in the project skeleton.
8 Expected Output
For incorrect programs, the output of semantic analysis is error messages. You are expected to recover from all errors except for ill-formed class hierarchies. You are also expected to produce complete and informative errors. Assuming the inheritance hierarchy is well-formed, the semantic checker should catch and report all semantic errors in the program. Your error messages need not be identical to those of coolc. We have supplied you with simple error reporting methods ostream& ClassTable::semant error(Class ) (C++) and PrintStream ClassTable.semantError(class ) (Java). This routine takes a Class (C++) or class (Java) node and returns an output stream that you can use to write error messages. Since the parser ensures that Class /class nodes store the file in which the class was defined (recall that class definitions cannot be split across files), the line number of the error message can be obtained from the AST node where the error is detected and the filename from the enclosing class. For correct programs, the output is a type-annotated abstract syntax tree. You will be graded on whether your semantic phase correctly annotates ASTs with types and on whether your semantic phase works correctly with the coolc code generator.
9 Testing the Semantic Analyzer
You will need a working scanner and parser to test your semantic analyzer. You may use either your own scanner/parser or the coolc scanner/parser. By default, the coolc phases are used; to change that, replace the lexer and/or parser executable (which are symbolic links in your project directory) with your own scanner/parser. Even if you use your own scanner and/or parser, it is wise to test your semantic analyzer with the coolc scanner and parser at least once, because we will grade your semantic analyzer using coolc’s scanner and parser. You will run your semantic analyzer using mysemant, a shell script that “glues” together the analyzer with the parser and the scanner. Note that mysemant takes a -s flag for debugging the analyzer; using this flag merely causes semant debug (a global variable in the C++ version and a static field of class Flags in the Java version) to be set. Adding the actual code to produce useful debugging information is up to you. See the project README for details.
