Programming Homework 4: Distance Vector Routing Extension | CMSC 417, Assignments of Computer Systems Networking and Telecommunications

University of MarylandComputer Systems Networking and Telecommunications
Prof. Samrat Bhattacharjee

Material Type: Assignment; Professor: Bhattacharjee; Class: Computer Networks; Subject: Computer Science; University: University of Maryland; Term: Spring 2009;

Typology: Assignments

Pre 2010

Uploaded on 07/29/2009

koofers-user-twx
koofers-user-twx 🇺🇸

10 documents

1 / 1

Toggle sidebar

This page cannot be seen from the preview

Don't miss anything!

bg1

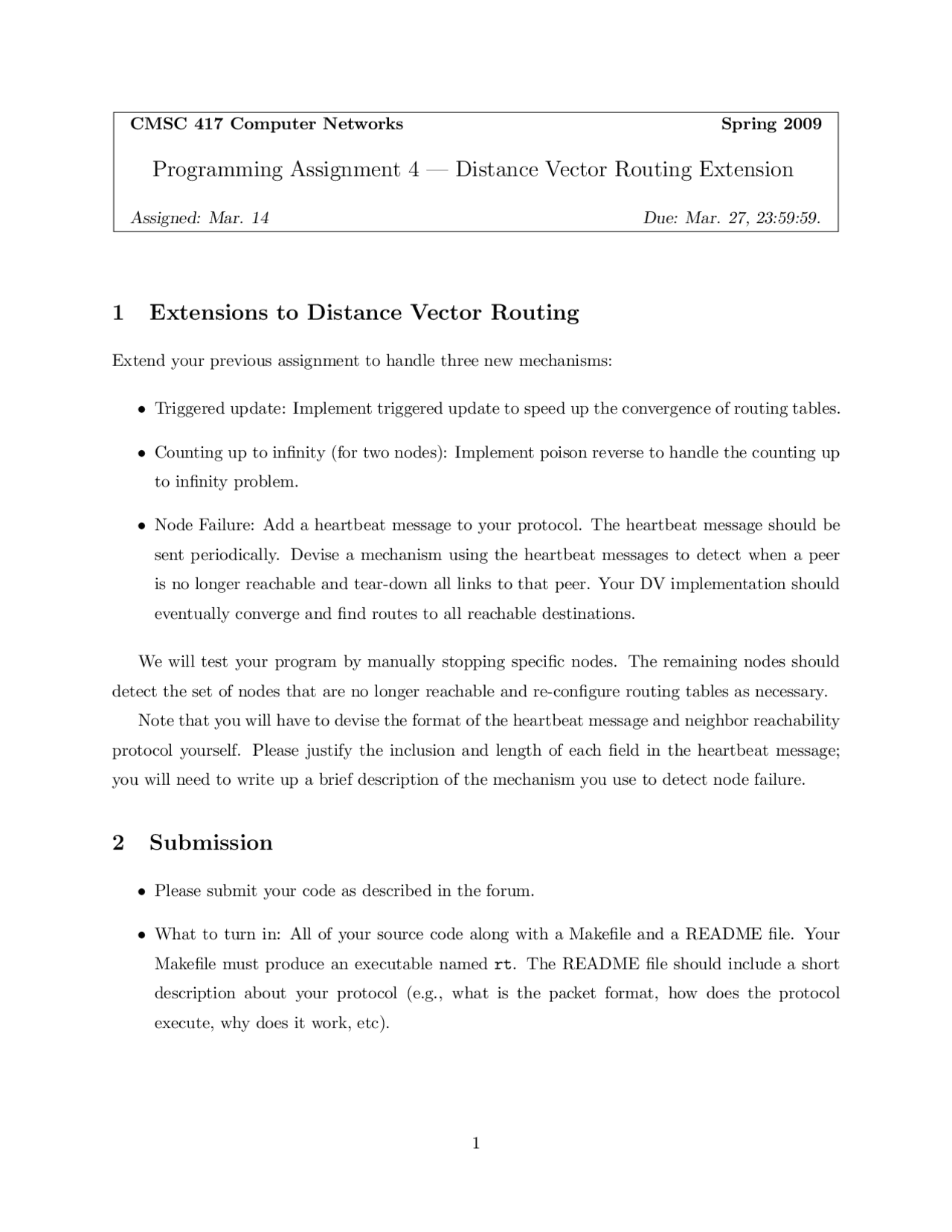

CMSC 417 Computer Networks Spring 2009
Programming Assignment 4 — Distance Vector Routing Extension
Assigned: Mar. 14 Due: Mar. 27, 23:59:59.
1 Extensions to Distance Vector Routing
Extend your previous assignment to handle three new mechanisms:
•Triggered update: Implement triggered update to speed up the convergence of routing tables.
•Countinguptoinfinity(fortwonodes):Implementpoisonreverse tohandle thecountingup
toinfinityproblem.
•NodeFailure: Addaheartbeatmessagetoyourprotocol. Theheartbeatmessageshould be
sentperiodically.Devise amechanism usingtheheartbeatmessages todetect when apeer
is nolonger reachable andtear-downall linkstothatpeer.YourDVimplementationshould
eventually converge and find routes to all reachable destinations.
Wewill test yourprogrambymanually stoppingspecificnodes. Theremainingnodes should
detect the set of nodes that are no longer reachable and re-configure routing tables as necessary.
Notethatyouwill havetodevise theformatoftheheartbeatmessageandneighborreachability
protocol yourself. Please justify the inclusion and length of each field in the heartbeat message;
youwill need towriteupabrief descriptionofthemechanism youuse todetect nodefailure.
2 Submission
•Please submit your code as described in the forum.
•What to turn in: All of your source code along with a Makefile and a README file. Your
Makefile must produce an executable named rt. The README file should include a short
description about your protocol (e.g., what is the packet format, how does the protocol
execute, why does it work, etc).
1

Partial preview of the text

Download Programming Homework 4: Distance Vector Routing Extension | CMSC 417 and more Assignments Computer Systems Networking and Telecommunications in PDF only on Docsity!

CMSC 417 Computer Networks Spring 2009

Programming Assignment 4 — Distance Vector Routing Extension

Assigned: Mar. 14 Due: Mar. 27, 23:59:59.

1 Extensions to Distance Vector Routing

Extend your previous assignment to handle three new mechanisms:

  • Triggered update: Implement triggered update to speed up the convergence of routing tables.
  • Counting up to infinity (for two nodes): Implement poison reverse to handle the counting up to infinity problem.
  • Node Failure: Add a heartbeat message to your protocol. The heartbeat message should be sent periodically. Devise a mechanism using the heartbeat messages to detect when a peer is no longer reachable and tear-down all links to that peer. Your DV implementation should eventually converge and find routes to all reachable destinations.

We will test your program by manually stopping specific nodes. The remaining nodes should detect the set of nodes that are no longer reachable and re-configure routing tables as necessary. Note that you will have to devise the format of the heartbeat message and neighbor reachability protocol yourself. Please justify the inclusion and length of each field in the heartbeat message; you will need to write up a brief description of the mechanism you use to detect node failure.

2 Submission

  • Please submit your code as described in the forum.
  • What to turn in: All of your source code along with a Makefile and a README file. Your Makefile must produce an executable named rt. The README file should include a short description about your protocol (e.g., what is the packet format, how does the protocol execute, why does it work, etc).
