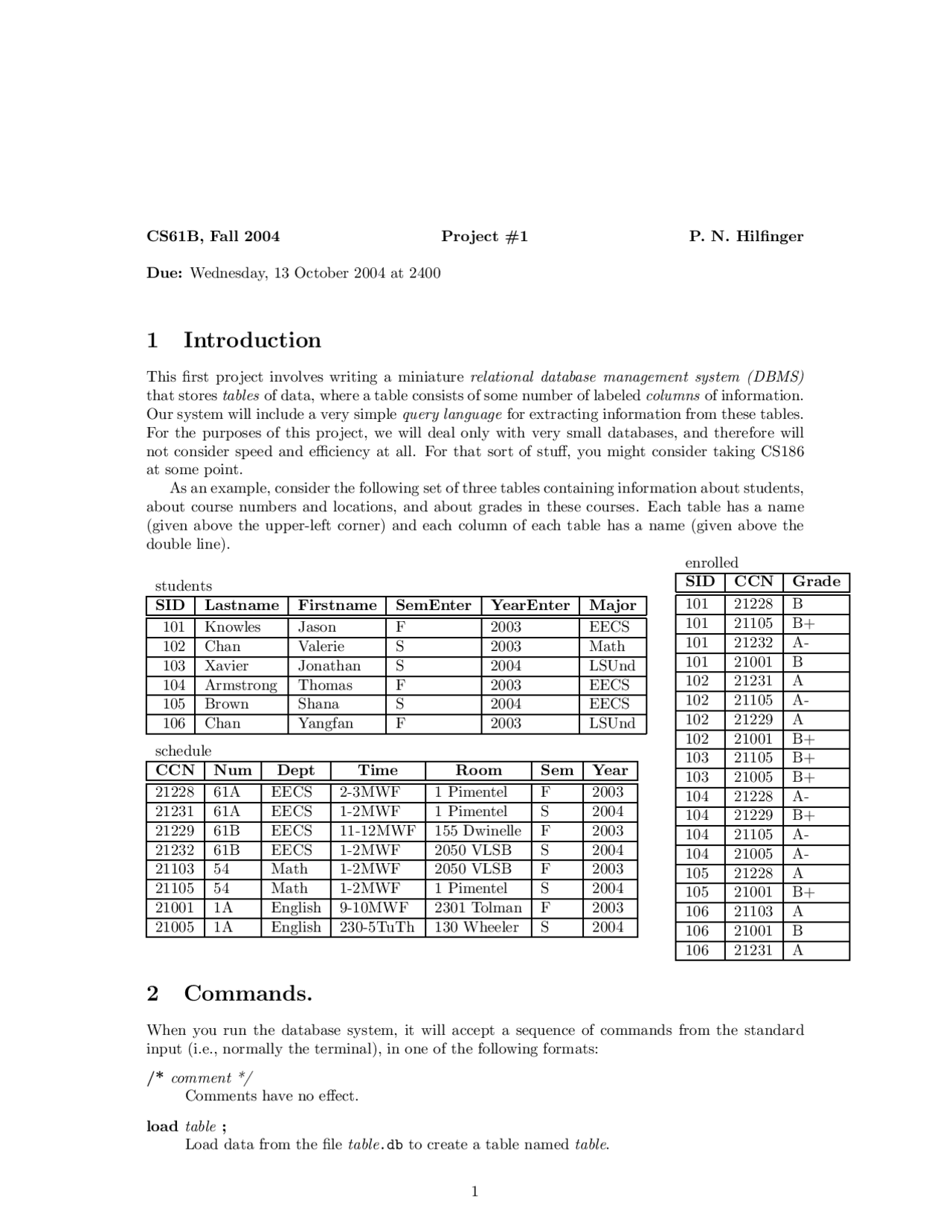

CS61B, Fall 2004 Project #1 P. N. Hilfinger
Due: Wednesday, 13 October 2004 at 2400
1 Introduction
This first project involves writing a miniature relational database management system (DBMS) that stores tables of data, where a table consists of some number of labeled columns of information. Our system will include a very simple query language for extracting information from these tables. For the purposes of this project, we will deal only with very small databases, and therefore will not consider speed and efficiency at all. For that sort of stuff, you might consider taking CS at some point. As an example, consider the following set of three tables containing information about students, about course numbers and locations, and about grades in these courses. Each table has a name (given above the upper-left corner) and each column of each table has a name (given above the double line).
students SID Lastname Firstname SemEnter YearEnter Major 101 Knowles Jason F 2003 EECS 102 Chan Valerie S 2003 Math 103 Xavier Jonathan S 2004 LSUnd 104 Armstrong Thomas F 2003 EECS 105 Brown Shana S 2004 EECS 106 Chan Yangfan F 2003 LSUnd schedule CCN Num Dept Time Room Sem Year 21228 61A EECS 2-3MWF 1 Pimentel F 2003 21231 61A EECS 1-2MWF 1 Pimentel S 2004 21229 61B EECS 11-12MWF 155 Dwinelle F 2003 21232 61B EECS 1-2MWF 2050 VLSB S 2004 21103 54 Math 1-2MWF 2050 VLSB F 2003 21105 54 Math 1-2MWF 1 Pimentel S 2004 21001 1A English 9-10MWF 2301 Tolman F 2003 21005 1A English 230-5TuTh 130 Wheeler S 2004
enrolled SID CCN Grade 101 21228 B 101 21105 B+ 101 21232 A- 101 21001 B 102 21231 A 102 21105 A- 102 21229 A 102 21001 B+ 103 21105 B+ 103 21005 B+ 104 21228 A- 104 21229 B+ 104 21105 A- 104 21005 A- 105 21228 A 105 21001 B+ 106 21103 A 106 21001 B 106 21231 A
2 Commands.
When you run the database system, it will accept a sequence of commands from the standard input (i.e., normally the terminal), in one of the following formats:
/* comment */ Comments have no effect.
load table ; Load data from the file table.db to create a table named table.
insert into table values literal... ; Add a new row to the given table whose values are given by the list of literals (see the description of literals below). There must be exactly one literal for each column of the table, and the table must already exist. This command has no effect if there is already a row in the table with these values.
print table ; Print all rows of the named table, one per line and indented. Separate columns with blanks, and print the columns in the order they were specified when the table was created. See the example below for the format.
select columns from table where conditions ; Find every row of the given table (the name of a table) that satisfies the conditions (see below), and print the listed columns (see example below) for each one (as for the print command, above). The “where conditions” part may be left off, in which case look at all rows. Print any given set of column values only once.
select columns from table1 table2 where conditions ; Find every pair of rows—one from table1 and one from table2—that satisfies the conditions, and print the listed columns for each such pair. The two tables must be different. Again, The “where... ” part is optional. Print any given set of column values only once.
name : select... ; where “select ...” is one of the forms above. Instead of printing the columns found by the “select” part, create a new table, giving it the indicated name. The columns of this table have the names and order of the columns listed by the columns part of the “select.” If name denotes the value of an existing table, replace that table with the new one. Each distinct set of column values gets only one row in the table (no duplicate rows).
quit ; Exit the program.
exit ; Synonym for quit.
Naming columns. The columns specifications in the preceding commands consist of one or more entries of the form table.name separated by whitespace, where table is the name of one of the tables listed after the ‘from’, and name is the name of a column of that table. It is an error if a table is not one of those listed after from or a name is not a valid column name for that table. You can leave off the table argument, in which case you get the first table listed after from. To simplify your life, we’ll also require that all the names in a given columns list be distinct.
Conditions. Each conditions clause consists of one or more tests separated by the word ‘and’. Each test is of the form X R Y , where X is a column (as described above), Y is either a column or a literal, and R is a relation symbol, one of =, !=, <= <, >=, or >. A literal is just a sequence of valid characters (see Boring Lexical Details below) delimited by single quotes (’) on both sides. The relation symbols mean what they do in Java, except that all values are treated as strings (use compareTo method on Strings to compare them). Thus you can write things like
students.SID = enrolled.SID and students.Lastname >= ’Chan’
from students enrolled where enrolled.CCN = ’21001’ and students.SID = enrolled.SID ; Search results: Jason Knowles B Shana Brown B+ Yangfan Chan B Valerie Chan B+
/* Who has taken the course named 61A from EECS? / / First, create a table that contains SIDs and course names / enrolled2 : select enrolled.SID from enrolled schedule where enrolled.CCN = schedule.CCN and schedule.Dept = ’EECS’ and schedule.Num = ’61A’ ; / Print these SIDs / print enrolled2 ; Contents of enrolled2: 101 102 104 105 106 / Now print the names of the students in this list */ select students.Firstname students.Lastname from students enrolled where students.SID = enrolled2.SID ; Search results: Jason Knowles Valerie Chan Thomas Armstrong Shana Brown Yangfan Chan quit ;
5 Your Task
The directory ~cs61b/hw/proj1 will contain a few skeleton files that may suggest some structure for this project. Copy them into a fresh directory as a starting point. Please read General Guidelines for Programming Projects (see the “homework” page on the class web site). To submit your result, use the command ‘submit proj1’. You will turn in nothing on paper. Be sure to include tests of your program (yes, that is part of the grade). The makefile we provide has a convenient target for running such tests. Our skeleton directory contains a couple of trivial tests, but these do not constitute an adequate set of tests! Make up your tests ahead of time and update your makefile to run them. The input to your program will come from fallible humans. Therefore, part of the problem is dealing gracefully with errors. When the user makes a syntax error, or mentions a non-existent column, your program should not simply halt and catch fire, but should give some sort of message and then try to get back to a usable state. For syntactic errors (errors in the format of commands) you should skip to the next semicolon (if it hasn’t occurred yet) or the end-of-file, whichever comes first. For all errors, you should print a single, separate line starting with the word “error” (in upper or lower case) and followed by any message, and the erroneous command should have no
effect on any table. Your program should not exit with a cryptic stack trace. Be sure to include documentation. This is the first project, so the documentation should be very straightforward: a user’s manual explaining how to use your program, and a brief internals document describing overall program structure. For the user’s manual, don’t just paraphrase our description; try to “add value” in the form of more helpful examples and perhaps a slower and more gentle treatment. Our testing of your projects (but not our grading!) will be automated. The testing program will be finicky, so be sure that:
- Your makefile is set up to compile everything on the command gmake and to run all your tests on the command gmake check. The makefile provided in our skeleton files is already set up to do this. Be sure to keep it up to date if you add additional .java files.
- Your main function must be in a class called db61b. The skeleton is already set up this way.
- The first line of output of your program identifies the program. It may contain anything.
- Before reading the first command and on reading each subsequent semicolon or comment, your program must print the prompt ‘> ’ (greater than followed by a blank). No cute or obscene phrases, please, just ‘> ’. If you decide to go the extra mile and output prompts after every end-of-line as well, feel free.
- Output things in exactly the format shown in the example, with no extra adornment.
- Put your error messages on separate lines, starting with the word ‘error’ (upper or lower case). The grading program will ignore the text of the message.
- Your program should exit without further output when it encounters a quit (or exit) command or an end-of-file in the input.
- Your final version must not print any debugging information.
- When printing out the contents of a table, you need not worry about the order of the rows (the autograder will be clever enough to handle any order). However, you must print columns in the order specified in the .db file or in the columns of the select command from which the table came.
- The grading program will ignore extra blank lines and extra blanks at the ends of lines, and will treat any run of consecutive blanks as if it were a single blank.
6 Advice
You will find this project challenging enough without helping to make it harder. Much of what might look complicated to you is actually pretty easy, once you take the time to look to see what has already been written for you—specifically what is in the standard Java library of classes. So, before doing any hard work on anything that looks tricky, browse your texts and the documentation. For reading from files (the load command), you’ll probably want to use java.io.FileReader together with java.util.Scanner, which is also good for reading from the standard input. In fact, we’ve tried to design the syntax to make it particularly easy to parse using Scanners. If you find yourself writing lots of complicated junk just to read in and interpret the input, you might back off and ask one of us to look over your approach. The standard Java string type, java.lang.String, also contains useful member functions for doing comparisons (including comparisons that ignore
