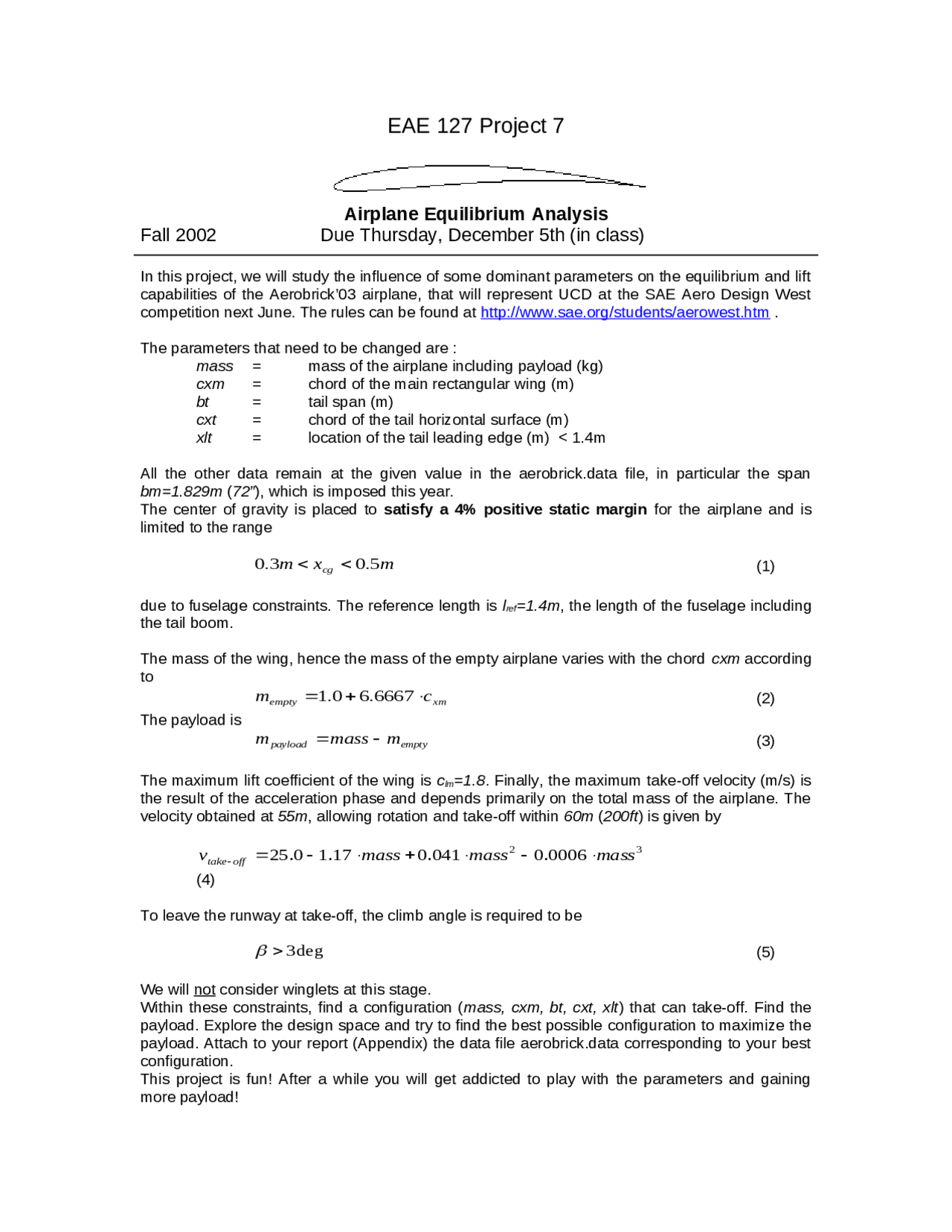

EAE 127 Project 7
Airplane Equilibrium Analysis
Fall 2002 Due Thursday, December 5th (in class)
In this project, we will study the influence of some dominant parameters on the equilibrium and lift
capabilities of the Aerobrick’03 airplane, that will represent UCD at the SAE Aero Design West
competition next June. The rules can be found at http://www.sae.org/students/aerowest.htm .
The parameters that need to be changed are :
mass = mass of the airplane including payload (kg)
cxm = chord of the main rectangular wing (m)
bt = tail span (m)
cxt = chord of the tail horizontal surface (m)
xlt = location of the tail leading edge (m) < 1.4m
All the other data remain at the given value in the aerobrick.data file, in particular the span
bm=1.829m (72”), which is imposed this year.
The center of gravity is placed to satisfy a 4% positive static margin for the airplane and is
limited to the range
mxm
cg
5.03.0
(1)
due to fuselage constraints. The reference length is lref=1.4m, the length of the fuselage including
the tail boom.
The mass of the wing, hence the mass of the empty airplane varies with the chord cxm according
to
xmempty
cm 6667.60.1
(2)
The payload is
emptypayload
mmassm
(3)
The maximum lift coefficient of the wing is clm=1.8. Finally, the maximum take-off velocity (m/s) is
the result of the acceleration phase and depends primarily on the total mass of the airplane. The
velocity obtained at 55m, allowing rotation and take-off within 60m (200ft) is given by
32
0006.0041.017.10.25 massmassmassv
offtake
(4)
To leave the runway at take-off, the climb angle is required to be
deg3
(5)
We will not consider winglets at this stage.
Within these constraints, find a configuration (mass, cxm, bt, cxt, xlt) that can take-off. Find the
payload. Explore the design space and try to find the best possible configuration to maximize the
payload. Attach to your report (Appendix) the data file aerobrick.data corresponding to your best
configuration.
This project is fun! After a while you will get addicted to play with the parameters and gaining
more payload!
