MALAD KANDIVLI EDUCATION SOCIETY’S
NAGINDAS KHANDWALA COLLEGE OF COMMERCE,
ARTS & MANAGEMENT STUDIES & SHANTABEN NAGINDAS
KHANDWALA COLLEGE OF SCIENCE
MALAD [W], MUMBAI – 64
(EMPOWERED AUTONOMOUS)
(Reaccredited ‘A’ Grade by NAAC)
(AFFILIATED TO UNIVERSITY OF MUMBAI)
(ISO 9001:2015)

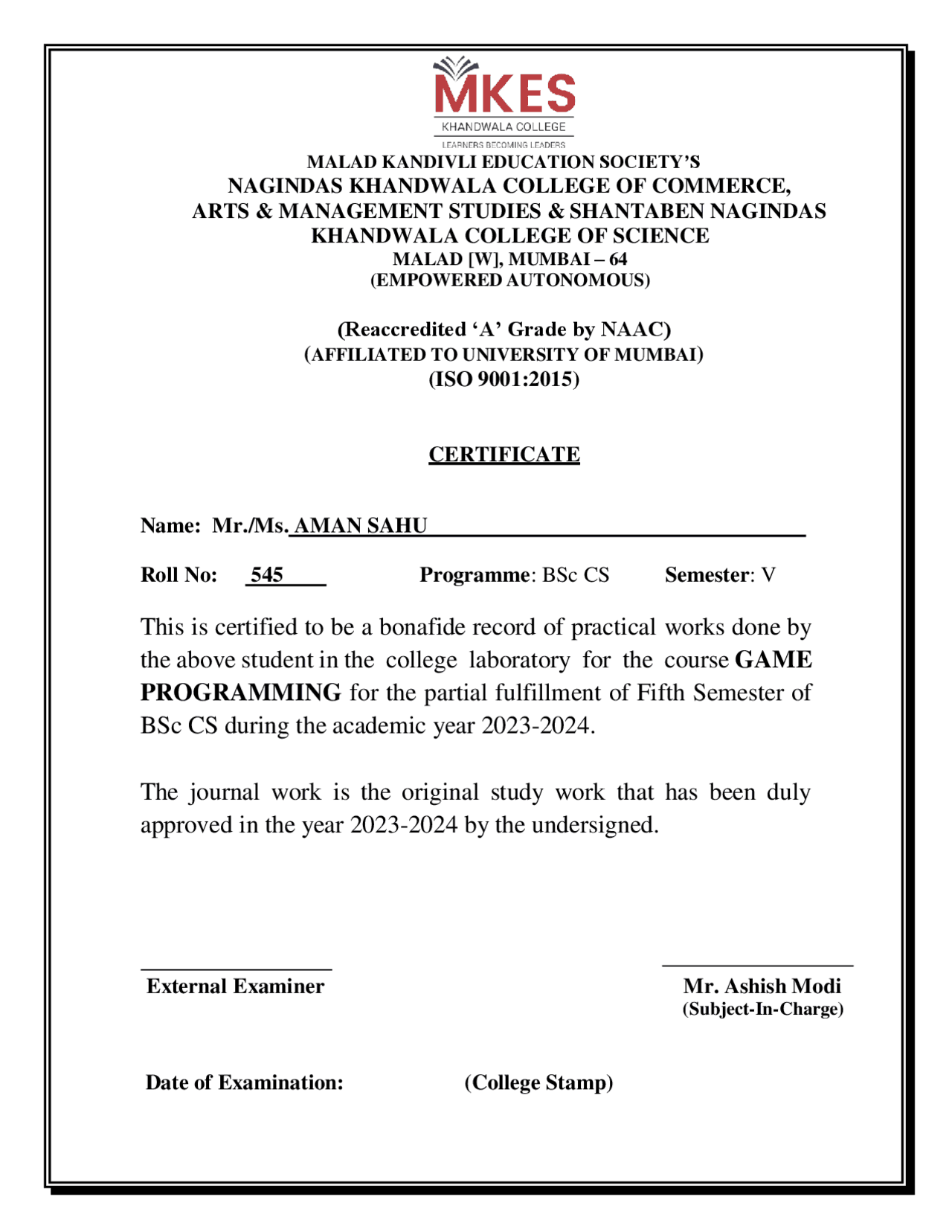

CERTIFICATE
Name: Mr./Ms. AMAN SAHU
Roll No: 545 Programme : BSc CS Semester : V
This is certified to be a bonafide record of practical works done by
the above student in the college laboratory for the course GAME
PROGRAMMING for the partial fulfillment of Fifth Semester of
BSc CS during the academic year 2023 - 2024.
The journal work is the original study work that has been duly
approved in the year 2023 - 2024 by the undersigned.
External Examiner Mr. Ashish Modi
(Subject-In-Charge)
Date of Examination: (College Stamp)
Subject: GAME PROGRAMMING Class: T. Y. BSc. CS
INDEX
Sr. No. Date Topic Sign 1 03/07/2023 Setup DirectX 11, Window Framework and Initialize Direct3D Device 2 03/07/2023 Buffers, Shaders and HLSL (Draw a triangle using Direct3D 11) 3 28/07/2023 Texturing^ (Texture^ the^ Triangle^ using^ Direct 3D^ 11) 4 28/07/2023 Lightning (Programmable Diffuse^ Lightning using Direct3D 11 - Triangle) 5 31/07/2023 Loading^ models^ into^ DirectX 11^ and^ rendering. 6 14/08/2023 Programmable Diffuse Lightning on Rectangle using Direct3D 11 7 14/08/2023 Texture^ the Rectangle using^ Direct^ 3D^11 8 14/08/2023 Draw^ a^ Rectangle^ using^ Direct3D 11 9 21/08/2023 Implementing 2D UFO 10 28/08/2023 Implementing Space Shooter 11 11/09/2023 Implementing Roll Ball
Right Click on properties Click on open click on build Select Platform Target and Select x86. Step 2:- Click on View Code of Form 1.
Step 3:- Go to Solution Explorer, right click on project name, and select Add Reference, Click on Browser and select the given .dll files which are "Microsoft.DirectX.Direct3D", and "Microsoft.DirectX.DirectX3DX".
Step 5: Code: using System; using System.Collections.Generic; using System.ComponentModel; using System.Data; using System.Drawing; using System.Text; using System.Windows.Forms; using Microsoft.DirectX; using Microsoft.DirectX.Direct3D; namespace prac_ { public partial class Form1 : Form { Microsoft.DirectX.Direct3D.Device device; public Form1() { InitializeComponent(); InitDevice(); } public void InitDevice() { PresentParameters pp = new PresentParameters(); pp.Windowed = true; pp.SwapEffect = SwapEffect.Discard; device = new Device(0, DeviceType.Hardware, this, CreateFlags.HardwareVertexProcessing, pp); } private void Render() { device.Clear(ClearFlags.Target, Color.Orange, 0, 1); device.Present(); } private void Form1_Paint(object sender, PaintEventArgs e) { Render(); } } }
Output:-
device.EndScene(); device.Present(); } private void Form1_Paint(object sender, PaintEventArgs e) { Render(); } } } Output:-
Practical 3 Aim:- Programmable Diffuse Lightning using Direct 3D 11. Code: using System; using System.Collections.Generic; using System.ComponentModel; using System.Data; using System.Drawing; using System.Text; using System.Windows.Forms; using Microsoft.DirectX; using Microsoft.DirectX.Direct3D; using System.Drawing.Design; namespace Pract { public partial class Form1 : Form { private Microsoft.DirectX.Direct3D.Device device; private CustomVertex.PositionTextured[] vertex = new CustomVertex.PositionTextured[3]; private Texture texture; public Form1() { InitializeComponent(); InitDevice(); } public void InitDevice() { PresentParameters pp = new PresentParameters(); pp.Windowed = true; pp.SwapEffect = SwapEffect.Discard; device = new Device(0, DeviceType.Hardware, this, CreateFlags.HardwareVertexProcessing, pp); device.Transform.Projection = Matrix.PerspectiveFovLH(3.14f / 4, device.Viewport.Width / device.Viewport.Height, 1f, 1000f); device.Transform.View = Matrix.LookAtLH(new Vector3(0,0,20), new Vector3(),new Vector3(0,1,0)); device.RenderState.Lighting = false; vertex[0] = new CustomVertex.PositionTextured(new Vector3(0,0,0),0,0); vertex[1] = new CustomVertex.PositionTextured(new Vector3(5,0,0),0,1); vertex[2] = new CustomVertex.PositionTextured(new Vector3(0,5,0),1,-1);
Practical 4 Aim:- Implement Diffusion. Code:- using System; using System.Collections.Generic; using System.ComponentModel; using System.Data; using System.Drawing; using System.Text; using System.Windows.Forms; using Microsoft.DirectX; using Microsoft.DirectX.Direct3D; namespace Pract { public partial class Form1 : Form { Microsoft.DirectX.Direct3D.Device device; private CustomVertex.PositionNormalColored[] vertex = new CustomVertex.PositionNormalColored[3]; public Form1() { InitializeComponent(); InitDevice(); } public void InitDevice() { PresentParameters pp = new PresentParameters(); pp.Windowed = true; pp.SwapEffect = SwapEffect.Discard; device = new Device(0, DeviceType.Hardware, this, CreateFlags.HardwareVertexProcessing, pp); device.Transform.Projection = Matrix.PerspectiveFovLH(3.14f / 4, device.Viewport.Width / device.Viewport.Height, 1f, 1000f); device.Transform.View = Matrix.LookAtLH(new Vector3(0, 0, 10), new Vector3(), new Vector3(0, 1, 0)); vertex[0] = new CustomVertex.PositionNormalColored(new Vector3(0, 1, 1), new Vector3(1, 0, 1), Color.Red.ToArgb()); vertex[1] = new CustomVertex.PositionNormalColored(new Vector3(-1, - 1, 1), new Vector3(1, 0, 1), Color.Red.ToArgb()); vertex[2] = new CustomVertex.PositionNormalColored(new Vector3(1, - 1, 1), new Vector3(-1, 0, 1), Color.Red.ToArgb());
device.RenderState.Lighting = true; device.Lights[0].Type = LightType.Directional; device.Lights[0].Diffuse = Color.Plum; device.Lights[0].Direction = new Vector3(0.8f, 0, - 1); device.Lights[0].Enabled = true; } private void Render() { device.Clear(ClearFlags.Target, Color.CornflowerBlue, 0, 1); device.BeginScene(); device.VertexFormat = CustomVertex.PositionNormalColored.Format; device.DrawUserPrimitives(PrimitiveType.TriangleList, vertex.Length / 3, vertex); device.EndScene(); device.Present(); } private void Form1_Paint(object sender, PaintEventArgs e) { Render(); } } } Output:-
device.Clear(ClearFlags.Target, Color.CornflowerBlue, 0, 1); device.BeginScene(); using (Sprite s = new Sprite(device)) { s.Begin(SpriteFlags.AlphaBlend); s.Draw2D(texture, new Rectangle(0, 0, 0, 0), new Rectangle(0, 0, device.Viewport.Width, device.Viewport.Height), new Point(0, 0), 0f, new Point(0,0), Color.Blue); font.DrawText(s, "nagindas Khandwala Shantanu 522", new Point(0, 0), Color.White); s.End(); } device.EndScene(); device.Present(); } private void Form1_Paint(object sender, PaintEventArgs e) { Render(); } } } Output:-
Practical 6 Aim:- Draw a Rectangle Using DirectX3D 11. Code:- using System; using System.Collections.Generic; using System.ComponentModel; using System.Data; using System.Drawing; using System.Text; using System.Windows.Forms; using Microsoft.DirectX; using Microsoft.DirectX.Direct3D; namespace Pract { public partial class Form1 : Form { Microsoft.DirectX.Direct3D.Device device; public Form1() { InitializeComponent(); InitDevice(); } public void InitDevice() { PresentParameters pp = new PresentParameters(); pp.Windowed = true; pp.SwapEffect = SwapEffect.Discard; device = new Device(0, DeviceType.Hardware, this, CreateFlags.HardwareVertexProcessing, pp); } private void Render() { CustomVertex.TransformedColored[] vertexes = new CustomVertex.TransformedColored[6]; vertexes[0].Position = new Vector4(100, 100, 0, 1); vertexes[0].Color = System.Drawing.Color.FromArgb(255, 0, 0).ToArgb(); vertexes[1].Position = new Vector4(400, 100, 0, 1); vertexes[1].Color = System.Drawing.Color.FromArgb(0, 255, 1).ToArgb(); vertexes[2].Position = new Vector4(400, 300, 0, 1); vertexes[2].Color = System.Drawing.Color.FromArgb(1, 0, 255).ToArgb(); vertexes[3].Position = new Vector4(400, 300, 0, 1); vertexes[3].Color = System.Drawing.Color.FromArgb(255, 0, 0).ToArgb(); vertexes[4].Position = new Vector4(100, 300, 0, 1); vertexes[4].Color = System.Drawing.Color.FromArgb(20, 255, 0).ToArgb(); vertexes[5].Position = new Vector4(100, 100, 0, 1); vertexes[5].Color = System.Drawing.Color.FromArgb(255, 0, 255).ToArgb();
Practical 7 Aim:- Texturing the Rectangle using DirectX 3D. Code:- using System.Collections.Generic; using System.ComponentModel; using System.Data; using System; using System.Drawing; using System.Text; using System.Windows.Forms; using Microsoft.DirectX; using Microsoft.DirectX.Direct3D; using System.Drawing.Design; namespace Pract { public partial class Form1 : Form { private Microsoft.DirectX.Direct3D.Device device; private CustomVertex.PositionTextured[] vertex = new CustomVertex.PositionTextured[6]; private Texture texture; public Form1() { InitializeComponent(); InitDevice(); } public void InitDevice() { PresentParameters pp = new PresentParameters(); pp.Windowed = true; pp.SwapEffect = SwapEffect.Discard; device = new Device(0, DeviceType.Hardware, this, CreateFlags.HardwareVertexProcessing, pp); device.Transform.Projection = Matrix.PerspectiveFovLH(3.14f / 4, device.Viewport.Width / device.Viewport.Height, 1f, 1000f); device.Transform.View = Matrix.LookAtLH(new Vector3(0, 0, 20), new Vector3(), new Vector3(0, 1, 0)); device.RenderState.Lighting = false; } private void Render() { vertex[0] = new CustomVertex.PositionTextured(new Vector3(0, 2, 1), 0, 0); vertex[1] = new CustomVertex.PositionTextured(new Vector3(0, - 2, 1), 0, 1); vertex[2] = new CustomVertex.PositionTextured(new Vector3(2, - 2, 1), - 1, 1);
vertex[3] = new CustomVertex.PositionTextured(new Vector3(2, - 2, 1), 0, 0); vertex[4] = new CustomVertex.PositionTextured(new Vector3(2, 2, 1), 0, 1); vertex[5] = new CustomVertex.PositionTextured(new Vector3(0, 2, 1), - 1, 1); texture = new Texture(device, new Bitmap("D:\ 522 \GP\GP\practical5\3Dimage.jpg") , 0, Pool.Managed); device.Clear(ClearFlags.Target, Color.Orange, 0, 1); device.BeginScene(); device.SetTexture(0, texture); device.VertexFormat = CustomVertex.PositionTextured.Format; device.DrawUserPrimitives(PrimitiveType.TriangleList, vertex.Length / 3, vertex); device.EndScene(); device.Present(); } private void Form1_Paint(object sender, PaintEventArgs e) { Render(); } } } Output:-
