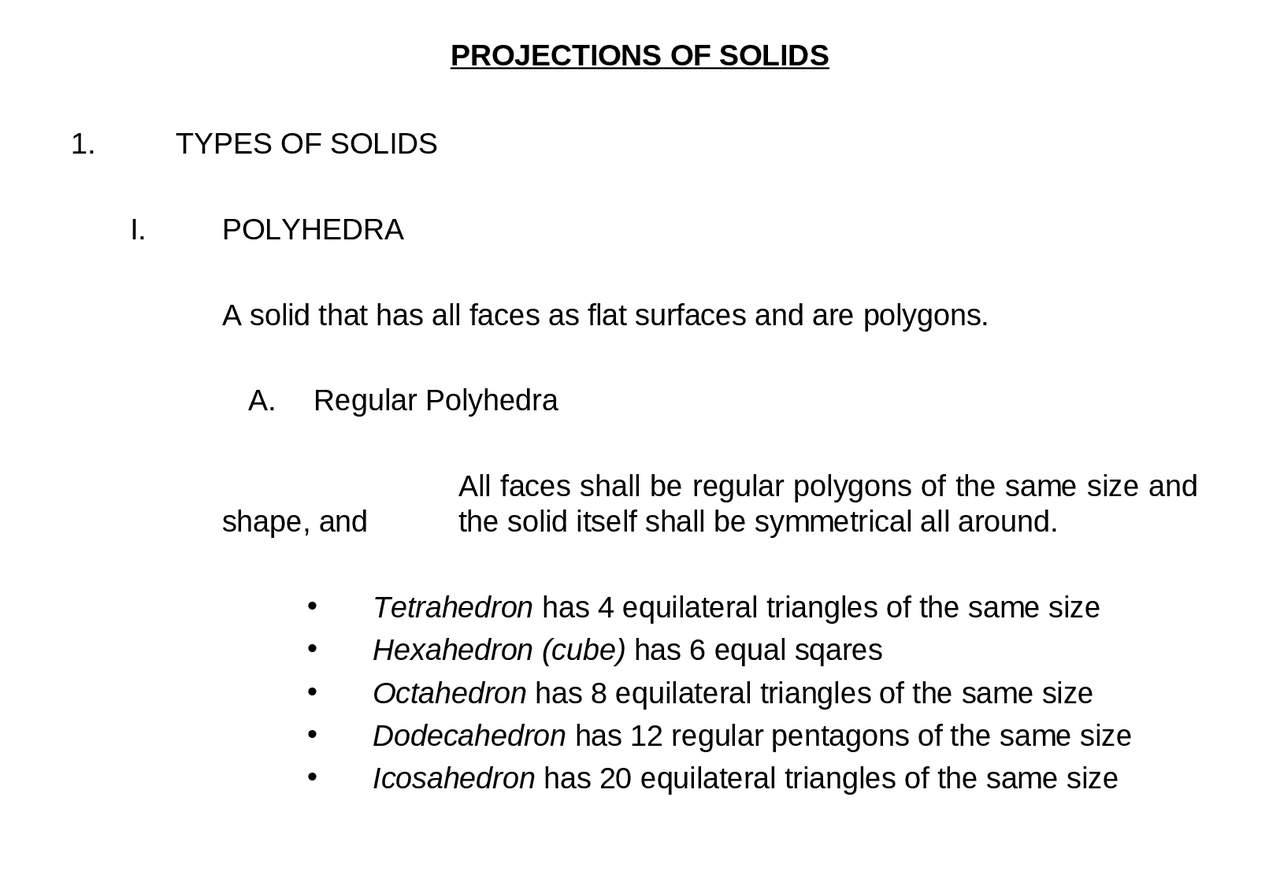

PROJECTIONS OF SOLIDS
1. TYPES OF SOLIDS
I. POLYHEDRA
A solid that has all faces as flat surfaces and are polygons.
A. Regular Polyhedra
All faces shall be regular polygons of the same size and
shape, and the solid itself shall be symmetrical all around.
•Tetrahedron has 4 equilateral triangles of the same size
•Hexahedron (cube) has 6 equal sqares
•Octahedron has 8 equilateral triangles of the same size
•Dodecahedron has 12 regular pentagons of the same size
•Icosahedron has 20 equilateral triangles of the same size
pf3
pf4
pf5
pf8
pf9
pfa
pfd
pfe
pff
pf12
pf13
pf14
pf15
pf16
pf17
pf18
pf19
pf1a
pf1b
pf1c
pf1d
pf1e
pf1f
pf20
pf21
pf22
pf23
pf24
pf25
pf26
pf27
pf28
pf29
pf2a
pf2b
pf2c
pf2d
pf2e
pf2f
pf30
pf31
pf32
pf33
pf34
pf35
pf36
pf37
pf38

Partial preview of the text

Download Pentagonal Prism Projections in Engineering Drawing and more Schemes and Mind Maps Engineering Drawing and Graphics in PDF only on Docsity!

PROJECTIONS OF SOLIDS

1. TYPES OF SOLIDS

I. POLYHEDRA

A solid that has all faces as flat surfaces and are polygons.

A. Regular Polyhedra

All faces shall be regular polygons of the same size and

shape, and the solid itself shall be symmetrical all around.

  • (^) Tetrahedron has 4 equilateral triangles of the same size
  • (^) Hexahedron (cube) has 6 equal sqares
  • (^) Octahedron has 8 equilateral triangles of the same size
  • (^) Dodecahedron has 12 regular pentagons of the same size
  • (^) Icosahedron has 20 equilateral triangles of the same size

A. Irregular Polyhedra

At least one face is either an irregular polygon or a different shaped

polygon than the other faces.

a) Prisms

Has two similar polygons of the same size and parallel to one

another as bases, the corresponding sides of which are

connected by means of parallelograms.

A regular prism is the one that has regular polygons as bases.

An irregular prism is the one that has irregular polygons as

bases.

A right prism is the one that has the axis perpendicular to the

bases.

An oblique prism is the one that has the axis inclined to the

bases.

II. SOLIDS OF REVOLUTION

Solid that are generated by rotating a plane about a line for one revolution.

A. Cylinder

Generated by rotating a rectangle about one of its side for one complete

revolution. Has two flat and one single curved surface.

B. Cone

Generated by rotating a right angled triangle about one of its

perpendicular arms for one complete revolution. Has one flat and one

single curved surface.

C. Sphere

Generated by rotating a semi-circle about its diameter for one complete

revolution. Has a double curved surface only.

2. POSSIBLE POSITIONS

A. Position of Axis w.r.t. H.P.

  • (^) Parallel to the H.P.
  • (^) Perpendicular to the H.P.
  • (^) Inclined to the H.P.

B. Position of Axis w.r.t. V.P.

  • (^) Parallel to the V.P.
  • (^) Perpendicular to the V.P.
  • (^) Inclined to the V.P.

ALWAYS DRAW THE VIEW IN

WHICH THE TRUE SIZE AND

SHAPE OF THE BASE IS SEEN

Example 1:

A pentagonal prism of 25 mm side of base and axis 50 mm long, has its axis parallel to both

the planes. One rectangular face of the prism makes an angle of 30o^ with the V.P. Draw its

projections.

x y

Example 1:

A pentagonal prism of 25 mm side of base and axis 50 mm long, has its axis parallel to both

the planes. One rectangular face of the prism makes an angle of 30o^ with the V.P. Draw its

projections.

x y x y

Example 1:

A pentagonal prism of 25 mm side of base and axis 50 mm long, has its axis parallel to both

the planes. One rectangular face of the prism makes an angle of 30o^ with the V.P. Draw its

projections.

x y x y

Example 1:

A pentagonal prism of 25 mm side of base and axis 50 mm long, has its axis parallel to both

the planes. One rectangular face of the prism makes an angle of 30o^ with the V.P. Draw its

projections.

x y x y

a " b" c " d" e" f" g" h" i" j"

Example 1:

A pentagonal prism of 25 mm side of base and axis 50 mm long, has its axis parallel to both

the planes. One rectangular face of the prism makes an angle of 30o^ with the V.P. Draw its

projections.

x y x y

a " b" c " d" e" f" g" h" i" j"

Example 1:

A pentagonal prism of 25 mm side of base and axis 50 mm long, has its axis parallel to both

the planes. One rectangular face of the prism makes an angle of 30o^ with the V.P. Draw its

projections.

x y x y

a " b" c " d" e" a ' d' e' c ' b' f" g" h" i" j"

Example 1:

A pentagonal prism of 25 mm side of base and axis 50 mm long, has its axis parallel to both

the planes. One rectangular face of the prism makes an angle of 30o^ with the V.P. Draw its

projections.

x y x y

a " b" c " d" e" a ' d' e' c ' b' g' h' j' i' f' f" g" h" i" j"

Example 1:

A pentagonal prism of 25 mm side of base and axis 50 mm long, has its axis parallel to both

the planes. One rectangular face of the prism makes an angle of 30o^ with the V.P. Draw its

projections.

x y x y

a " b" c " d" e" a ' d' e' c ' b' g' h' j' i' f' f" g" h" i" j"

Example 1:

A pentagonal prism of 25 mm side of base and axis 50 mm long, has its axis parallel to both

the planes. One rectangular face of the prism makes an angle of 30o^ with the V.P. Draw its

projections.

x y x y

a " b" c " d" e" a ' d' e' c ' b' g' h' j' i' f' f" g" h" i" j"
