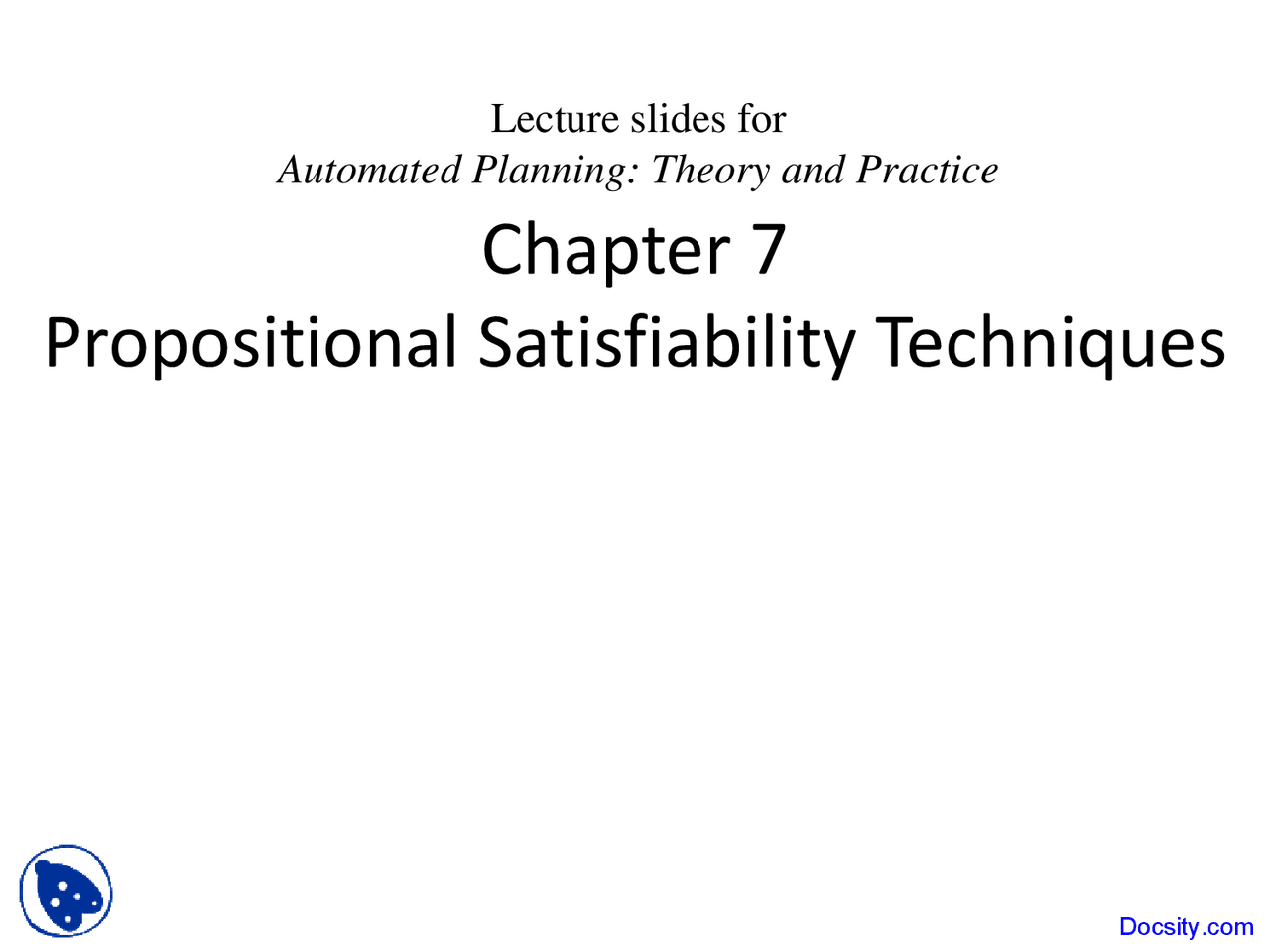

Chapter 7

Propositional Satisfiability Techniques

Lecture slides for

Automated Planning: Theory and Practice

Motivation

• Propositional satisfiability: given a boolean formula
  • e.g., (P ∨ Q) ∧ (¬Q ∨ R ∨ S) ∧ (¬R ∨ ¬P),

does there exist a model

• i.e., an assignment of truth values to the propositions

that makes the formula true?

• This was the very first problem shown to be NP-complete
• Lots of research on algorithms for solving it
  • Algorithms are known for solving all but a small subset in

average-case polynomial time

• Therefore,
  • Try translating classical planning problems into satisfiability

problems, and solving them that way

Overall Approach

• A bounded planning problem is a pair ( P,n ):

• P is a planning problem; n is a positive integer
• Any solution for P of length n is a solution for ( P,n )

• Planning algorithm:

• Do iterative deepening like we did with Graphplan:

• for n = 0, 1, 2, …,
  • encode ( P,n ) as a satisfiability problem Φ
  • if Φ is satisfiable, then
    • From the set of truth values that satisfies Φ, a solution plan can be constructed, so return it and exit

Notation

• For satisfiability problems we need to use propositional

logic

• Need to encode ground atoms into propositions

• For set-theoretic planning we encoded atoms into

propositions by rewriting them as shown here:

• Atom: at(r1,loc1)
• Proposition: at-r1-loc

• For planning as satisfiability we’ll do the same thing

• But we won’t bother to do a syntactic rewrite
• Just use at(r1,loc1) itself as the proposition

• Also, we’ll write plans starting at a 0 rather than a 1

• π = 〈 a 0 , a 1 , …, a (^) n –1〉

Encoding Planning Problems

• Encode ( P,n ) as a formula Φ such that
  • π = 〈 a 0 , a 1 , …, an –1〉 is a solution for ( P,n ) if and only if Φ can be satisfied in a way that makes the fluents a 0 , …, an –1 true
• Let
  • A = {all actions in the planning domain}
  • S = {all states in the planning domain}
  • L = {all literals in the language}
• Φ is the conjunct of many other formulas …

Formulas in Φ

1. Formula describing the initial state:
   • */* { l 0 | l ∈ s 0 } ∧ */* {¬ l 0 | l ∈ L – s 0 }
2. Formula describing the goal:
   • */* { l (^) n | l ∈ g + } ∧ */* {¬ l (^) n | l ∈ g – }
3. For every action a in A and for i = 1, …, n , a formula describing what changes a would make if it were the i ’th step of the plan:
   • a (^) i ⇒ */* { p (^) i | p ∈ Precond( a )} ∧ */* { ei +1 | e ∈ Effects( a )}
4. Complete exclusion axiom:
   • For every pair of actions a and b , and for i = 0, …, n– 1, a formula saying they can’t both be the i ’th step of the plan ¬ a (^) i ∨ ¬ bi
   • this guarantees there can be only one action at a time

• Is this enough?

Example

 Planning domain:

 one robot r  two adjacent locations l1, l  one planning operator (to move the robot from one location to another)

 Encode ( P,n ) where n = 1

1. Initial state: {at(r1,l1)} Encoding: at(r1,l1,0) ∧ ¬at(r1,l2,0)
2. Goal: {at(r1,l2)} Encoding: at(r1,l2,1) ∧ ¬at(r1,l1,1)
3. Operator: see next slide

Example (continued)

• Operator: move( r , l , l' )

precond: at( r , l ) effects: at( r , l' ), ¬at( r , l ) Encoding: move(r1,l1,l2,0) ⇒ at(r1,l1,0) ∧ at(r1,l2,1) ∧ ¬at(r1,l1,1) move(r1,l2,l1,0) ⇒ at(r1,l2,0) ∧ at(r1,l1,1) ∧ ¬at(r1,l2,1) move(r1,l1,l1,0) ⇒ at(r1,l1,0) ∧ at(r1,l1,1) ∧ ¬at(r1,l1,1) move(r1,l2,l2,0) ⇒ at(r1,l2,0) ∧ at(r1,l2,1) ∧ ¬at(r1,l2,1) move(l1,r1,l2,0) ⇒ … move(l2,l1,r1,0) ⇒ … move(l1,l2,r1,0) ⇒ … move(l2,l1,r1,0) ⇒ …

• Operator: move( r : robot, l : location, l' : location)

precond: at( r , l ) effects: at( r , l' ), ¬at( r , l )

nonsensical, and we can avoid generating them if we use data types like we did for state-variable representation

contradictions (easy to detect)

Summary of the Example

• P is a planning problem with one robot and two locations
  • initial state {at(r1,l1)}
  • goal {at(r1,l2)}
• Encoding of ( P, 1)
  • Φ = [at(r1,l1,0) ∧ ¬at(r1,l2,0)] (initial state) ∧ [at(r1,l2,1) ∧ ¬at(r1,l1,1)] (goal) ∧ [move(r1,l1,l2,0) ⇒ at(r1,l1,0) ∧ at(r1,l2,1) ∧ ¬at(r1,l1,1)] (action) ∧ [move(r1,l2,l1,0) ⇒ at(r1,l2,0) ∧ at(r1,l1,1) ∧ ¬at(r1,l2,1)] (action) ∧ [¬move(r1,l1,l2,0) ∨ ¬move(r1,l2,l1,0)] (complete exclusion) ∧ [¬at(r1,l1,0) ∧ at(r1,l1,1) ⇒ move(r1,l2,l1,0)] (frame axiom) ∧ [¬at(r1,l2,0) ∧ at(r1,l2,1) ⇒ move(r1,l1,l2,0)] (frame axiom) ∧ [at(r1,l1,0) ∧ ¬at(r1,l1,1) ⇒ move(r1,l1,l2,0)] (frame axiom) ∧ [at(r1,l2,0) ∧ ¬at(r1,l2,1) ⇒ move(r1,l2,l1,0)] (frame axiom)

Extracting a Plan

• Let Φ be an encoding of ( P,n )
• Suppose we find an assignment of truth values that satisfies Φ.
  • This means P has a solution of length n
• For i =1,…, n , there will be exactly one action a such that a (^) i = true
  • This is the i ’th action of the plan.
• Example
• The formula on the previous slide
  • Φ can be satisfied with move(r1,l1,l2,0) = true
    • Thus 〈move(r1,l1,l2,0)〉 is a solution for ( P ,1)
  • It’s the only solution - no other way to satisfy Φ

The Davis-Putnam Procedure

Backtracking search through alternative assignments of truth values to literals

• μ = {literals to which we have assigned the value TRUE}
  • initially empty
• For every unit clause l
  • add l to μ
  • remove clauses that contain l
  • modify clauses that contain ¬ l
• If Φ contains ∅, μ fails
• If Φ = ∅, μ is a solution
• Select a Boolean variable P in Φ
• do two recursive calls
  • Φ ∧ P
  • Φ ∧ ¬ P

Unit-propagate(Φ, μ)

if ∅ ∈ Φ then return error in the book here

if Φ = ∅ then exit with μ

Local Search

• Let u be an assignment of truth values to all of the variables
  • cost( u ,Φ) = number of clauses in Φ that aren’t satisfied by u
  • flip( P,u ) = u except that P ’s truth value is reversed
• Local search:
  • Select a random assignment u
  • while cost( u ,Φ) ≠ 0
    • if there is a P such that cost(flip( P,u ),Φ) < cost( u ,Φ) then
      • randomly choose any such P
      • u ← flip( P,u )
    • else return failure
• Local search is sound
• If it finds a solution it will find it very quickly
• Local search is not complete: can get trapped in local minima

Boolean variable

Discussion

• Recall the overall approach:
  • for n = 0, 1, 2, …,
    • encode ( P,n ) as a satisfiability problem Φ
    • if Φ is satisfiable, then
      • From the set of truth values that satisfies Φ, extract a solution plan and return it
• By itself, not very practical (takes too much memory and time)
• But it can work well if combined with other techniques
  • e.g., planning graphs

SatPlan

• SatPlan combines planning-graph expansion and satisfiability checking
• Works roughly as follows:
  • for k = 0, 1, 2, …
    • Create a planning graph that contains k levels
    • Encode the planning graph as a satisfiability problem
    • Try to solve it using a SAT solver
      • If the SAT solver finds a solution within some time limit, » Remove some unnecessary actions » Return the solution
• Memory requirement still is combinatorially large
  • but less than what’s needed by a direct translation into satisfiability
• BlackBox (predecessor to SatPlan) was one of the best planners in the 1998 planning competition
• SatPlan was one of the best planners in the 2004 and 2006 planning competitions
