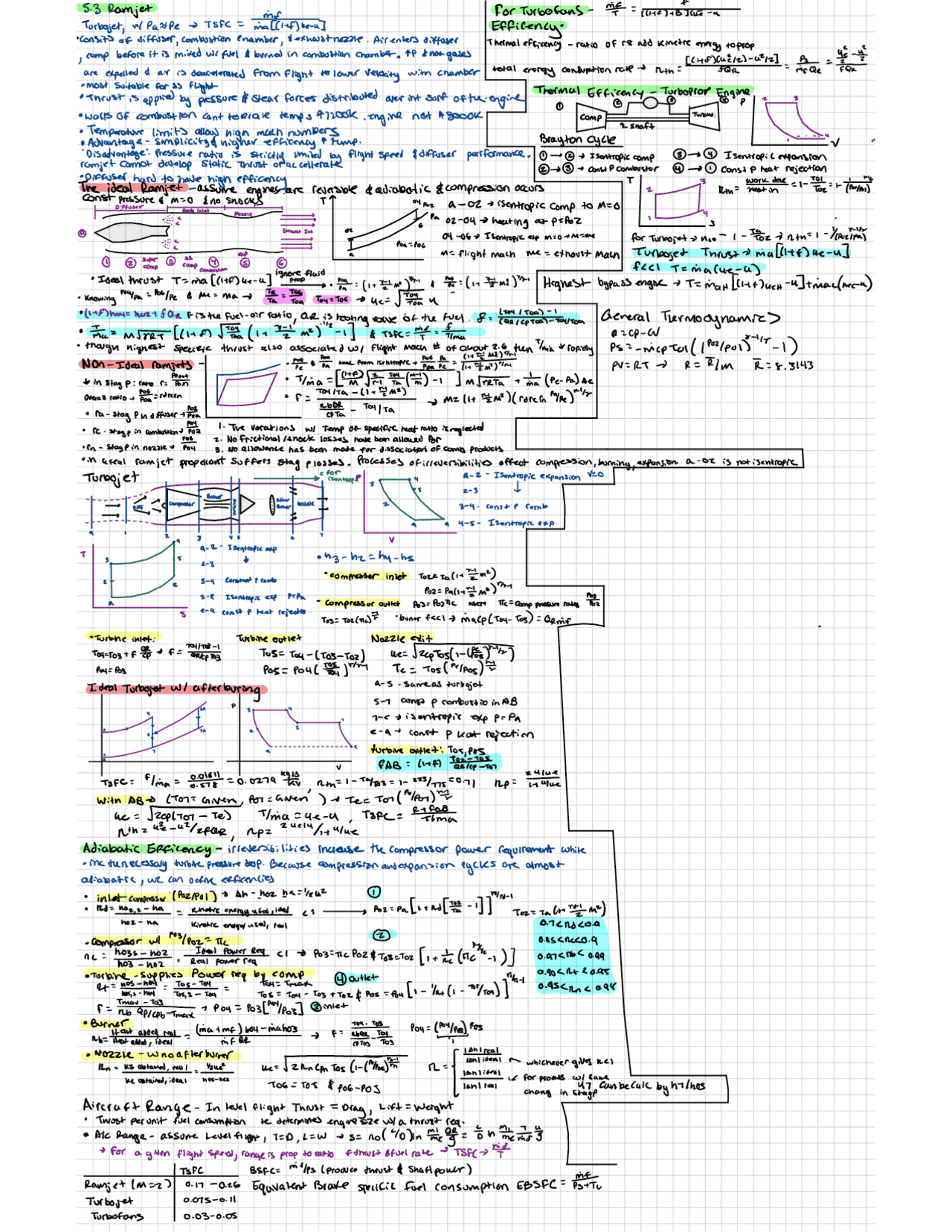

This is a cheat sheet for exam 1 of my propulsion class

Typology: Cheat Sheet

2024/2025

Uploaded on 10/13/2025

j77zk22zjp
j77zk22zjp 🇺🇸

2 documents

1 / 2

Toggle sidebar

This page cannot be seen from the preview

Don't miss anything!

bg1
pf2

Partial preview of the text

Download Propulsion cheat sheet and more Cheat Sheet Applied Thermodynamics in PDF only on Docsity!

Inlet / Diffuser

  • Slows the freestream to raise static pressure with minimal total-pressure loss.
  • Delivers uniform, high-recovery p_t, T_t air to the compressor (or combustor in a ramjet). Compressor (axial/centrifugal)
  • Adds total pressure and total temperature by doing work on the air.
  • Sets the core pressure ratio that largely determines cycle efficiency and required turbine work. Combustor (burner)
  • Adds heat at (nearly) constant total pressure by burning fuel; raises T_{t} to the turbine-inlet limit.
  • Mixes/stabilizes the flame while keeping pressure losses and pattern factor (temperature uniformity) acceptable. Turbine
  • Extracts just enough shaft work from hot gas to drive the compressor (and fan/prop/gearbox if present).
  • Drops T_t and p_t across stages while aiming for high efficiency and adequate cooling. Nozzle
  • Converts remaining enthalpy to jet kinetic energy; accelerates flow to produce thrust.
  • Ideally expands to ambient (p_e \approx p_a); otherwise a pressure thrust term appears. Fan (turbofan only)
  • Adds moderate pressure/velocity to a large bypass stream, boosting thrust via high mass flow, low exhaust speed.
  • Improves propulsive efficiency and lowers TSFC at subsonic cruise; driven by an extra turbine. Propeller + Gearbox (turboprop only)
  • Converts turbine shaft power into thrust by accelerating a very large air mass slightly.
  • Achieves very high propulsive efficiency at low–moderate speeds; gearbox matches turbine rpm to prop. Afterburner (reheat, if installed)
  • Adds heat downstream of the turbine, raising nozzle inlet T_t for big thrust boosts.
  • Greatly increases fuel flow/TSFC and thermal signature; used intermittently (takeoff/accel/combat). Inter-stage Ducting & Mixer (where applicable)
  • Turns, mixes, and conditions flows between modules with minimal total-pressure loss.
  • In mixed-flow turbofans, blends core + bypass for a single nozzle, affecting thrust and noise. Controls & Bleeds (generic)
  • Schedules fuel/variable geometry/bleeds to keep surge margins, turbine temperatures, and emissions in limits.
  • Bleeds provide cooling and stability but reduce core mass flow and cycle efficienc
