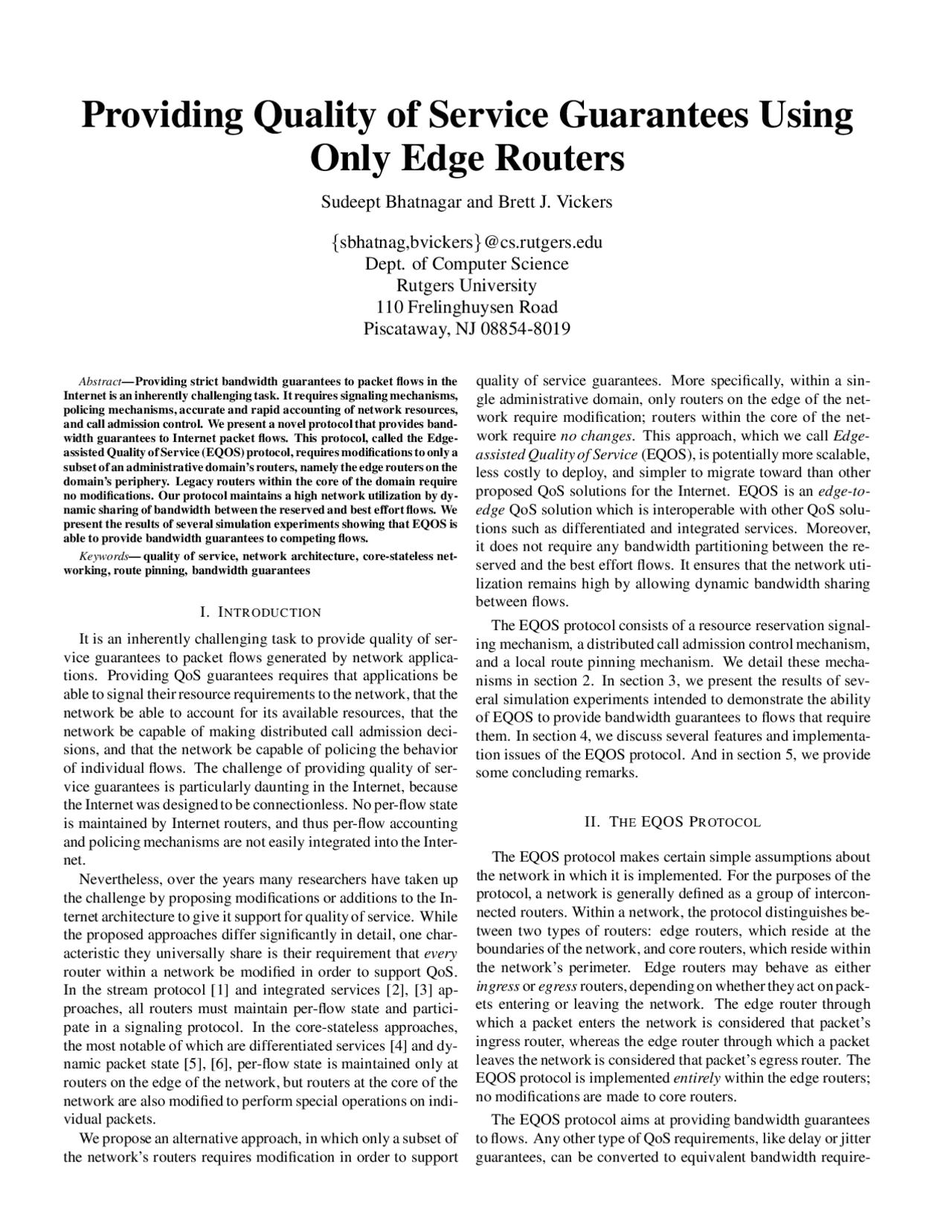

Providing Quality of Service Guarantees Using
Only Edge Routers
Sudeept Bhatnagar and Brett J. Vickers
{sbhatnag,bvickers}@cs.rutgers.edu
Dept. of Computer Science
Rutgers University
110 Frelinghuysen Road
Piscataway, NJ 08854-
Abstract — Providing strict bandwidth guarantees to packet flows in the Internet is an inherently challenging task. It requires signaling mechanisms, policing mechanisms, accurate and rapid accounting of network resources, and call admission control. We present a novel protocol that provides band- width guarantees to Internet packet flows. This protocol, called the Edge- assisted Quality of Service (EQOS) protocol, requires modifications to only a subset of an administrative domain’s routers, namely the edge routers on the domain’s periphery. Legacy routers within the core of the domain require no modifications. Our protocol maintains a high network utilization by dy- namic sharing of bandwidth between the reserved and best effort flows. We present the results of several simulation experiments showing that EQOS is able to provide bandwidth guarantees to competing flows. Keywords — quality of service, network architecture, core-stateless net- working, route pinning, bandwidth guarantees
I. I NTRODUCTION
It is an inherently challenging task to provide quality of ser- vice guarantees to packet flows generated by network applica- tions. Providing QoS guarantees requires that applications be able to signal their resource requirements to the network, that the network be able to account for its available resources, that the network be capable of making distributed call admission deci- sions, and that the network be capable of policing the behavior of individual flows. The challenge of providing quality of ser- vice guarantees is particularly daunting in the Internet, because the Internet was designed to be connectionless. No per-flow state is maintained by Internet routers, and thus per-flow accounting and policing mechanisms are not easily integrated into the Inter- net. Nevertheless, over the years many researchers have taken up the challenge by proposing modifications or additions to the In- ternet architecture to give it support for quality of service. While the proposed approaches differ significantly in detail, one char- acteristic they universally share is their requirement that every router within a network be modified in order to support QoS. In the stream protocol [1] and integrated services [2], [3] ap- proaches, all routers must maintain per-flow state and partici- pate in a signaling protocol. In the core-stateless approaches, the most notable of which are differentiated services [4] and dy- namic packet state [5], [6], per-flow state is maintained only at routers on the edge of the network, but routers at the core of the network are also modified to perform special operations on indi- vidual packets. We propose an alternative approach, in which only a subset of the network’s routers requires modification in order to support
quality of service guarantees. More specifically, within a sin- gle administrative domain, only routers on the edge of the net- work require modification; routers within the core of the net- work require no changes. This approach, which we call Edge- assisted Quality of Service (EQOS), is potentially more scalable, less costly to deploy, and simpler to migrate toward than other proposed QoS solutions for the Internet. EQOS is an edge-to- edge QoS solution which is interoperable with other QoS solu- tions such as differentiated and integrated services. Moreover, it does not require any bandwidth partitioning between the re- served and the best effort flows. It ensures that the network uti- lization remains high by allowing dynamic bandwidth sharing between flows. The EQOS protocol consists of a resource reservation signal- ing mechanism, a distributed call admission control mechanism, and a local route pinning mechanism. We detail these mecha- nisms in section 2. In section 3, we present the results of sev- eral simulation experiments intended to demonstrate the ability of EQOS to provide bandwidth guarantees to flows that require them. In section 4, we discuss several features and implementa- tion issues of the EQOS protocol. And in section 5, we provide some concluding remarks.
II. T HE EQOS P ROTOCOL
The EQOS protocol makes certain simple assumptions about the network in which it is implemented. For the purposes of the protocol, a network is generally defined as a group of intercon- nected routers. Within a network, the protocol distinguishes be- tween two types of routers: edge routers, which reside at the boundaries of the network, and core routers, which reside within the network’s perimeter. Edge routers may behave as either ingress or egress routers, depending on whether they act on pack- ets entering or leaving the network. The edge router through which a packet enters the network is considered that packet’s ingress router, whereas the edge router through which a packet leaves the network is considered that packet’s egress router. The EQOS protocol is implemented entirely within the edge routers; no modifications are made to core routers. The EQOS protocol aims at providing bandwidth guarantees to flows. Any other type of QoS requirements, like delay or jitter guarantees, can be converted to equivalent bandwidth require-
ments. 1 EQOS allows for two types of packet flows: reserved flows and best effort flows. A reserved flow is any flow that requires bandwidth be allocated to it on the path between the ingress and egress router, whereas a best effort flow is a flow that requires no bandwidth reservation. Reserved flows are allocated bandwidth through the use of (1) an end-to-end signaling mechanism and (2) a token passing mechanism that maintains reservation con- sistency across edge routers. Best effort flows require no signal- ing and may enter the network without any special participation by the end systems. The EQOS protocol assumes the existence of a network rout- ing protocol that updates edge routers with information about the topology of the network. This is a reasonable assumption, since widely used link state routing protocols such as OSPF [7] do this. The protocol also assumes the existence of a route pin- ning mechanism that is able to force a given flow’s packets to fol- low a specific path between two edge routers. Examples of such route pinning mechanisms include multiprotocol label switch- ing (MPLS) [8] and strict IP source routing. Although IP source routing is not feasible on an end-to-end basis due to the limited space available in the IPv4 header, it is feasible within a single administrative domain, where the number of router hops is sub- stantially lower. Since EQOS operates on an edge-to-edge ba- sis, it can utilize IP source routing effectively while avoiding the worries of space limitations of IP header. In the remainder of this section, we discuss the details of the EQOS protocol. First, we present the signaling mechanism for reserved flows. Then we present the distributed call admission mechanism used by EQOS. Finally, we present a simple route pinning mechanism that works with many existing routers.
A. Signaling for Reserved Flows
The EQOS protocol relies on the RSVP signaling mechanism to let applications inform the network of their bandwidth require- ments.^2 The RSVP protocol is an end-to-end, soft-state, receiver- initiated resource reservation algorithm for network flows. In RSVP, sources and receivers periodically exchange signaling messages, which cause the installation or refreshing of state in all routers through which they pass. The source of a flow pe- riodically sends a path message toward the receivers. As path messages passes through routers, they install or update tempo- rary “path state” in the routers, indicating the path through which the path message traveled. Receivers of path messages also peri- odically generate reservation messages, which routers propagate toward the source along the reverse of the path used by the path messages. Reservation messages cause the installation or update of “reservation state” in the routers. When a router receives a reservation message, it determines whether there are enough re- sources to handle the reservation. If so, it installs (or updates) its reservation state for the flow and propagates the reservation mes- sage to the next router indicated by the path state. If not enough resources are available, an RSVP reject message is returned to
(^1) In our opinion an ISP would primarily be interested in providing bandwidth guarantees only. The main reason for this belief is that pricing for bandwidth would be much more intuitive than that for any other QoS guarantee. (^2) Any other signaling mechanism can be handled in a similar fashion. We use RSVP as it is the most prominent requirement signaling mechainsm.
3 4
1 2 PATH Source RESV Receiver
Edge Router
Core Router
Network Domain
Fig. 1. An example illustrating the exchange of RSVP messages in an EQOS network
the receiver, and routers on the way remove any state that had been reserved for the flow.^3 Since one of the design goals of EQOS is to relieve core routers from the burden of maintaining per-flow state, an EQOS- capable network must interact with RSVP messages in a way that is different from normal RSVP-enabled networks. The EQOS protocol interacts with RSVP as follows:
- When an ingress router receives a path message, it stamps its own address into the message and forwards it toward the receiver.
- When a core router receives a path message, it simply routes and forwards the packet like any other.
- When an egress router receives a path message, it uses the address stamped into the message by the ingress router to set up or update the flow’s path state. The egress router then re-stamps its own address in the path message and forwards it to the next hop.
- When an egress router receives a reservation message, it examines the flow specification contained in the message and looks up the flow’s path state, which in- dicates the flow’s ingress router. The egress router uses a route pinning mechanism (such as source rout- ing or MPLS) to return the message to the flow’s ingress router.
- When a core router receives a reservation message, it simply routes and forwards the packet like any other.
- When an ingress router receives a reservation mes- sage, it examines the message’s flow specification as well as its reservation specification. If the flow’s reservation request can be met, reservation state for the flow is installed or updated in the ingress router. If the reservation cannot be met, an RSVP reject mes- sage is returned to the receiver.
- When an egress router receives an RSVP reject mes- sage, it frees the path state and reservation state for the specified flow and forwards the reject message toward the receiver. This mechanism is illustrated by example in Fig. 1. The source of a reserved flow transmits its first path message toward the receiver. On receiving the path message, edge router 1 in- (^3) This overview of RSVP is necessarily brief. For a readable and more com- plete discussion of the RSVP protocol, the reader is encouraged to read the sem- inal tutorial paper on the topic [2].
L1 L
L
3 Mbps 6 Mbps
8 Mbps
Flow 1 Flow 2
Fig. 2. Two best effort flows competing for a single link
utilized. Consider the example shown in Figure 2. Since flow 1 is bottlenecked at link L1, its ingress rate is limited to 3 Mbps. Flow 2, on the other hand, is considered by its ingress router to be bottlenecked at link L3, since it shares the link with one other flow. The ingress rate of flow 2 is therefore limited to 4 Mbps, which is the fair share of available bandwidth on link L3. The final result is that 1 Mbps of link L3’s available bandwidth re- mains unutilized by best effort flows. The reason for this unde- sirable result is that ingress routers only know the number of best effort flows crossing each link; they do not know where flows from other ingress routers are bottlenecked. In the example of Figure 2, flow 2’s ingress router does not know that the other flow sharing link L3 is bottlenecked by link L1. Fortunately, an enhancement can be made to the naive ap- proach in order to eliminate this effect. The enhancement entails modifying the token to include two additional pieces of informa- tion about each link in the network. In addition to the flow counts and the available bandwidths, the token lists for each link (1) the residual bandwidth , which is the total amount of available band- width that cannot be fully utilized by the link’s carried best ef- fort flows, and (2) the claimed residual bandwidth , which is the amount of residual bandwidth temporarily being used by best ef- fort flows. Residual bandwidth is any available bandwidth left over when all best effort flows sharing the link are unable to fully utilize the link’s available bandwidth due to the existence other bottleneck links. This residual bandwidth can be claimed by best effort flows on a first-come first-serve basis. Once a flow has claimed residual bandwidth, the claim is only good until another best effort flow needs the bandwidth to achieve its fair share. When deciding a flow’s ingress rate using the enhanced ap- proach, an ingress router calculates the best share of each link in the flow’s route and selects the smallest value. The best share is defined as follows:
best share = (available bandwidth/flow count) +residual bandwidth −claimed residual bandwidth
Once the ingress rate has been determined, the values of the residual bandwidth and claimed residual bandwidth on each link of the flow’s route are updated. In the example of Figure 2, this algorithm leads to an ingress rate of 3 Mbps for flow 1 and an ingress rate of 5 Mbps for flow 2.
E
E
E L
L L f
f
f f
E
E
E
f
f
f f
f
f
(a) Two best effort flows f1 and f2 share link L
(b) Later, a new flow f3 arrives at E
3 Mbps
6 Mbps 8 Mbps
L
L L 3 Mbps
6 Mbps 8 Mbps
Fig. 3. An example scenario for the admission of a new best effort flow
Best effort ingress rate limiters are most naturally imple- mented as rate controlled fair queuing schedulers [9], [10]. A fair queuing scheduler is allocated for each active edge-to-edge route, and each flow following a given route is allocated a queue in the route’s associated fair queuing scheduler. The advantage of using fair queuing schedulers is that they are work conserving; when one flow does not fully utilize its fair share of available bandwidth, another flow following the same route can exploit the unutilized bandwidth. Although on first glance it might seem that having one fair queuing scheduler per edge-to-edge route is excessive, in fact the number of active routes between two edge routers is typically not very large. For an example of how best effort flows are treated by the EQOS protocol, consider the scenario depicted in Figure 3. As- sume the token circulates in a clockwise manner from E1 to E to E3. Assume also that the most recent token received by edge routers E1 and E2 indicates that link L3 carries two best effort flows, and links L1 and L2 carry one best effort flow each. For the purposes of this example, there are no reserved flows being carried by any of the links. Hence, flow f1 is limited to a rate of 3 Mbps, so it has set the residual bandwidth on link L3 to 1 Mbps; flow f2 has claimed this residual bandwidth and is therefore lim- ited to a rate of 5 Mbps. At a later time, when the token is still at edge router E3, a new flow f3 arrives at E2. Instead of wait- ing to receive the token, E2 allows packets from flow f3 to fol- low the same route as flow f2 and to share the 5 Mbps of band- width used by flow f2. When E2 receives the token, it computes the route for flow f3 and increments the flow counts for links L2 and L3. However, it continues to serve f2 and f3 at a com- bined rate of 5 Mbps until the updated token has had a chance to fully circulate the edge routers. When E1 receives the modi- fied token, it observes that there are 3 flows sharing link L3 and reduces the rate of flow f1 to 1.¯6 Mbps, which is equal to flow f1 ’s fair share of link L3 minus the claimed residual bandwidth which E1 had made available on link L3. Since flow f1 is not re-
ceiving its full fair share, edge router E1 also reduces the resid- ual bandwidth on link L3 to zero and forwards an updated to- ken to E2. At this point, E2’s updated token has had a chance to fully circulate the network and so E2 begins regulating the rates of flows f2 and f3 independently. E2 also notices that the resid- ual bandwidth has been reduced since it last saw the token, so it relinquishes its claimed residual bandwidth and calculates a best share for flows f2 and f3 of 2.¯6 Mbps each. When E1 sees the next updated token, it notices that another edge router has relin- quished its claimed residual bandwidth and increases the rate of flow f1 to 2.¯6 Mbps. At this point, all three flows are transmitting at equal rates across the shared bottleneck link L3.
C. Local Route Pinning
The EQOS protocol relies on a local route pinning mechanism to ensure that packets from all flows, both best effort and re- served, follow known routes through the network. Route pinning is necessary to maintain resource reservations; if routes followed by packets are not predictable, then no guarantees about resource allocation can be made. To support route pinning, there are basically two options. One option is to use MPLS, which is a standardized route pinning technique for switch-based routers. When MPLS is used as the local route pinning mechanism for EQOS, all edge and core routers are assumed to support MPLS. Unfortunately, there are a large number of networks that do not support MPLS. For EQOS to be effective in these networks, another option must be considered. Since many routers imple- ment IP source routing, we consider this to be a suitable alter- native for local route pinning between edge routers. An ingress router ensures that a packet follows a particular route by includ- ing the IP addresses of all core routers between the two edge routers in the IP header’s options field. When the egress router receives a source routed packet, it strips the source route and forwards the packet to the next network. By stripping source routes from packets as they leave the network, EQOS ensures that the route pinning mechanism is local to the network in which it operates. It also makes IP source routing a feasible option for route pinning, since it is only operates within a single adminis- trative domain, which is not likely to have a large number of core routers.
III. S IMULATION E XPERIMENTS We have carried out a number of simulation experiments to study the performance of the EQOS protocol. The primary ob- jective of the simulations was to determine whether EQOS is able to provide rate guarantees to reserved flows in the face of competing best effort flows. Another objective was to study the impact of EQOS on best effort flow throughput and delay.^5 All simulations were performed using a modified version of the UC Berkeley ns-2 simulator [11]. The first simulation experiment measures the perfomance of flows on a single link which is terminated by two edge routers and has a bandwidth capacity of 10Mbps and a propagation de- lay of 10 msec. Among the flows sharing this link are a single re-
(^5) Although we are not trying to solve the problem of fairness among best ef- fort flows in this paper, we test how the best effort flow management of EQOS performs as far as fairness goes. The appendix includes results on fairness.
(^01 2 3 4 5 6 7 8 9 10 )
1
2
3
4
5
Flow number
Throughput (Mbps)
Fig. 4. Throughputs of 1 reserved flow, 5 UDP best effort flows, and 5 TCP best effort flows sharing a single link
Reserved flow 1 (4 Mbps)
Reserved flow 2 (3 Mbps)
Best effort flows 1 & 2
Fig. 5. The star model used in experiment 2
served flow and 10 best effort flows. The experiment is designed to explore whether EQOS can protect best effort TCP flows from best effort UDP flows whose sources do not back off in the face of congestion and at the same time provide a reserved flow with its share of bandwidth. Flow 1 is a reserved flow with a reserva- tion of 5 Mbps on the link, flows 2-6 are best effort UDP flows that transmit at rates of i Mbps, where i is the flow’s index num- ber, and flows 7-11 are best effort TCP flows. The results shown in Figure 4 indicate that the shares of link bandwidth allocated to the best effort TCP and UDP flows are nearly identical, while the reserved flow continues to obtain its reserved allocation of 5 Mbps. In the second experiment, we study how effectively EQOS is able to allocate bandwidth on links shared by flows from multi- ple ingress routers. We consider the simple star topology of Fig- ure 5 in which all links have capacities of 10 Mbps and propaga- tion delays of 10 msec. Two reserved flows and two best effort UDP flows enter the network from different ingress routers and depart the network through a common egress router. The results of this simulation are shown in Figure 6. At time t = 0. 5 sec- onds, reserved flow 1 initiates transmission and requests a reser- vation of 4 Mbps. Shortly thereafter, the reservation is accepted
0.10.1 0.15 0.2 0.25 0.3 0.35 0.4 0.45 0.
1
Response Time (seconds)
Token Circulation Time (seconds)
Best Response TimeAverage Response Time Worst Response Time
Fig. 10. Reservation response times with increasing token circulation times
The experiment is conducted by randomly initiating reserved flows at each of the ingress routers. When an ingress router re- ceives a reservation message, it starts a timer. After the ingress router has updated the token and fully circulated it among the other edge routers, the flow’s timer is examined to obtain the reservation response time. To vary the token circulation time, the number of core routers is increased from 2 to 8. Figure 10 shows the average, best case and worst case reserved flow re- sponse times for increasing token circulation times. We find that the average response time generally falls half-way between best and worst case scenarios. Note that this result, in fact, verifies the correctness of our protocol. 6 If the bandwidth manangement of EQOS was incorrect, the queues inside the routers buffers would have built up and thus would have increased the response time. This result also implies that EQOS would serve its domain very well since it is an edge-to-edge protocol and the circulation time inside a domain area would be quite small.
IV. D ISCUSSION In the EQOS protocol’s description, we have left several im- portant issues unaddressed. In this section, we briefly address these issues and propose several possible mechanisms to deal with them.
A. Selection of the Token Circulation Path
Thus far, we have assumed that tokens circulate edge routers on a predefined path. As shown by the simulation results, the response time to reservation requests is proportional to the to- ken circulation time. Hence, the token circulation path should be chosen to minimize the token circulation time. The prob- lem of selecting an optimal token circulation route is identical to the well-known traveling salesman problem, which is known to be NP-complete [12]. For small enough domains, the travel- ing salesman problem can be solved by brute force. For larger domains, however, a heuristic may be necessary to achieve a near-optimal circulation path. There are many such heuristics like the nearest neighbor approximation and Christofides 1/2- approximation algorithm [13].
(^6) A mathematical proof of correctness is given in the appendix.
The token circulation path may be selected statically, in which case it is configured once by the network manager, or dynami- cally, in which the path may change as the network’s topology changes. A dynamic algorithm is more robust, because network links often fail. We leave for future work the development of a dynamic token circulation path selection algorithm. Since token passing is critical to the EQOS protocol, a small amount of bandwidth should be reserved on the token circulation path. Since the EQOS protocol never over-allocates bandwidth in its domain, this small reservation will virtually eliminate the likelihood that the token is discarded or buffered for long periods of time. The edge routers should also preempt the processing of other packets when a token arrives in order to minimize the token circulation time.
B. Regeneration of Lost Tokens We have also assumed that tokens are never lost by the net- work. However, this is not a safe assumption. If a router fails or a buffer overflows, the token may not continue to circulate, in which case the EQOS network will eventually come to a halt. What is needed is a mechanism to regenerate a token after a par- ticular time-out interval. To support token regeneration, one edge router may be des- ignated as the token monitor. Every time the monitor receives a token, it stores the token’s state and initiates a timer. If the monitor fails to receive the token again before the timer expires, it regenerates the token, increments the token’s sequence num- ber and inserts the token state carried by the last observed token. When other edge routers obtain the regenerated token and notice that the sequence number has been incremented, they reissue any reservations or update any flow counts that were placed in the previous token.
C. Handling Link and Router Failures When a router or a link fails, the link state updates will reflect it, and the next edge router to receive the token updates its con- tents, removing the affected links. As edge routers receive the updated token, they recompute routes for all affected flows and update the token’s contents accordingly. After one circulation of the token, all edge routers become aware of the new topology and have adjusted their flow rates to take it into account.
D. Flow State Expiration When an ingress router creates state for a new reserved or best effort flow, it must also make provisions for removing that state. Otherwise reserved flows that do not issue tear-down messages may hold onto reserved bandwidth indefinitely, and best effort flow counts may continue to accumulate needlessly. To prevent this from happening, ingress routers rely on a soft-state mech- anism. At the creation of a new flow, ingress routers initiate a timer, which is reset whenever a new packet from the flow ar- rives. If a flow does not generate any packets before the timer expires, then its resources are freed by updating the contents of the next arriving token. In the case of a reserved flow, this en- tails updating the available bandwidth on each of the affected route’s links. In the case of a best effort flow, the flow counts, residual bandwidth and claimed residual bandwidth of links on the affected route are updated.
E. Handling Short-Lived Flows
The best effort traffic controlling mechanism of EQOS relies on the ingress router reporting a new best effort flow in the to- ken. It may seem at an initial glance that the network utilization would suffer if the ingress router reports a flow which is short- lived. However, this is not true. EQOS uses a fair rate sched- uler to police an active path. A feature of fair rate schedulers is the fact that they are work-conserving. Although the short-lived flow dies out quickly, the other flows sharing the path can uti- lize the bandwidth thus maintaining the high network utilization feature of EQOS.
V. C ONCLUSION We have presented the Edge-assisted Quality of Service pro- tocol, a distributed resource reservation protocol that provides strict guarantees to application flows and supports fair alloca- tions of bandwidth to best effort flows. It also ensures that no matter how much traffic arrives at the network border, the re- sources assigned to reserved flows are not affected. To pro- vide bandwidth guarantees, EQOS uses a combination of RSVP signaling, edge router token exchange, and route pinning. The EQOS protocol’s primary distinction is the fact that it is im- plemented entirely in edge routers and requires no changes to core routers. This makes the EQOS protocol scalable and sim- ple to deploy on a network-by-network basis within the Inter- net. Furthermore, since it relies on RSVP signaling, an EQOS network can interoperate seamlessly with an RSVP-based non- EQOS network. The EQOS protocol does not require the network administra- tor to statically partition the link bandwidth between reserved and best effort flows. The dynamic bandwidth sharing between reserved and best effort flows maintains a high network utiliza- tion. Another point that merits consideration is that the token-based approach of EQOS can be easily altered to serve as a distributed bandwidth brokerage mechanism for differentiated services net- works. Since EQOS is designed to control admission in a dis- tributed manner according to the policy of the network domain, any network requiring a distributed bandwidth broker can tailor the EQOS algorithm to meet its particular requirements. In future, we would like to expand our work to cover the other areas like advance reservations, statistical guarantees and fair- ness. However, we would like to provide for all these in a way similar to EQOS, i.e., entirely at edge routers.
R EFERENCES
[1] C. Topolcic, “Experimental Internet Stream Protocol: Version 2 (ST-II),” RFC 1190, IETF, October 1990. [2] L. Zhang, S. Deering, D. Estrin, S. Shenker, and D. Zappala, “RSVP: A new Resource ReSerVation Protocol,” IEEE Network Magazine , pp. 8–18, September 1993. [3] J. Wroclawski, “The Use of RSVP with IETF Integrated Services,” RFC 2210, IETF, September 1997. [4] S. Blake, D. Black, M. Carlson, E. Davies, Z. Wang, and W. Weiss, “An Ar- chitecture for Differentiated Services,” RFC 2475, IETF, December 1998. [5] I. Stoica and H. Zhang, “Providing Guaranteed Services Without Per Flow Management,” in Proc. of ACM SIGCOMM , September 1999, pp. 81–94. [6] Z. Zhang, Z. Duran, L. Gao, and Y. Hou, “Decoupling QoS Control from Core Routers: A Novel Bandwidth Broker Architecture for Scalable Sup- port of Guaranteed Services,” in Proc. of ACM SIGCOMM , October 2000, pp. 71–83.
[7] J. Moy, “OSPF Version 2,” RFC 2178, IETF, April 1998. [8] E.C. Rosen and A. Viswanathan, “Multiprotocol Label Switching Archi- tecture,” Tech. Rep. Internet draft (work in progress), IETF, August 1999. [9] A. Demers, S. Keshav, and S. Shenker, “Analysis and simulation of a Fair Queueing Algorithm,” in Proc. of ACM SIGCOMM , 1989, pp. 3–12. [10] A. Parekh and R. Gallager, “A Generalized Processor Sharing Approach to Flow Control – the Single Node Case,” IEEE/ACM Transactions on Net- working , pp. 344–357, June 1993. [11] LBNL Network Research Group, UCB/LBNL/VINT Network Simulator - ns (version 2) , http://www-mash.cs.berkeley.edu/ns/, September 1997. [12] M.R. Garey and D.S. Johnson, Computers and Intractibility: A Guide to the Theory of NP-Completeness , W.H. Freeman and Company, San Fran- sico, 1979. [13] N. Christofides, “Worst-case Analysis of a New Heuristic for the Trav- elling Salesman Problem,” Tech. Rep. 388, Carnegie-Mellon University, Graduate School of Industrial Administration, 1976. [14] A. Parekh and R. Gallager, “A Generalized Processor Sharing Approach to Flow Control – the Multiple Node Case,” IEEE/ACM Transactions on Networking , vol. 2, no. 2, pp. 137–150, April 1994. [15] G. Apostolopoulos, R. Gu´erin, S. Kamat, and S. Tripathi, “Quality of Ser- vice Based Routing: A Performance Perspective,” in Proc. of ACM SIG- COMM , September 1998, pp. 17–28.
A PPENDIX I. P ROOF OF C ORRECTNESS The EQOS algorithm is meant to provide bandwidth guaran- tees to reserved flows. The combined rate of flows must not ex- ceed the capacity of the link, as the core routers are oblivious to reserved flows. In this section we formally establish thar EQOS never over-allocates the capacity of a link. Claim: EQOS does not allow the sum of rates of flows passing through a link l, to be more than its capacity. Proof: Consider a link l with capacity C. Assume that the state of a link is defined by the number of re- served flows, number of bottlenecked flows and the number of non-bottlenecked flows traversing it. Let, nr = number of reserved flows on l n 1 = number of best effort flows which are not bottlenecked (the ones which contribute some residual bandwidth) at l n 2 = number of best effort flows which are bottlenecked (the ones which do not contribute to the residual bandwidth) at l nb = n 1 + n 2 = total number of best effort flows on l Also, Cq = total bandwidth reserved on l by nr reserved flows C − Cq = Total available capacity for all best effort flows. Cr = Total residual capacity, which is the unused portion of fair share of the n 1 non-bottlenecked flow. Assume that for the some values of nr, n 1 and n 2 the total rates of these flows are not more than C. The bandwidth distribution in the current state of the link is as follows: Reserved flows use Cq in all. Non-bottlenecked flows have a fair share n^1 (C n−b Cq^ ). Of this they leave Cr as residual bandwidth. Hence, their total rate is n 1 (C−Cq ) nb −^ Cr^. The bottlenecked flows use n^2 (C n−b Cq^ )which is their fair share and claim the residual bandwidth Cr making their total rate n 2 (C−Cq ) nb +^ Cr^. Hence, the total allocated capacity is:
E
E
E
f2 f
f3-fn
f1-fn
L4, C
L1, C
L2, C
L3, C
E
Fig. 11. An example illustrating the unfairness of EQOS.
C q′ +
n′ 1 (C − C′ q) nb
− C r′
n′ 2 (C − C q′) nb
≤ C
After the second circulation cycle, the entire residual band- width will be taken up by the non-bottlenecked flows. Then the total rate of the flows will be C. Case 4: One of the best effort flow on l ends (it may be a bottlenecked flow or a non-bottlenecked flow). The number of best effort flows reduce by 1 or n′ b = nb − 1. Now the fair share of the best effort flows increases. This means that some of the flows which were bottlenecked at l earlier, may not be bottlenecked any more or n′ 2 ≤ n 2. Hence they may contribute some residual band- width or C r′ ≥ Cr. After one token cycle, the total rates of the flows on l is:
Cq +
n′ 1 (C − Cq) n′ b − C′ r
n′ 2 (C − Cq) n′ b
= C − C r′ + Cr ≤ C After the second token cycle, the entire residual bandwidth is taken up by the bottlenecked flows and thus the total rate be- comes :
Cq +
n′ 1 (C − Cq) n′ b
− C′ r
n′ 2 (C − Cq) n′ b
= C − C r′ + C′ r = C Hence the claim.
II. FAIRNESS It is a well-accepted fact that providing some measure of fair- ness to competing flows is desirable. It protects the compliant flows from the misbehaving ones and provides lower delays to flows using not more than their fair share of bandwidth. Al- though we are not trying to solve the problem of fairness among
Fig. 12. A typical ISP topology.
(^00 100 200 300 400 500 600 700 800 900 1000 )
10
20
30
40
50
60
70
80
90
100
Number of Flows
percent (%)
Deviation from max−min fairness
Fig. 13. Percentage deviation of best share fairness from max-min fairness with increase in number of flows.
best effort flows in this paper, the best share mechanism uses fair rate schedulers. This fairness comes into picture because it seems to be the best way of achieving distributed rate control while simultaneously ensuring that best effort flows don’t starve and network utilization doesn’t suffer. In this section we evalu- ate the degree of fairness of our protocol; how fairly is the band- width left after the allocation to reserved flows, allocated among competing best effort flows. EQOS divides the bandwidth among the best effort flows us- ing “best share” mechanism. A flow gets its fair share on its bottleneck link and on the non-bottleneck links it indicates the residual bandwidth of its fair share. The residual bandwidth is claimed by the flows which encounter the token and which can utilize this bandwidth to increase their rate. We compare this best share allocation with max-min fairness. All our simulations results in section III show a max-min fair distribution between best effort flows. We simulated the case where the best effort flows have randomly selected source and destination on a typical ISP topology shown in Fig. 12 (taken from [15]) and we varied the number of flows from 200 to 1000. Fig. 13 shows the average absolute percentage by which the ac- tual allocations differed from the max-min allocation. We see that the difference is typically less than 20% averaged over all the flows. This indicates that the degree of unfairness of the EQOS protocol is very acceptable in practice. However, we demonstrate that EQOS is not max-min fair us-
ing a contrived case. Fig. 11 shows an example in which the al- location is significantly different from max-min fair allocation. E1, E2, E3 and E4 are edge routers connected in a star topology to a core router with links L1, L2, L3 and L4 having available capacity C1, C2, C3 and C4. Assume that the token circulates in order E1-E2-E3-E4. Suppose that C2 is small and C1 and C3 are greater than C4. Consider n flows, f1 ...fn , of which f1 follows the path L1-L4 and f2 follows the path L3-L4. The remaining n- 2 flows, f3 ...fn , follow the path L2-L4. The fair share of flows
f3 ...fn is the entire bandwidth on L2 and (n− n2) C^4 on L4. Since these flows are bottlenecked by L2, the total residual bandwidth on L4 is approximately (n− n2) C^4 (since the available bandwidth on L2 is nearly zero). This entire bandwidth is claimed by f2 and
thus it gets a bandwidth of approximately (n− n1) C^4 on L4. f1 gets its fair share of C n^4. A max-min fair allocation in this scenario would have been approximately C 24 for both f1 and f2 and ap- proximately zero for the remaining flows. This shows that the best share fairness of EQOS can be significantly different from max-min fairness.
