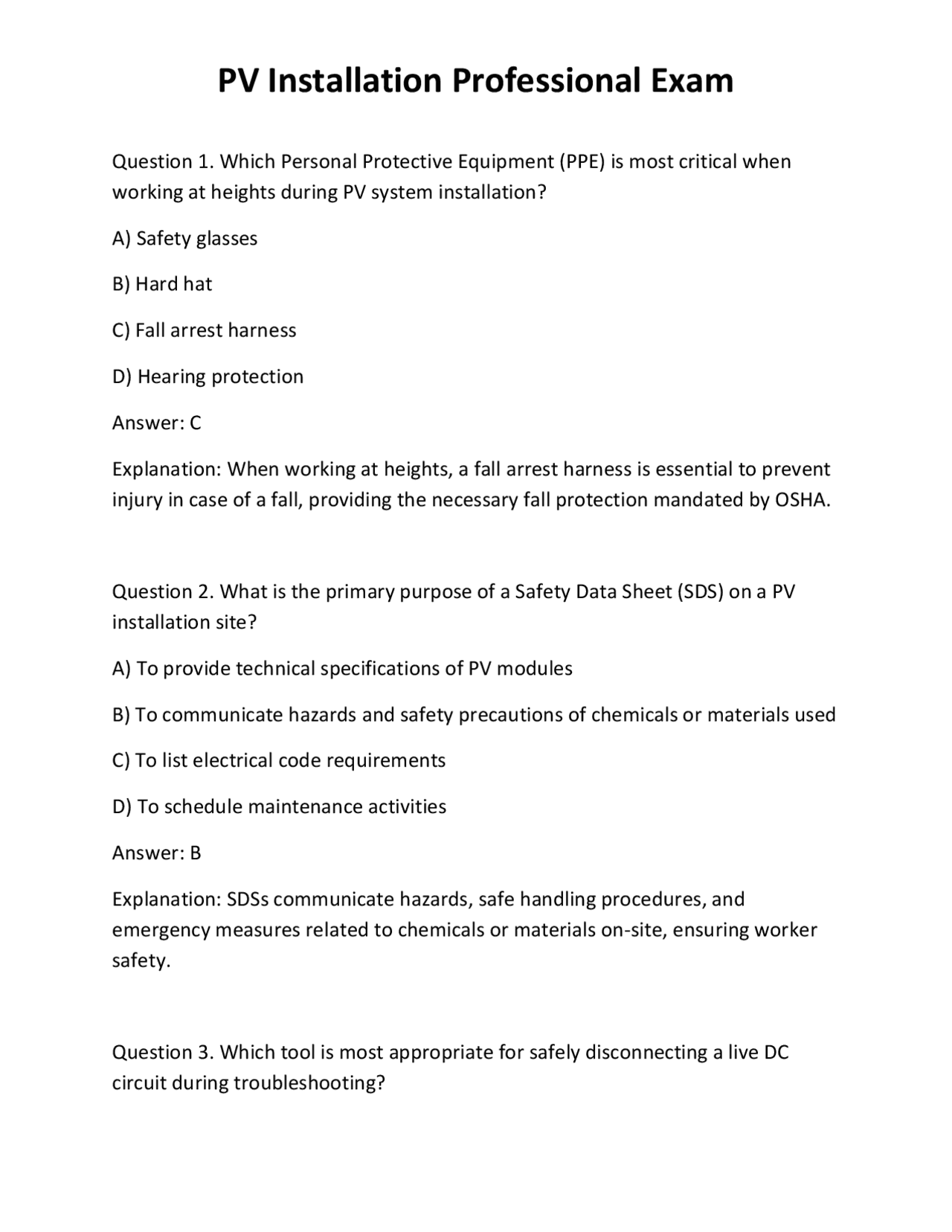

Question 1. Which Personal Protective Equipment (PPE) is most critical when working at heights during PV system installation? A) Safety glasses B) Hard hat C) Fall arrest harness D) Hearing protection Answer: C Explanation: When working at heights, a fall arrest harness is essential to prevent injury in case of a fall, providing the necessary fall protection mandated by OSHA. Question 2. What is the primary purpose of a Safety Data Sheet (SDS) on a PV installation site? A) To provide technical specifications of PV modules B) To communicate hazards and safety precautions of chemicals or materials used C) To list electrical code requirements D) To schedule maintenance activities Answer: B Explanation: SDSs communicate hazards, safe handling procedures, and emergency measures related to chemicals or materials on-site, ensuring worker safety. Question 3. Which tool is most appropriate for safely disconnecting a live DC circuit during troubleshooting?
A) Pliers B) Insulated tools C) Hammer D) Regular screwdriver Answer: B Explanation: Insulated tools are designed to protect the user from electrical shock when working near energized circuits, especially DC systems. Question 4. Which is a key component of a Personal Fall Arrest System (PFAS)? A) Guardrail B) Safety net C) Lanyard and harness D) Warning sign Answer: C Explanation: A PFAS typically includes a harness, lanyard, and anchorage point to arrest a fall and prevent injury. Question 5. According to OSHA regulations, what is the minimum required height for guardrails on elevated work surfaces? A) 36 inches B) 42 inches C) 48 inches
Explanation: Staying hydrated and taking regular breaks help prevent heat-related illnesses during high-temperature work. Question 8. In PV system design, what does the term "bypass diode" in a module do? A) Converts DC to AC B) Prevents shading effects from reducing overall module output C) Protects against overcurrent D) Regulates voltage output Answer: B Explanation: Bypass diodes allow current to bypass shaded or damaged cells, reducing the impact of shading on the module’s overall performance. Question 9. Which type of PV cell is known for its high efficiency and uniform appearance? A) Monocrystalline B) Polycrystalline C) Thin-film D) Amorphous silicon Answer: A Explanation: Monocrystalline cells are made from single-crystal silicon, offering high efficiency and a uniform dark appearance.
Question 10. What is the primary function of an inverter in a PV system? A) Store electrical energy B) Convert DC from modules to AC for grid compatibility C) Protect against overcurrent D) Mount PV modules securely Answer: B Explanation: The inverter converts the DC electricity generated by modules into AC, which is used by the grid and household appliances. Question 11. Which inverter type is typically used for small-scale residential systems and allows for modular expansion? A) String inverter B) Micro inverter C) Central inverter D) Hybrid inverter Answer: B Explanation: Micro inverters are installed at each module, allowing for scalable, modular systems suitable for residential applications. Question 12. What does MPPT stand for in inverter functions? A) Maximum Power Point Tracking B) Multi-Phase Power Transfer
Answer: A Explanation: Proper sizing requires that the array's voltage stays within the inverter’s specified voltage range, ensuring safe and efficient operation. Question 15. Which battery type is most commonly used for residential PV energy storage due to its high energy density and long cycle life? A) Lead-acid B) Lithium-ion C) Nickel-cadmium D) Flow batteries Answer: B Explanation: Lithium-ion batteries have high energy density, long cycle life, and are widely used in residential storage systems. Question 16. According to the NEC, which article covers the installation requirements for photovoltaic systems? A) Article 705 B) Article 690 C) Article 410 D) Article 300 Answer: B Explanation: Article 690 in the NEC specifically addresses solar photovoltaic systems, including installation requirements.
Question 17. Why is proper conductor sizing critical in PV wiring? A) To prevent overcurrent and overheating B) To reduce the physical size of the wiring C) To increase voltage drop D) To simplify installation Answer: A Explanation: Correct conductor sizing ensures conductors can safely carry the current without overheating, complying with electrical codes. Question 18. What is the main purpose of grounding in a PV system? A) To provide a path for fault currents and prevent shock hazards B) To improve system efficiency C) To reduce system cost D) To increase voltage output Answer: A Explanation: Grounding provides a safe path for fault currents, reducing shock risk and protecting equipment. Question 19. Where should disconnect switches be placed in a PV system? A) Inside the inverter only B) Upstream of the inverter, accessible for maintenance and emergency shutoff
Answer: A Explanation: Flat roofs must be assessed for structural support to handle the weight of the array and environmental loads like wind and snow. Question 22. Which is an effective method to prevent water infiltration at roof penetrations for mounting systems? A) Using non-waterproof sealants B) Installing flashing and waterproof sealants around penetrations C) Leaving penetrations unsealed for ventilation D) Covering penetrations with tape only Answer: B Explanation: Proper flashing combined with waterproof sealants prevents water infiltration at roof penetrations. Question 23. Which layout orientation maximizes solar energy capture in the northern hemisphere? A) Facing true south B) Facing east C) Facing west D) Facing north Answer: A Explanation: In the northern hemisphere, south-facing arrays receive the maximum sunlight and energy throughout the day.
Question 24. How does shading impact PV system performance? A) It reduces current and overall energy output B) It increases system efficiency C) It has no effect if modules are bypassed D) It only affects the inverter Answer: A Explanation: Shading reduces the current flow in affected cells or modules, significantly decreasing energy production. Question 25. What is a typical torque specification for securing PV module mounting fasteners? A) 10-15 ft-lb B) 30-50 ft-lb C) 75-100 ft-lb D) 150-200 ft-lb Answer: B Explanation: Most mounting fasteners require torque in the range of 30-50 ft-lb to ensure secure attachment without damaging components. Question 26. When performing system commissioning, what is a critical step before energizing the system?
C) Every 1-3 years D) As needed, based on dirt accumulation and environmental conditions Answer: D Explanation: Cleaning frequency depends on environmental factors; regular inspections determine when cleaning is necessary. Question 29. Which diagnostic tool is most effective for detecting hot spots in PV modules? A) Multimeter B) Infrared (IR) camera C) Clamp meter D) IV curve tracer Answer: B Explanation: An IR camera visualizes temperature differences, revealing hot spots that can indicate damaged cells or shading. Question 30. What is a common cause of inverter fault codes during system operation? A) Loose wiring connections B) Proper grounding C) Correct module orientation D) Adequate ventilation
Answer: A Explanation: Loose or faulty wiring can cause inverter faults, leading to system shutdown or error codes. Question 31. When selecting a PV module mounting system for a tile roof, which consideration is most important? A) Compatibility with tile type and secure attachment points B) Use of only ballasted mounting systems C) Mounting directly on the roof surface without penetrations D) Avoiding flashing or sealing around penetrations Answer: A Explanation: Mounting systems must be compatible with tile types, and secure attachment with proper flashing prevents leaks. Question 32. How does module tilt angle influence energy production? A) Optimal tilt maximizes exposure to sunlight and energy output B) Tilt angle has no effect on performance C) A flat tilt always yields the highest energy D) Increasing tilt always decreases energy production Answer: A Explanation: Proper tilt angle aligns modules for maximum solar exposure, optimizing energy capture.
A) Using non-conductive mounting hardware B) Ensuring proper grounding of the modules and mounting system C) Ignoring wind load calculations D) Mounting without flashing to reduce cost Answer: B Explanation: Proper grounding prevents electrical shock hazards and ensures system safety, especially on conductive metal roofs. Question 36. During interconnection, what does anti-islanding protection prevent? A) Overvoltage conditions B) The PV system from energizing the grid during outages, protecting utility workers C) Excessive shading D) Excessive power output Answer: B Explanation: Anti-islanding prevents the PV system from continuing to feed power during grid outages, ensuring safety. Question 37. Which component is essential for protecting a PV system from voltage surges? A) Surge Protective Device (SPD) B) Circuit breaker
C) Fuses D) Disconnect switch Answer: A Explanation: SPDs protect against transient voltage surges caused by lightning or switching events. Question 38. When performing a voltage drop calculation, which factor is most important? A) Length and size of conductors B) Number of modules C) Orientation of the array D) Color of the wiring Answer: A Explanation: Longer conductors or smaller gauge wiring increase voltage drop; proper sizing minimizes losses. Question 39. In PV system design, what does "shading analysis" help determine? A) Optimal array orientation and placement to minimize shading impacts B) The color of modules C) The best inverter brand D) The system's warranty period Answer: A
Question 42. What is a key consideration when installing PV modules on a flat roof? A) Ensuring proper tilt and ventilation for performance and cooling B) Mounting directly on the roof membrane without supports C) Avoiding wind considerations D) Using only ballast without penetrations Answer: A Explanation: Proper tilt improves performance, and ventilation helps reduce operating temperatures, enhancing efficiency. Question 43. Which regulation specifies the maximum allowable working distance for electrical wiring in PV systems? A) NEC Article 300 B) OSHA 1926 C) IEC 61215 D) NFPA 70E Answer: D Explanation: NFPA 70E provides guidelines for safe working distances and electrical safety practices. Question 44. During commissioning, what is the significance of verifying the system's open-circuit voltage (Voc)? A) To ensure the system is correctly wired and within design parameters
B) To measure the inverter's efficiency C) To check for shading impacts D) To determine the battery capacity Answer: A Explanation: Verifying Voc confirms correct wiring and that voltage levels are within safe, expected ranges. Question 45. Why is regular cleaning of PV modules recommended? A) To remove dirt and debris that can reduce energy output B) To prevent module corrosion C) To improve aesthetic appearance only D) To increase module weight Answer: A Explanation: Dirt and debris on modules block sunlight, reducing efficiency; cleaning restores optimal performance. Question 46. Which troubleshooting step is appropriate if the inverter displays a communication fault? A) Check communication cables and connections B) Replace the PV modules immediately C) Disconnect the inverter from the grid D) Ignore the fault and continue operation
