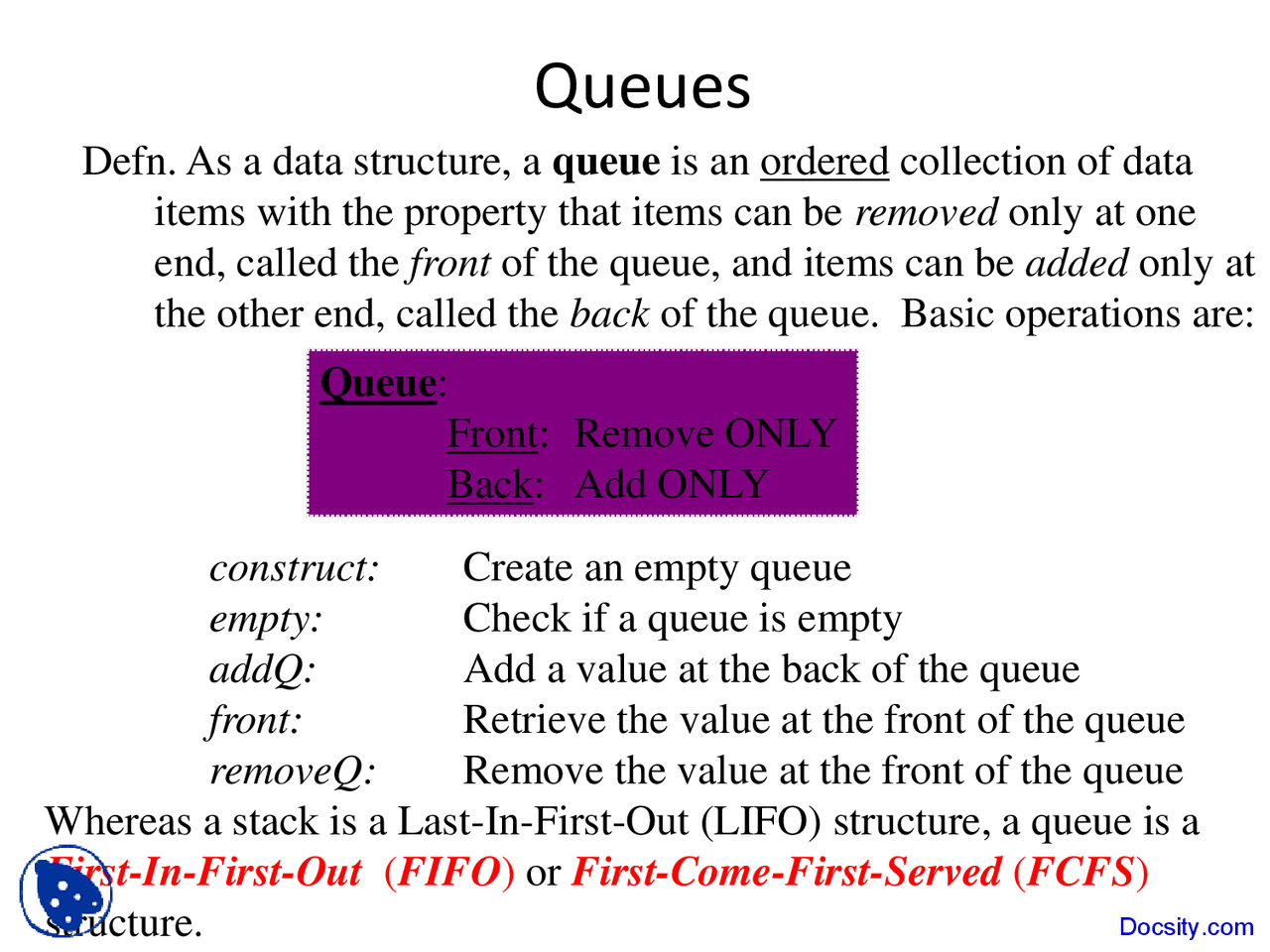

Queues
Defn. As a data structure, a queue is an ordered collection of data
items with the property that items can be removed only at one
end, called the front of the queue, and items can be added only at
the other end, called the back of the queue. Basic operations are:
construct: Create an empty queue
empty: Check if a queue is empty
addQ: Add a value at the back of the queue
front: Retrieve the value at the front of the queue
removeQ: Remove the value at the front of the queue
Whereas a stack is a Last-In-First-Out (LIFO) structure, a queue is a
First-In-First-Out ( FIFO ) or First-Come-First-Served ( FCFS )
structure.
Queue :
Front: Remove ONLY
Back: Add ONLY
Docsity.com
a. I/O buffers: queues, scrolls, deques
♦ From a file: ( queue )
Infile >> X;
X
Input
Buffer
CPU
Disk Memory
Input Buffer
queues input for
the CPU
Examples:
Scroll :
Front: Remove
or
Add
Back: Add
or
Remove
Screen handling: ( deque — double-
ended queue)
♦ Printer queue: When files are submitted to a printer, they are
placed in the printer queue. The printer software executes
an algorithm something like:
for (;;)
while (printerQueue.empty())
sleep 1;
printFile = printerQueue.removeQ();
Print(printFile);
b. Scheduling queues in a multi-user
computer system:
Probably uses a priority
queue : Items with lower
priority are behind all those
with higher priority.
(Usually a new item is
inserted behind those with the
same priority.)
c. CPU Scheduling:
Queues vs. Stacks
- Stacks are a LIFO container
- Store data in the reverse of order received
- Queues are a FIFO container
- Store data in the order received
- Stacks then suggest applications where some sort of reversal
or unwinding is desired.
- Queues suggest applications where service is to be rendered
relative to order received.
- Stacks and Queues can be used in conjunction to compare
different orderings of the same data set.
- From an ordering perspective, then, Queues are the “opposite”
of stacks
- Easy solution to the palindrome problem
Array Implementation
Any implementation of a queue requires: storage for the data as well as markers (“pointers”) for the front and for the back of the queue.
An array-based implementation would need structures like myArray, an array to store the elements of the queue myFront, an index to track the front queue element myBack, an index to track the position following last queue element
Additions to the queue would result in incrementing myBack. Deletions from the queue would result in incrementing myFront. Clearly, we’d run out of space soon!
Solutions include: Shifting the elements downward with each deletion (YUCK!!) Viewing array as a circular buffer, i.e. wrapping the end to the front
“Circular” Array-Implementation
Wraparound keeps the addition/deletion cycle from walking off the edge of the storage array.
Say, myArray has QUEUE_CAPACITY elements.
When myBack hits the end of myArray, a deletion should wrap myBack around to the first element of myArray, viz:
myBack++; if (myBack = = QUEUE_CAPACITY) myBack = 0;
//equivalently (preferred, concise) myBack = (myBack + 1) % QUEUE_CAPACITY;
Analogous handling of myFront needed.
QUEUE class
#ifndef QUEUE #define QUEUE const int QUEUE_CAPACITY = 128; typedef int QueueElement; class Queue { /***** Function Members *****/ public: Queue(); bool empty() const; bool full() const; void addQ(const QueueElement & value); QueueElement front const(); //nondestructive “peek” void removeQ(); /***** Data Members *****/ private: QueueElement myArray[QUEUE_CAPACITY]; int myFront, myBack; }; // end of class declaration #endif
QUEUE class implementation
Queue::Queue() { myFront = myBack = 0; }
bool Queue::empty() { return myFront == myBack; }
bool Queue::full() { return myFront == (myBack + 1) % QUEUE_CAPACITY; }
Linked list implementation
Linked list implementation is another approach for queue representation.
The interface to the class Queue empty, addq, removeq, front, etc. would not change
The storage structure would be a linked list. The markers would be pointers now rather than indices into an array. myFront would contain the address of the first node in this list myBack would contain the address of the last node in this list
empty would test if myFront was a nonnull pointer, addq would allocate a new node, link it off myBack and update myBack, removeq would remove the first element and update myFront, front would return a copy of the element whose address was in myFront
Deque
A deque (double-ended queue) is similar to a queue BUT additions and deletions may be performed on either end.
Hence, an implementation needs a directive (tag) indicating at what end the operation is to be performed OR multiple methods should be provided.
We modify a queue's circular array implementation here.
#include using namespace std;
enum where {front, rear};
/* Deque implemented with same data members myArray myFront myBack Constructors and empty(), full() methods the same */ Docsity.com
Deque enqueuing
//better to provide two addition methods void Deque::push_front(int item) {if ((myBack +1)% QUEUE_CAPACITY == myFront) cout << "FULL, cannot add to queue." << endl; else // enqueue at front { if (!myFront) myFront = QUEUE_CAPACITY; else myFront--; myArray[myFront] = item; } return; } void Deque::push_back(int item) { if ((myBack +1)% QUEUE_CAPACITY == myFront) cout << "FULL, cannot add to queue." << endl; else // regular enqueuing { myArray[myBack] = item; myBack = (myBack+ 1) % QUEUE_CAPACITY; } return; }
Deque dequeuing
int Deque::pop_front() // assume non-empty { int item = myArray[myFront]; myFront= (myFront+ 1) % QUEUE_CAPACITY; return item; }
void Deque::pop_back() // assume non-empty { if (!myBack) myBack = QUEUE_CAPACITY; else myBack--; int item = myArray[myBack]; // dequeue from rear return item; }
