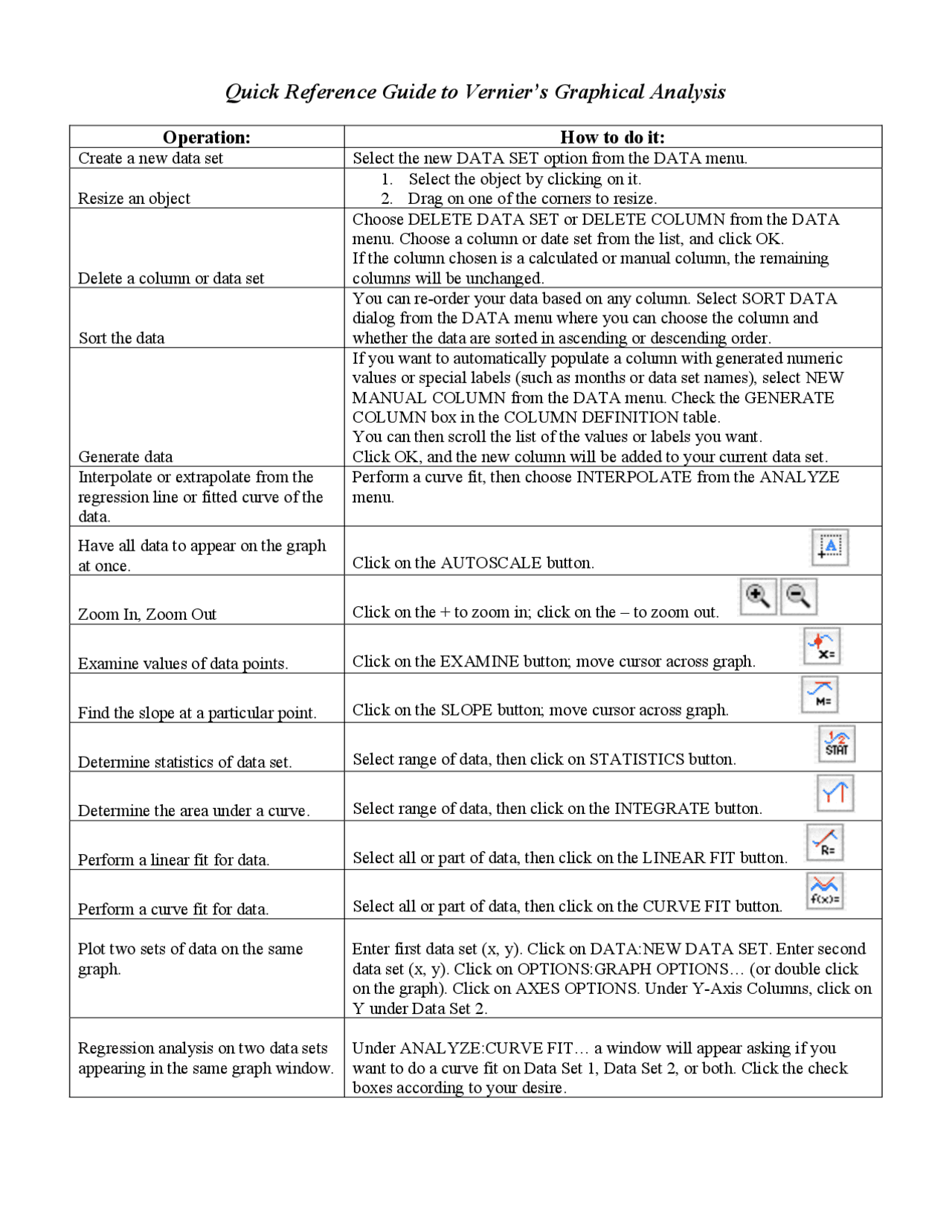

Quick Reference Guide to Vernier’s Graphical Analysis

Operation:

How to do it:

Create a new data set

Select the new DATA SET option from the DATA menu.

Resize an object

1. Select the object by clicking on it.

2. Drag on one of the corners to resize.

Delete a column or data set

Choose DELETE DATA SET or DELETE COLUMN from the DATA

menu. Choose a column or date set from the list, and click OK.

If the column chosen is a calculated or manual column, the remaining

columns will be unchanged.

Sort the data

You can re-order your data based on any column. Select SORT DATA

dialog from the DATA menu where you can choose the column and

whether the data are sorted in ascending or descending order.

Generate data

If you want to automatically populate a column with generated numeric

values or special labels (such as months or data set names), select NEW

MANUAL COLUMN from the DATA menu. Check the GENERATE

COLUMN box in the COLUMN DEFINITION table.

You can then scroll the list of the values or labels you want.

Click OK, and the new column will be added to your current data set.

Interpolate or extrapolate from the

regression line or fitted curve of the

data.

Perform a curve fit, then choose INTERPOLATE from the ANALYZE

menu.

Have all data to appear on the graph

at once.

Click on the AUTOSCALE button.

Zoom In, Zoom Out

Click on the + to zoom in; click on the – to zoom out.

Examine values of data points.

Click on the EXAMINE button; move cursor across graph.

Find the slope at a particular point.

Click on the SLOPE button; move cursor across graph.

Determine statistics of data set.

Select range of data, then click on STATISTICS button.

Determine the area under a curve.

Select range of data, then click on the INTEGRATE button.

Perform a linear fit for data.

Select all or part of data, then click on the LINEAR FIT button.

Perform a curve fit for data.

Select all or part of data, then click on the CURVE FIT button.

Plot two sets of data on the same

graph.

Enter first data set (x, y). Click on DATA:NEW DATA SET. Enter second

data set (x, y). Click on OPTIONS:GRAPH OPTIONS… (or double click

on the graph). Click on AXES OPTIONS. Under Y-Axis Columns, click on

Y under Data Set 2.

Regression analysis on two data sets

appearing in the same graph window.

Under ANALYZE:CURVE FIT… a window will appear asking if you

want to do a curve fit on Data Set 1, Data Set 2, or both. Click the check

boxes according to your desire.

Partial preview of the text

Download Quick Reference Guide to Vernier's Graphical Analysis and more Summaries Statistics in PDF only on Docsity!

Quick Reference Guide to Vernier’s Graphical Analysis

Operation: How to do it:

Create a new data set Select the new DATA SET option from the DATA menu. Resize an object

Select the object by clicking on it.
Drag on one of the corners to resize. Delete a column or data set Choose DELETE DATA SET or DELETE COLUMN from the DATA menu. Choose a column or date set from the list, and click OK. If the column chosen is a calculated or manual column, the remaining columns will be unchanged. Sort the data You can re-order your data based on any column. Select SORT DATA dialog from the DATA menu where you can choose the column and whether the data are sorted in ascending or descending order. Generate data If you want to automatically populate a column with generated numeric values or special labels (such as months or data set names), select NEW MANUAL COLUMN from the DATA menu. Check the GENERATE COLUMN box in the COLUMN DEFINITION table. You can then scroll the list of the values or labels you want. Click OK, and the new column will be added to your current data set. Interpolate or extrapolate from the regression line or fitted curve of the data. Perform a curve fit, then choose INTERPOLATE from the ANALYZE menu. Have all data to appear on the graph at once. Click on the^ AUTOSCALE^ button. Zoom In, Zoom Out Click on the + to zoom in; click on the^ –^ to zoom out. Examine values of data points. Click on the^ EXAMINE^ button; move cursor across graph. Find the slope at a particular point. Click on the^ SLOPE^ button; move cursor across graph. Determine statistics of data set. Select range of data, then click on^ STATISTICS^ button. Determine the area under a curve. Select range of data, then click on the^ INTEGRATE^ button. Perform a linear fit for data. Select all or part of data, then click on the^ LINEAR FIT^ button. Perform a curve fit for data. Select all or part of data, then click on the^ CURVE FIT^ button. Plot two sets of data on the same graph. Enter first data set (x, y). Click on DATA:NEW DATA SET. Enter second data set (x, y). Click on OPTIONS:GRAPH OPTIONS… (or double click on the graph). Click on AXES OPTIONS. Under Y-Axis Columns, click on Y under Data Set 2. Regression analysis on two data sets appearing in the same graph window. Under ANALYZE:CURVE FIT… a window will appear asking if you want to do a curve fit on Data Set 1, Data Set 2, or both. Click the check boxes according to your desire.

Produce one graph with one independent variable X, and two or more dependent variables Y and Z. Create appropriate data columns and a graph of X vs. Y will automatically appear. To include Z on the graph, click on the graph’s Y variable and a selection window will appear. Click on Z to add it to the variables plotted. Close the variable selection window and the new graph will appear. See the example graph below. Produce two separate graphs on same page with variables (X, Y) and (R, S). Create appropriate data columns and a graph of X vs. Y will automatically appear. To add the second graph, click on INSERT:GRAPH and a new graph appears; select the independent and/or dependent axis as necessary selecting R or S appropriately. Click on PAGE:AUTO ARRANGE and the two graphs will then be appropriately resized to fit the page.
