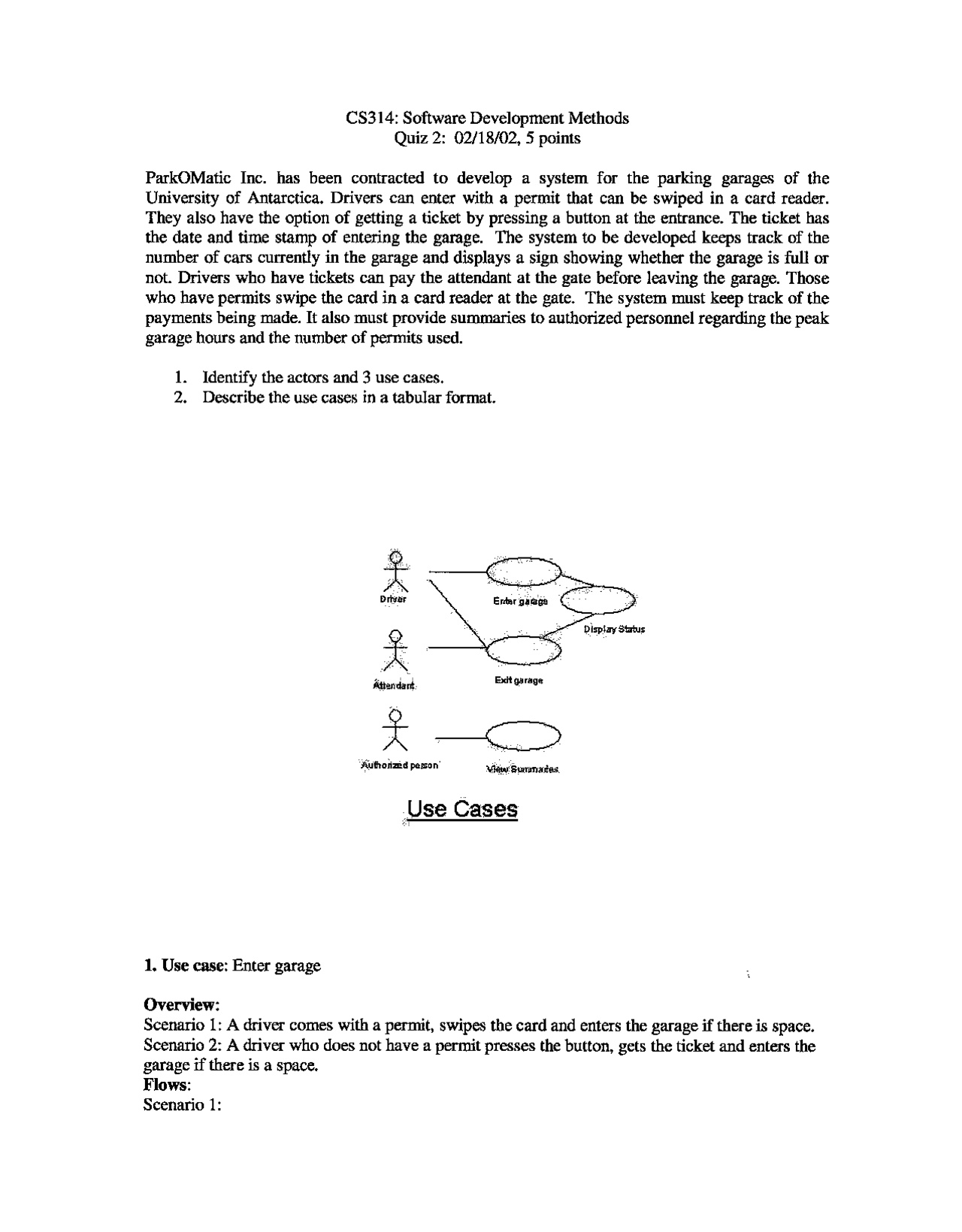

CS314: Software Development Methods Quiz 2: 02/18/02, 5 points ParkOMatic Inc. has been contracted to develop a system for the parking garages of the University of Antarctica. Drivers can enter with a permit that can be swiped in a card reader. They also have the option of getting a ticket by pressing a button at the entrance. The ticket has the date and time stamp of entering the garage. The system to be developed keeps track of the number of cars currently in the garage and displays a sign showing whether the garage is full or not. Drivers who have tickets can pay the attendant at the gate before leaving the garage. Those who have permits swipe the card in a card reader at the gate. The system must keep track of the payments being made. It also must provide summaries to authorized personnel regarding the peak garage hours and the number of permits used. 1. Identify the actors and 3 use cases. 2. Describe the use cases in a tabular format. Driver ‘Attondant, kD ‘Buboized pasion Mot ummaites, Display Status Bait garage Use Cases 1. Use case: Enter garage Overview: Scenario 1: A driver comes with a permit, swipes the card and enters the garage if there is space. Scenario 2: A driver who does not have a permit presses the button, gets the ticket and enters the garage if there is a space. Flows: Scenario 1:
