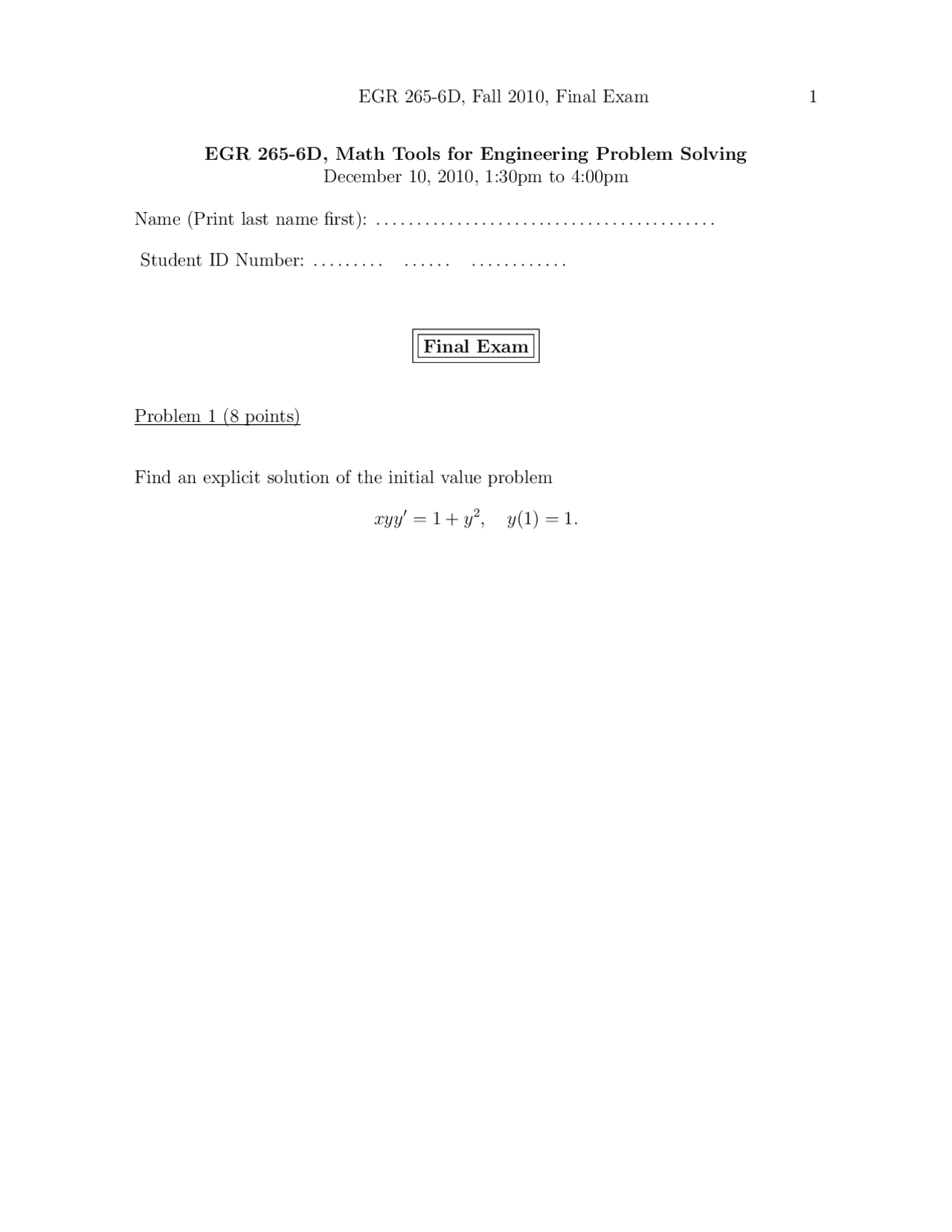

EGR 265-6D, Math Tools for Engineering Problem Solving December 10, 2010, 1:30pm to 4:00pm
Name (Print last name first):..........................................
Student ID Number:...........................
Final Exam
Problem 1 (8 points)
Find an explicit solution of the initial value problem
xyy′^ = 1 + y^2 , y(1) = 1.
Problem 2 (8 points)
A radioactive substance has a half-life of 10 days. The initial amount of the substance is 100 milligrams. (a) Determine the decay rate of the substance. (b) How much of the substance is left after 5 days? (c) How long does it take for the substance to decay to 10 percent of its original amount? Note: Write your answers in terms of natural logarithms, which do not need to be evaluated.
Problem 4 (12 points)
A 100 cm spring measures 140 cm long after a mass of 10 kg is attached to it. The medium through which the mass moves offers a damping force with damping coefficient β = 100 kg/s. Include the correct units in all your answers below. (a) Find the spring constant k, assuming that g = 10 m/s^2. (b) Find the equation of motion of the mass if it is released from a position 10 cm below the equilibrium position with an upward velocity of 50 cm/s (choose the positive x-axis to be oriented downward). (c) Will the mass return to the equilibrium position? If yes, when is the first time? If no, why not?
Problem 5 (10 points)
(a) Find the gradient of f (x, y) =
2 x^2 + 2xy + y^2. (b) Evaluate the directional derivative of f (x, y) at the point P (1, 2) in the direction from P (1, 2) to Q(2, 3). (c) Find a unit vector in the direction of steepest decrease of f (x, y) at the point P (1, 2). Also find the rate of decrease in this direction.
Problem 7 (8 points)
Find the work done by the force field
F(x, y) = y^2 i +
x^2 y
j
along the curve given by the graph of y = ex, 0 ≤ x ≤ 1.
Problem 8 (12 points)
(a) Verify that the force field F (x, y) = (cos x − cos y)i + x sin yj is conservative. (b) Find a potential function φ(x, y) for F (x, y). (b) Find the work done by the force field F (x, y) along the curve x = t/2, y = (π −t)/2, 0 ≤ t ≤ π.
Problem 10 (8 points)
Let R be the region in the first quadrant which lies between the circles of radius r =
and r =
R
1 + x^2 + y^2 dA.
