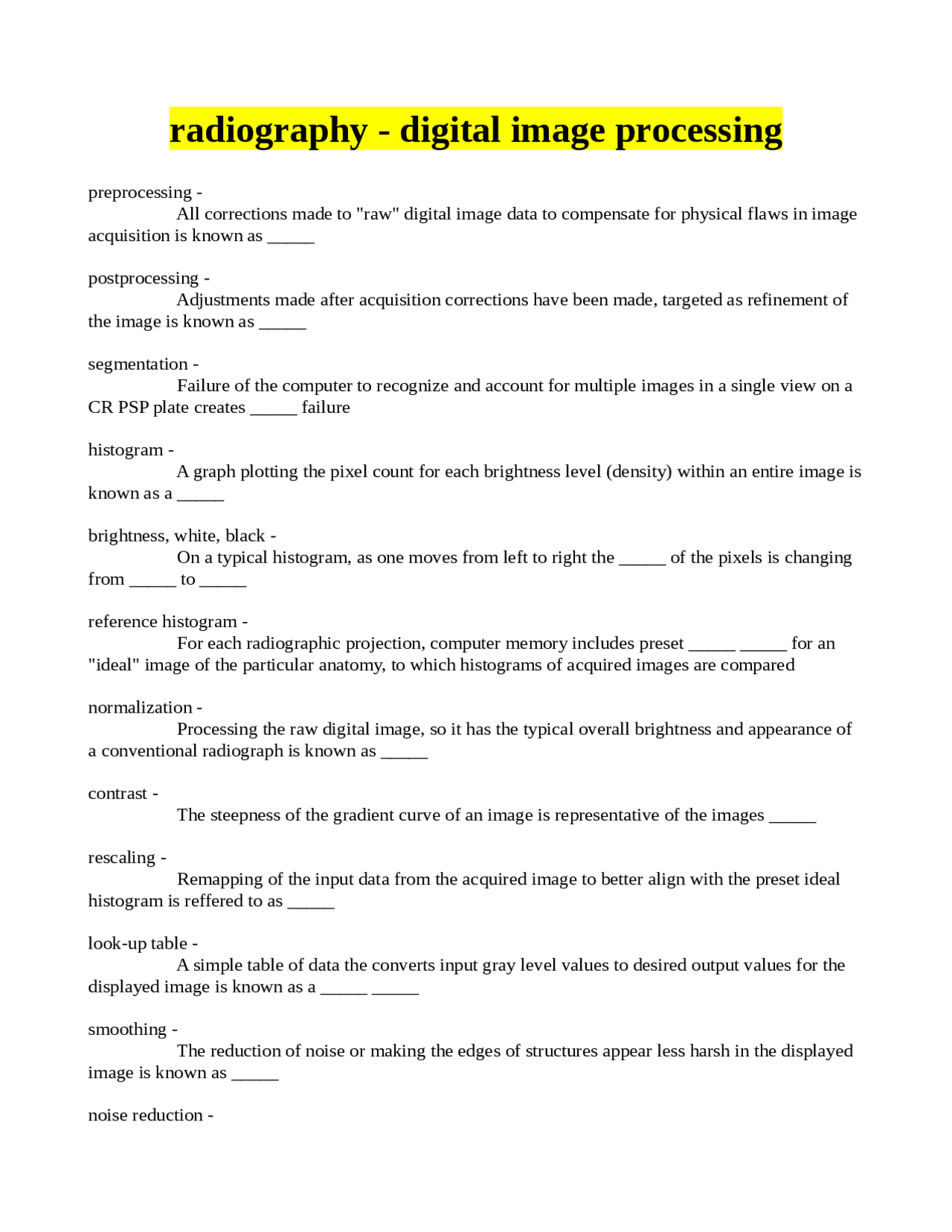

radiography - digital image processing
preprocessing -
All corrections made to "raw" digital image data to compensate for physical flaws in image
acquisition is known as _____
postprocessing -
Adjustments made after acquisition corrections have been made, targeted as refinement of
the image is known as _____
segmentation -
Failure of the computer to recognize and account for multiple images in a single view on a
CR PSP plate creates _____ failure
histogram -
A graph plotting the pixel count for each brightness level (density) within an entire image is
known as a _____
brightness, white, black -
On a typical histogram, as one moves from left to right the _____ of the pixels is changing
from _____ to _____
reference histogram -
For each radiographic projection, computer memory includes preset _____ _____ for an
"ideal" image of the particular anatomy, to which histograms of acquired images are compared
normalization -
Processing the raw digital image, so it has the typical overall brightness and appearance of
a conventional radiograph is known as _____
contrast -
The steepness of the gradient curve of an image is representative of the images _____
rescaling -
Remapping of the input data from the acquired image to better align with the preset ideal
histogram is reffered to as _____
look-up table -
A simple table of data the converts input gray level values to desired output values for the
displayed image is known as a _____ _____
smoothing -
The reduction of noise or making the edges of structures appear less harsh in the displayed
image is known as _____
noise reduction -
