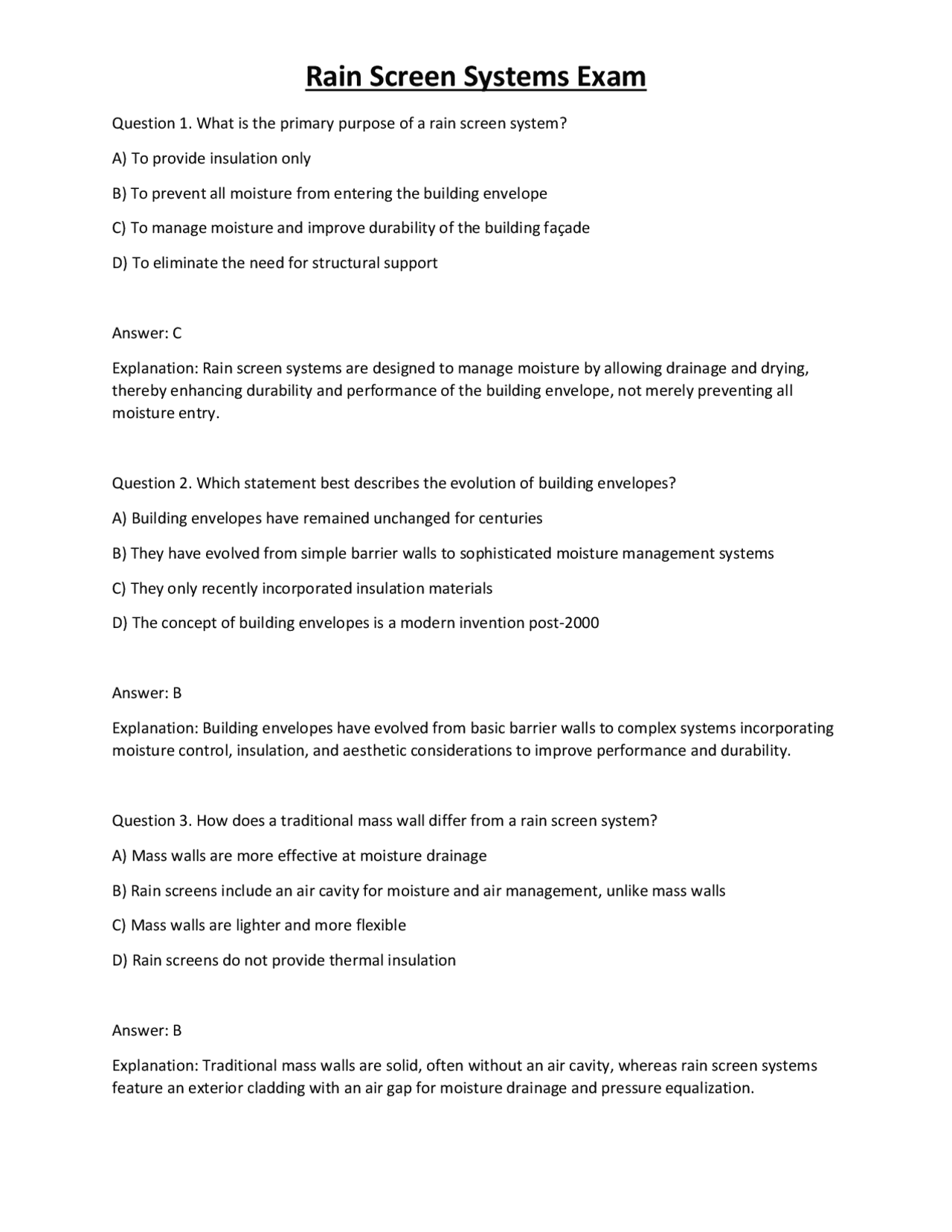

Question 1. What is the primary purpose of a rain screen system? A) To provide insulation only B) To prevent all moisture from entering the building envelope C) To manage moisture and improve durability of the building façade D) To eliminate the need for structural support Answer: C Explanation: Rain screen systems are designed to manage moisture by allowing drainage and drying, thereby enhancing durability and performance of the building envelope, not merely preventing all moisture entry. Question 2. Which statement best describes the evolution of building envelopes? A) Building envelopes have remained unchanged for centuries B) They have evolved from simple barrier walls to sophisticated moisture management systems C) They only recently incorporated insulation materials D) The concept of building envelopes is a modern invention post- 2000 Answer: B Explanation: Building envelopes have evolved from basic barrier walls to complex systems incorporating moisture control, insulation, and aesthetic considerations to improve performance and durability. Question 3. How does a traditional mass wall differ from a rain screen system? A) Mass walls are more effective at moisture drainage B) Rain screens include an air cavity for moisture and air management, unlike mass walls C) Mass walls are lighter and more flexible D) Rain screens do not provide thermal insulation Answer: B Explanation: Traditional mass walls are solid, often without an air cavity, whereas rain screen systems feature an exterior cladding with an air gap for moisture drainage and pressure equalization.
Question 4. Which of the following is a key benefit of rain screen systems? A) Increased thermal bridging B) Moisture management and durability C) Reduced aesthetic options D) Increased construction time without benefits Answer: B Explanation: Rain screen systems improve moisture management, thermal performance, durability, and aesthetics, providing significant advantages over traditional systems. Question 5. The "perfect wall" concept in building science refers to: A) A wall with no thermal insulation B) An idealized wall with optimal air, vapor, and moisture control C) A wall that is completely airtight but not insulated D) A load-bearing wall with minimal insulation Answer: B Explanation: The "perfect wall" concept aims for an ideal assembly with balanced air, vapor, and moisture control to enhance thermal performance and durability. Question 6. Which of the following is a primary source of moisture in building envelopes? A) Exterior sunlight B) Rain, condensation, ground moisture C) Structural load D) External noise Answer: B Explanation: Moisture sources include rain infiltration, condensation within the building envelope, and ground moisture seepage, all of which need to be managed.
Explanation: The air cavity allows pressure equalization and drainage of moisture, reducing the risk of water ingress and promoting drying. Question 10. Which ventilation strategy benefits the air cavity in a rain screen system? A) Sealing all vents to prevent air movement B) Incorporating inlets and outlets for continuous airflow C) Filling the cavity with insulation D) Using solid panels without openings Answer: B Explanation: Proper ventilation involves inlets and outlets to promote airflow, aiding in moisture removal and pressure balancing within the cavity. Question 11. Drained and Vented (D&V) rain screens are characterized by: A) No drainage or ventilation features B) A focus solely on insulation properties C) Drainage planes and open joints to allow water to escape and air to circulate D) Complete sealing to prevent any moisture movement Answer: C Explanation: D&V systems incorporate drainage paths and venting to allow water to drain and air to ventilate, reducing moisture buildup. Question 12. Pressure-Equalized Rain Screens (PER) are distinguished by: A) Rigid panels with no pressure considerations B) Compartmentalization and pressure equalization to prevent water ingress C) Use of only natural materials D) Complete sealing from external air pressure Answer: B
Explanation: PER systems use compartmentalization and pressure equalization techniques to balance external and internal pressures, reducing water penetration. Question 13. Which component is most critical in a hybrid rain screen system? A) Only the exterior cladding material B) A combination of drained/vented and pressure-equalized principles tailored to specific building needs C) A completely sealed exterior wall with no ventilation D) Only the insulation layer Answer: B Explanation: Hybrid systems combine drained/vented and pressure-equalized features to optimize moisture management and performance based on building requirements. Question 14. Which of the following materials is commonly used as exterior cladding for rain screen systems? A) Gypsum board B) Fiber cement panels C) Interior drywall D) PVC piping Answer: B Explanation: Fiber cement panels are durable, weather-resistant cladding options widely used in rain screen systems. Question 15. Which property is most associated with high-pressure laminate (HPL) panels? A) Low durability and poor UV resistance B) High durability, weather resistance, and aesthetic flexibility C) Poor fire resistance D) High thermal conductivity
Answer: B Explanation: Thermal breaks or stand-off brackets prevent heat transfer through support structures, reducing thermal bridging. Question 19. What is the primary function of an air barrier in a rain screen system? A) To allow moisture to pass freely B) To control air leakage and vapor movement C) To provide structural support D) To serve as a primary insulation layer Answer: B Explanation: An air barrier controls unintended air movement and vapor diffusion, protecting the building envelope's performance. Question 20. Which type of material is typically used as a water resistive barrier (WRB)? A) Self-adhered membranes or fluid-applied membranes B) Structural steel C) Exterior paint only D) Insulation foam Answer: A Explanation: WRBs are often peel-and-stick membranes or fluid-applied coatings designed to prevent water infiltration while allowing vapor permeability. Question 21. Which of the following best describes the placement of insulation in a rain screen system for optimal thermal performance? A) Only inside the building interior B) Outboard of sheathing or within the cavity, or both C) Beneath the foundation only
D) Between the cladding and the air cavity Answer: B Explanation: Insulation can be placed outboard of the sheathing, within the cavity, or both to enhance thermal performance and reduce thermal bridging. Question 22. R-value is a measure of: A) Thermal resistance of insulation materials B) Moisture permeability C) Structural strength D) Fire resistance Answer: A Explanation: R-value quantifies how well a material resists heat flow, with higher values indicating better insulation performance. Question 23. Which flashing component is typically installed at window heads to prevent water infiltration? A) Sill flashing B) Head flashing C) Jamb flashing D) Kick-out flashing Answer: B Explanation: Head flashing is installed at the top of window openings to direct water away and prevent infiltration. Question 24. What is the main purpose of kick-out flashing in rain screen systems? A) To provide structural support B) To divert water from the bottom of window flashing away from the wall assembly
A) Using only paint B) Sealing with compatible sealants and tapes C) Leaving gaps around penetrations D) Ignoring penetrations during installation Answer: B Explanation: Proper sealing with compatible sealants and tapes ensures continuity, preventing water and air leaks. Question 28. What is the main purpose of a site mock-up in rain screen system installation? A) To test aesthetic appearance and installation quality before full-scale work B) To serve as a permanent part of the building C) To reduce overall project costs D) To replace shop drawings Answer: A Explanation: Mock-ups demonstrate installation quality, materials, and detailing, allowing adjustments before full installation. Question 29. Which factor is most critical when selecting exterior cladding materials for a rain screen system? A) Color only B) Durability, weather resistance, and aesthetic compatibility C) Cost without regard to performance D) Ease of installation only Answer: B Explanation: Material selection must balance durability, weather resistance, aesthetics, and compatibility with system requirements.
Question 30. When installing insulation in a rain screen system, which is a key consideration? A) Ensuring it is placed only on the interior side B) Avoiding thermal bridging and ensuring continuous insulation C) Using only fibrous materials D) Installing insulation without regard to moisture resistance Answer: B Explanation: Proper insulation placement minimizes thermal bridging and ensures continuous thermal performance. Question 31. Which ASTM standard pertains to testing the fire propagation characteristics of exterior wall assemblies containing combustible components? A) ASTM E B) ASTM E C) ASTM NFPA 285 D) ASTM D Answer: C Explanation: NFPA 285 evaluates fire propagation in exterior wall assemblies with combustible materials. Question 32. What is a primary reason for incorporating thermal breaks in rain screen support systems? A) To increase thermal bridging B) To reduce thermal bridging and improve thermal performance C) To simplify installation D) To prevent moisture drainage Answer: B Explanation: Thermal breaks interrupt conductive pathways, reducing thermal bridging and enhancing energy efficiency.
Question 36. Which is a common cause of failure in rain screen systems? A) Properly sealed joints and drainage pathways B) Thermal bridging and water infiltration due to poor detailing C) Excessive ventilation in the cavity D) Correct installation of flashing Answer: B Explanation: Failures often result from poor detailing, thermal bridging, or inadequate moisture management, leading to leaks and damage. Question 37. What is a typical inspection method used to diagnose moisture issues in a building envelope? A) Infrared thermography B) Visual inspection only C) Acoustic testing D) Soil testing Answer: A Explanation: Infrared thermography detects temperature anomalies indicating moisture infiltration or condensation. Question 38. Which of the following best describes the role of life cycle assessment (LCA) in rain screen systems? A) To evaluate only initial costs B) To assess environmental impacts over the system's lifespan C) To determine aesthetic value D) To replace building codes Answer: B
Explanation: LCA evaluates environmental impacts, resource use, and sustainability over the entire life cycle of the system. Question 39. Which emerging technology involves integrating renewable energy with rain screen facades? A) BIPV (Building-Integrated Photovoltaics) B) Solar water heating only C) Wind turbines embedded in cladding D) Geothermal loops inside panels Answer: A Explanation: BIPV integrates solar photovoltaic panels into building facades, combining energy generation with envelope functions. Question 40. Which safety measure is essential when working at heights during rain screen installation? A) Using PPE such as harnesses and scaffolding safety checks B) Working without fall protection to increase mobility C) Only working in daylight hours without safety gear D) Ignoring site safety protocols Answer: A Explanation: Proper PPE, harnesses, and safety protocols are critical for preventing falls and ensuring worker safety at heights. Question 41. Which type of membrane is typically used as a self-adhered water resistive barrier (WRB)? A) Peel-and-stick membrane B) Rigid foam board C) Gypsum board D) Metal sheeting
Answer: B Explanation: UV stability ensures that exterior cladding maintains its appearance and structural integrity under prolonged sunlight exposure. Question 45. What is the primary function of a kick-out flashing at a wall intersection? A) To support the weight of cladding B) To divert water away from the wall at intersections, preventing water infiltration C) To seal interior joints D) To provide aesthetic detail only Answer: B Explanation: Kick-out flashing redirects water away from wall intersections, preventing water intrusion into the building envelope. Question 46. When installing a rain screen system, why is continuity of the air barrier critical? A) To prevent moisture infiltration and ensure energy efficiency B) To allow air to freely circulate C) To improve aesthetic appearance D) To reduce material costs Answer: A Explanation: Continuity prevents air leaks that can carry moisture into the building envelope, reducing the risk of condensation and improving energy efficiency. Question 47. Which testing method is used to evaluate the fire resistance of exterior wall assemblies? A) ASTM E B) NFPA 285 C) UL 94 D) ASTM E
Answer: B Explanation: NFPA 285 assesses fire propagation characteristics of exterior wall assemblies, especially those containing combustible components. Question 48. What is the main purpose of thermal modeling in rain screen design? A) To assess aesthetic design options B) To analyze heat flow and condensation risks, improving thermal performance C) To calculate structural load capacity D) To determine color choices Answer: B Explanation: Thermal modeling predicts heat flow and condensation potential, guiding material selection and system design for energy efficiency. Question 49. Which of the following is a common challenge during rain screen installation? A) Achieving consistent color matching B) Managing thermal expansion and contraction of cladding materials C) Reducing overall system weight D) Eliminating all joints Answer: B Explanation: Thermal expansion and contraction can cause cracking or buckling, so systems must accommodate these movements during installation. Question 50. The primary benefit of using composite support systems in rain screens is: A) Increased weight and rigidity B) Improved thermal insulation only C) Reduced thermal bridging and enhanced adjustability D) Simpler installation without details
Answer: B Explanation: ASTM E331 specifies water penetration resistance testing for exterior windows, curtain walls, and doors, relevant to building envelopes. Question 54. In rain screen design, what is the function of a weather-resistant barrier (WRB)? A) To serve as a structural element B) To control air leakage only C) To shed water and control vapor flow, preventing moisture ingress D) To provide aesthetic finishing Answer: C Explanation: The WRB prevents water intrusion while allowing vapor diffusion, protecting the wall assembly. Question 55. Which of the following best describes the role of an expansion joint in rain screen systems? A) To support cladding weight B) To accommodate building movements and prevent cracking or buckling C) To seal the system completely D) To reduce material costs Answer: B Explanation: Expansion joints absorb thermal and structural movements, maintaining system integrity and preventing damage. Question 56. Which component is essential in a pressure-equalized rain screen system to maintain proper compartmentalization? A) Continuous rigid panels B) Sealed partitions and pressure-equalization chambers C) Solid insulation layers only
D) No partitions, open cavity only Answer: B Explanation: Sealed partitions create compartments that help control pressure differences and prevent water ingress through pressure equalization. Question 57. During maintenance, what is a common cause of water leakage in rain screen systems? A) Properly sealed joints B) Damaged or missing flashing and sealants C) Excessive ventilation D) Over-insulation Answer: B Explanation: Damaged or missing flashing, sealants, or improperly maintained joints can lead to water leaks. Question 58. Which diagnostic technique is most effective for detecting hidden moisture in building assemblies? A) Infrared thermography B) Visual inspection only C) Sound testing D) Soil sampling Answer: A Explanation: Infrared thermography detects temperature variations caused by moisture, revealing hidden leaks or dampness. Question 59. What is the significance of a water drainage plane behind cladding panels? A) To provide structural support B) To allow water to drain freely and prevent moisture buildup behind cladding
