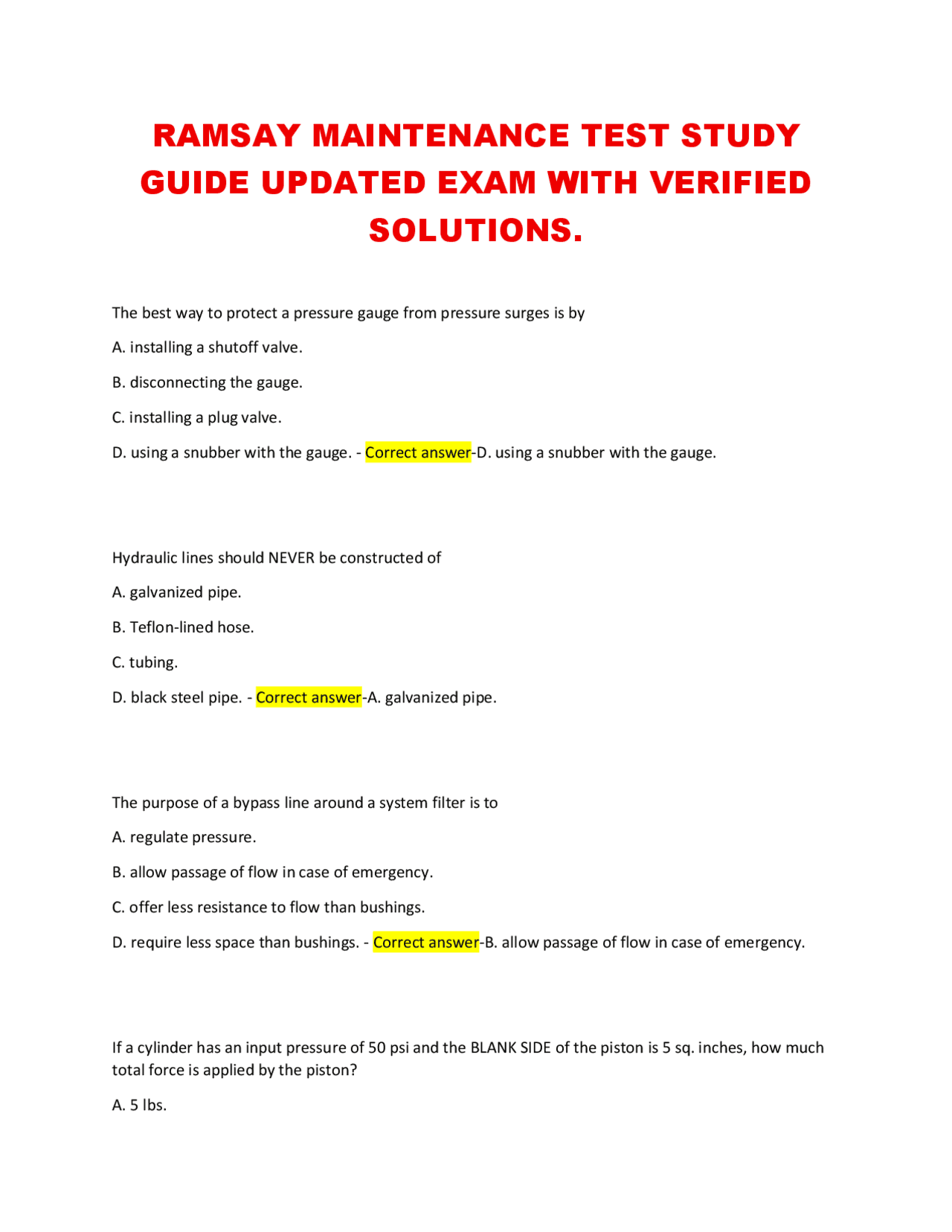

RAMSAY MAINTENANCE TEST STUDY
GUIDE UPDATED EXAM WITH VERIFIED
SOLUTIONS.
The best way to protect a pressure gauge from pressure surges is by
A. installing a shutoff valve.
B. disconnecting the gauge.
C. installing a plug valve.
D. using a snubber with the gauge. - Correct answer-D. using a snubber with the gauge.
Hydraulic lines should NEVER be constructed of
A. galvanized pipe.
B. Teflon-lined hose.
C. tubing.
D. black steel pipe. - Correct answer-A. galvanized pipe.
The purpose of a bypass line around a system filter is to
A. regulate pressure.
B. allow passage of flow in case of emergency.
C. offer less resistance to flow than bushings.
D. require less space than bushings. - Correct answer-B. allow passage of flow in case of emergency.
If a cylinder has an input pressure of 50 psi and the BLANK SIDE of the piston is 5 sq. inches, how much
total force is applied by the piston?
A. 5 lbs.
