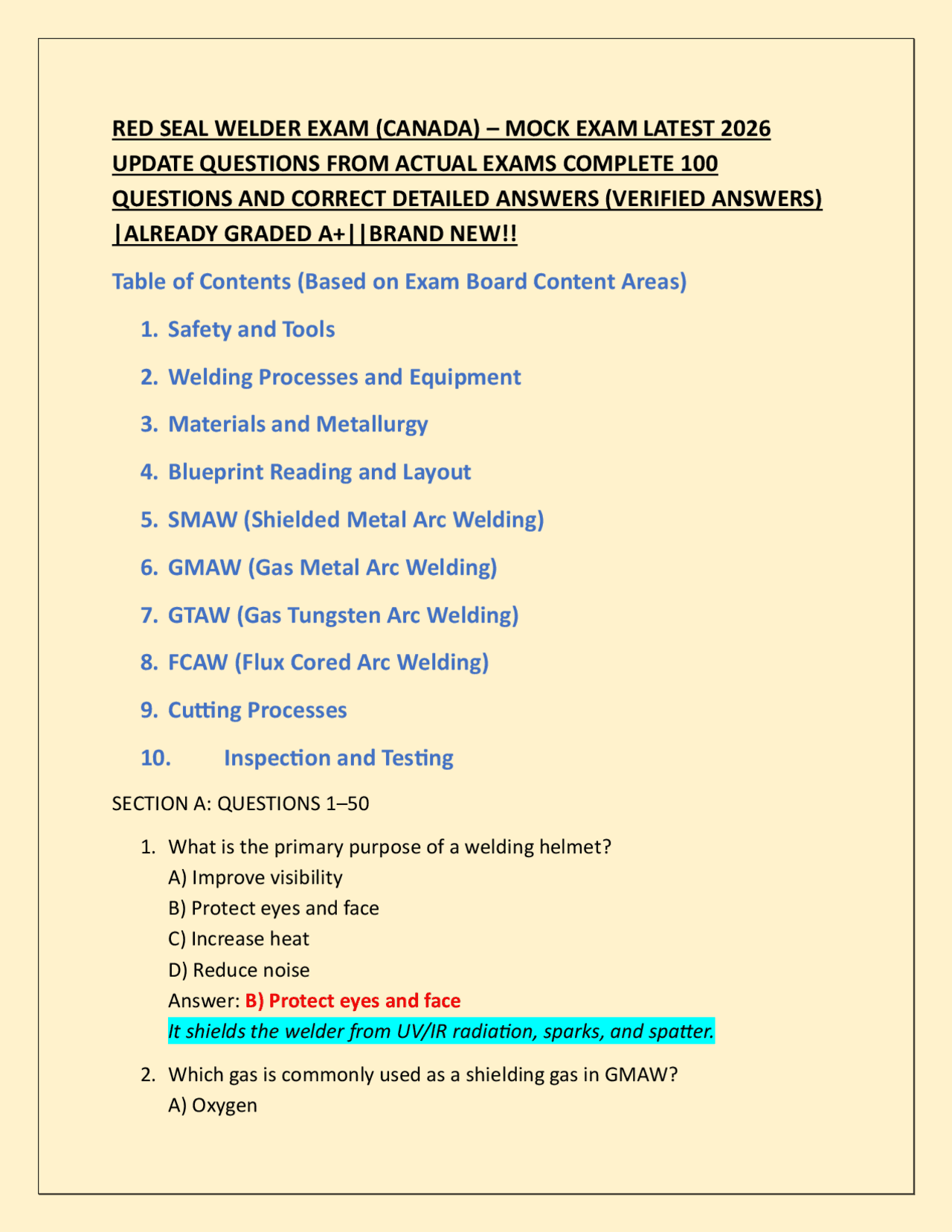

RED SEAL WELDER EXAM (CANADA) – MOCK EXAM LATEST 2026
UPDATE QUESTIONS FROM ACTUAL EXAMS COMPLETE 100
QUESTIONS AND CORRECT DETAILED ANSWERS (VERIFIED ANSWERS)
|ALREADY GRADED A+||BRAND NEW!!
Table of Contents (Based on Exam Board Content Areas)
1. Safety and Tools
2. Welding Processes and Equipment
3. Materials and Metallurgy
4. Blueprint Reading and Layout
5. SMAW (Shielded Metal Arc Welding)
6. GMAW (Gas Metal Arc Welding)
7. GTAW (Gas Tungsten Arc Welding)
8. FCAW (Flux Cored Arc Welding)
9. Cutting Processes
10. Inspection and Testing
SECTION A: QUESTIONS 1– 50
- What is the primary purpose of a welding helmet? A) Improve visibility B) Protect eyes and face C) Increase heat D) Reduce noise Answer: B) Protect eyes and face It shields the welder from UV/IR radiation, sparks, and spatter.
- Which gas is commonly used as a shielding gas in GMAW? A) Oxygen
B) Nitrogen C) Argon D) Hydrogen Answer: C) Argon Argon provides an inert atmosphere preventing oxidation during welding.
- What does SMAW stand for? A) Shielded Metal Arc Welding B) Solid Metal Arc Welding C) Standard Metal Arc Welding D) Shielded Machine Arc Welding Answer: A) Shielded Metal Arc Welding It uses a consumable electrode coated in flux.
- Which tool is used to remove slag after welding? A) Wire brush B) Chipping hammer C) Grinder D) File Answer: B) Chipping hammer Slag forms on welds and must be chipped off after cooling.
- What is the typical polarity for most SMAW welding? A) AC only B) DCEN C) DCEP D) Reverse AC Answer: C) DCEP Direct Current Electrode Positive provides deeper penetration.
- What defect is caused by trapped gas in a weld? A) Cracking B) Porosity C) Undercut D) Overlap
11.Which electrode is commonly used for general-purpose SMAW? A) E B) E C) E D) E Answer: B) E It is easy to use and suitable for light fabrication. 12.What does the “70” in E7018 indicate? A) Diameter B) Tensile strength C) Coating type D) Polarity Answer: B) Tensile strength Indicates 70,000 psi tensile strength. 13.Which welding process is best for thin materials? A) SMAW B) FCAW C) GTAW D) SAW Answer: C) GTAW Provides precise heat control for thin metals. 14.What is the main hazard of welding fumes? A) Noise B) Radiation C) Toxic inhalation D) Heat Answer: C) Toxic inhalation Fumes contain harmful gases and metal particles. 15.Which tool measures angles in layout work? A) Square B) Protractor
C) Level D) Tape Answer: B) Protractor Used to measure and mark precise angles. 16.What causes spatter in welding? A) Low voltage B) High voltage C) Improper settings D) Clean metal Answer: C) Improper settings Incorrect parameters lead to unstable arc. 17.What is the purpose of preheating metal? A) Reduce cost B) Improve color C) Prevent cracking D) Increase speed Answer: C) Prevent cracking Preheating reduces thermal stress. 18.Which process is semi-automatic? A) SMAW B) GMAW C) GTAW D) Oxy-fuel Answer: B) GMAW Wire feed is automatic but operator controls movement. 19.What is the correct angle for most fillet welds? A) 15° B) 30° C) 45° D) 60°
24.What is arc blow? A) Excess heat B) Magnetic arc deflection C) Gas contamination D) Poor grounding Answer: B) Magnetic arc deflection Magnetic fields disturb arc stability. 25.What is the root of a weld? A) Top layer B) Middle layer C) Base metal D) Bottom of joint Answer: D) Bottom of joint Initial weld area where penetration occurs. 26.What is the purpose of a backing plate? A) Decoration B) Support molten weld C) Increase heat D) Reduce cost Answer: B) Support molten weld Prevents burn-through and improves penetration. 27.What is slag inclusion? A) Gas pocket B) Trapped flux C) Crack D) Undercut Answer: B) Trapped flux Occurs when slag is not removed between passes. 28.Which current type is used in TIG welding aluminum? A) DCEN B) DCEP
C) AC
D) Pulsed DC Answer: C) AC Alternating current cleans oxide layer. 29.What is the main advantage of FCAW? A) Clean weld B) High speed C) Low cost D) No equipment Answer: B) High speed Efficient for production work. 30.What causes burn-through? A) Low current B) Excess heat C) Dirty metal D) Wrong electrode Answer: B) Excess heat Too much heat melts through base metal. 31.What is weld penetration? A) Width of weld B) Depth of weld C) Length of weld D) Color of weld Answer: B) Depth of weld Indicates how deep weld fuses into base metal. 32.What is a tack weld? A) Final weld B) Temporary weld C) Decorative weld D) Repair weld
37.What is weld bead? A) Crack B) Line of weld metal C) Slag D) Joint Answer: B) Line of weld metal Deposited filler metal forming weld. 38.What causes cracking? A) Low stress B) High stress C) Clean metal D) Low heat Answer: B) High stress Thermal stress leads to fractures. 39.What is the purpose of shielding gas? A) Cool weld B) Protect weld C) Increase heat D) Add strength Answer: B) Protect weld Prevents contamination from atmosphere. 40.What is the most common joint type? A) Lap B) Butt C) Corner D) Edge Answer: B) Butt Widely used in fabrication. 41.What is a fillet weld? A) Flat weld B) Triangular weld
C) Round weld D) Square weld Answer: B) Triangular weld Joins two surfaces at right angles. 42.What is the purpose of grinding before welding? A) Heat metal B) Clean surface C) Add strength D) Increase size Answer: B) Clean surface Removes contaminants for better weld quality. 43.What is travel speed? A) Speed of current B) Speed of electrode movement C) Gas speed D) Wire speed Answer: B) Speed of electrode movement Controls bead size and penetration. 44.What is overlap defect? A) Excess penetration B) Metal rolls over surface C) Crack D) Porosity Answer: B) Metal rolls over surface Occurs without proper fusion. 45.What is the function of filler metal? A) Cool weld B) Join metals C) Add material D) Reduce heat
50.What is destructive testing? A) Visual check B) Testing without damage C) Breaking weld D) Cleaning weld Answer: C) Breaking weld Evaluates strength by failure. END OF SECTION A (1–50) Say “continue” to get questions 51–100. 51 - 100 RED SEAL WELDER EXAM (CANADA) – MOCK EXAM SECTION B: QUESTIONS 51– 100 51.What is the main advantage of TIG welding over SMAW? A) Faster deposition B) Less equipment C) Cleaner, precise welds D) Easier on thick materials Answer: C) Cleaner, precise welds TIG allows accurate control and minimal spatter, ideal for thin metals. 52.What type of joint is commonly used for pipe welding? A) Butt B) Corner C) Lap D) Tee Answer: A) Butt Butt joints ensure full penetration for pressure-rated piping. 53.What is the main concern when welding galvanized steel? A) Porosity B) Zinc fumes
C) Arc blow D) Low penetration Answer: B) Zinc fumes Inhalation of zinc oxide is toxic; proper ventilation is required. 54.Which type of crack appears along the weld centerline? A) Transverse B) Longitudinal C) Hot crack D) Cold crack Answer: B) Longitudinal Runs parallel to the weld, often from contraction stress. 55.What is the main purpose of a backing strip? A) Decorative B) Support for penetration C) Reduce slag D) Increase speed Answer: B) Support for penetration Prevents burn-through in thin or open joints. 56.What is the purpose of post-weld heat treatment? A) Clean surface B) Reduce residual stress C) Add strength D) Improve appearance Answer: B) Reduce residual stress Prevents cracking and improves ductility. 57.What is the common use of submerged arc welding (SAW)? A) Thin sheet metal B) Heavy fabrication C) Aluminum D) Decorative work
62.What causes undercut? A) Excessive heat or travel speed B) Poor cleaning C) Improper shielding gas D) Low voltage Answer: A) Excessive heat or travel speed Metal is melted away at weld toe. 63.Which process is best for welding stainless steel thin sheets? A) SMAW B) GTAW C) FCAW D) SAW Answer: B) GTAW Offers precise heat control, preventing warping. 64.What is the purpose of a weave pattern? A) Reduce heat B) Increase deposition width C) Decorate weld D) Cool weld Answer: B) Increase deposition width Helps achieve proper fusion on wide joints. 65.What is the effect of moisture on electrodes? A) Increase deposition B) Cause hydrogen cracking C) Improve arc stability D) Reduce slag Answer: B) Cause hydrogen cracking Water absorbed increases risk of cracks. 66.Which gas is used for welding aluminum with GTAW? A) Argon B) Oxygen
C) CO
D) Nitrogen Answer: A) Argon Provides inert atmosphere preventing oxidation. 67.What is the main hazard when using acetylene? A) UV radiation B) Explosion C) Spatter D) Electric shock Answer: B) Explosion Acetylene is highly flammable under pressure. 68.What is a fillet weld leg length? A) Thickness of weld B) Width of weld side C) Depth of penetration D) Distance between electrodes Answer: B) Width of weld side Specifies weld size for strength calculation. 69.Which welding current provides the deepest penetration? A) AC B) DCEN C) DCEP D) Pulsed AC Answer: C) DCEP Electrode positive concentrates heat on workpiece. 70.What causes porosity in GTAW? A) Contaminated base metal B) Incorrect electrode size C) Low voltage D) Slow travel speed
75.Which welding position is denoted as 3G? A) Horizontal groove B) Vertical groove C) Overhead groove D) Flat groove Answer: B) Vertical groove 3G indicates vertical welding in groove joint. 76.What type of crack occurs after cooling? A) Hot crack B) Cold crack C) Longitudinal crack D) Transverse crack Answer: B) Cold crack Delayed cracking due to residual stress or hydrogen. 77.Which method detects internal defects without destroying the weld? A) Ultrasonic B) Visual C) Bend test D) Chipping Answer: A) Ultrasonic High-frequency sound waves reveal internal flaws. 78.What is the primary function of welding gloves? A) Improve grip B) Protect from heat and sparks C) Reduce fatigue D) Increase arc stability Answer: B) Protect from heat and sparks Essential for personal safety. 79.What is a root gap? A) Weld reinforcement B) Space between joint edges
C) Slag inclusion D) Penetration depth Answer: B) Space between joint edges Allows proper root penetration. 80.Which defect appears as a depression along weld centerline? A) Undercut B) Overlap C) Lack of fusion D) Crack Answer: A) Undercut Weakens the joint and concentrates stress. 81.What is the maximum safe travel distance for compressed gas cylinders? A) 1 m B) 5 m C) 10 m D) 15 m Answer: C) 10 m Prevents accidents from tipping or leaks. 82.What does the term “peening” refer to in welding? A) Heating metal B) Mechanical hammering C) Grinding weld D) Applying flux Answer: B) Mechanical hammering Used to relieve stress and prevent cracking. 83.Which process can weld thick steel in a single pass? A) SMAW B) SAW C) GTAW D) Oxy-fuel
