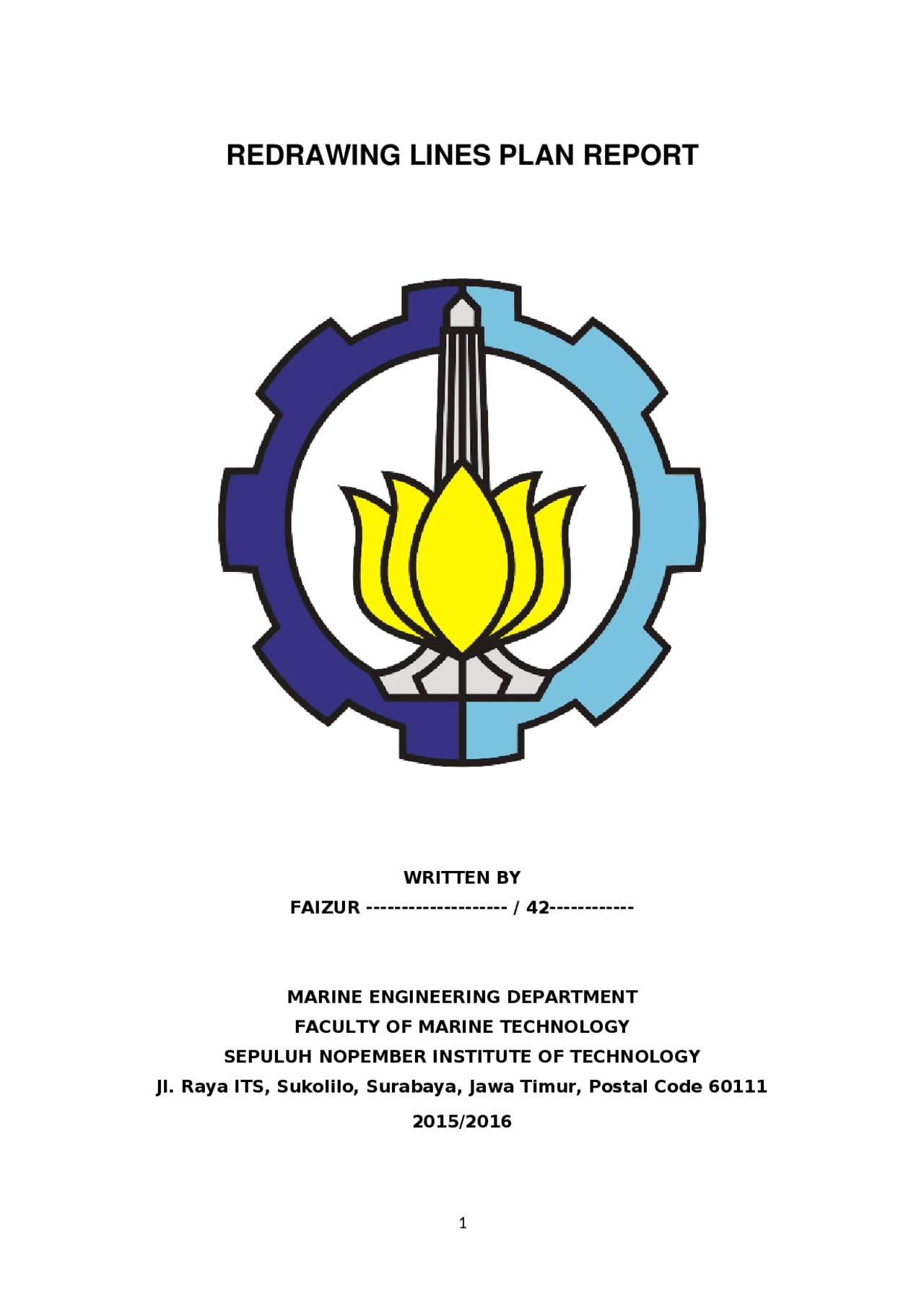

REDRAWING LINES PLAN REPORT
WRITTEN BY
FAIZUR -------------------- / 42------------
MARINE ENGINEERING DEPARTMENT
FACULTY OF MARINE TECHNOLOGY
SEPULUH NOPEMBER INSTITUTE OF TECHNOLOGY
Jl. Raya ITS, Sukolilo, Surabaya, Jawa Timur, Postal Code 60111
2015/2016
1
pf3
pf4
pf5
pf8
pf9

Partial preview of the text

Download Redrawing Lines Plan Report and more Assignments Marine Engineering in PDF only on Docsity!

REDRAWING LINES PLAN REPORT

WRITTEN BY

FAIZUR -------------------- / 42------------

MARINE ENGINEERING DEPARTMENT

FACULTY OF MARINE TECHNOLOGY

SEPULUH NOPEMBER INSTITUTE OF TECHNOLOGY

Jl. Raya ITS, Sukolilo, Surabaya, Jawa Timur, Postal Code 60111 2015/

Table of Contents

    1. INTRODUCTION.....................................................................................................
  • 2.SHIP PRINCIPLE.....................................................................................................
    1. LINES PLAN THEORY...........................................................................................
    • 3.1 HALF-BREADTH PLAN.....................................................................................................................................
    • 3.2 BODY PLAN..................................................................................................................................................
    • 3.3 SHEER PLAN..................................................................................................................................................
      • 3.4 MAIN DECK.................................................................................................................................................
    • 3.5 FORECASTLE DECK..........................................................................................................................................
    • 3.6 POOP DECK..................................................................................................................................................
    • 3.7 CAMBER.......................................................................................................................................................
    • 3.8 BOW SIDES...................................................................................................................................................
    • 3.9 STERN SIDES.................................................................................................................................................
    • 3.10 STERNTUBE BULKHEAD..................................................................................................................................
    • 3.11 ENGINE ROOM BULKHEAD.............................................................................................................................
    • 3.12 COLLISION BULKHEAD...................................................................................................................................
    1. SHIP PRINCIPLE....................................................................................................
    • 4.1 DRAWING HALF-BREADTH PLAN.......................................................................................................................
    • 4.2 DRAWING BODY PLAN....................................................................................................................................
    • 4.3 DRAWING SHEER PLAN...................................................................................................................................
    1. RESULT RE-DRAWING LINES PLAN..................................................................
  • REFERENCE..............................................................................................................

points of intersection. These lines are called sectional lines and are all projected onto a single plane called the Body Plan. 3.3 Sheer Plan A plane that runs from bow to stern directly through the center of the ship and parallel to the sides of the imaginary box is called the centerline plane. A series of planes parallel to one side of the centerline plane are imagined at regular intervals from the centerline. Each plane will intersect the ship's hull and form a curved line at the points of intersection. These lines are called buttock or butt lines and are projected onto a single plane called the Sheer Plan. 3.4 Main Deck Main deck of ship is the uppermost complete deck extending from bow to stern. 3.5 Forecastle Deck Forecastle deck refers to the upper deck of a sailing ship at the forward section, or the forward part of a ship with the sailors' living quarters. 3.6 Poop Deck Poop deck is a deck that forms the roof of a cabin built in the rear, or the backward part of the superstructure of a ship. 3.7 Camber Height difference measured between the height of deck at centreline and the height of deck at side. 3.8 Bow Sides The starboard side of the boat which is on the right hand side of a cox facing forwards but on the left-hand side of a rower facing backwards. 3.9 Stern Sides The stern is the back or aft-most part of a ship or boat. The stern lies opposite of the bow, the foremost part of a ship. Originally, the term only referred to the aft port section of the ship, but eventually came to refer to the entire back of a vessel. The stern end of a ship is indicated with a white navigation light at night. 3.10 Sterntube Bulkhead Sterntube bulkhead is a strong bulkhead located at after of the ship which the function is protect the ship collide with hard objects. 3.11 Engine Room Bulkhead Engine room bulkhead is a bulkhead that rise from stern until the engine room located, which the function is prevent the water flow to the engine room.

3.12 Collision Bulkhead Collition Bulkhead is a bulkhead located after sterntube bulkhead which function is prevent the water flow in if the sterntube was broken.

4. SHIP PRINCIPLE

4.1 Drawing Half-Breadth Plan Steps to drawing Half-Breadth Plan :

  1. First, Prepare data of the length distance from each section and waterline.
  2. Draw a table as the frame using the data ( LOA * Breadth ). Since a ship is usually symetrical, we only need draw half of the waterline.
  3. In table, first point for waterline 0m in section 1 is at the centerline. Start drawing the curve using SPLine.
  4. In section 2, the y value, is 0.4 m. Meaning in section 2, the curve has a height of 0.4 m.
  1. Connect each intersection between the construction line and the body plan’s waterline.
  2. Do the same at the stern area, rotate 90 degrees and then joint the bow and stern table. 4.3 Drawing Sheer Plan Steps to drawing Sheer Plan :
  3. The steps is the same with make the Body Plan, but Sheer Plan use Vertical Projection from Half-Breadth Plan.

5. RESULT RE-DRAWING LINES PLAN

Section 0m WL 0.5m WL 1m WL 2m WL 3m WL 4m WL 5m WL^ 6.64m WL -2 0 -1 0 1, AP 0 (2.8m from AP) 0 (2.5m from AP) 0 (2m from AP) 0 (2.2m from AP) 0 (1.8m from AP) 0,6^ 1, 1 0 0,4 0,45 0,5 0,6 0,95 1,45 2, 2 0,4 1,1 1,3 1,7 2,2 2,65 3,15 4, 3 0,98 2,2 2,6 3,3 3,85 4,28 4,7 5, 4 1,9 3,3 4 4,8 5,3 5,6 6 6, 5 3,3 4,8 5,4 6,1 6,4 6,6 6,75 7 6 4,5 5,9 6,4 6,9 7 7,1 7,2 7, 7 5,1 6,3 6,8 7,2 7,4 7,4 7,5 7, 8 5,4 6,6 7 7,4 7,6 7,6 7,6 7, 9 5,5 6,85 7,3 7,6 7,6 7,6 7,6 7, 10 5,5 6,9 7,25 7,6 7,6 7,6 7,6 7, 11 5,5 6,85 7,25 7,6 7,6 7,6 7,6 7, 12 5,1 6,6 7,1 7,5 7,6 7,6 7,6 7, 13 4,1 6,1 6,8 7,3 7,48 7,55 7,57 7, 14 3,1 5,4 6,15 6,9 7,2 7,2 7,28 7, 15 2,2 4 4,9 6 6,4 7,1 6,7 6, 16 1,2 2,8 3,55 4,6 5,2 5,5 5,7 6 17 0,6 1,7 2,4 3,1 3,6 3,9 4,2 4, 18 0,3 0,9 1,2 1,6 1,9 2,2 2 3, 19 0 (3m from

0,4 0,35 0,4 0,4 0,5 0,9 1, FP 0 (1.2m from 19)^ 0 (2.1m dari 19) 0 (2.9m from

0 (3.4m from 19) 0 (3.6m from 19) 0 (4.3m from

0
