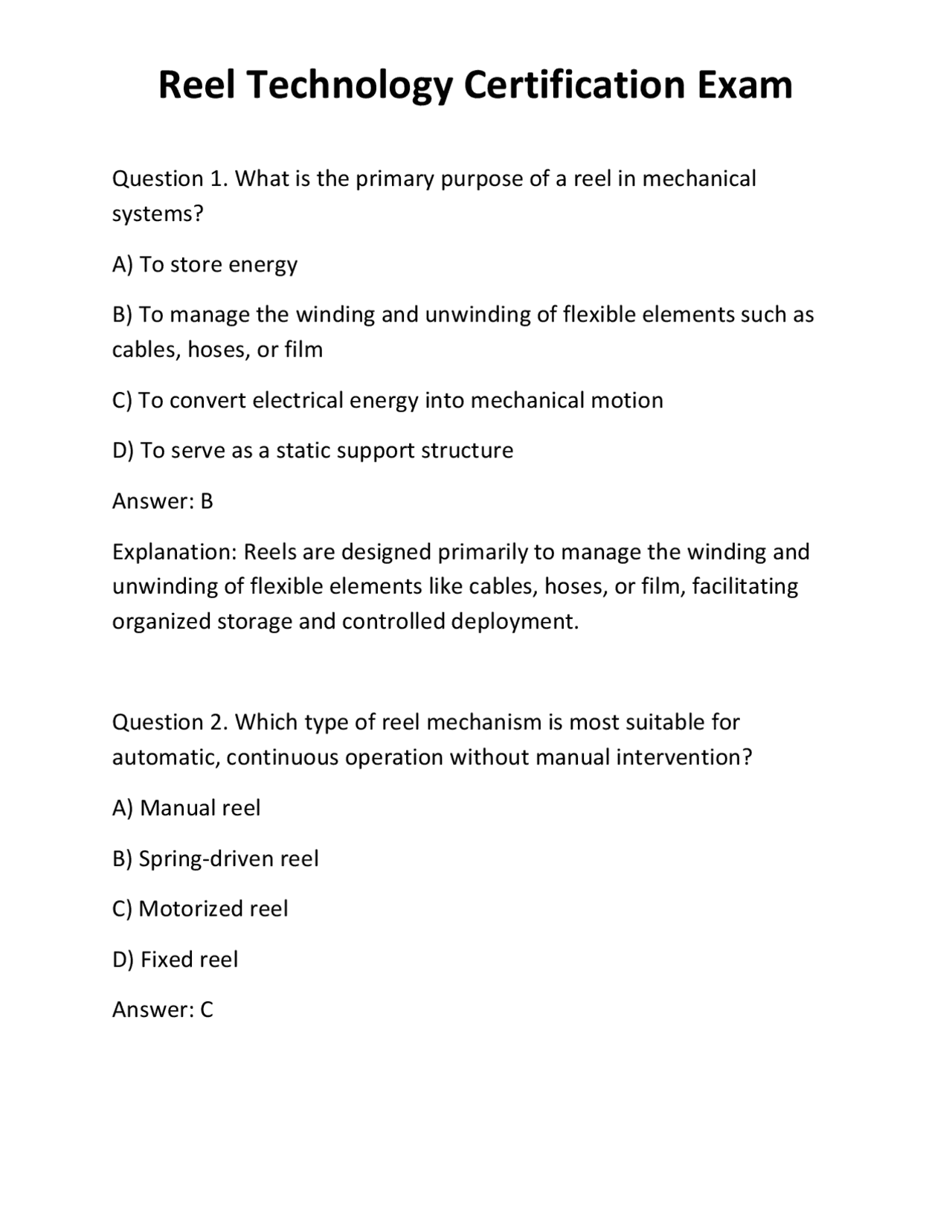

Question 1. What is the primary purpose of a reel in mechanical systems? A) To store energy B) To manage the winding and unwinding of flexible elements such as cables, hoses, or film C) To convert electrical energy into mechanical motion D) To serve as a static support structure Answer: B Explanation: Reels are designed primarily to manage the winding and unwinding of flexible elements like cables, hoses, or film, facilitating organized storage and controlled deployment. Question 2. Which type of reel mechanism is most suitable for automatic, continuous operation without manual intervention? A) Manual reel B) Spring-driven reel C) Motorized reel D) Fixed reel Answer: C
Explanation: Motorized reels are equipped with motors enabling automated, continuous operation, ideal for applications requiring frequent or consistent reel movement. Question 3. In reel systems, what component is primarily responsible for preventing over-winding or unwinding? A) Spool B) Flanges C) Braking system D) Guide Answer: C Explanation: The braking system regulates the tension and prevents over-winding or unwinding by applying controlled resistance during reel operation. Question 4. Which material property is most critical when selecting plastics for reel construction in corrosive environments? A) Flexibility B) Electrical conductivity C) Corrosion resistance D) Transparency
Explanation: Reels are classified based on their application, such as cable reels, hose reels, film reels, which reflects their specific use-case and design. Question 7. Which of the following is a standard terminology used to specify a reel's capacity? A) Flange material B) Traverse length C) Core diameter D) Reel weight Answer: C Explanation: Core diameter is a standard specification indicating the size of the central core around which the material is wound, influencing capacity and compatibility. Question 8. When designing a reel for high environmental stress, which material property is most desirable? A) High electrical conductivity B) Lightweight C) High strength and corrosion resistance D) Low melting point
Answer: C Explanation: High strength and corrosion resistance ensure the reel withstands environmental stresses without failure or degradation. Question 9. Which drive system is characterized by a direct coupling between the motor and the reel, with minimal gear reduction? A) Geared system B) Belt drive C) Direct drive D) Hydraulic drive Answer: C Explanation: A direct drive involves direct coupling of the motor to the reel, offering smooth operation and minimal mechanical complexity. Question 10. What is the primary function of slip rings in reel systems? A) To provide rotational insulation B) To transfer continuous electrical power and data during rotation C) To regulate tension D) To prevent cable tangling Answer: B
Explanation: Marine reels are specifically designed for deploying and recovering cables or lines in harsh marine environments. Question 13. What is a key component of a film reel in entertainment technology? A) Spool B) Flanges C) Core D) All of the above Answer: D Explanation: Film reels encompass spools, flanges, and cores, which work together to hold and manage film material during projection or storage. Question 14. Which reel type is most suitable for storing and managing digital data in media applications? A) Mechanical film reel B) Digital reel or data reel C) Hose reel D) Fishing reel
Answer: B Explanation: Digital or data reels are used for storing large volumes of digital data, often in compact, high-capacity storage solutions. Question 15. How does the principle of layered winding benefit reel design? A) It reduces manufacturing costs B) It minimizes the reel's weight C) It ensures even distribution of tension and prevents damage D) It simplifies the winding process Answer: C Explanation: Layered winding distributes tension evenly across the material, reducing stress and preventing damage during winding or unwinding. Question 16. Which braking mechanism employs electromagnetic principles for controlling reel motion? A) Friction brake B) Spring clutch C) Electromagnetic brake
D) To prevent corrosion Answer: A Explanation: Shielding cables reduces electromagnetic interference, ensuring signal integrity during data transmission. Question 19. Which sensor type is commonly used in automated reel systems to monitor tension? A) Temperature sensor B) Proximity sensor C) Strain gauge or tension sensor D) Light sensor Answer: C Explanation: Strain gauges or tension sensors measure the tension in the wound material, enabling precise control in automated systems. Question 20. What is the primary function of a hose reel's swivel joint? A) To rotate the hose without twisting B) To increase pressure C) To support weight D) To prevent leaks
Answer: A Explanation: The swivel joint allows the hose to rotate freely, preventing twisting and kinking during operation. Question 21. Which application of reel technology is most associated with the aerospace industry? A) Cable management in ground vehicles B) Deployment of wiring harnesses and control cables C) Garden hose storage D) Fish line retrieval Answer: B Explanation: In aerospace, reels are used for deploying and managing wiring harnesses and control cables in aircraft and spacecraft. Question 22. Historically, what material was predominantly used for early film reels? A) Plastic B) Metal C) Cardboard D) Glass
D) Built-in GPS Answer: B Explanation: Many fishing reels feature multiple gears to control retrieve speed and power, aiding different fishing techniques. Question 25. Which type of reel is most suitable for domestic garden hose storage? A) Motorized hose reel B) Manual hose reel C) Data reel D) Film reel Answer: B Explanation: Manual hose reels are simple, cost-effective solutions suitable for domestic garden hose storage. Question 26. What is a key safety consideration during reel system installation? A) Ensuring aesthetic appeal B) Proper alignment and secure anchoring C) Using the cheapest materials
D) Ignoring environmental factors Answer: B Explanation: Proper alignment and secure anchoring prevent accidents, equipment failure, and ensure operational safety. Question 27. Which operational procedure helps prevent cable or hose damage during loading onto a reel? A) Rapid winding B) Applying excessive tension C) Proper tensioning and controlled winding D) Ignoring torque limits Answer: C Explanation: Proper tensioning and controlled winding prevent kinks, breaks, and damage to the material during loading. Question 28. Which regulation is most relevant for reel safety standards in industrial environments? A) OSHA (Occupational Safety and Health Administration) B) ISO 9001 C) IEEE standards
D) To monitor power consumption only Answer: B Explanation: Maintenance logs document inspections, repairs, and parts replacement, aiding in predictive maintenance and compliance. Question 31. Which component is most likely to be replaced due to wear in a reel's electrical system? A) Flanges B) Slip rings or contacts C) Spool D) Guide Answer: B Explanation: Slip rings or contacts are subject to wear over time due to continuous rotation and electrical contact, necessitating replacement. Question 32. What is a common cause of erratic winding in a reel system? A) Proper tensioning B) Faulty tension control sensor C) Correct lubrication
D) Proper alignment Answer: B Explanation: A faulty tension control sensor can lead to inconsistent tension, causing erratic winding behavior. Question 33. Which tool is most useful for diagnosing electrical issues in reel systems? A) Caliper B) Multimeter C) Allen wrench D) Screwdriver Answer: B Explanation: A multimeter is essential for measuring voltage, current, and resistance, aiding in diagnosing electrical faults. Question 34. When replacing a damaged hose in a reel system, what is critical to ensure proper function? A) Use a hose with larger diameter B) Use compatible materials and proper sealing C) Use the cheapest available hose
C) Working without supervision D) Using uninsulated tools Answer: A Explanation: PPE and lockout/tagout procedures prevent electrical shocks and accidental activation during maintenance. Question 37. Which environmental condition can adversely affect the operation of reel systems? A) High humidity causing corrosion B) Stable temperature C) Clean environment D) Low wind speed Answer: A Explanation: High humidity can promote corrosion and degradation of reel components, affecting reliability and safety. Question 38. In reel design, what is the benefit of using composite materials? A) Increased electrical conductivity B) Reduced weight and improved corrosion resistance
C) Higher cost D) Less strength Answer: B Explanation: Composites offer reduced weight and high corrosion resistance, enhancing reel performance in demanding environments. Question 39. What is the function of a level-winding mechanism in a reel? A) To prevent cable tangling by evenly distributing winding layers B) To increase winding speed C) To control tension electronically D) To mechanically cut the cable Answer: A Explanation: Level-winding mechanisms guide the cable or hose so that layers are evenly distributed, preventing tangling and damage. Question 40. Which industry regulation primarily governs safety standards for reel systems in hazardous environments? A) OSHA B) NFPA (National Fire Protection Association)
