Refactoring - Slides - Programming Language Technologies and Paradigms | CMSC 433, Study notes of Programming Languages

University of MarylandProgramming Languages
Prof. Michael W. Hicks

Material Type: Notes; Professor: Hicks; Class: PROG LANG TECH & PDGMS; Subject: Computer Science; University: University of Maryland; Term: Unknown 1989;

Typology: Study notes

Pre 2010

Uploaded on 02/13/2009

koofers-user-dao
koofers-user-dao 🇺🇸

5

(1)

10 documents

1 / 54

Toggle sidebar

This page cannot be seen from the preview

Don't miss anything!

bg1
1

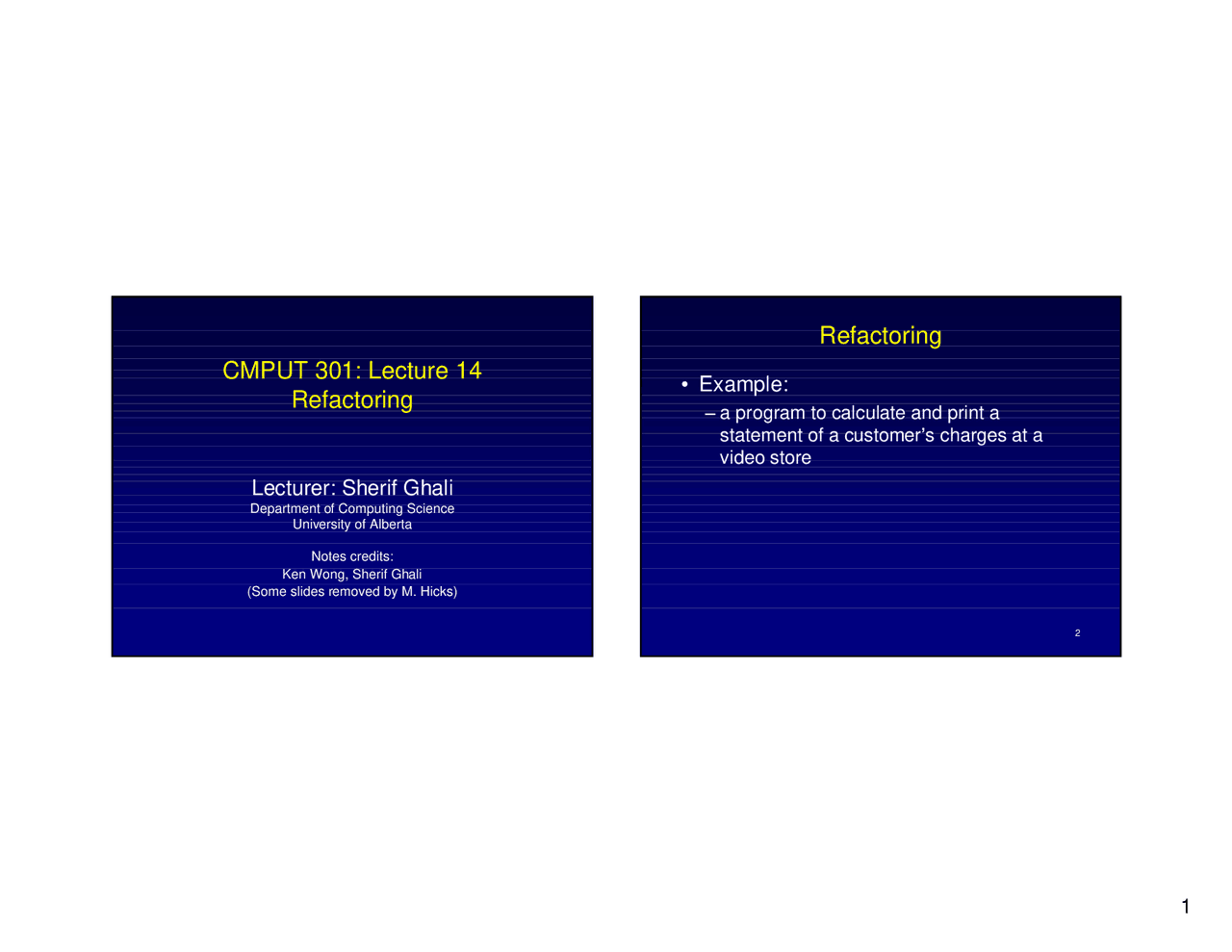

CMPUT 301: Lecture 14
Refactoring
Lecturer:
Sherif
Ghali
Department of Computing Science
University of Alberta
Notes credits:
Ken Wong,
Sherif
Ghali
(Some slides removed by M. Hicks)
2
Refactoring
Example:
a program to calculate and print a
statement of a customer s charges at a
video store
pf3
pf4
pf5
pf8
pf9
pfa
pfd
pfe
pff
pf12
pf13
pf14
pf15
pf16
pf17
pf18
pf19
pf1a
pf1b
pf1c
pf1d
pf1e
pf1f
pf20
pf21
pf22
pf23
pf24
pf25
pf26
pf27
pf28
pf29
pf2a
pf2b
pf2c
pf2d
pf2e
pf2f
pf30
pf31
pf32
pf33
pf34
pf35
pf36

Partial preview of the text

Download Refactoring - Slides - Programming Language Technologies and Paradigms | CMSC 433 and more Study notes Programming Languages in PDF only on Docsity!

CMPUT 301: Lecture 14

Refactoring

Lecturer: Sherif Ghali

Department of Computing Science

University of Alberta

Notes credits:

Ken Wong, Sherif Ghali

(Some slides removed by M. Hicks)

2

Refactoring

Example:

a program to calculate and print a

statement of a customer s charges at a

video store

3

Class Diagram

-priceCode : int
Movie
Rental
-daysRented : int
Customer
+statement()
+getDaysRented (): int
+getPriceCode (): int

4

Movie

public class Movie {
public static final int CHILDRENS = 2;
public static final int REGULAR = 0;
public static final int NEW_RELEASE = 1;
private String _title;
private int _priceCode;
public Movie( String title, int priceCode ) {
_title = title;
_priceCode = priceCode;
public int getPriceCode() {
return _priceCode;
public void setPriceCode( int arg ) {
_priceCode = arg;
public String getTitle() {
return _title;

7

Customer::statement()

public String statement() { double totalAmount = 0; int frequentRenterPoints = 0; Enumeration rentals = _rentals.elements(); String result = Rental Record for + getName() + \n ;

while (rentals.hasMoreElements()) { double thisAmount = 0; Rental each = (Rental)rentals.nextElement();

// determine amounts for each line switch (each.getMovie().getPriceCode()) { case Movie.REGULAR: thisAmount += 2; if (each.getDaysRented() > 2) thisAmount += (each.getDaysRented() - 2) * 1.5; break; case Movie.NEW_RELEASE: thisAmount += each.getDaysRented() * 3; break; case Movie.CHILDRENS: thisAmount += 1.5; if (each.getDaysRented() > 3) thisAmount += (each.getDaysRented() - 3) * 1.5; break; }

8

Customer::statement()

// add frequent renter points frequentRenterPoints++; // add bonus for a two day new release rental if ((each.getMovie().getPriceCode() == Movie.NEW_RELEASE) && each.getDaysRented() > 1) frequentRenterPoints++;

// show figures for this rental result += \t + each.getMovie().getTitle() + \t + String.valueOf( thisAmount ) + \n ; totalAmount += thisAmount; }

// add footer lines result += Amount owed is + String.valueOf( totalAmount ) + \n ; result += You earned + String.valueOf( frequentRenterPoints ) + frequent renter points ; return result; } }

9

Refactoring

:Customer :Rental :Movie
* [for all rentals]
getMovie ()
getPriceCode ()
getDaysRented ()
statement()

10

Refactoring

Something is rotten in the state of

Denmark

What is it?

13

Refactoring

First step:

Build self-checking tests.

14

Refactoring

Decompose statement() method:

Extract logical chunk of code as a new

method.

Apply Extract Method.

15

class Customer {

public String statement() { double totalAmount = 0; int frequentRenterPoints = 0; Enumeration rentals = _rentals.elements(); String result = Rental Record for + getName() + \n ;

while (rentals.hasMoreElements()) { double thisAmount = 0; Rental each = (Rental)rentals.nextElement();

// determine amounts for each line switch (each.getMovie().getPriceCode()) { case Movie.REGULAR: thisAmount += 2; if (each.getDaysRented() > 2) thisAmount += (each.getDaysRented() - 2) * 1.5; break; case Movie.NEW_RELEASE: thisAmount += each.getDaysRented() * 3; break; case Movie.CHILDRENS: thisAmount += 1.5; if (each.getDaysRented() > 3) thisAmount += (each.getDaysRented() - 3) * 1.5; break; }

16

Refactoring

class Customer {

public String statement() { double totalAmount = 0; int frequentRenterPoints = 0; Enumeration rentals = _rentals.elements(); String result = Rental Record for + getName() + \n ;

while (rentals.hasMoreElements()) { double thisAmount = 0; Rental each = (Rental)rentals.nextElement();

thisAmount = amountFor( each );

19

Refactoring

Rename variables in amountFor():

Enhance readability.

20

Refactoring

class Customer {

private double amountFor( Rental each ) { double thisAmount = 0; switch (each.getMovie().getPriceCode()) { case Movie.REGULAR: thisAmount += 2; if (each.getDaysRented() > 2) thisAmount += (each.getDaysRented() - 2) * 1.5; break; case Movie.NEW_RELEASE: thisAmount += each.getDaysRented() * 3; break; case Movie.CHILDRENS: thisAmount += 1.5; if (each.getDaysRented() > 3) thisAmount += (each.getDaysRented() - 3) * 1.5; break; } return thisAmount; }

}

21

Refactoring

class Customer {

private double amountFor( Rental aRental ) { double result = 0; switch (aRental.getMovie().getPriceCode()) { case Movie.REGULAR: result += 2; if (aRental.getDaysRented() > 2) result += (aRental.getDaysRented() - 2) * 1.5; break; case Movie.NEW_RELEASE: result += aRental.getDaysRented() * 3; break; case Movie.CHILDRENS: result += 1.5; if (aRental.getDaysRented() > 3) result += (aRental.getDaysRented() - 3) * 1.5; break; } return result; }

}

22

Refactoring

Compile and test.

What do we do next?

25

Refactoring

class Rental {

double getCharge() { double result = 0; switch (getMovie().getPriceCode()) { case Movie.REGULAR: result += 2; if (getDaysRented() > 2) result += (getDaysRented() - 2) * 1.5; break; case Movie.NEW_RELEASE: result += getDaysRented() * 3; break; case Movie.CHILDRENS: result += 1.5; if (getDaysRented() > 3) result += (getDaysRented() - 3) * 1.5; break; } return result; }

}

26

Refactoring

class Customer {

private double amountFor( Rental aRental ) { return aRental.getCharge(); }

}

27

Refactoring

Compile and test.

28

Refactoring

Replace references to amountFor()

with getCharge():

Adjust references to old method to use

new method.

Remove old method.

31

Refactoring

Compile and test.

32

Refactoring

Eliminate thisAmount temporary in

statement():

Replace redundant temporary variable with

query.

Apply Replace Temp with Query.

33

Refactoring

class Customer {

public String statement() { double totalAmount = 0; int frequentRenterPoints = 0; Enumeration rentals = _rentals.elements(); String result = Rental Record for + getName() + \n ;

while (rentals.hasMoreElements()) { double thisAmount = 0; Rental each = (Rental)rentals.nextElement();

thisAmount = each.getCharge();

// add frequent renter points frequentRenterPoints++; // add bonus for a two day new release rental if ((each.getMovie().getPriceCode() == Movie.NEW_RELEASE) && each.getDaysRented() > 1) frequentRenterPoints++;

// show figures for this rental result += \t + each.getMovie().getTitle() + \t + String.valueOf( thisAmount ) + \n ; totalAmount += thisAmount; }

34

Refactoring

class Customer {

public String statement() { double totalAmount = 0; int frequentRenterPoints = 0; Enumeration rentals = _rentals.elements(); String result = Rental Record for + getName() + \n ;

while (rentals.hasMoreElements()) { Rental each = (Rental)rentals.nextElement();

// add frequent renter points frequentRenterPoints++; // add bonus for a two day new release rental if ((each.getMovie().getPriceCode() == Movie.NEW_RELEASE) && each.getDaysRented() > 1) frequentRenterPoints++;

// show figures for this rental result += \t + each.getMovie().getTitle() + \t + String.valueOf( each.getCharge() ) + \n ; totalAmount += each.getCharge(); }

37

Refactoring

class Customer {

public String statement() { double totalAmount = 0; int frequentRenterPoints = 0; Enumeration rentals = _rentals.elements(); String result = Rental Record for + getName() + \n ;

while (rentals.hasMoreElements()) { Rental each = (Rental)rentals.nextElement();

// add frequent renter points frequentRenterPoints += each.getFrequentRenterPoints();

// show figures for this rental result += \t + each.getMovie().getTitle() + \t + String.valueOf( each.getCharge() ) + \n ; totalAmount += each.getCharge(); }

38

Refactoring

class Rental {

int getFrequentRenterPoints() { if ((getMovie().getPriceCode() == Movie.NEW_RELEASE) && getDaysRented() > 1) return 2; else return 1; }

}

39

Refactoring

Eliminate totalAmount temporary:

Apply Replace Temp with Query.

40

Refactoring

class Customer {

public String statement() { double totalAmount = 0; int frequentRenterPoints = 0; Enumeration rentals = _rentals.elements(); String result = Rental Record for + getName() + \n ;

while (rentals.hasMoreElements()) { Rental each = (Rental)rentals.nextElement();

// add frequent renter points frequentRenterPoints += each.getFrequentRenterPoints();

// show figures for this rental result += \t + each.getMovie().getTitle() + \t + String.valueOf( each.getCharge() ) + \n ; totalAmount += each.getCharge(); }

// add footer lines result += Amount owed is + String.valueOf( totalAmount ) + \n ; result += You earned + String.valueOf( frequentRenterPoints ) + frequent renter points ; return result; } }
