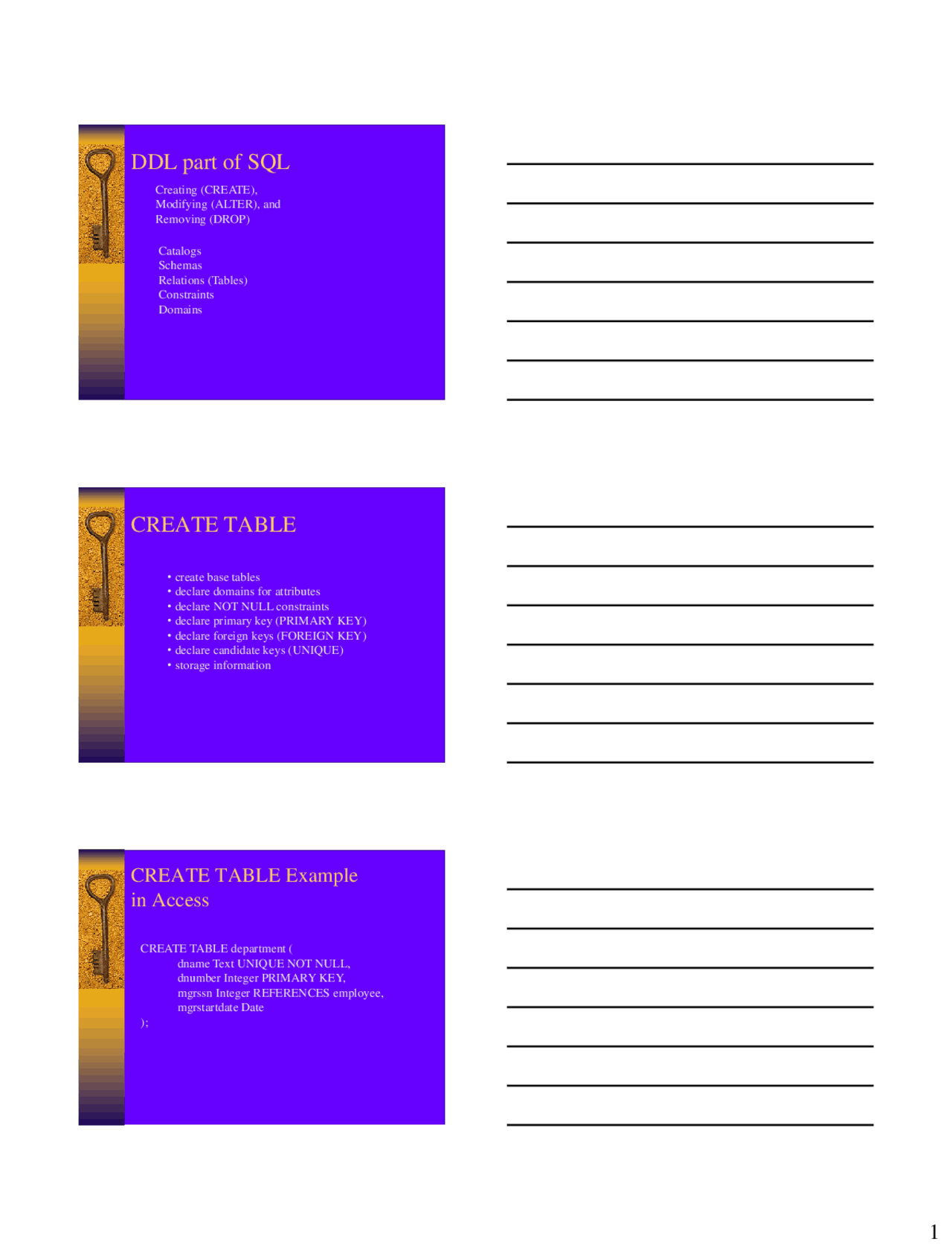

DDL part of SQL
Creating (CREATE), Modifying (ALTER), and Removing (DROP) Catalogs Schemas Relations (Tables) Constraints Domains
CREATE TABLE
- create base tables
- declare domains for attributes
- declare NOT NULL constraints
- declare primary key (PRIMARY KEY)
- declare foreign keys (FOREIGN KEY)
- declare candidate keys (UNIQUE)
- storage information
CREATE TABLE Example
in Access
CREATE TABLE department ( dname Text UNIQUE NOT NULL, dnumber Integer PRIMARY KEY, mgrssn Integer REFERENCES employee, mgrstartdate Date );
CREATE TABLE Example
in Access
CREATE TABLE dependent ( essn Integer, dependent_name Text, sex Text, bdate Date, relationship Text, CONSTRAINT deppk PRIMARY KEY (essn,dependent_name), CONSTRAINT empfk FOREIGN KEY (essn) references employee );
Tables and Data Types (SQL2)
Numeric: integer(n) (SQLServer: int) decimal(p,s) (or number(p,s)) Character: char(n) varchar(n) Other: date time (SQLServer: datetime) p: precision (total #digits) s: scale (#digits after .)
Tables and Data Types (Access)
Numeric: number, integer Character: text (only up to 255 characters) Other: Yes/No Date/Time Currency (15 + 4) Memo (64K text) Hyperlink OLE Object Autonumber
Referential Triggered Action III
Find further examples for ON UPDATE CASCADE ON DELETE CASCADE ON DELETE SET NULL ON DELETE SET DEFAULT Find strategies for foreign keys in company database
Dropping Tables
Drop behaviors: cascade and restrict DROP TABLE Dependent CASCADE; DROP TABLE Dependent RESTRICT; only drops if no element of table is referenced
Altering Tables
ALTER TABLE table_name ADD attribute; ADD constraint; DROP attribute [CASCADE|RESTRICT] DROP constraint_name [CASCADE|RESTRICT] ALTER attribute [DROP DEFAULT| SET DEFAULT value]
Altering Tables Examples
ALTER TABLE employees ADD Age Number; ALTER TABLE employees ADD FOREIGN KEY dno REFERENCES Department(dnumber); ALTER TABLE employees DROP empsuperfk;
Dependencies between Tables
Some systems do not allow references to tables that do not exist yet. Two solutions: if no cyclical dependencies: create tables in right order in case of cyclical dependencies: create tables without f.k. constraints, and use ALTER TABLE to add these later (Example: companyaccess.sql)
Views
A view is a virtual table based on one or more defining tables ; in SQL it is created as the result of a select query. CREATE VIEW view_name AS SELECT … ; Or (to name columns) CREATE VIEW view_name(column names) AS SELECT …;
View Updates
Updating views can be problematic:
- Changing views on single tables without aggregates usually works (view should contain primary key).
- What does it mean to increase the number of employees in the depts_info view? (Problem: aggregate functions)
