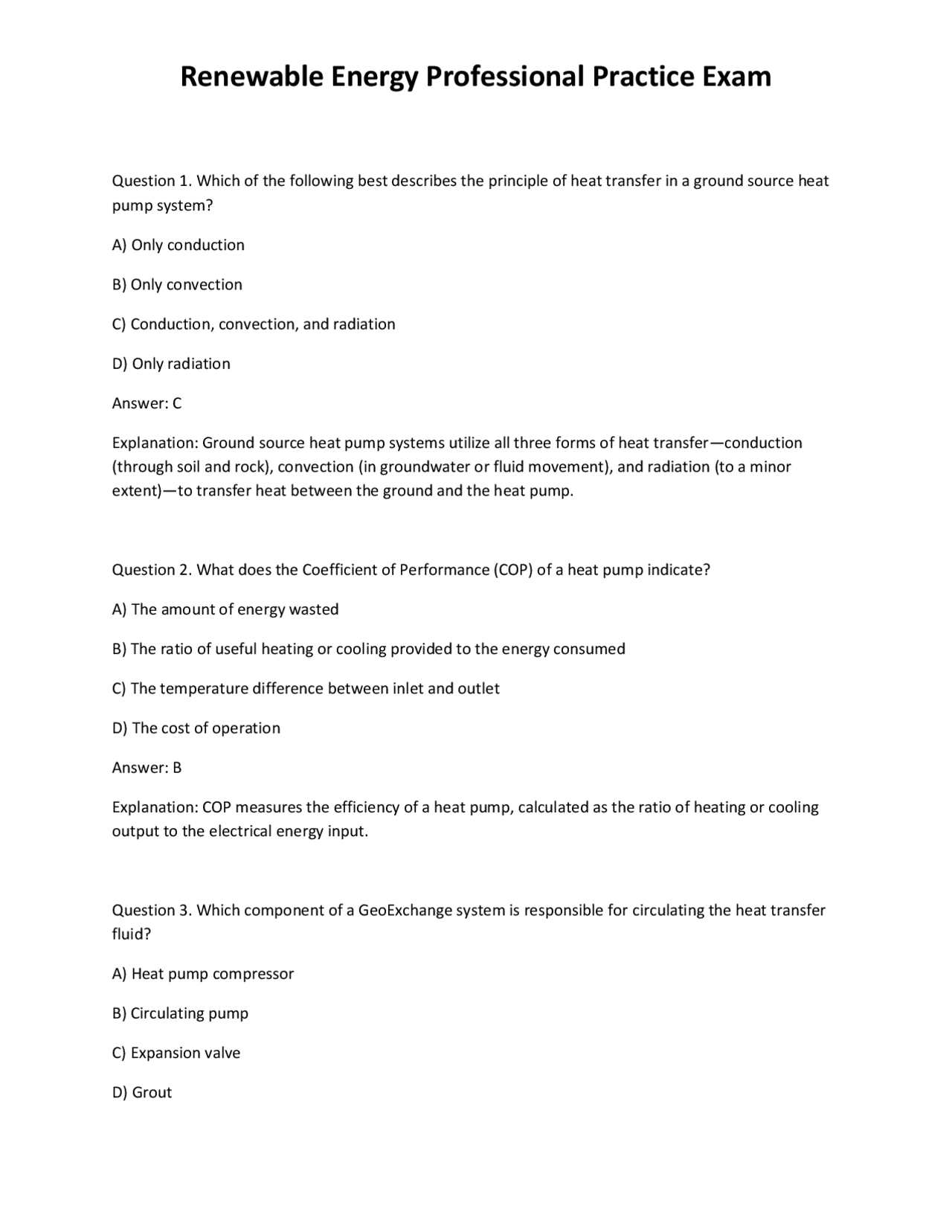

Question 1. Which of the following best describes the principle of heat transfer in a ground source heat pump system? A) Only conduction B) Only convection C) Conduction, convection, and radiation D) Only radiation Answer: C Explanation: Ground source heat pump systems utilize all three forms of heat transfer—conduction (through soil and rock), convection (in groundwater or fluid movement), and radiation (to a minor extent)—to transfer heat between the ground and the heat pump. Question 2. What does the Coefficient of Performance (COP) of a heat pump indicate? A) The amount of energy wasted B) The ratio of useful heating or cooling provided to the energy consumed C) The temperature difference between inlet and outlet D) The cost of operation Answer: B Explanation: COP measures the efficiency of a heat pump, calculated as the ratio of heating or cooling output to the electrical energy input. Question 3. Which component of a GeoExchange system is responsible for circulating the heat transfer fluid? A) Heat pump compressor B) Circulating pump C) Expansion valve D) Grout
Answer: B Explanation: The circulating pump moves the heat transfer fluid through the ground loop and heat pump to transfer heat. Question 4. Which ground loop system is best suited for areas with limited land availability? A) Horizontal closed loop B) Vertical closed loop C) Pond/lake loop D) Slinky loop Answer: B Explanation: Vertical closed loop systems require less surface area and are ideal for sites with limited space. Question 5. What is the primary function of grout in a vertical borehole GeoExchange system? A) Preventing pipe corrosion B) Enhancing electrical conductivity C) Providing thermal contact and sealing the borehole D) Lubricating the loop pipe Answer: C Explanation: Grout ensures good thermal contact between the pipe and ground and prevents vertical water movement. Question 6. Which term refers to the measure of how easily heat flows through the ground? A) Thermal diffusivity B) Thermal conductivity
A) No need for heat exchangers B) Lower installation cost if a suitable water body exists C) Always more efficient than other types D) Works in all climates Answer: B Explanation: Pond/lake loops can be cost-effective if a suitable body of water is available, as they require less drilling or trenching. Question 10. What is the ground loop heat exchanger (GLHE)? A) The refrigerant circuit inside the heat pump B) The piping network installed in the ground or water C) The air duct system in the building D) The expansion valve Answer: B Explanation: The GLHE is the network of pipes in the ground or water that exchanges heat with the surrounding environment. Question 11. Which of the following is NOT an open-loop GeoExchange system consideration? A) Water quality B) Water availability C) Borehole thermal resistance D) Water reinjection Answer: C Explanation: Borehole thermal resistance is crucial for closed-loop systems, while open-loop systems must consider water quality, availability, and reinjection.
Question 12. What is borehole thermal resistance ($R_b$)? A) Resistance to water flow in the pipe B) Resistance to heat flow from the borehole wall to the fluid C) Resistance to refrigerant flow D) Resistance to air flow in the building Answer: B Explanation: $R_b$ is the resistance to heat transfer from the borehole wall to the circulating fluid, affecting system performance. Question 13. Which refrigerant is considered environmentally friendly for use in modern heat pumps? A) R- 22 B) R-410A C) R- 12 D) R-134a Answer: B Explanation: R-410A is a common, environmentally friendlier alternative to older refrigerants like R-22. Question 14. How does groundwater flow affect open-loop GeoExchange system performance? A) Reduces water quality B) Increases heat transfer rates C) Decreases energy efficiency D) Causes grouting issues Answer: B
Answer: B Explanation: Methanol is effective but poses risks due to its toxicity and flammability. Question 18. What is the main function of a heat exchanger in an open-loop system? A) Increase water flow B) Separate building loop from groundwater loop C) Reduce pipe diameter D) Store thermal energy Answer: B Explanation: Heat exchangers prevent cross-contamination between groundwater and the building's closed loop. Question 19. What does the term “thermal diffusivity” refer to in ground heat transfer analysis? A) Speed of sound in soil B) The rate at which temperature changes spread through a material C) Water permeability of the soil D) Soil electrical conductivity Answer: B Explanation: Thermal diffusivity indicates how quickly heat spreads through soil or rock. Question 20. Why is variable speed pumping (VSP) beneficial in GeoExchange systems? A) Increases installation cost B) Minimizes parasitic power consumption C) Reduces system reliability
D) Increases borehole depth requirement Answer: B Explanation: VSP matches pump speed to system demand, reducing unnecessary energy use. Question 21. What is the main consideration when choosing between vertical and horizontal closed-loop systems? A) Type of heat pump B) Land availability and soil conditions C) Refrigerant charge D) Size of buffer tank Answer: B Explanation: Vertical loops are used where land area is limited or soil conditions are unsuitable for trenching. Question 22. What is the specific capacity of an aquifer? A) Volume of water per unit area per unit drawdown B) The thermal conductivity of the soil C) The chemical composition of groundwater D) The depth of the water table Answer: A Explanation: Specific capacity measures how much water an aquifer can yield per unit drawdown. Question 23. Which ASHRAE procedure is commonly used for building energy load calculations? A) Bin method B) Degree-day method
B) Supplemental heat rejection or addition C) Decreasing ground loop length D) Lowering antifreeze concentration Answer: B Explanation: Adding heat rejection equipment or supplemental heat sources can correct annual thermal imbalances. Question 27. What is the primary factor affecting drilling costs in GeoExchange systems? A) Type of heat pump B) Depth and geology of the borehole C) Refrigerant selection D) Ground loop fusion method Answer: B Explanation: Drilling cost is primarily determined by the required depth and ground conditions. Question 28. What is the recommended method for installing grout in a vertical borehole? A) Pouring from surface B) Tremie pipe placement C) Spraying D) Pumping from header Answer: B Explanation: A tremie pipe ensures grout is placed from the bottom up, preventing voids and ensuring proper sealing.
Question 29. Which internal distribution system is most compatible with low-temperature GeoExchange supply water? A) Radiant floor heating B) Standard air handlers C) Direct expansion coils D) Baseboard radiators Answer: A Explanation: Radiant floors operate efficiently at the lower temperatures supplied by GeoExchange systems. Question 30. Why is pressure testing important after fusing HDPE piping? A) To check color uniformity B) To ensure leak-free joints and system integrity C) To increase R-value D) To lubricate the pipes Answer: B Explanation: Pressure testing verifies that fusions are leak-proof before covering or charging the system. Question 31. Which property of antifreeze solution most affects pump sizing? A) Odor B) Viscosity C) Color D) Toxicity Answer: B Explanation: Higher viscosity increases pump head requirements, affecting pump selection.
Explanation: Life-cycle cost analysis evaluates total costs and savings over the system's life versus other solutions. Question 35. Which type of well is typically used for open-loop GeoExchange systems? A) Monitoring well B) Supply and reinjection wells C) Oil well D) Artesian well Answer: B Explanation: Open-loop systems use a supply well to extract water and a reinjection well to return it to the source. Question 36. Why are maintenance manuals important for GeoExchange installations? A) To reduce drilling time B) To guide owners on proper operation and maintenance C) To increase ground temperature D) To select antifreeze Answer: B Explanation: Maintenance manuals ensure the owner can keep the system running efficiently and safely. Question 37. Which factor has the greatest impact on the energy efficiency ratio (EER) of a heat pump? A) Entering fluid temperature B) Pipe color C) Grout manufacturer D) Header pipe size
Answer: A Explanation: The temperature of the fluid entering the heat pump significantly affects its EER. Question 38. What is the purpose of a hydrogeological assessment in open-loop systems? A) Determining the type of antifreeze B) Evaluating aquifer suitability and preventing thermal interference C) Selecting the heat pump size D) Calculating R-value Answer: B Explanation: Hydrogeological assessment ensures the aquifer is suitable and helps avoid negative impacts like drawdown or interference. Question 39. Which installation quality step ensures proper removal of air from the ground loop? A) Fusion testing B) Purging and charging the loop C) Pressure grouting D) Pump selection Answer: B Explanation: Purging removes air pockets, which would otherwise reduce heat transfer and cause pump cavitation. Question 40. What is the primary environmental benefit of GeoExchange systems? A) Lower refrigerant cost B) Reduced greenhouse gas emissions C) Higher drilling cost
C) Increases EER D) Reduces antifreeze usage Answer: B Explanation: Adequate spacing prevents excess heat buildup or depletion between adjacent boreholes. Question 44. What does SEER stand for in cooling systems? A) Seasonal Energy Efficiency Ratio B) Standard Energy Exchange Rate C) System Energy Emission Rating D) Solar Energy Efficiency Ratio Answer: A Explanation: SEER measures a cooling system’s efficiency over an average cooling season. Question 45. What is the recommended method for verifying heat pump performance after installation? A) Checking refrigerant color B) Measuring entering and leaving fluid temperatures C) Listening for unusual sounds D) Weighing the heat pump Answer: B Explanation: Monitoring fluid temperatures in and out of the heat pump confirms operational performance. Question 46. Which material is generally NOT recommended for GeoExchange ground loops? A) HDPE
B) PEX
C) Steel D) Cross-linked polyethylene Answer: C Explanation: Steel corrodes and is not flexible, making it unsuitable for buried GeoExchange piping. Question 47. What is the main regulatory concern for open-loop GeoExchange systems? A) Water usage and discharge permits B) Grout composition C) Pipe wall thickness D) System color Answer: A Explanation: Open-loop systems must comply with water extraction and discharge regulations to protect resources. Question 48. Why are incentives and rebates important in GeoExchange project economics? A) They increase drilling cost B) They reduce initial capital investment, improving financial viability C) They decrease system efficiency D) They limit system size Answer: B Explanation: Incentives lower the upfront cost, making GeoExchange systems more attractive to owners. Question 49. What is the impact of adding too much antifreeze to the ground loop fluid?
Question 52. What is the effect of high groundwater flow on a vertical closed-loop system? A) Reduces heat transfer B) Increases heat transfer C) Damages piping D) Increases antifreeze requirement Answer: B Explanation: High groundwater flow enhances heat exchange by carrying away or delivering more heat. Question 53. Which heat pump type is used for hot water production in GeoExchange systems? A) Water-to-air B) Water-to-water C) Air-to-air D) Direct expansion Answer: B Explanation: Water-to-water heat pumps are ideal for hot water or hydronic heating applications. Question 54. What is the main consideration when sizing a circulating pump? A) Pump color B) System flow rate and total head loss C) Refrigerant charge D) Borehole diameter Answer: B Explanation: Proper sizing ensures adequate flow against the system’s total resistance.
Question 55. Which is a common cause of thermal depletion in ground loops? A) Over-sizing the ground loop B) Annual thermal imbalance (excess extraction or rejection) C) Using HDPE piping D) Using variable speed pumps Answer: B Explanation: If the system extracts or rejects more heat annually than the ground can absorb or supply, depletion occurs. Question 56. Which of the following best describes “slinky” loop configurations? A) Vertical boreholes only B) Coiled horizontal piping in trenches C) Open-loop wells D) Above-ground piping Answer: B Explanation: Slinky loops are coiled HDPE pipes placed in horizontal trenches to increase pipe length per trench. Question 57. Which factor is NOT required to calculate borehole length for a vertical closed-loop system? A) Peak heating/cooling load B) Ground thermal conductivity C) Color of piping D) Borehole thermal resistance Answer: C
